Solar mounting brackets are a critical component in the renewable energy industry, providing secure and durable support for solar panels. The demand for precision and efficiency in producing these brackets has led to the development of Solar Mounting Bracket Roll Forming Machines. This guide explores the features, specifications, applications, and benefits of these machines, along with insights into setup, maintenance, and pricing.

Full Machine Description

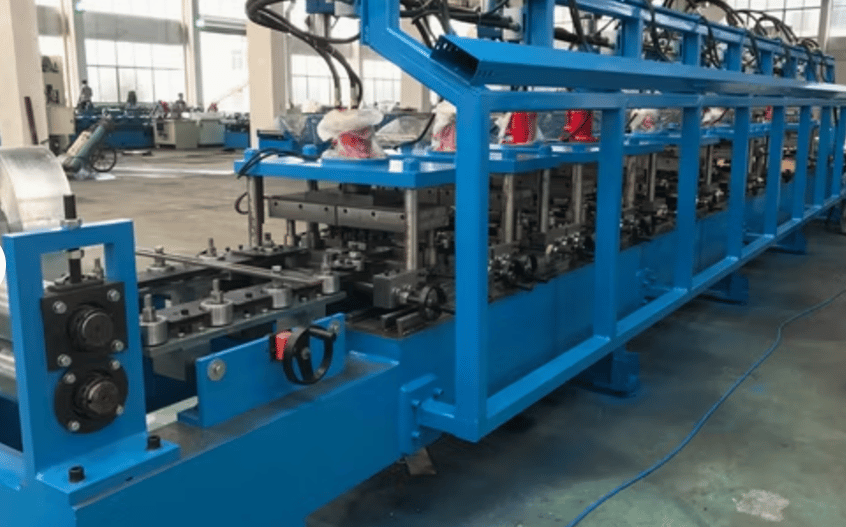

A Solar Mounting Bracket Roll Forming Machine is designed to produce high-quality solar mounting brackets with precision and speed. These machines are equipped with advanced automation technologies, ensuring consistent output for industrial-scale manufacturing. With customizable configurations, these machines cater to various bracket designs and industry needs.

Machine Specifications

Roller Materials: High-grade steel rollers with heat treatment for durability and precision.
Punching and Notching: Integrated hydraulic or servo-controlled punching and notching systems for custom cutouts.
Servo Motors: High-performance servo motors for precise and efficient operations.
Hydraulic Cutting Systems: Automated hydraulic cutters for clean, burr-free edges.
Frame Size: Heavy-duty steel frame ensuring stability during operation.
Motors: Energy-efficient motors with variable speed settings.
PLC System: Advanced PLC systems for automated control and monitoring.
Machine Speed: Capable of producing up to 30-50 meters per minute, depending on configuration.
Safety Guards and Enclosures: Comprehensive safety systems to ensure operator safety, including enclosed guards and emergency stop mechanisms.

Profile Description

Materials: Typically made from galvanized steel, aluminum, or stainless steel for corrosion resistance.
Sizes: Brackets can be manufactured in various sizes to accommodate different solar panel configurations.
Material Gauge: Common thickness ranges from 1.5mm to 3mm, depending on application requirements.
Market Size: The solar mounting bracket market is growing exponentially, driven by the global push for renewable energy. These brackets are essential for residential, commercial, and industrial solar installations.
Industries Using This Profile: Renewable energy, construction, and infrastructure sectors.

Popular Countries and Reasons

Most Popular Countries: USA, Germany, China, India, and Australia.
Reasons: These countries are leaders in renewable energy adoption, with substantial investments in solar power infrastructure and supportive government policies.

Optional Extras

Stackers: Automated stacking systems for organized output.
Remote PLC Systems: Remote operation and monitoring for better control and efficiency.
Coil Car Tippers: Streamlines the loading of raw materials.
Uncoilers and Recoilers: Automated handling of coils for seamless production.
Automatic Stackers: For precise stacking and packaging of finished products.
Leveling Systems: Ensures flat and even material feeding.
Coil Handling Systems: Complete coil management solutions to improve productivity.

Machine Pricing

Low-End Models: Basic models start from $50,000.
Mid-Range Models: Advanced configurations range from $100,000 to $200,000.
High-End Models: Fully automated systems with premium features can exceed $300,000.

Setup and Installation

Site Preparation: Ensure the workspace meets size, power, and safety requirements.
Machine Assembly: Assemble the machine components as per the manufacturer’s guidelines.
Calibration: Calibrate rollers, cutters, and PLC systems for accurate operations.
Trial Runs: Conduct test runs to ensure all components are functioning correctly.
Operator Training: Train staff on operation and safety protocols.

Maintenance

Daily Checks: Inspect rollers, motors, and PLC systems for any irregularities.
Lubrication: Regularly lubricate moving parts to reduce wear and tear.
Cleaning: Keep the machine clean to prevent material buildup.
Scheduled Servicing: Perform routine maintenance as per the manufacturer’s schedule.
Spare Parts: Keep essential spare parts on hand to minimize downtime.

Questions and Answers

Q: What materials can this machine process? A: The machine can process galvanized steel, aluminum, and stainless steel, with a thickness range of 1.5mm to 3mm.

Q: What is the typical production speed? A: Depending on the configuration, the machine can produce between 30-50 meters per minute.

Q: Is the machine customizable? A: Yes, the machine can be customized to produce various bracket profiles and sizes.

Q: What are the power requirements? A: Power requirements vary by model, typically ranging from 380V to 440V.

Q: How long does installation take? A: Installation typically takes 2-5 days, depending on site readiness and machine complexity.

Conclusion

Solar Mounting Bracket Roll Forming Machines are an indispensable tool for the renewable energy sector, offering efficiency, precision, and scalability. With a range of configurations, optional extras, and robust designs, these machines meet the growing demands of solar infrastructure worldwide.
