Roll Forming Machine Operation and Maintenance Manual

Table of Contents

1. Introduction
   • Purpose of the Manual
   • Machine Description
   • Safety Instructions
2. Machine Components Overview
   • Main Frame
   • Rollers and Shafts
   • Drive System
   • Control Panel
   • Uncoiler/Decoiler
   • Runout Table
3. Installation Instructions
   • Site Requirements
   • Tools Required for Installation
   • Electrical Connections
   • Initial Machine Setup
   • Uncoiling System Setup
   • Runout Table Setup
4. Operation Instructions
   • Pre-Operation Checklist
   • Control Panel Functions
   • Loading the Coil
   • Feeding Material into the Rollers
   • Starting and Stopping the Machine
   • Adjusting Rollers and Clearance
   • Running the Roll Forming Machine
   • Removing Formed Panels
5. Safety Guidelines
   • Personal Protective Equipment (PPE)
   • Machine Guards and Barriers
   • Emergency Stop Button Location and Function
   • Lockout/Tagout Procedure
   • Handling and Storage of Metal Coils
6. Maintenance Schedule
   • Daily Maintenance
     • Lubrication of Rollers and Moving Parts
     • Checking Roller Alignment
     • Inspecting Hydraulic Systems
     • Cleaning the Machine
   • Weekly Maintenance
     • Electrical System Inspection
     • Checking Drive System Tension
   • Monthly Maintenance
     • Thorough Roller Inspection for Wear
     • Checking Bearings and Shafts for Movement
     • Examining Machine Structure
   • Quarterly Maintenance
     • Full Machine Calibration
     • Testing Safety Features
   • Annual Maintenance
     • Full Machine Overhaul and Servicing
7. Troubleshooting Guide
   • Common Issues and Solutions
     • Misalignment of Rollers
     • Inconsistent Panel Dimensions
     • Hydraulic System Failure
     • Material Jammed in Rollers
     • Machine Overheating
   • Error Codes (if applicable)
8. Parts Replacement
   • Identifying Worn Components
   • Replacing Rollers
   • Drive Belt Replacement
   • Hydraulic Components Replacement
   • Electrical Components Replacement
   • Ordering Spare Parts
9. Technical Specifications
   • Machine Dimensions
   • Electrical Requirements
   • Maximum Coil Size and Weight
   • Machine Capacity (Speed, Thickness, Width)
   • Roll Material and Specifications
10. Warranty and Support
    • Warranty Terms
    • Contact Information for Technical Support
    • Procedure for Warranty Claims

1. Introduction

Purpose of the Manual

This manual provides comprehensive information on the safe and efficient operation, installation, and maintenance of the roll forming machine. It is intended for machine operators, maintenance personnel, and technicians responsible for the machine's upkeep.

Machine Description

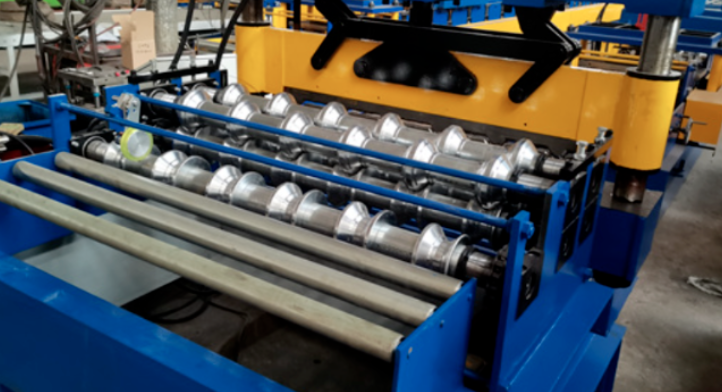

The roll forming machine is designed to form metal sheets into desired profiles by passing the material through a series of adjustable rollers. It is equipped with a hydraulic system, drive motor, and a control panel for automated operation. The machine can be used for various applications including roofing, siding, and structural steel components.

Safety Instructions

• Always wear appropriate personal protective equipment (PPE) including gloves, safety goggles, and hearing protection.
• Ensure all safety guards and barriers are in place before operating the machine.
• Do not attempt to operate the machine if unfamiliar with its controls or without proper training.
• Follow lockout/tagout procedures during maintenance or when clearing material jams.
• Never stand or reach into the machine while it is operating.

2. Machine Components Overview

• Main Frame: The sturdy base of the machine that houses and supports all other components.
• Rollers and Shafts: These are the main components responsible for forming the metal into the desired profile. Proper alignment is crucial for quality results.
• Drive System: Typically consists of a motor and chain/belt drive that powers the rollers.
• Control Panel: Allows the operator to start, stop, and control the machine. May include programmable settings for automatic operation.
• Uncoiler/Decoiler: Holds the metal coil in place and feeds it into the rollers.
• Runout Table: Supports the formed product as it exits the machine.

3. Installation Instructions

Site Requirements

• Ensure that the machine is installed on a level surface with adequate space for operation and maintenance.
• Ensure electrical power supply matches machine specifications (see technical specifications section).

Tools Required for Installation

• Wrenches, screwdrivers, and other hand tools.
• Level and alignment tools.
• Hoist or crane (for handling heavy coils and machine components).

Electrical Connections

• Ensure that all wiring complies with local electrical codes.
• Ground the machine to avoid electrical hazards.

Initial Machine Setup

• Secure the machine to the ground to prevent movement during operation.
• Connect the hydraulic and electrical systems according to the provided diagrams.

Uncoiling System Setup

• Mount the coil on the uncoiler and feed the material into the machine’s input section.

Runout Table Setup

• Adjust the height and position of the runout table to align with the exit of the roll forming machine.

4. Operation Instructions

Pre-Operation Checklist

• Check that all machine guards are in place.
• Verify that the electrical and hydraulic systems are functioning properly.
• Ensure the rollers are aligned and properly lubricated.

Control Panel Functions

• Start/Stop: Engage or disengage the machine.
• Emergency Stop: Instantly halts the machine in case of danger.
• Speed Control: Adjusts the operating speed of the rollers.

Loading the Coil

• Use a hoist to safely load the metal coil onto the uncoiler.
• Secure the coil and feed the material into the rollers.

Running the Roll Forming Machine

• Start the machine and monitor the forming process.
• Regularly check the material to ensure proper alignment and quality.

5. Safety Guidelines

...

6. Maintenance Schedule

...

7. Troubleshooting Guide

...

End of Manual
