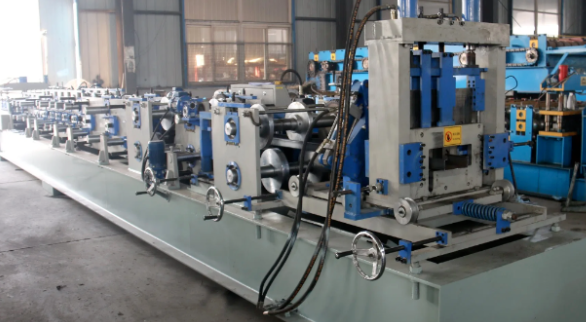

What are the Key Components of a High-Quality Roll Forming Machine?
Below are the key components of a high-quality roll forming machine and their role in ensuring optimal efficiency, precision, and durability.
A well-designed roll forming machine is a combination of precise engineering and high-quality components that work together to transform metal coils into specific shapes and profiles. Understanding the essential parts of a roll forming machine and how they affect performance is crucial for manufacturers and operators. Below are the key components of a high-quality roll forming machine and their role in ensuring optimal efficiency, precision, and durability.
1. Rollers
Rollers are the heart of the roll forming machine. They gradually shape the flat metal coil into the desired profile through a series of forming stages. High-quality rollers are typically made from hardened steel or tool-grade materials to ensure long-lasting durability and precision shaping.
Why They Matter: Precision in roller design directly impacts the accuracy of the final product. High-quality rollers help ensure uniform profiles and reduce deformation, enabling the production of consistent components. Poor-quality rollers can lead to inaccuracies in profile shapes, leading to rework and waste.
2. Drive System
The drive system powers the rollers and ensures smooth movement of the metal strip through the machine. It typically consists of electric motors and gear systems, which control the speed of the forming process.
Why They Matter: The drive system is crucial for maintaining the synchronization between the various components of the machine. A high-quality drive system will ensure steady operation without jarring movements, which can affect the quality of the finished product. Additionally, variable-speed drives allow for better control over production speed and can help adjust for different material types.
3. Cutoff Unit
The cutoff unit is responsible for cutting the metal strip into the desired lengths after it has been shaped. It is typically either hydraulic or pneumatic and can vary in design depending on the complexity of the profile being produced.
Why They Matter: Precision in the cutoff unit ensures that each component is the correct length. A high-quality cutoff unit will operate swiftly and cleanly, reducing downtime and avoiding damage to the formed parts. Automatic cutoff systems also improve overall machine efficiency by minimizing manual intervention.
4. Uncoiler
The uncoiler holds the metal coil and feeds it into the machine. It is an essential component for ensuring smooth, continuous feeding of material without tangling or jamming.
Why They Matter: The uncoiler’s ability to smoothly feed the metal coil into the machine is vital for maintaining a consistent flow. A poorly designed uncoiler can cause material handling issues, leading to production delays. Hydraulic uncoilers with adjustable tension control are preferred for high-performance roll forming lines.
5. Runout Table
The runout table collects the formed and cut profiles at the end of the production line. It helps prevent damage to finished components and ensures they are safely handled as they exit the machine.
Why They Matter: Without a well-designed runout table, finished profiles may get damaged, affecting their quality. High-quality machines include automated or motorized runout tables that help manage the flow of formed pieces without causing backlogs or mishandling.
6. Control System
Modern roll forming machines come equipped with advanced control systems, often powered by PLC (Programmable Logic Controller) units. These control systems manage everything from machine speed and roller adjustments to cutoff lengths and product tracking.
Why They Matter: A high-quality control system allows for greater automation and precision, reducing the need for manual oversight. It also enables easier adjustments for different profile specifications and improves overall machine performance by ensuring consistent operation.
7. Guiding System
The guiding system ensures that the metal strip stays properly aligned as it moves through the rollers. It typically consists of adjustable guides or side rollers that keep the material on track.
Why They Matter: Misalignment of the metal strip can lead to inaccurate profiles and wasted material. A high-quality guiding system reduces the likelihood of material drifting during the forming process, ensuring each profile is produced with precision.
8. Hydraulic or Pneumatic Systems
These systems are responsible for powering the cutoff unit, material feeders, and sometimes the positioning of certain components like the uncoiler or guiding system.
Why They Matter: Consistent hydraulic or pneumatic pressure is essential for smooth operation. High-quality systems minimize wear and tear on the machine and ensure the smooth functioning of key components like the cutoff unit.
Conclusion
A high-quality roll forming machine is the sum of its parts, each contributing to the overall performance and output quality. From the precision of the rollers to the reliability of the drive system, every component plays a critical role. Investing in high-quality components ensures that the machine runs efficiently, produces consistent profiles, and minimizes downtime, which is vital for manufacturers looking to stay competitive in today's market.
Understanding these essential components helps operators maintain their machines and optimize performance, resulting in higher productivity, better product quality, and reduced operational costs.
