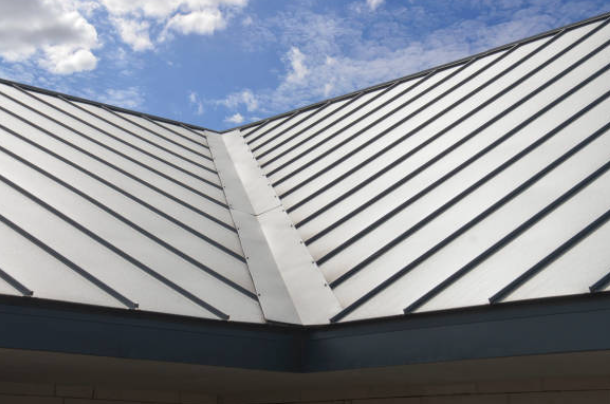

1. Standing Seam Metal Roofing Panels

• Applications: Commonly used in both residential and commercial buildings due to their sleek, modern appearance.
• Advantages:
  • High durability and weather resistance.
  • Seamless finish for excellent water tightness.
  • Suitable for low-slope and steep roofs.
  • Compatible with solar panel installations.
• Materials: Typically made from aluminum, steel, or zinc.

2. Corrugated Metal Roofing Panels

• Applications: Widely used for agricultural, industrial, and traditional buildings in rural areas.
• Advantages:
  • Classic aesthetic appeal, blending well with traditional UK architecture.
  • Cost-effective compared to other profiles.
  • Strong and lightweight, making it easy to install.
• Materials: Usually galvanized steel or aluminum.

Other Popular Options:

• Box Profile Metal Panels: A modern alternative to corrugated panels, offering a clean and uniform look, often used in industrial and commercial settings.
• Tile Effect Metal Panels: Mimic the appearance of traditional clay or slate tiles, ideal for residential properties looking for a balance between modern materials and traditional aesthetics.

These panels are favored in the UK due to their ability to withstand heavy rainfall, strong winds, and occasional snowfall, while providing a long-lasting and low-maintenance roofing solution.

The most common standing seam panel size typically varies depending on the specific application and region, but in general:

Common Sizes for Standing Seam Panels:

1. Panel Width:
   • 12 inches (305 mm) to 18 inches (457 mm)
     • This range is the most common for standing seam panels in both residential and commercial applications.
     • Wider panels (e.g., 18 inches) are often used for larger roofs like commercial buildings to reduce installation time and material costs.
     • Narrower panels (e.g., 12–14 inches) are favored for residential or high-wind areas, offering better rigidity and aesthetics.
2. Seam Height:
   • 1 inch (25 mm) to 1.5 inches (38 mm)
     • The standard height is 1.5 inches, as it provides an ideal balance of aesthetics and water-tightness.
     • Some systems designed for extreme weather conditions may have seams up to 2 inches (50 mm) for enhanced performance.
3. Panel Length:
   • Typically custom cut to fit the roof, but panels can range from 8 feet (2.4 m) to over 40 feet (12.2 m) depending on the building's dimensions.

Material Thickness:

• 24-gauge or 26-gauge steel is the most commonly used thickness for standing seam panels in the UK, though lighter 26-gauge panels are sometimes used in residential settings.

Additional Considerations:

• Locking System: Panels often feature mechanical or snap-lock seams, with snap-lock being more popular for easier installation.
• Material Choices: Zinc, aluminum, and galvanized steel are common in the UK due to their durability and resistance to corrosion in wet climates.

These dimensions balance practicality, durability, and aesthetics, making them suitable for the UK's diverse roofing needs.
