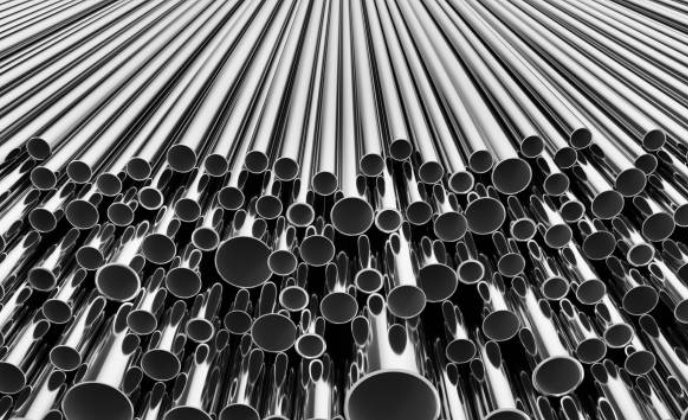

Stainless steel metric tubing

Stainless steel metric tubing is widely used in various industries due to its superior corrosion resistance, strength, and versatility. Metric tubing is measured in millimeters rather than inches, making it the preferred choice for applications in Europe and other regions that use the metric system. This guide explores its properties, types, applications, specifications, benefits, and considerations for selecting the right tubing.

1. What is Stainless Steel Metric Tubing?

Stainless steel metric tubing is a cylindrical tube made from stainless steel and measured in metric units. It is commonly used in fluid and gas transportation, structural applications, and high-temperature environments.

2. Types of Stainless Steel Metric Tubing

There are different types of stainless steel metric tubing based on grade, finish, and manufacturing process:

a. Seamless vs. Welded Tubing

Seamless Tubing: Manufactured without a welded seam, making it stronger and more resistant to pressure.
Welded Tubing: Formed by rolling a stainless steel sheet and welding the seam. It is more cost-effective and suitable for lower-pressure applications.

b. Tubing Grades

Stainless steel metric tubing comes in various grades, with the most common being:

304 Stainless Steel: Excellent corrosion resistance, widely used in food and beverage, pharmaceutical, and general industrial applications.
316 Stainless Steel: Contains molybdenum, providing superior corrosion resistance, especially in marine and chemical environments.
321 Stainless Steel: Contains titanium, making it highly resistant to intergranular corrosion, ideal for high-temperature applications.
904L Stainless Steel: High nickel and molybdenum content for extreme corrosion resistance, particularly in aggressive chemical environments.

c. Tubing Finishes

Mill Finish: The standard finish as it comes from the mill.
Polished Finish: Improves appearance and corrosion resistance.
Electropolished Finish: Used in sanitary applications where ultra-smooth surfaces are required.

3. Applications of Stainless Steel Metric Tubing

Stainless steel metric tubing is utilized across multiple industries, including:

a. Automotive Industry

Used in exhaust systems, fuel lines, and hydraulic tubing due to its high strength and heat resistance.

b. Aerospace Industry

Applied in hydraulic and fuel systems due to its lightweight and corrosion-resistant properties.

c. Food and Beverage Industry

Used for processing and transporting liquids and gases in a sanitary environment.

d. Medical and Pharmaceutical Industry

Essential in medical instruments, surgical tools, and pharmaceutical processing.

e. Oil and Gas Industry

Used in offshore and onshore applications due to its ability to withstand high pressure and corrosive environments.

f. Chemical and Petrochemical Industry

Ideal for transporting aggressive chemicals due to its resistance to corrosion and chemical reactions.

4. Key Specifications and Standards

Stainless steel metric tubing must comply with various international standards:

a. Dimensional Standards

ISO 1127 – Covers seamless and welded stainless steel tubes.
DIN 2391 – Standard for precision tubes.
EN 10216-5 – Standard for seamless stainless steel tubes.
EN 10217-7 – Standard for welded stainless steel tubes.

b. Material Standards

ASTM A213 – Standard for seamless stainless steel tubing.
ASTM A269 – Standard for welded and seamless tubing for general purposes.
ASTM A312 – Standard for seamless and welded stainless steel pipes and tubes.

c. Common Metric Tubing Sizes

Metric tubing comes in a range of sizes. Some common sizes include:

Outer Diameter (OD): 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, etc.
Wall Thickness: 1mm, 1.5mm, 2mm, 3mm, etc.
Lengths: Typically available in 6-meter lengths but can be customized.

5. Advantages of Stainless Steel Metric Tubing

Corrosion Resistance: Resists rust, oxidation, and chemical damage.
High Strength: Withstands high pressures and mechanical stress.
Heat Resistance: Suitable for high-temperature applications.
Hygienic Properties: Ideal for food, beverage, and medical applications.
Durability: Long-lasting with minimal maintenance.
Aesthetic Appeal: Polished stainless steel tubing provides a modern look.

6. Factors to Consider When Selecting Stainless Steel Metric Tubing

a. Application Requirements

Determine the required tubing grade based on the environment (e.g., marine, chemical, food processing).

b. Size and Dimensions

Select the appropriate outer diameter and wall thickness based on pressure and structural needs.

c. Seamless vs. Welded

Choose seamless tubing for high-pressure applications and welded tubing for cost-effective, moderate-pressure use.

d. Compliance with Standards

Ensure the tubing meets relevant ISO, DIN, EN, and ASTM standards for quality assurance.

e. Surface Finish

Pick a suitable finish based on aesthetic or sanitary requirements.

f. Cost Considerations

Stainless steel tubing is more expensive than carbon steel but offers a longer lifespan and better performance.

7. Common Challenges and Solutions

a. Corrosion in Harsh Environments

Solution: Use 316 or 904L stainless steel for better corrosion resistance.

b. Difficult Welding

Solution: Select the appropriate welding technique and filler metal.

c. High Initial Cost

Solution: Consider long-term benefits like durability and reduced maintenance costs.

d. Sourcing and Availability

Solution: Work with reliable suppliers who provide metric tubing in the required specifications.

8. Conclusion

Stainless steel metric tubing is a versatile and high-performance material used in industries requiring durability, corrosion resistance, and precision. Choosing the right grade, size, and type of tubing ensures optimal performance for various applications. Whether used in automotive, aerospace, medical, or industrial applications, stainless steel metric tubing remains a critical component in modern manufacturing and engineering.
