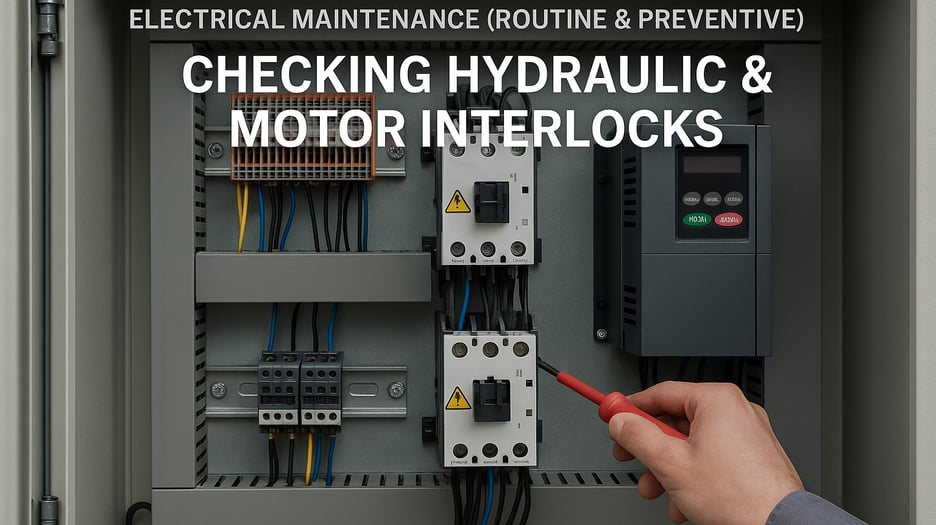

Electrical Maintenance (Routine & Preventive): Checking Hydraulic & Motor Interlocks on Roll Forming Machines

How to Verify Safety, Synchronization, and Logic Control Between Motors, Hydraulics, and the PLC

November 21, 2025

Hydraulic and motor interlocks are critical safety and control mechanisms on every roll forming machine. They ensure that motors, hydraulic pumps, shears, punches, decoilers, and feed mechanisms work only when conditions are safe, and they prevent catastrophic damage by stopping the machine when sequences are incorrect.

When hydraulic or motor interlocks fail, you can experience:

• Machine that won’t start

• Pump runs but motor won’t

• Motor runs but hydraulics don’t engage

• Punch/shear activates at the wrong time

• Slow or delayed cutting cycles

• Material jams

• Flying saw errors

• Unsafe machine behavior

Routine and preventive maintenance must include full verification of all interlocks to ensure your machine operates safely, smoothly, and predictably.

1. What Are Interlocks on a Roll Forming Machine?

Interlocks are electrical and logical safety conditions that must be satisfied before certain machine functions can operate.

Roll forming machines typically include:

Motor interlocks

• Main drive cannot start unless all guards are closed

• Motor will not run unless hydraulic pump is on (on many machines)

• Motor stops if decoiler tension alarm triggers

• Motor disabled when shear head is not in the home position

Hydraulic interlocks

• Punch/shear cannot fire unless pressure is at set level

• Hydraulics disabled if oil temperature is too high

• Pump must be running for cut/punch sequence

• Shear cannot return unless limit switch is satisfied

PLC logic interlocks

• Correct sequence must be active

• Production mode requirements

• Encoder must be reading speed

• No active alarms in the safety chain

These interlocks protect the machine from damaging itself — and protect operators from unsafe motion.

2. Why Checking Interlocks Matters

Faulty interlocks cause:

• Machines that refuse to run

• Wrong cutting/punching sequence

• VFD/servo sync issues

• Hydraulic pump burnout

• Motor overloads

• Inconsistent line speed

• Safety risks

• Uncommanded movement

• Unpredictable cutting

In many factories, interlocks fail silently because:

• Wiring loosens

• Sensors drift

• Pressure switches fail

• PLC logic is modified

• Older relays stick

Regular testing prevents major downtime and damage.

3. Common Causes of Interlock Problems

3.1 Faulty sensors

• Pressure switches

• Proximity sensors

• Limit switches

• Encoder feedback

• Guard/interlock switches

3.2 Loose wiring or terminals

Vibration loosens terminals inside:

• Panels

• Solenoids

• Motors

• Junction boxes

3.3 Failing hydraulic pump

Causes low pressure → interlock triggers.

3.4 Incorrect PLC logic

After servicing or software updates.

3.5 Bad safety relays

A major cause of “machine won’t start.”

3.6 Faulty solenoid valves

Valve not energizing → interlock blocks sequence.

4. How to Check Motor Interlocks (Machine Matcher Method)

Below is our step-by-step procedure.

Step 1 — Check All Safety Inputs

Verify all:

• Guard switches

• Door interlocks

• E-Stop circuits

• Safety relay outputs

If any fail → motor interlock blocks drive command.

Step 2 — Verify VFD/Servo Drive Readiness

Look for:

• Run enable

• Safe torque off status

• No faults

• Speed reference valid

If STO is active → motor cannot run.

Step 3 — Check Main Motor Contactor

Verify:

• Coil energizes

• Auxiliary contacts feedback to PLC

• No chatter or drop-out

Loose contactors = intermittent motor interlocks.

Step 4 — Check Motor Protection Devices

• Thermal overload relays

• Circuit breakers

• Ground fault detection

A tripped overload = interlock condition.

5. How to Check Hydraulic Interlocks

Hydraulic sequencing is essential for cutting, punching, and forming.

Step 1 — Verify Hydraulic Pressure Switch

Check:

• Actual pressure

• Status on PLC input

• Switch adjustment

If pressure is too low → punch/shear interlock stops cycle.

Step 2 — Check Solenoid Valve Activation

We verify:

• 24V coil voltage

• Coil current

• Valve movement

• PLC output status

If valve coil fails → interlock blocks motion.

Step 3 — Inspect Hydraulic Pump Motor

Check:

• Motor current

• VFD or DOL start

• Overloads

• Direction of rotation

• Noise or cavitation

A weak pump = no cutting.

Step 4 — Verify Cylinder Home & Retract Sensors

Every punch or shear requires:

• Home sensor

• Extend sensor

If home is not seen → interlock cancels next cycle.

6. PLC Logic Interlocks

Many interlocks are software-based.

6.1 Sequence Position

Example:

• Material must reach length before shear fires

• Punch must complete before shear

• Flying saw must be in home position

Fix:

• Reset sequence

• Check encoder accuracy

• Review PLC I/O

6.2 Mode Interlocks

Machine must be in:

• Auto mode

• Ready mode

• No faults

6.3 Timeouts

If cylinder does not extend within X milliseconds → interlock blocks cycle.

7. Symptoms of Interlock Problems

You likely have interlock issues if:

• Machine won’t start

• Motor won’t run

• Hydraulics run but nothing moves

• Punch/shear fires only sometimes

• “Sequence Error” on HMI

• Flying saw won’t move

• Pump runs but pressure stays low

• Cut only works in manual mode

• Machine stops randomly

8. Preventive Maintenance Schedule for Interlocks

Weekly

• Test guards & safety switches

• Test hydraulic pressure switch

• Verify pump start behavior

Monthly

• Check motor overloads

• Inspect contactors

• Validate solenoid activation

Quarterly

• Full interlock sequence test

• PLC logic review

• Sensor alignment

Annually

• Replace aging relays

• Full panel tightening

• Hydraulic system service

• Safety compliance audit

9. Machine Matcher Interlock Testing & Repair Service

We provide:

• Full interlock verification

• PLC logic diagnostics

• Guard switch testing

• Pressure switch calibration

• Motor and hydraulic sequence testing

• Solenoid coil inspection

• Contact resistance measurement

• 24/7 remote support

• Worldwide on-site engineers

Every service includes a written interlock report with risks & corrective actions.

Conclusion

Hydraulic and motor interlocks protect your roll forming machine from destructive failures and unsafe operation. Routine verification ensures your electrical system, hydraulics, and PLC logic remain synchronized and safe.

Machine Matcher provides the most comprehensive interlock testing service in the industry.

Safe sequences. Reliable machines.
Machine Matcher delivers both.
