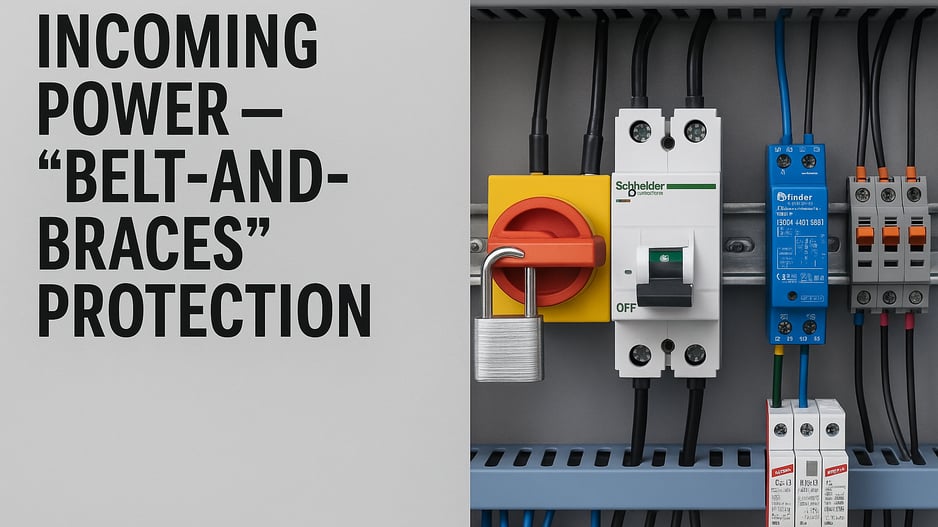

Incoming Power — The “Belt-and-Braces” Protection Every Roll Forming Machine Should Have

How to protect your PLC, VFDs, motors, and production uptime from electrical damage.

When a roll forming machine fails electrically, the root cause is often traced back to unstable or poorly protected incoming power. Voltage spikes, phase loss, incorrect rotation, or short-circuit events can destroy expensive components in seconds.

Proper incoming-power protection acts as the machine’s first line of defence, safeguarding everything inside the electrical cabinet — PLC, VFDs, power supplies, sensors, encoders, and motors.

Here’s what every factory should insist on when installing or upgrading a roll forming line.

1. Lockable Main Disconnect Switch

The foundation of safe electrical isolation

A roll forming machine must be fitted with a lockable main disconnect that allows the entire machine to be safely isolated before servicing.

What to ask for

  • A rotary main isolator mounted on the cabinet door

  • Padlockable in the OFF position

  • Door interlock so the panel cannot be opened unless power is OFF

  • Defeat mechanism requiring a tool, not fingers, to override

Why it matters

Without a proper main disconnect:

  • Electricians cannot safely work inside the panel

  • Unexpected start-up can cause injury or damage

  • Machines fail CE/UKCA/OSHA safety requirements

  • Insurance may refuse claims in the event of an incident

This is non-negotiable for modern industrial machines.

2. Proper Main MCCB / Main Breaker

Correct sizing = maximum protection

Your main breaker must be sized for your incoming supply and short-circuit rating — not simply whatever the OEM installs.

Typical requirement

  • 80–125A MCCB for a standard roofing or trim line

  • Larger lines (decking, CZ purlin) may require more

  • Adjusted based on motor power, VFD size, hydraulic demand

Key specifications

  • Short-circuit rating must match or exceed the site fault level

  • Trip curve suitable for motor-driven machinery

  • Brand-name component (Schneider, ABB, Siemens, Eaton preferred)

Why it matters

Machines imported from overseas often arrive with:

  • Undersized breakers

  • Inadequate short-circuit protection

  • Non-certified brands

This creates a major fire and safety risk.

3. Phase-Loss / Phase-Rotation Relay

Cheap component — massive protection

A phase-loss relay monitors all three phases and instantly trips the machine if:

  • One phase is lost

  • Phases are reversed

  • Voltage drops unevenly

Why it’s essential

Without phase protection, you’re at risk of:

  • Motor overheating

  • Hydraulics running backwards

  • VFD tripping or failing

  • Erratic machine behaviour

  • Burning motors during startup

Especially important for imported machines

Factories receiving machines from China, Turkey, India, etc., often deal with:

  • Weak grids

  • Phase imbalance

  • Voltage dips

  • Incorrect wiring during installation

A £40–£100 device can save thousands in damages.

4. Surge Protection (SPD) on Incoming Power

Protect your electronics from spikes and transients

A Type 2 Surge Protection Device (SPD) should be installed on the feeder line to the control cabinet.

What it protects

  • PLC

  • HMI

  • VFDs / servo drives

  • Encoders

  • 24V power supplies

  • Network modules

Why it’s critical

Voltage spikes can come from:

  • Lightning in the area

  • Heavy industrial machinery

  • Welders

  • Compressors

  • Faults on the grid

Without SPD, even small spikes can destroy sensitive electronics costing £500–£8,000 each.

Summary: The Complete “Belt-and-Braces” Incoming-Power Checklist

You should require all four of these items:

✔ Lockable main disconnect with door interlock
✔ Properly sized MCCB with correct short-circuit rating
✔ Phase-loss / phase-rotation relay
✔ Type 2 SPD for surge protection

These four upgrades:

  • Reduce electrical failures

  • Prevent motor damage

  • Protect expensive electronics

  • Improve machine reliability

  • Improve safety

  • Extend the life of your machine

Every roll forming line — new or used — should have this.
