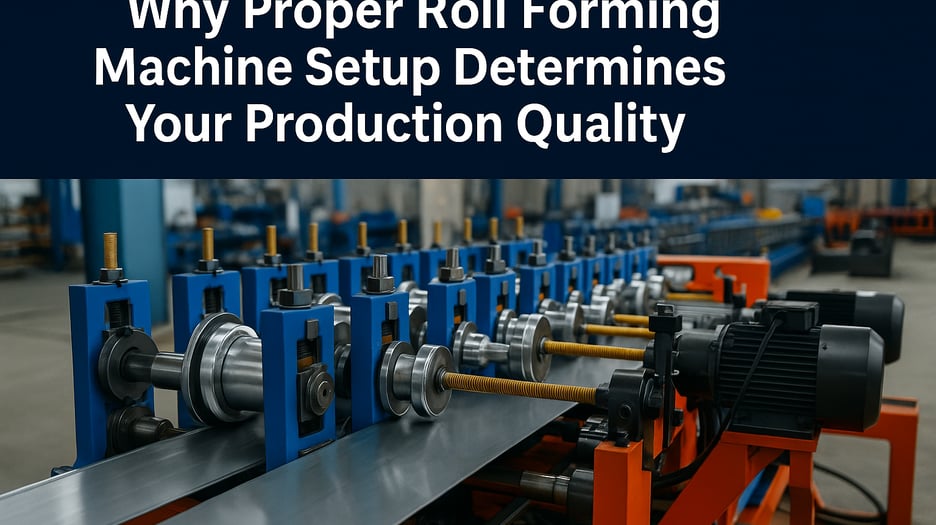

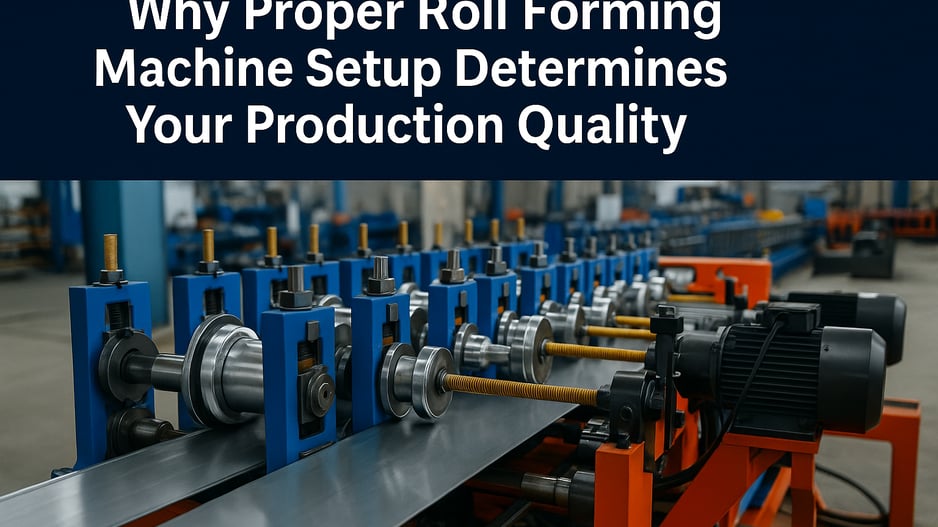

Why Proper Roll Forming Machine Setup Determines Your Production Quality

Roll forming machines are engineered to produce metal profiles with extremely high precision — sometimes within ±0.5 mm over lengths of 3–12 meters. But that level of accuracy is only possible when the machine is set up correctly.

Incorrect machine setup is the largest hidden cause of poor production quality, even more than tooling wear or coil defects. When alignment, calibration, tension, and electrical setup are wrong, the entire line becomes unstable.

Below is the full breakdown of why setup matters and how proper setup directly impacts the quality of your roofing, purlin, decking, flashing, or steel framing profiles.

1. Roll Tooling Alignment Affects Profile Shape

Roll tooling is designed to form the metal gradually across many stations.
If the stands are misaligned, even by 0.1–0.3 mm:

• Sidewalls bow

• Flanges twist

• Material walks off the centerline

• Oil canning appears on roofing panels

• Purlins come out asymmetrical

• Punching no longer lines up

Proper alignment ensures:

✔ Uniform pressure
✔ Smooth forming
✔ Perfect profile geometry
✔ Minimal stress in the material

Good setup equals good product.

2. Entry Guide & Feed Setup Controls Straightness

The entry guide directs the strip into the first forming pass.
If this is mis-set:

• Material enters off-center

• Profile skews left or right

• Waves and twist appear

• Calibration becomes impossible

Operators often adjust the wrong area to fix a problem that was caused at the entry.

Entry alignment must be controlled before any roll stand is touched.

3. Coil Tension and Decoiler Setup Determine Material Flow

Too much tension = stretching, distortion, and poor shape
Too little tension = slipping, jerking, or inconsistent feeding

Incorrect decoiler setup causes:

• Dimensional inconsistency

• Cut-length errors

• Material jams

• Unstable forming pressure

A simple change in brake pressure or mandrel expansion can make the difference between perfect product and a truckload of scrap.

4. Correct Encoder Calibration Controls Cut Length Accuracy

The encoder is responsible for cut length.
If calibration is off — even slightly — every sheet will be wrong.

Common symptoms:

• Cut lengths vary

• Punching drifts out of position

• Flying shear timing becomes unstable

Proper setup ensures:

✔ Accurate cut lengths
✔ Perfect punching placement
✔ Stable machine speed synchronization

Skipping encoder calibration guarantees poor quality.

5. VFD & Motor Setup Determine Forming Speed and Smoothness

Without correct VFD parameters, the machine will:

• Surge

• Stall

• Lose speed stability

• Mis-time the shear

• Increase scrap

• Destroy tooling

Setup must include:

• Acceleration curves

• Deceleration curves

• Torque limits

• PID tuning

• Brake resistor configuration

Proper motor setup means the profile moves smoothly through every pass.

6. Hydraulic Pressure Setup Controls Punching & Shear Quality

If pressure is too low:

• Punches stick

• Corners burr

• Holes deform

• Shear doesn’t complete the cut

If pressure is too high:

• Dies break

• Material buckles during punching

• The shear hammers violently

• Oil overheats

Proper hydraulic setup ensures:

✔ Clean punches
✔ Fast shear cycles
✔ Longer tool life

7. Sensor & Proximity Alignment Controls Machine Timing

Every modern roll forming line relies on:

• Photoelectric sensors

• Proximity switches

• Limit switches

• Magnetic sensors

If sensors are not aligned or are triggered too early/late:

• Mis-punching

• Material over-run

• Double-stroking

• Mis-cutting

• Stacker errors

Good setup ensures correct timing across the entire machine.

8. Lubrication Setup Controls Tool Life and Surface Finish

The lubrication system affects:

• Tool wear

• Material surface quality

• Heating & friction

• Roll gap consistency

Incorrect lubrication setup will cause:

• Roll scratches

• Material drag

• Premature tool wear

• Line vibration

Proper lubrication dramatically increases machine lifespan.

9. Safety System Setup Ensures Trouble-Free Operation

Wrong safety relay wiring or incorrect interlock setup leads to:

• Random machine stops

• Hard-to-diagnose errors

• Operators bypassing safety devices

• Inconsistent cycle start conditions

Correct setup ensures:

✔ Safety
✔ Reliability
✔ Predictable machine behaviour

10. A Properly Set Up Machine Produces Higher-Quality Profiles

When setup is correct, a roll forming machine will:

• Produce straighter, cleaner profiles

• Achieve consistent dimensions

• Reduce scrap

• Increase speed

• Reduce operator adjustments

• Protect tooling

• Keep electrical systems stable

• Improve overall production efficiency

In short — setup determines 80% of your product quality.

Machine Matcher CTA — Professional Roll Forming Setup & Calibration

Machine Matcher offers complete machine setup services:

• Roll stand alignment

• Entry guide calibration

• Encoder calibration

• VFD configuration

• Hydraulic pressure tuning

• Sensor alignment

• Tooling inspection

• Full production test

• Operator training

Get your machine set up correctly — and your product quality will follow.

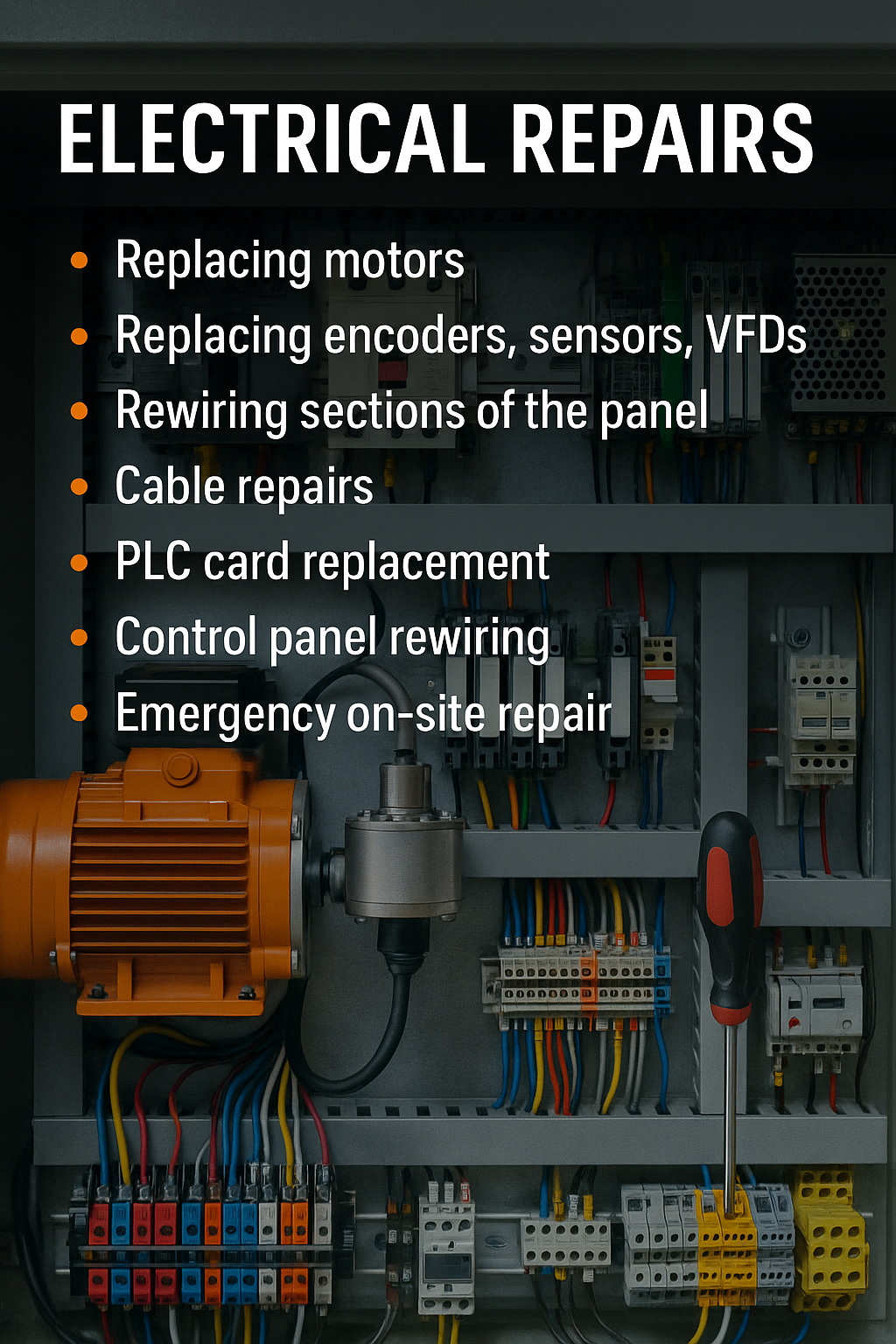

Machine Matcher now offers full electrical technician services for roll forming machines — including diagnostics, rewiring, testing, encoder calibration, PLC programming, electrical audits, and preventive maintenance.
