The 3″ N-Deck Roof Deck Roll Forming Machine is an advanced production line engineered to produce high-strength structural roof decking panels used in commercial, industrial, and infrastructure projects throughout Canada. Designed for precision, durability, and heavy-duty performance, this machine forms deep ribbed 3-inch N-Deck panels that deliver exceptional span capacity, composite action, and concrete bonding.
At Machine Matcher, every roll forming machine is built new to your specific profile and project requirements, ensuring full compliance with Canadian steel standards, voltage, and material supply conditions. Whether you manufacture decking panels in Toronto, Montreal, Calgary, Vancouver, or Edmonton, this equipment offers reliable, continuous production with minimal maintenance and 24/7 global technical support.
| Specification | Details |
|---|---|
| Machine Type: | 3″ N-Deck Roof Deck Roll Forming Machine |
| Production Speed: | 12–20 meters/minute (variable, customizable) |
| Material Thickness Range: | 0.75 – 1.5 mm (22–16 gauge) |
| Material Width Range: | 940 – 1250 mm |
| Material Types: | Galvanized Steel, Galvalume, Cold Rolled Steel |
| Material Yield Strength: | Up to 550 MPa |
| Roller Material: | GCr15 Bearing Steel, Precision Ground |
| Roller Surface Treatment: | Hard Chrome Plating (0.05–0.1 mm layer) |
| Number of Forming Stations: | 24–32 stations |
| Roller Shaft Diameter: | 80–95 mm |
| Shaft Material: | 45# High-Grade Steel |
| Main Drive Type: | Chain or Gearbox Drive (optional) |
| Power: | 380V / 50Hz / 3-Phase (customizable for 575V Canada) |
| Motor Power: | 15–22 kW |
| Cutting Method: | Hydraulic Post-Cut |
| Blade Material: | Cr12MoV Hardened Tool Steel (HRC58+) |
| Control Type: | PLC Control (Siemens, Delta, or Mitsubishi) |
| Operating Mode: | Fully Automatic / Manual Override |
| De-coiling System: | 5–10 Ton Hydraulic Uncoiler |
| Punching System: | Servo or Hydraulic (Optional) |
| Machine Frame: | Heavy-Duty H-Beam Base with Reinforced Structure |
| Frame Thickness: | 25–30 mm Steel |
| Profile Shape: | 3″ N-Deck |
| Can the machine be customized? | ✅ Yes, 100% built to your drawing or local Canadian standards |
| Profile Width and Depth: | 3″ (76 mm) Depth / 600–900 mm Width |
| Length Tolerance: | ±1.5 mm per 6 m |
| Safety Features: | Full Guards, E-Stop Buttons, Overload Protection |
The 3″ N-Deck profile is one of North America’s most trusted structural roof decking systems. It is characterized by deep 3-inch ribs, wide flute spacing, and continuous interlocking joints, making it ideal for long spans and composite construction.
Deep ribs for superior load-bearing strength
High efficiency in composite steel-concrete floors
Enhanced fire and sound performance
Quick installation with minimal field cutting
Ideal for multi-storey and industrial buildings
Roof decking for commercial and industrial buildings
Composite floor decking in steel structures
Parking garages and high-rise office towers
Bridge decks and public infrastructure projects
View related profiles and design variations in our Machine Matcher Profile Catalog.
Coil Loading:
The steel coil is placed on the hydraulic uncoiler and securely clamped.
Feeding & Guiding:
Coil passes through the entry guide and leveling system for straightness.
Roll Forming:
Each roller station gradually shapes the material into the N-Deck profile with precision.
Cutting & Discharge:
The PLC-controlled hydraulic shear cuts the panels to length automatically.
Stacking & Packaging (Optional):
An automatic stacker arranges finished panels for easy handling.
This seamless process allows continuous production with high accuracy and low waste, ideal for large-volume operations in Canadian construction.
The 3″ N-Deck Roll Forming Machine serves the construction and infrastructure sectors, where structural decking is a critical element of design.
Commercial & Industrial Construction
Prefabricated Steel Buildings
Infrastructure (Bridges, Stations)
Institutional Buildings (Universities, Hospitals)
Warehousing & Logistics Facilities
Renewable Energy Structures (Solar Roof Systems)
Roof and floor deck systems
Formwork for reinforced concrete
Architectural and acoustical decking
Platforms, mezzanines, and walkways
Canadian Regions Served:
Ontario – Toronto, Hamilton, Mississauga
Alberta – Calgary, Edmonton
British Columbia – Vancouver, Surrey
Quebec – Montreal, Laval
Manitoba, Saskatchewan, and Atlantic Provinces
Machine Matcher supports nationwide delivery and setup, including training and after-sales service.

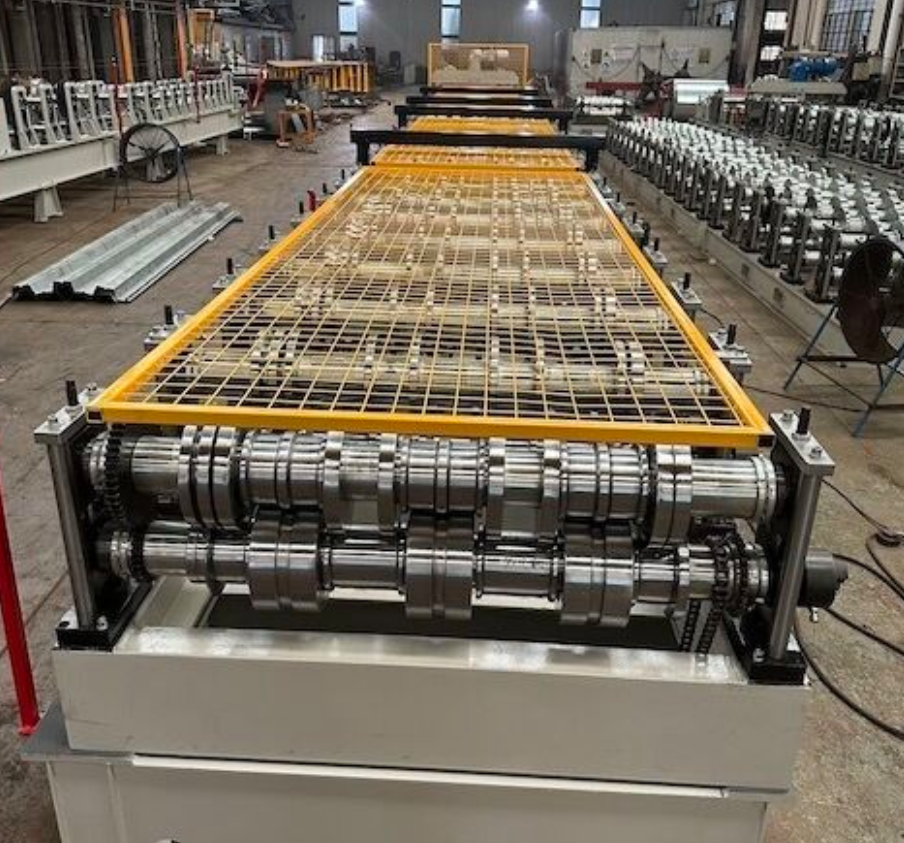

Precision-machined rollers made from GCr15 bearing steel ensure long-term durability and consistent shaping. Each roller is ground, heat-treated, and hard chrome-plated to prevent wear and corrosion from high-tensile materials.

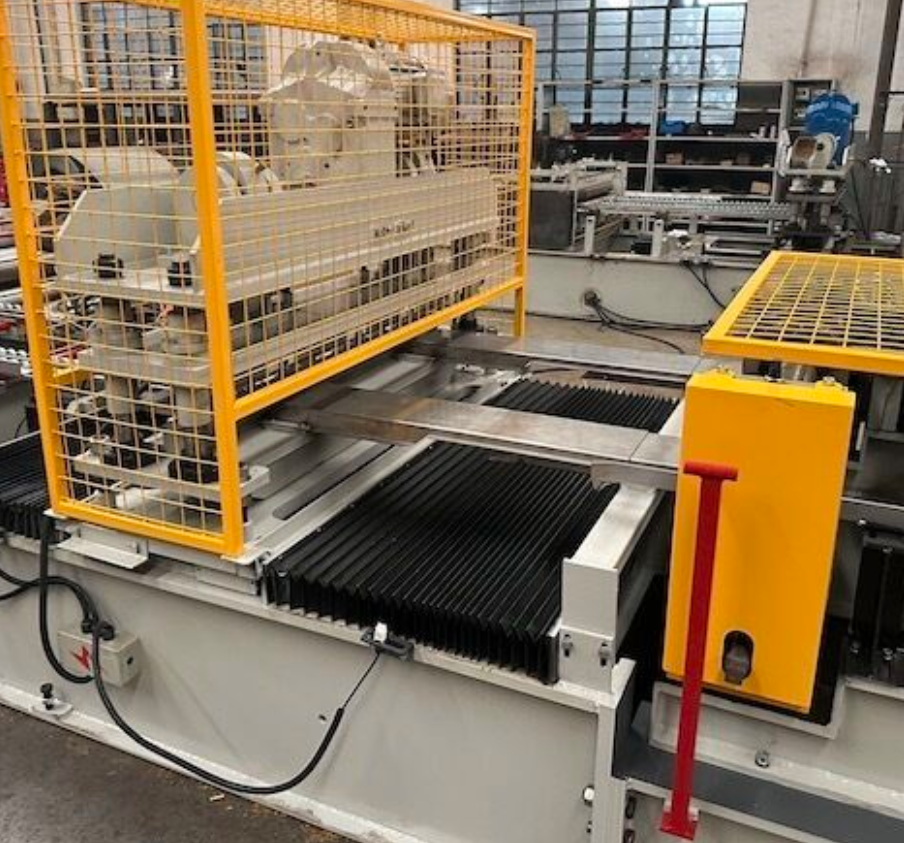

The hydraulic post-cut unit uses Cr12MoV tool steel blades to deliver smooth, burr-free cuts. The shear operates automatically under PLC command, synchronized with line speed.
Choose between chain drive (cost-effective, low maintenance) or gearbox drive (higher precision and torque for thicker gauges). Drive motors are energy-efficient with overload protection.
Equipped with a Siemens, Mitsubishi, or Delta PLC, operators can control panel length, batch quantity, and cutting intervals from a user-friendly touchscreen.
Safety guards, emergency stops, and overload systems are standard. The machine includes a lubrication system and automatic oiling options to minimize downtime.
Enhance performance and automation with optional systems such as:
Automatic Stacker System
Servo Feeder with Encoder
Hydraulic Punching or Notching Station
Coil Car or Decoiler Tipper
Remote PLC Access via Ewon Cosy+
Sound-Insulated Safety Enclosures
Leveling and Lubrication Systems
Quick-Change Roll Setup for Multiple Profiles
When selecting your machine, consider:
Profile Standard – Verify local decking profile dimensions and tolerances.
Material Gauge & Type – Heavier gauges require higher motor power.
Power Supply – Canada uses 575V/60Hz 3-phase systems.
Production Capacity – Decide between 12 m/min standard or 20 m/min high-speed lines.
Budget & Add-Ons – Automation can save labor costs long-term.
Our engineers at Machine Matcher will design your machine around your exact profile drawing and power configuration, ensuring compliance and compatibility.
Pricing for the 3″ N-Deck Roll Forming Machine depends on:
Machine length, forming stations, and speed
Coil handling and cutting system
PLC brand and automation level
Optional punching or stacking units
Electrical configuration (Canadian 575V)
For a tailored quote, please contact:
United Kingdom (Main Office)
Phone: +44 20 335 56554
United States
Phone: +1 407 559 7948
Mobile / WhatsApp: +44 7816 972935
Email: [email protected]
Proper maintenance ensures long service life and consistent production. Machine Matcher provides full Preventive Maintenance Plans, including daily, weekly, and quarterly checklists.
Inspect coil entry guides and clean rollers
Ensure lubrication at all key points
Verify hydraulic pressure and oil level
Check chain or gearbox tension
Inspect sensor alignment and encoder accuracy
Calibrate length encoder
Replace hydraulic oil and filters
Check electrical cabinet for dust and heat buildup
Our 24/7 Technical Support Desk offers global remote PLC diagnostics, troubleshooting, and guidance.
It’s a cold-forming production line that shapes steel coils into 3-inch-deep structural roof decking panels used in buildings and bridges.
Regular lubrication, chain tension checks, blade sharpening, and hydraulic oil changes keep your machine in peak condition.
Because we supply only new, custom-built machines, backed by 1-year warranty, 24/7 support, and global delivery.
✅ Yes. Send your decking profile drawing or sample, and we’ll manufacture tooling specifically for your design.
Galvanized steel, Galvalume, and cold-rolled steel with tensile strengths up to 550 MPa, suitable for Canadian construction codes.
With proper maintenance, your N-Deck roll former can operate 15–20 years with minimal downtime.
Contact Machine Matcher with your profile details, coil gauge, and voltage, and receive a full quote, drawings, and production schedule.
100% new machines, built to order
Custom tooling for your local profiles
Global supply network – UK, USA, Canada, UAE, and Asia
Remote PLC & camera diagnostics available
Pre-shipment testing with photos/videos
Worldwide installation and operator training
Dedicated technical team in UK and North America
Machine Matcher doesn’t just sell equipment — we build long-term partnerships to ensure every client achieves production success.
Send your profile drawing or physical sample panel.
Confirm material specifications (thickness, yield strength).
Provide power supply details (e.g., 575V/60Hz).
Receive a custom machine quotation and layout drawing.
Machine manufactured, tested, and approved with video demonstration.
Worldwide delivery, installation, and on-site operator training.
Machine Matcher supplies and supports roll forming machines in over 170 countries, including:
Canada, USA, UK, Australia, Germany, UAE, India, and South Africa.
We offer local engineering support, spare parts, and remote diagnostics — ensuring uninterrupted production anywhere in the world.
The 3″ N-Deck Roof Deck Roll Forming Machine from Machine Matcher is a precision-engineered production line designed for high-volume structural decking manufacturing. Built for Canadian voltage, materials, and industrial standards, it offers superior reliability, automation, and performance for roof and floor deck fabrication.
Every Machine Matcher roll forming machine is built new, tested before shipment, and supported 24/7 by our worldwide service team. We deliver globally, ensuring smooth installation, reliable operation, and ongoing partnership.
