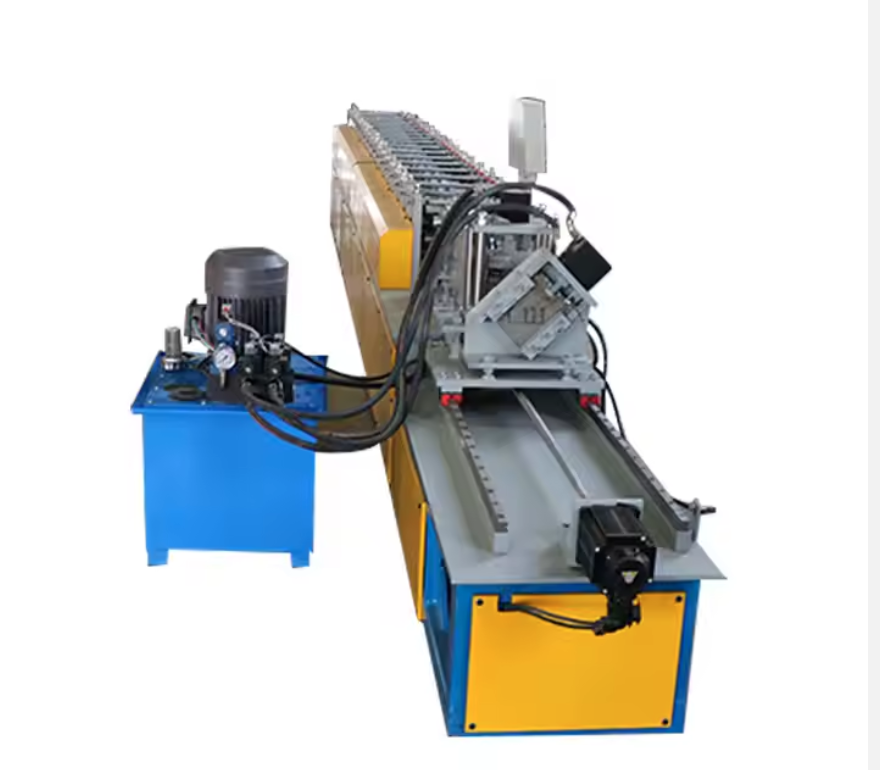

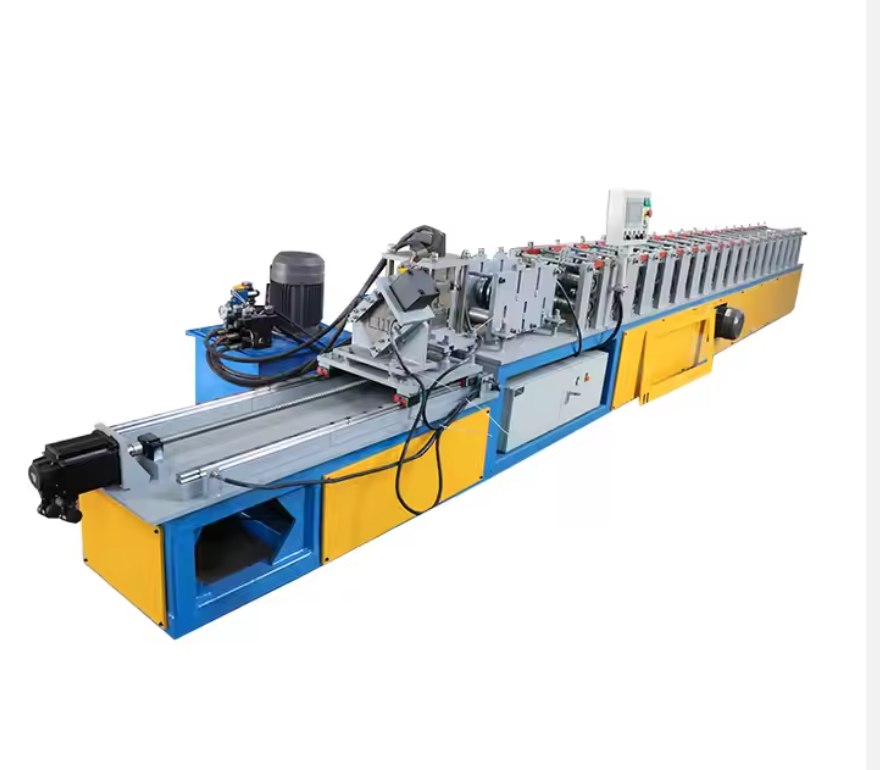

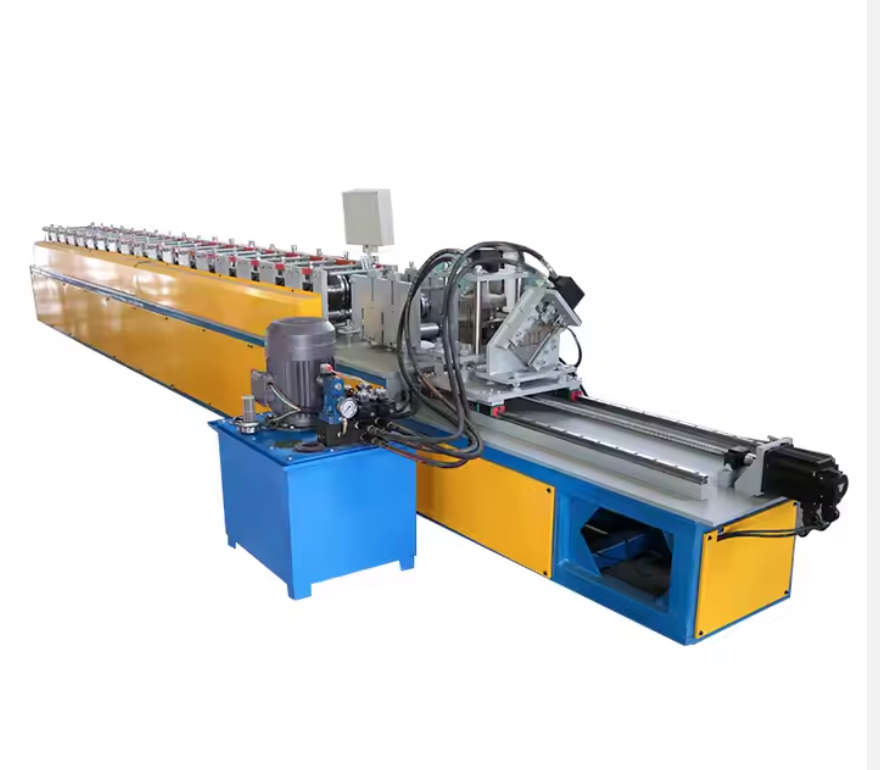

6-Inch Metal Stud Roll Forming Machine – UAE Market Edition
High-Speed, Precision Engineered, Built for UAE Construction Standards
The 6-Inch Metal Stud Roll Forming Machine is designed to produce high-precision steel framing profiles used in light-gauge steel construction systems. Tailored for the UAE construction industry, this machine delivers superior performance in speed, accuracy, and durability—making it a vital solution for fabricators, drywall contractors, and prefab construction companies throughout Abu Dhabi, Dubai, Sharjah, and across the Emirates.
Engineered to roll form 6-inch metal studs, this machine accommodates a wide range of steel coil materials and thicknesses to suit various wall and partition framing applications. It is optimized for high-volume production while maintaining dimensional precision with tight length tolerances and consistent profile geometry.
All machines are new, custom-built, and made to order, ensuring your production requirements and profile drawings are precisely met.
This machine is ideal for:
Drywall and Partition Framing Contractors
Prefabricated Steel Structure Manufacturers
Cold-Formed Steel Construction Projects
Commercial and Residential Building Interiors
Modular and Industrial Building Systems
UAE’s booming real estate and infrastructure sectors
Light-gauge steel framing is increasingly adopted in the UAE due to its durability, fire resistance, and speed of installation—making this machine a vital investment for fabricators targeting sustainable and high-speed project delivery.
| Specification | Details |
|---|---|
| Machine Type | 6-Inch Metal Stud Roll Forming Machine |
| Production Speed | 30–50 meters per minute |
| Material Thickness Range | 0.4 – 1.2 mm |
| Material Width Range | 150 – 300 mm |
| Material Types | Galvanized Steel (GI), Galvalume, Cold Rolled Steel |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | GCr15 (Hardened Steel) |
| Roller Surface Treatment | Hard Chrome Plated |
| Number of Forming Stations | 12 – 18 (based on profile complexity) |
| Roller Shaft Diameter | 60 mm |
| Shaft Material | High-Strength 45# Steel, precision ground |
| Main Drive Type | Chain or Gear Drive (customized) |
| Power (UAE) | 380V, 50Hz, 3-Phase |
| Motor Power | 7.5 – 11 kW (varies with configuration) |
| Cutting Method | Hydraulic Cutting |
| Blade Material | Cr12MoV, Heat Treated |
| Control Type | PLC Controlled with HMI Touchscreen |
| Operating Mode | Fully Automatic with Manual Override |
| De-coiling System | Manual or Hydraulic De-coiler (3–5 Ton optional) |
| Punching/Notching System | Optional inline hydraulic system |
| Machine Frame | Welded Steel Structure with Stress Relief |
| Thickness of Frame Steel | 20 mm heavy-duty side plates |
| Profile Shape | 6-Inch C-Stud Profile |
| Profile Width and Depth | 150 mm width × 40–50 mm flange height |
| Length Tolerance | ±0.5 mm |
| Safety Features | Emergency Stop, Overload Protection, Full Protective Guards |
This machine is built to customer specifications and delivered directly across the United Arab Emirates, including major cities like:
Abu Dhabi
Dubai
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Umm Al Quwain
Every machine comes with a 1-year warranty from dispatch, along with reliable maintenance, spare parts supply, and remote support options. Our UAE-based team and international partners ensure seamless communication, commissioning, and after-sales service.
Automatic Stackers
Remote PLC Programming
Inline Notching and Punching Dies
Hydraulic Decoiler with Coil Car
Servo-Feeding & Length Measurement System
Profile Swapping System for Stud & Track
CE Certified Safety Systems
Q1: Can this machine produce both studs and tracks?
A: Yes, with a profile-swapping mechanism or dual-profile setup, the same machine can be adapted to roll form both studs and tracks for framing systems.
Q2: What is the power setup for operation in the UAE?
A: The machine is designed to operate on 380V, 50Hz, 3-phase power—standard across industrial zones in the UAE.
Q3: Is there a warranty and support service available in the UAE?
A: Absolutely. All machines are covered by a 1-year warranty from dispatch and come with remote technical support, optional on-site installation, and local service partners available upon request.
Q4: What’s the typical lead time?
A: Lead times typically range from 6 to 12 weeks, depending on customization and optional extras required.
Q5: How do I get a quote?
A: Send your profile drawing, required material specs, and production speed or automation preferences to [email protected]. We’ll respond with a tailored quote and technical consultation.
All machines are custom-built to match your exact profile drawing and production needs. Pricing is variable and depends on selected features, automation level, material specifications, and delivery terms.
Contact Machine Matcher at [email protected] to begin the quoting process.
