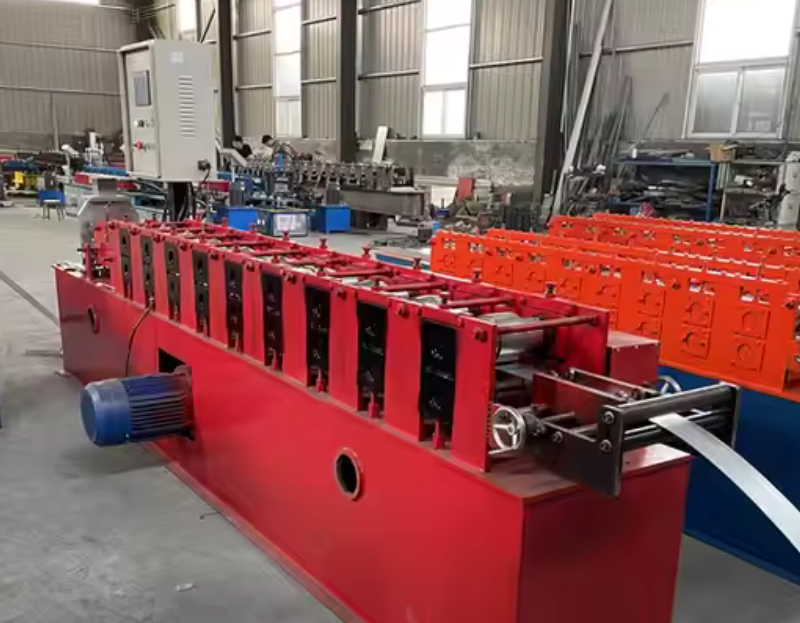

Angle Roll Forming Machine – UAE
Machine Matcher proudly offers the Angle Roll Forming Machine, a precision-engineered solution tailored for manufacturers across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. Designed to produce high-quality angle profiles, this machine is ideal for various industries requiring structural components.
Machine Type: Angle Roll Forming Machine
Production Speed: 10–30 meters per minute (adjustable based on material and profile)
Material Thickness Range: 0.4 mm – 4.0 mm
Material Width Range: Up to 600 mm (customizable)
Material Types: Galvanized Steel (GI), Cold Rolled Steel (CRS), Aluminum, Stainless Steel, Mild Steel
Material Yield Strength: Up to 550 MPa
Roller Material: High-grade chromium steel, heat-treated for durability
Roller Surface Treatment: Hard chrome plating for anti-wear and corrosion resistance
Number of Forming Stations: 8–20 stations (depending on profile design)
Roller Shaft Diameter: 40 mm – 75 mm
Shaft Material: High-tensile 45# steel
Main Drive Type: Gearbox-driven or chain drive
Power (UAE Standard): 380V, 50Hz, 3-phase (customizable if needed)
Motor Power: 5 kW – 15 kW (based on design capacity)

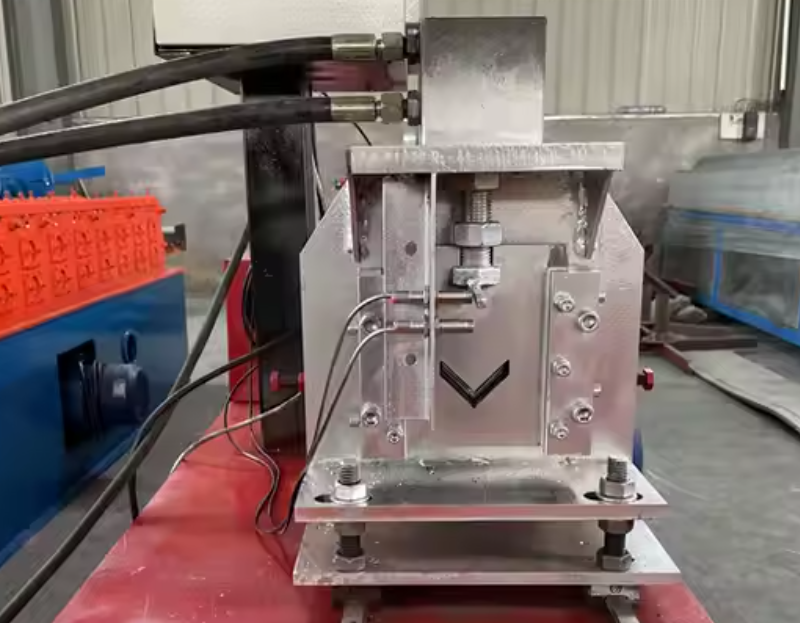

Cutting Method: Hydraulic or servo motor-driven cutting
Blade Material: Cr12MoV heat-treated steel
Control Type: PLC with HMI touchscreen (Siemens or equivalent)
Operating Mode: Fully automatic with manual override
De-coiling System: Manual or hydraulic uncoiler (3–5 Ton options)
Punching/Notching System (if included): Optional inline hydraulic unit
Machine Frame: Heavy-duty welded steel structure
Thickness of Frame Steel: 18–25 mm
Profile Shape: L-shaped angle profiles
Profile Width and Depth: Customizable (e.g., 25x25 mm to 100x100 mm)
Length Tolerance: ±1.0 mm
Safety Features:
Protective covers/guards
Emergency stop button
Overload protection system
The Angle Roll Forming Machine caters to a diverse range of industries in the UAE, including:
Construction & Infrastructure: Manufacturing of structural components like angle profiles for framing and support structures.
HVAC & Electrical Contracting: Production of support channels and brackets for ductwork and cable trays.
Solar Energy: Fabrication of mounting rails and brackets for solar panel installations.
Automotive: Creation of support components and reinforcements.
Storage & Racking Systems: Production of industrial shelves and storage units.
These machines are integral in producing components that meet the high-quality standards required in these sectors.
Machine Matcher offers extensive customization to meet specific production requirements:
Profile Dimensions: Tailored to exact specifications, accommodating various sizes and shapes.
Material Compatibility: Adjustments to handle different materials, including specialized or exotic metals.
Automation Level: Options for manual, semi-automatic, or fully automatic operations.
Additional Features: Inclusion of punching, notching, embossing systems, and automatic stackers.
Clients are encouraged to provide profile drawings and material specifications to ensure optimal machine configuration.
All machines are new and custom-built, delivered directly to any location in the UAE, including Abu Dhabi, Dubai, and Sharjah.
Support Includes:
One-year warranty from dispatch date.
Remote video guidance for installation.
On-site installation and training upon request.
Ongoing maintenance and repair support.
Starting Price: USD $35,000 (standard line with manual decoiler, no punching)
Factors Affecting Final Price:
Profile complexity and size.
Material type and thickness.
Level of automation and additional features.
Quantity of forming stations.
For a tailored quotation, please send your profile drawings and specifications to [email protected].
Q: Can the machine handle aluminum profiles for lightweight applications?
A: Yes, the machine is capable of forming profiles from aluminum, as well as galvanized steel, cold-rolled steel, and stainless steel.
Q: Is the machine delivered fully assembled?
A: The machine is delivered mostly assembled; final setup and commissioning can be arranged upon request.
Q: Can the machine be customized for our specific profile?
A: Absolutely. Please provide your profile drawing, and we will customize the machine accordingly.
Q: What is the typical delivery time for a custom machine to the UAE?
A: Production typically takes 30–60 days, with shipping time depending on the destination port.
Q: Are optional hydraulic decoilers or automatic stackers available?
A: Yes, optional features like hydraulic decoilers and automatic stackers can be included based on your requirements.
Q: What maintenance support is offered in the UAE?
A: We provide remote video guidance and on-site maintenance and repair support upon request.
Customization: Tailored solutions to meet specific production needs.
Quality Assurance: High-grade materials and precision engineering ensure durability and reliability.
Comprehensive Support: From installation to maintenance, we offer full support services.
Competitive Pricing: Cost-effective solutions without compromising on quality.
By choosing Machine Matcher, clients benefit from machines that are not only tailored to their specific needs but also backed by comprehensive support and competitive pricing, ensuring a high return on investment.
