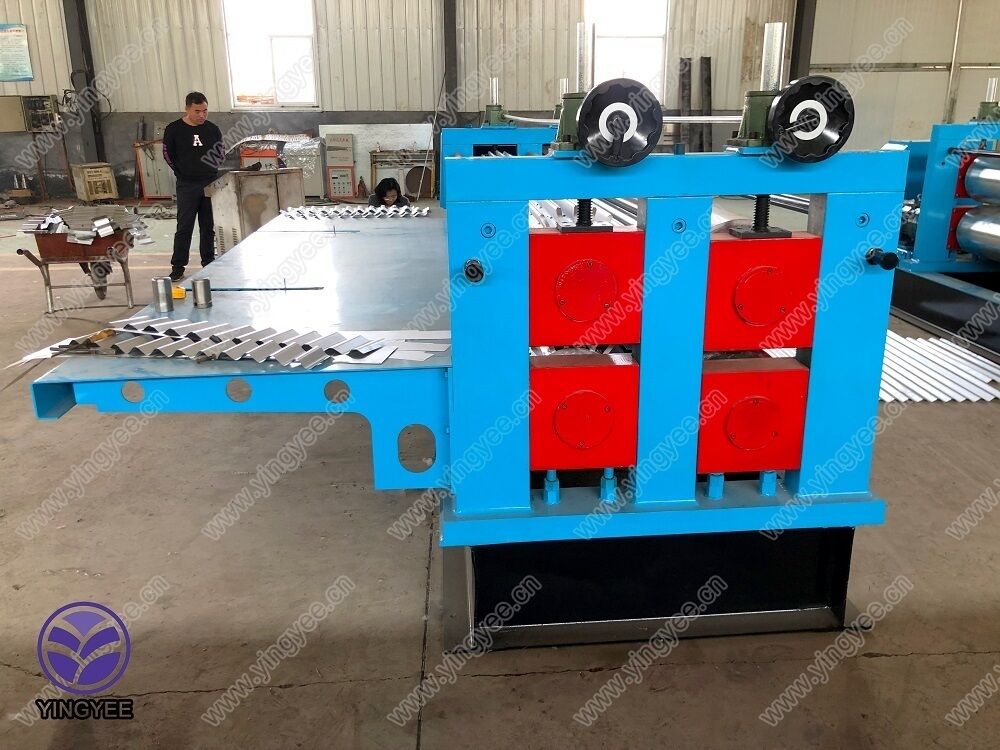

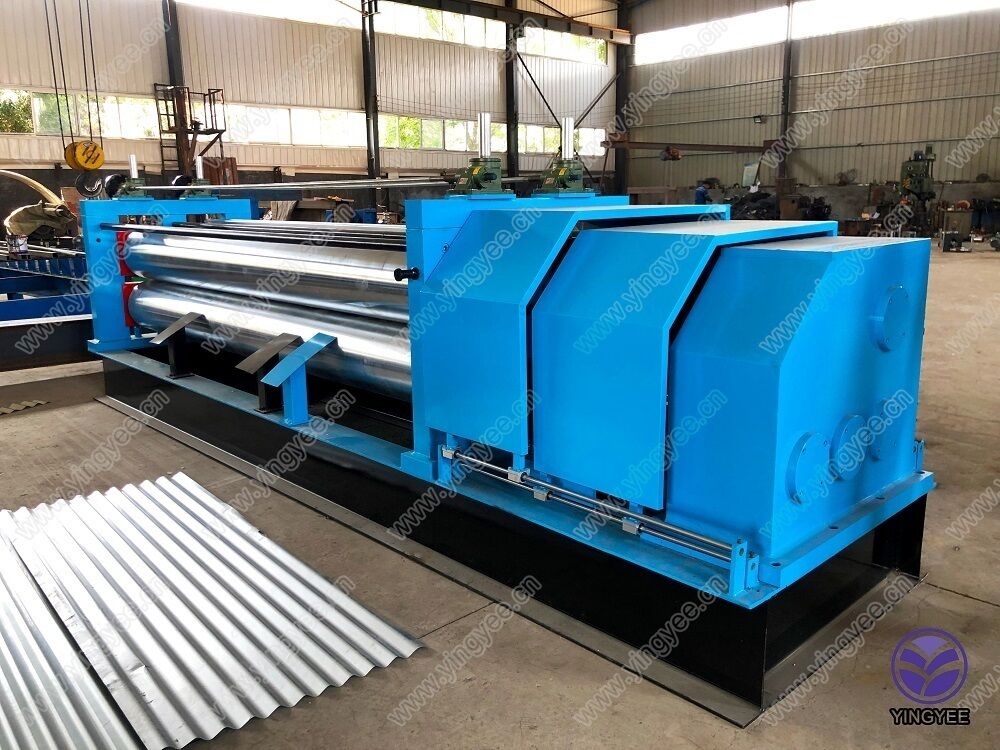

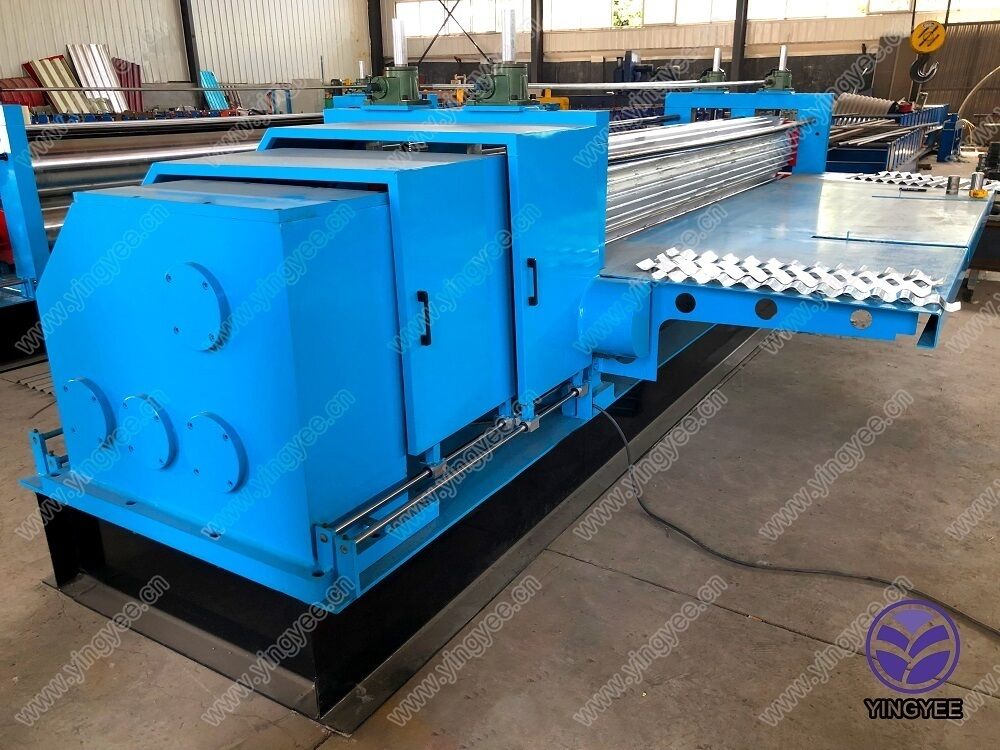

Galvanized Transverse Thin Barrel Corrugation Roof sheet Machine

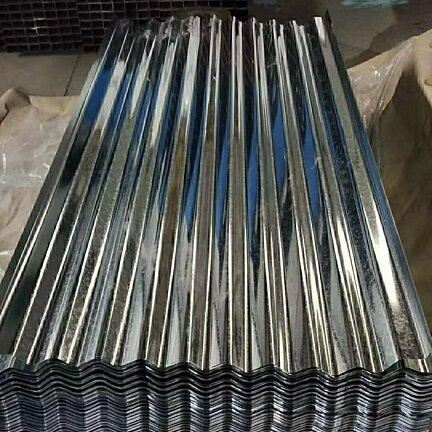

Galvanized Transverse Corrugated Barrel Corrugation Roof sheet Machine is designed for thin plates with a thickness of 0.4mm, which is fast and efficient.
machine technical parameter:
| 1.machine type | Barrel corrugating type |
| 2.material | steel/Aluminum |
| 3.working speed | 9-12piece/min |
| 4.sheet thickness | 0.13-0.45mm |
| 5.pinch | 75mm |
| 6.guider for sheet input | welded steel structure with stopper for setting width |
| 7.corrugating roll | barrel length 4500 mm |
| 8.pinch adjust roll | barrel length 4500 mm |
| 9.screw | adjusted by manual |
| 10.guider for output products | welded steel plate |
| 11.Up&down device for corrugating and pitch adjusting rolls | |
