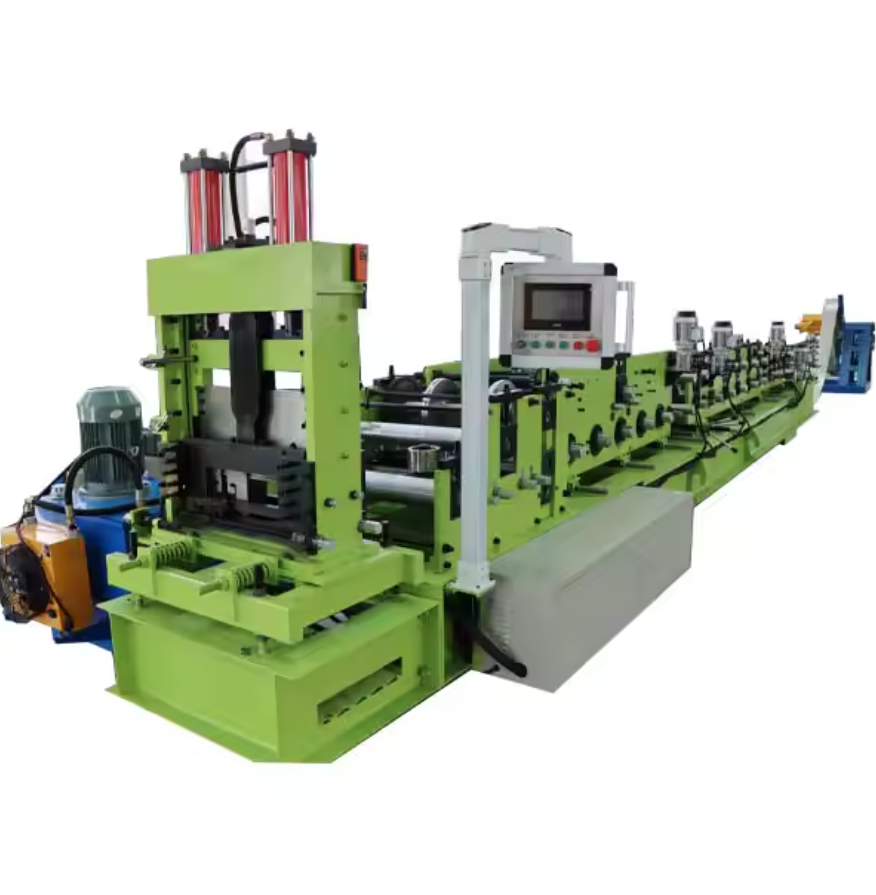

C Bracing Section Roll Forming Machine – UAE Delivery & Customization
The C Bracing Section Roll Forming Machine is a precision-engineered solution for fabricating high-strength steel C-bracing profiles, widely used in structural support systems across various industries in the UAE. Designed to accommodate heavy-duty production requirements, this roll forming machine delivers consistent, high-speed output with minimal waste and maximum efficiency. It is built to handle a wide range of steel materials with high yield strength, ensuring durability, accuracy, and performance under industrial-scale workloads.
Whether you're operating in construction, steel fabrication, utility infrastructure, or warehouse development, this machine is a dependable choice for producing C-shaped bracing sections essential to structural reinforcement systems.
This machine is ideal for the following industries:
Construction & Steel Structure Fabrication: Used in manufacturing structural bracing members for warehouses, buildings, prefabricated steel structures, and industrial sheds.
Electrical & Utility Infrastructure: Supports cable trays, solar panel framing, and pole bracing.
Warehouse Racking & Storage Systems: Produces C-bracing for stability and load distribution in racking systems.
Mechanical & HVAC: Integrated into ducting and support frames in heavy-duty HVAC applications.
Reinforcing steel-framed buildings in Dubai and Abu Dhabi.
Creating seismic and wind bracing components for prefabricated structures in Sharjah.
Forming frames and reinforcements for large solar panel fields in utility-scale energy projects across the UAE.
Machine Type: C Bracing Section Roll Forming Machine
Production Speed: 12–25 meters per minute (depending on profile complexity and material)
Material Thickness Range: 1.5 mm to 3.0 mm
Material Width Range: 100 mm to 400 mm
Material Types: Galvanized steel, mild steel, high-tensile steel
Material Yield Strength: Up to 550 MPa (80 ksi)
Roller Material: GCr15 high-grade steel (heat-treated and precision-ground)
Roller Surface Treatment: Hard chrome-plated for anti-wear and extended life
Number of Forming Stations: 14–20 stations (customizable based on profile)
Roller Shaft Diameter: 70 mm
Shaft Material: 45# steel, tempered and precision-machined
Main Drive Type: Gearbox drive with chain or direct coupling
Power (UAE Specific): 380V / 50Hz / 3 Phase (customizable)
Motor Power: 11–15 kW (depending on profile width and thickness)

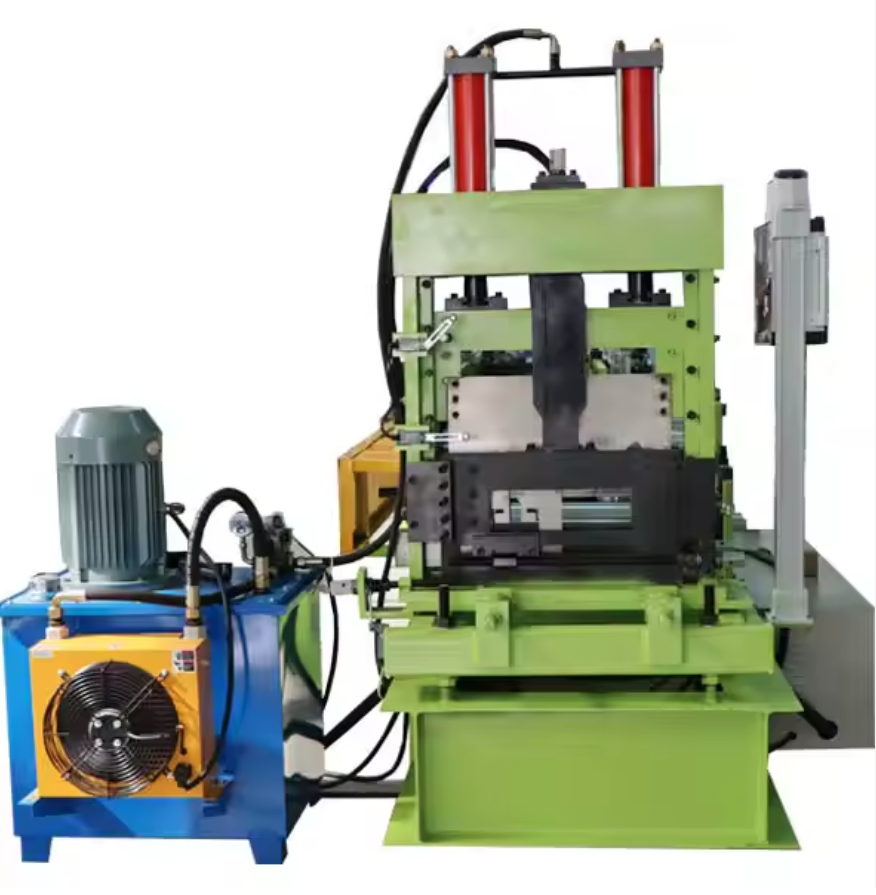

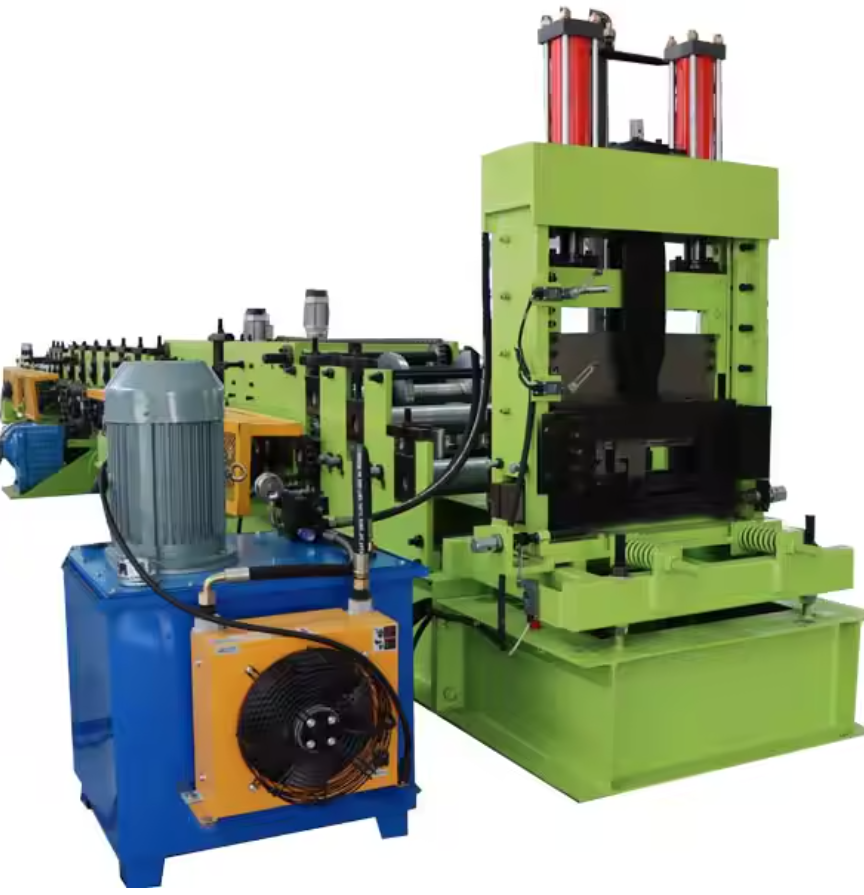

Cutting Method: Hydraulic post-cut system
Blade Material: Cr12MoV, heat-treated for hardness and precision cutting
Control Type: PLC with HMI touchscreen interface
Operating Mode: Fully automatic with manual override
De-coiling System: Manual or hydraulic de-coiler (3–5 tons capacity)
Punching/Notching System (if included): Servo-driven or hydraulic punching station with customizable punch dies
Machine Frame: Welded steel base, stress-relieved
Thickness of Frame Steel: 18–25 mm
Profile Shape: C Bracing Section
Profile Width and Depth: Custom as per client drawing (typically 50–100 mm depth)
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Typical Materials Used: Galvanized steel (GI), cold-rolled steel, or mild steel
Material Gauge: 12 to 18 gauge (1.2–3.0 mm)
Yield Strength Range: 250–550 MPa (36–80 ksi)
Profile-specific roller tooling sets
Punching/notching station with programmable patterns
Hydraulic coil car with auto feeding
Servo-feeder for precision positioning
Automatic stacker with adjustable length setting
Remote PLC access and diagnostics
Changeable spacers or cassette tooling for fast profile switch
USD $45,000
Final price depends on production speed, material thickness range, punching system, automation level, and profile complexity.
Punching and pre-punching options
Custom roller design for unique profiles
Level of automation (e.g., servo motors, auto stackers)
Brand of PLC and control systems (Siemens, Delta, Mitsubishi, etc.)
Type and load capacity of de-coiler
Tool steel grade upgrades for longer lifespan in abrasive environments
✔ Precision Engineering: Consistently accurate forming with high-speed output.
✔ UAE-Compatible Power & Settings: Configured for 380V / 50Hz / 3-Phase operation.
✔ Built Tough: Suitable for heavy-duty construction and steel structure industries common across Abu Dhabi, Dubai, and Sharjah.
✔ Lower Downtime: Chrome-plated rollers and high-quality components reduce wear and service intervals.
✔ Flexible Configurations: Easily tailored to your profile drawing and production line.
✔ Cost-Efficient: Produces high volumes with minimal scrap, increasing ROI.
Warranty: 1-year warranty from dispatch
Support: Durable maintenance, parts supply, and remote service available throughout the UAE
Delivery: Shipped from our manufacturing partners, delivered anywhere in the UAE
To receive the most accurate pricing and machine proposal, please email your C bracing profile drawing, material specs, and production requirements to:
[email protected]
Q1: What profiles can this machine produce?
A: It is designed to produce C-bracing sections and can be adapted for multiple sizes or integrated with spacer tooling or cassette-type roller stations for quick changeover.
Q2: Can this machine be customized for different material gauges?
A: Yes, it supports material thicknesses from 1.5 to 3.0 mm, and can be adjusted for even wider ranges depending on requirements.
Q3: Is installation and training provided in the UAE?
A: Yes, installation, commissioning, and operator training can be arranged in the UAE.
Q4: Can I add punching features?
A: Yes, a hydraulic or servo-driven punching unit can be integrated, customized to your hole patterns.
Q5: How fast can the machine be delivered in the UAE?
A: Production time is typically 6–10 weeks depending on complexity, with delivery arranged to your location in Abu Dhabi, Dubai, or any other emirate.
