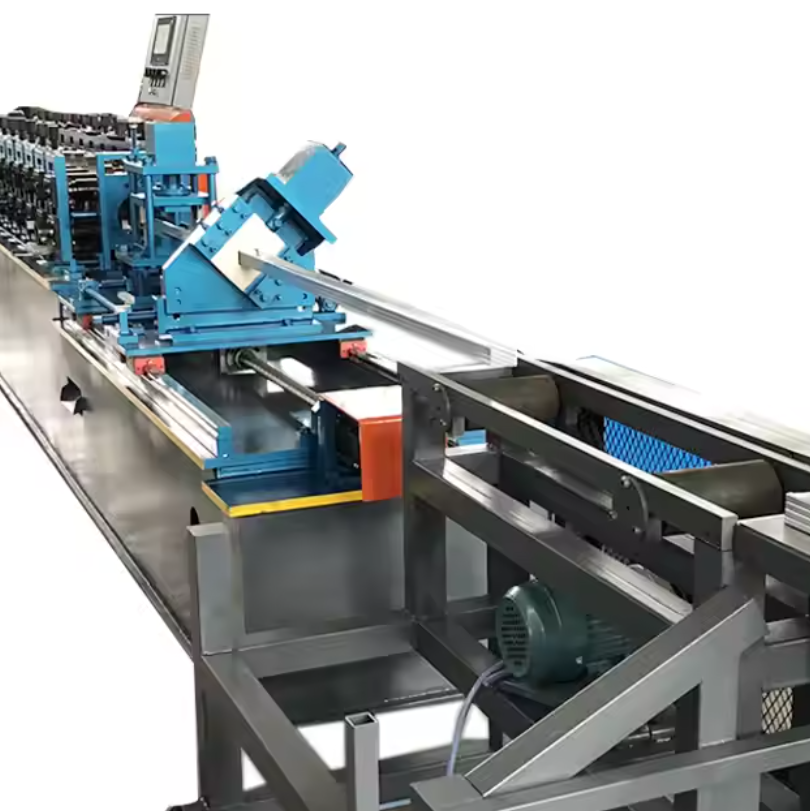

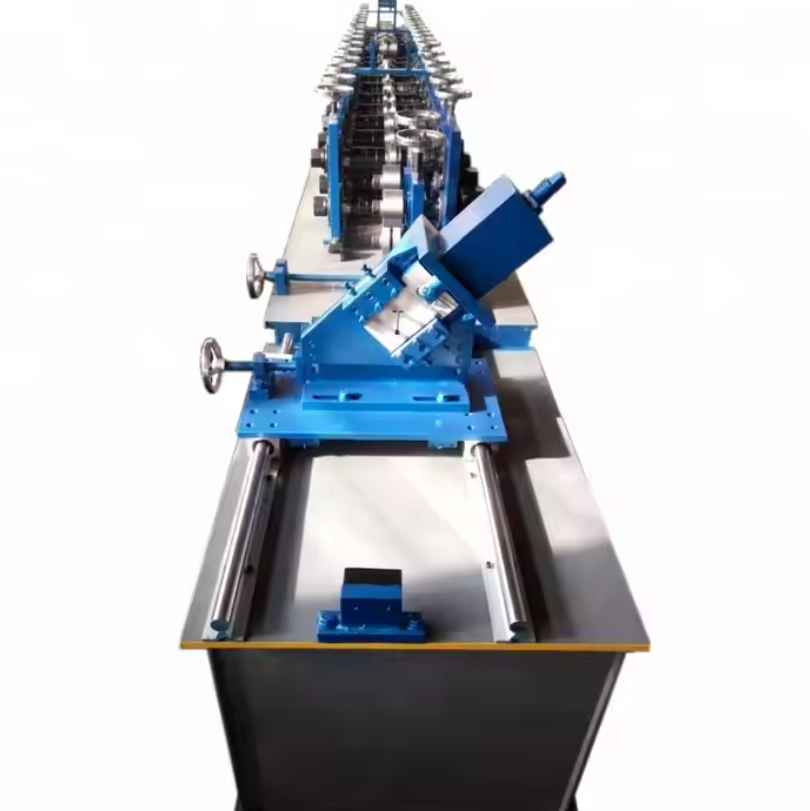

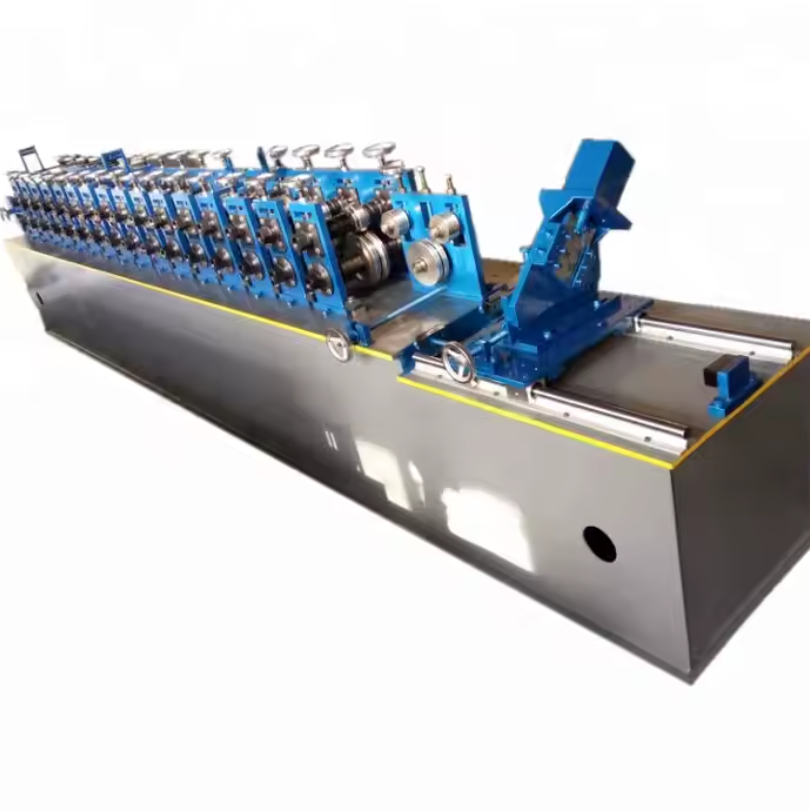

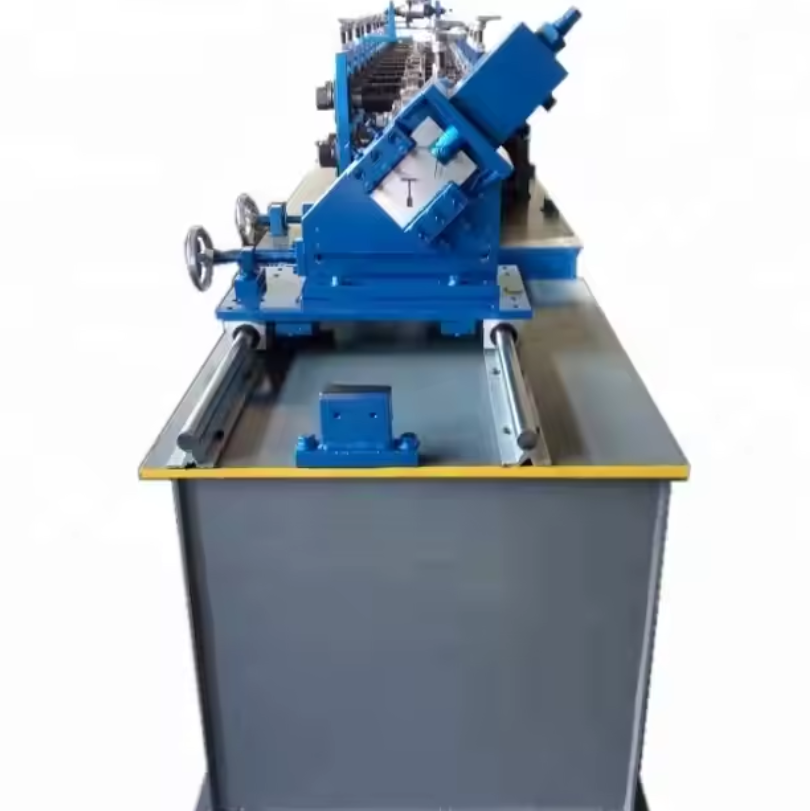

C Channel Roll Forming Machine – UAE EditionOverview

Machine Matcher proudly offers a high-performance C Channel Roll Forming Machine, engineered to meet the rigorous demands of the UAE's construction and manufacturing sectors. Designed for precision and durability, this machine is ideal for producing C, U, and Z channel profiles used in various structural applications. Whether you're operating in Abu Dhabi, Dubai, Sharjah, or any other emirate, our machines are tailored to your specific requirements and delivered directly to your facility.

Machine Technical Specifications

• Machine Type: C Channel Roll Forming Machine

• Production Speed: 15–30 meters per minute (dependent on profile and material thickness)

• Material Thickness Range: 0.5 – 2.5 mm

• Material Width Range: 100 mm – 600 mm

• Material Types: Galvanized Steel, Mild Steel, Aluminum, Stainless Steel

• Material Yield Strength: Up to 550 MPa

• Roller Material: GCr15 (hardened chrome steel)

• Roller Surface Treatment: Hard chrome-plated for enhanced wear and corrosion resistance

• Number of Forming Stations: 12 – 20 stations (customizable)

• Roller Shaft Diameter: 60 mm – 75 mm

• Shaft Material: High-grade 45# steel with heat treatment

• Main Drive Type: Gearbox-driven or chain drive

• Power: 380V / 50Hz / 3 Phase (UAE Standard)

• Motor Power: 11 – 22 kW (based on design capacity)

• Cutting Method: Hydraulic Post-cutting System

• Blade Material: Cr12Mov with heat treatment

• Control Type: PLC with HMI Touch Screen

• Operating Mode: Fully Automatic with Manual Override

• De-coiling System: Manual or Hydraulic Uncoiler (3–5 Ton options)

• Punching/Notching System: Optional inline hydraulic unit

• Machine Frame: Welded steel structure

• Thickness of Frame Steel: 20 mm – 25 mm

• Profile Shape: U Channel, C Channel, Z Channel, or Custom

• Profile Width and Depth: Width: 40–300 mm / Depth: 20–100 mm (adjustable)

• Length Tolerance: ±1.0 mm

• Safety Features:

  • Protective Covers/Guards: Yes

  • Emergency Stop Button: Yes

  • Overload Protection System: Yesnarexuae.com+8Machine Matcher+8Machine Matcher+8Machine Matcher+5Machine Matcher+5Machine Matcher+5Machine Matcher+3Machine Matcher+3Machine Matcher+3

Industries Served

Our C Channel Roll Forming Machine caters to a diverse range of industries across the UAE:

• Construction & Infrastructure: For framing, partitioning, and support bracing.

• HVAC & Electrical Contracting: Production of cable trays and support channels.

• Solar Mounting & Energy: Fabrication of mounting rails and brackets.

• Industrial Equipment Fabrication: Manufacturing of structural components.

• Steel Trading & Fabrication Workshops: Custom profile production for various applications.Machine Matcher

Customization Options

Machine Matcher offers extensive customization to meet your specific production needs:

• Profile Dimensions: Adjustable width and depth settings.

• Material Compatibility: Tailored for different material types and thicknesses.

• Automation Level: Options for manual, semi-automatic, or fully automatic operations.

• Additional Features: Integration of punching, embossing, and notching systems.

• De-coiler and Stacker Types: Manual, hydraulic, or motorized options.Machine Matcher+2Machine Matcher+2Machine Matcher+2

Unique Selling Propositions (USPs)

• Tailored Solutions: Each machine is custom-built to match your specific profile and production requirements.

• High Precision: Achieves tight tolerances, ensuring consistent product quality.

• Robust Construction: Built with high-grade materials for longevity and minimal maintenance.

• Comprehensive Support: Includes a one-year warranty, remote video guidance, and optional on-site installation.

• Competitive Pricing: Offers cost-effective solutions without compromising on quality.

Frequently Asked Questions (FAQ)

Q1: Can the machine be customized for our specific profile?
A1: Yes, we offer full customization based on your profile drawings and specifications.Machine Matcher

Q2: What types of materials are compatible with this machine?
A2: The machine is designed to process galvanized steel, mild steel, aluminum, and stainless steel with a yield strength of up to 550 MPa.Machine Matcher+2Machine Matcher+2Machine Matcher+2

Q3: Is remote installation support available?
A3: Yes, we provide remote video guidance, and on-site installation is available upon request.

Q4: What is the lead time for manufacturing and shipping?
A4: Production typically takes 30–60 days, with shipping time depending on the destination port.

Q5: What affects the final price of the machine?
A5: Pricing is determined based on optional extras and customization requirements. Contact us for a tailored quote based on your specific needs.

Pricing

• Starting Price: USD $65,000 (standard configuration with manual decoiler, no punching)

• Final Price: Varies based on customization options and additional features.

Warranty & Support

All machines are covered by a one-year warranty from the date of dispatch. Machine Matcher provides durable maintenance and repair support to ensure uninterrupted operation.

Contact Us

For a personalized quote, please send your profile drawings and specific requirements to: [email protected]

Machine Matcher is your trusted partner for high-quality roll forming machines in the UAE.
