C Purlin Roll Forming Machine – UAE Edition
High-Performance, Precision-Crafted for the UAE Market

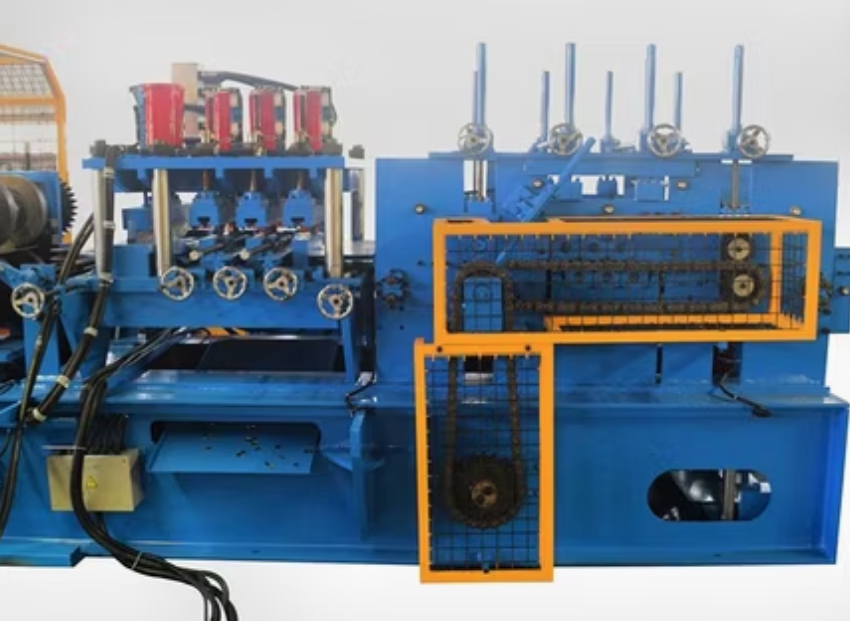

The C Purlin Roll Forming Machine is a precision-engineered system designed to manufacture high-strength C-shaped structural purlins used extensively in steel construction across the United Arab Emirates. Whether you're operating in Abu Dhabi, Dubai, Sharjah, or any industrial hub in the UAE, this machine delivers consistent quality, customizable output, and seamless automation to meet the growing demand in structural steel projects, warehouses, pre-engineered buildings, and roofing systems.
This roll forming line is specifically built to handle the UAE’s fast-paced steel construction sector, where accuracy, strength, and speed are crucial. Equipped with an advanced PLC control system and high-grade materials, the machine ensures efficient production of a wide range of C purlin sizes with precise punching, cutting, and forming.
Steel construction and contracting companies
Pre-engineered building (PEB) manufacturers
Roofing and cladding fabricators
Industrial warehouse and shed builders
Renewable energy infrastructure (solar panel framing)
Logistics and cold storage facility contractors
Commercial and residential structural support systems
| Specification | Details |
|---|---|
| Machine Type | C Purlin Roll Forming Machine |
| Production Speed | 10–15 meters per minute (higher with auto-punching and high-speed line) |
| Material Thickness Range | 1.2 mm – 3.0 mm |
| Material Width Range | 100 mm – 500 mm (depends on profile design) |
| Material Types | Galvanized Steel, Hot-Rolled Steel, Cold-Rolled Steel, Mild Steel |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | High-grade GCr15 bearing steel (quenched and hardened) |
| Roller Surface Treatment | Hard chrome coated for anti-corrosion and long life |
| Number of Forming Stations | 16–22 stations (depending on profile complexity) |
| Roller Shaft Diameter | 70 mm–90 mm |
| Shaft Material | 40Cr, precision machined and heat-treated |
| Main Drive Type | Gearbox Drive or Chain Drive (customer choice) |
| Power (UAE 3-Phase) | 380V / 50Hz (can be customized if required) |
| Motor Power | 11 kW–22 kW |

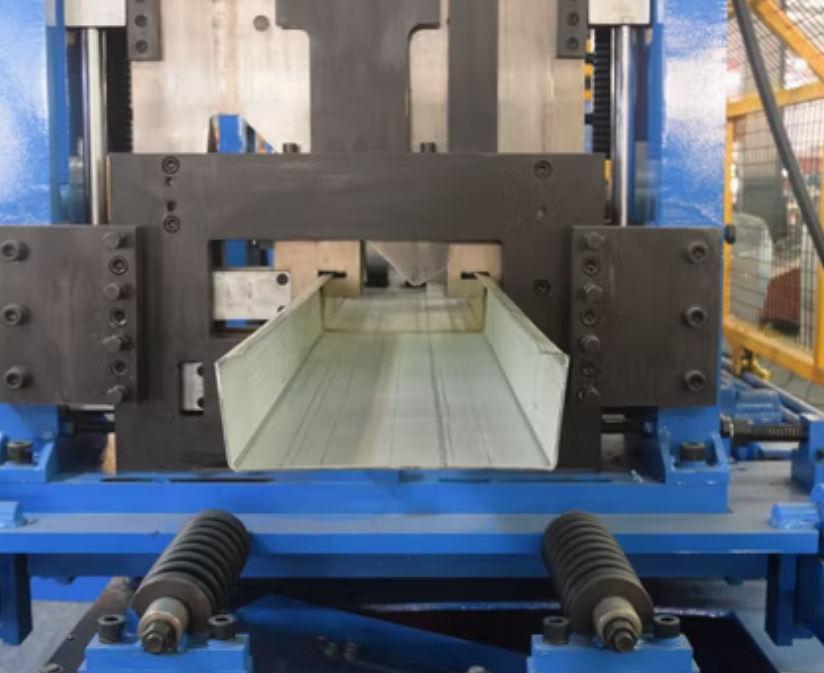

| Cutting Method | Hydraulic Post-Cutting (or Flying Cutoff System) |
| Blade Material | Cr12Mov, heat-treated |
| Control Type | PLC Control System with HMI Touchscreen (Siemens/Delta) |
| Operating Mode | Automatic with Manual Override Option |

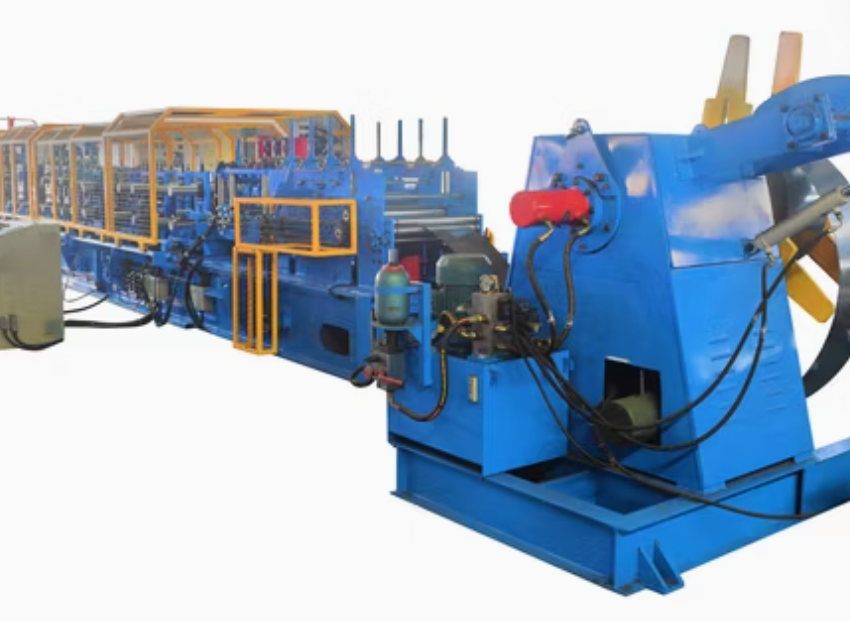

| De-coiling System | Manual or Hydraulic Decoiler (3–5 Ton options available) |
| Punching/Notching System | Optional hydraulic punching system with servo-feeding |
| Machine Frame | Welded structure, stress relieved and painted |
| Thickness of Frame Steel | 20 mm heavy-duty side panels |
| Profile Shape | C Purlin (U-shaped cross-section with flange lips) |
| Profile Width and Depth | Width: 80 mm–300 mm; Depth: 40 mm–80 mm (customizable) |
| Length Tolerance | ±1.0 mm |
| Protective Covers/Guards | Provided over all rotating and dangerous parts |
| Emergency Stop Button | Integrated at operator station |
| Overload Protection System | Motor and hydraulic system overload safety included |
All machines are brand new and custom-built to meet the customer’s exact profile and technical requirements. This machine can be shipped and commissioned anywhere in the United Arab Emirates, including:
Abu Dhabi
Dubai
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Al Ain
Delivery includes remote assistance or optional on-site installation and training. Optional accessories such as automatic stackers, hydraulic punching stations, coil cars, and levelers can be included based on customer need.
Pricing varies based on:
Material width and thickness requirements
Punching/notching configuration
Decoiler and stacking systems
Servo vs. manual feed systems
Warranty:
All machines come with a 1-year warranty from the date of dispatch, and include durable maintenance and repair support through our engineering network and online assistance.
To receive an accurate quote, send us your:
Profile drawing or sketch
Gauge and material type
Required production speed
Destination and power specifications
Email all details to: [email protected]
Q1: What is the difference between a C and Z purlin machine?
A: C purlin machines produce purlins with a uniform flange orientation, commonly used for wall and roof structures. Z purlins can interlock for lapping, ideal for longer spans. We supply both.
Q2: Can this machine be adjusted for different sizes?
A: Yes. Our machines are equipped with adjustable spacers or full-auto size changing systems for producing multiple purlin sizes from the same machine.
Q3: How long does it take to manufacture and deliver this machine to the UAE?
A: Typically, production takes 45–60 days depending on customization, followed by delivery and optional installation. Faster delivery may be arranged for urgent projects.
Q4: Is operator training available?
A: Yes, we provide virtual training or on-site setup and instruction, depending on your package.
Q5: Do I need a separate punching machine?
A: No. You can integrate a hydraulic punching unit directly into the C purlin line, saving floor space and time.
Access to top-tier global manufacturers
Machines built to your profile and speed needs
Delivery and support throughout the UAE
Transparent pricing and expert engineering advice
Multiple machines matched to your budget and specs
If you're ready to upgrade or expand your metal forming capacity in the UAE, this C Purlin Roll Forming Machine delivers performance, flexibility, and reliability tailored to your needs.
