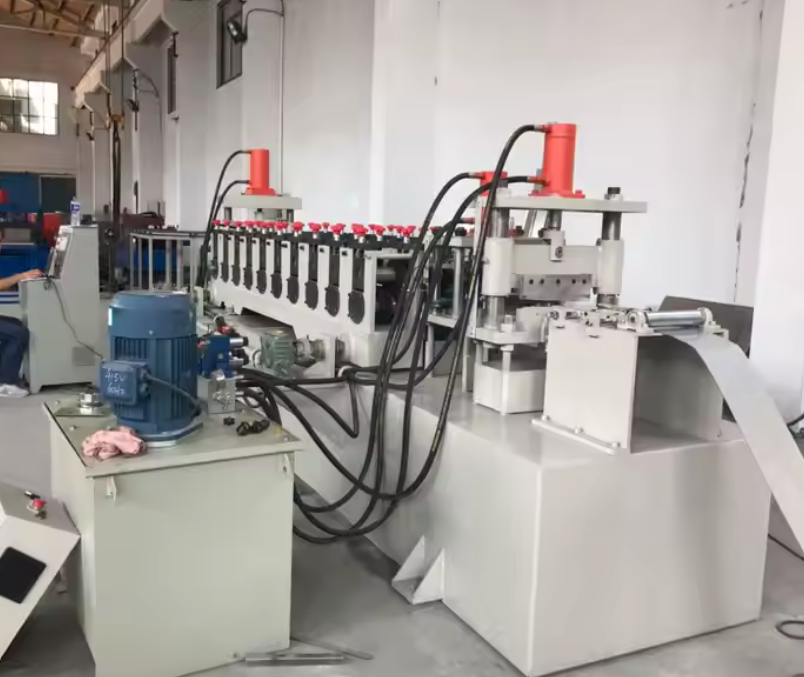

Cable Tray Roll Forming Machine – UAE Supply
Available Exclusively from Machine Matcher
Machine Matcher proudly offers a high-performance Cable Tray Roll Forming Machine tailored for industrial clients in the United Arab Emirates. Built to meet the region’s dynamic infrastructure and electrical cable management demands, this precision-engineered machine delivers efficient, accurate, and high-volume production of cable tray profiles used in electrical, telecommunications, and infrastructure projects.
All machines are new, custom-built, and delivered directly to your location in the UAE, including Abu Dhabi, Dubai, Sharjah, and beyond. Designed with both reliability and performance in mind, our Cable Tray Roll Forming Machines provide a complete solution for manufacturing cable trays of various sizes and profiles.
Machine Type: Cable Tray Roll Forming Machine
Production Speed: 10–25 meters per minute
Material Thickness Range: 0.8 mm – 2.5 mm
Material Width Range: 100 mm – 1000 mm
Material Types: Galvanized steel, Mild steel, Stainless steel
Material Yield Strength: Up to 350 MPa (50 ksi)
Roller Material: High-grade GCr15 steel
Roller Surface Treatment: Hard chrome plated for wear resistance
Number of Forming Stations: 18–26 (depending on profile complexity)
Roller Shaft Diameter: 70 mm
Shaft Material: High-strength 45# steel, precision-machined
Main Drive Type: Gearbox-driven system
Power: 380V / 50Hz / 3-Phase (UAE Standard)
Motor Power: 15 kW – 22 kW (based on configuration)

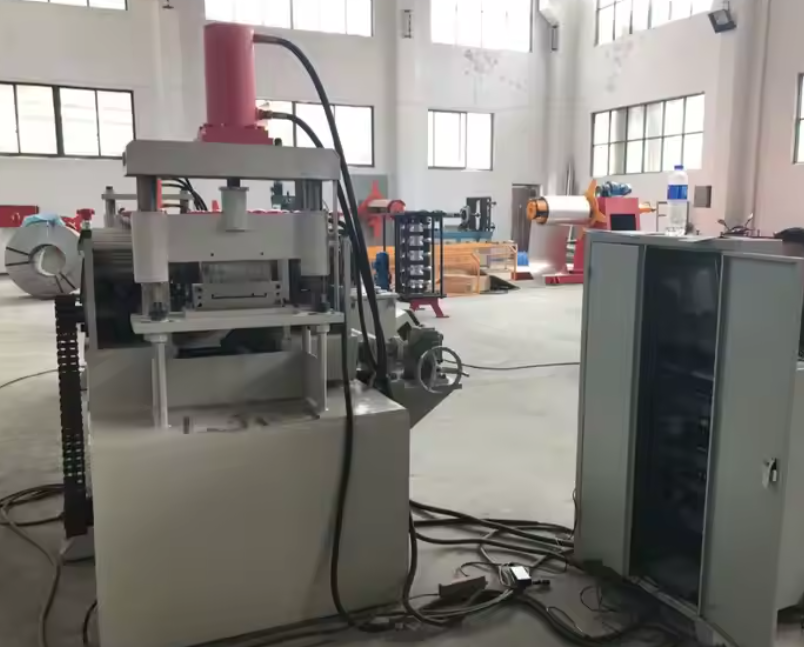

Cutting Method: Hydraulic post-cutting system
Blade Material: Cr12Mov (hardened alloy steel)
Control Type: PLC automated control with HMI touch screen
Operating Mode: Fully automatic with manual override
De-coiling System: Manual or hydraulic uncoiler (3–5 tons capacity)
Punching/Notching System: Hydraulic punching integrated (custom punch dies optional)
Machine Frame: Welded steel structure, stress-relieved
Thickness of Frame Steel: 20 mm

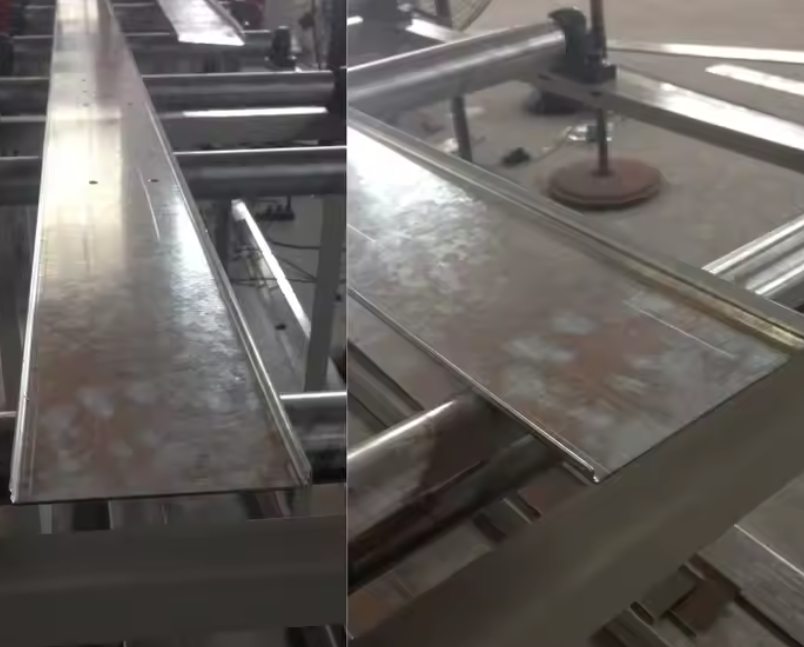

Profile Shape: Straight, perforated, or slotted cable tray
Profile Width and Depth: 100–1000 mm wide, depth 50–150 mm
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Every Cable Tray Roll Forming Machine from Machine Matcher is built to meet your specific profile dimensions, material requirements, and production targets. We offer the ability to customize:
Cable tray size (width and depth)
Material type and gauge compatibility
Punching patterns
Cutting and length systems
Automation level
Control systems and software integration
If you have profile drawings or specific tray dimensions, our engineering team will design your machine accordingly. Please send technical details to [email protected] for a tailored quote.
Our Cable Tray Roll Forming Machines cater to various industries across the UAE, including:
Electrical & Power Distribution – Structured cabling and electrical routing systems
Construction & Infrastructure – Commercial buildings, roads, tunnels, and airport projects
Telecommunications – Network cable management for data centers and telecom hubs
Oil & Gas – Cable trays for offshore platforms and refinery facilities
Renewable Energy – Solar farm installations and control systems
Producing slotted cable trays for multi-floor electrical wiring in Dubai skyscrapers
Manufacturing heavy-duty tray profiles for power plants in Abu Dhabi
Creating corrosion-resistant stainless steel trays for oil and gas applications in Sharjah
Tailor-Made Engineering – Custom-configured machines to suit your specific tray dimensions
High Speed & Efficiency – Reduce production time with speeds up to 25 m/min
Superior Material Handling – Built for durability using hardened shafts and rollers
Integrated Punching – Optional inline punching saves time and space on the factory floor
Fully Automated Operation – Precision control with user-friendly PLC and HMI interface
Local Power Compatibility – Configured for UAE 380V/50Hz power standard
Support Across the UAE – Machines delivered to any emirate with optional on-site setup
Remote Installation Support: Yes – full video guidance included
On-Site Setup Available: Upon request
Warranty: One-year warranty from date of dispatch
Post-Sale Support: Continuous technical assistance and parts replacement support
Q: Can the machine be customized for our cable tray profile?
A: Yes. All machines are made to order. Send us your tray drawings or dimensions to receive a custom quote.
Q: What type of material is normally used with this machine?
A: Most clients use galvanized steel (GI), mild steel (MS), or stainless steel (SS) in gauges from 0.8 mm to 2.5 mm and up to 50 ksi tensile strength.
Q: Is remote installation support available?
A: Yes. Remote video guidance is standard. On-site installation can be arranged upon request.
Q: What is the lead time for manufacturing and shipping?
A: Machines take 30–60 days to produce, and shipping time depends on your location and selected port in the UAE.
Q: What is the typical starting price for this machine?
A: Prices generally start from $55,000 USD, depending on configuration.
Q: What affects the final price?
A: Final pricing is influenced by punching stations, profile complexity, motor capacity, automation level, and optional add-ons. Contact Machine Matcher for a precise quote.
All machines are custom-built and delivered anywhere in the UAE, including:
Abu Dhabi
Dubai
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Umm Al Quwain
Your machine is shipped directly from our manufacturing partner to your site, with full logistical support provided by Machine Matcher.
For the most accurate quote and production timeline, email your tray drawings, material specs, and requirements to: [email protected]
