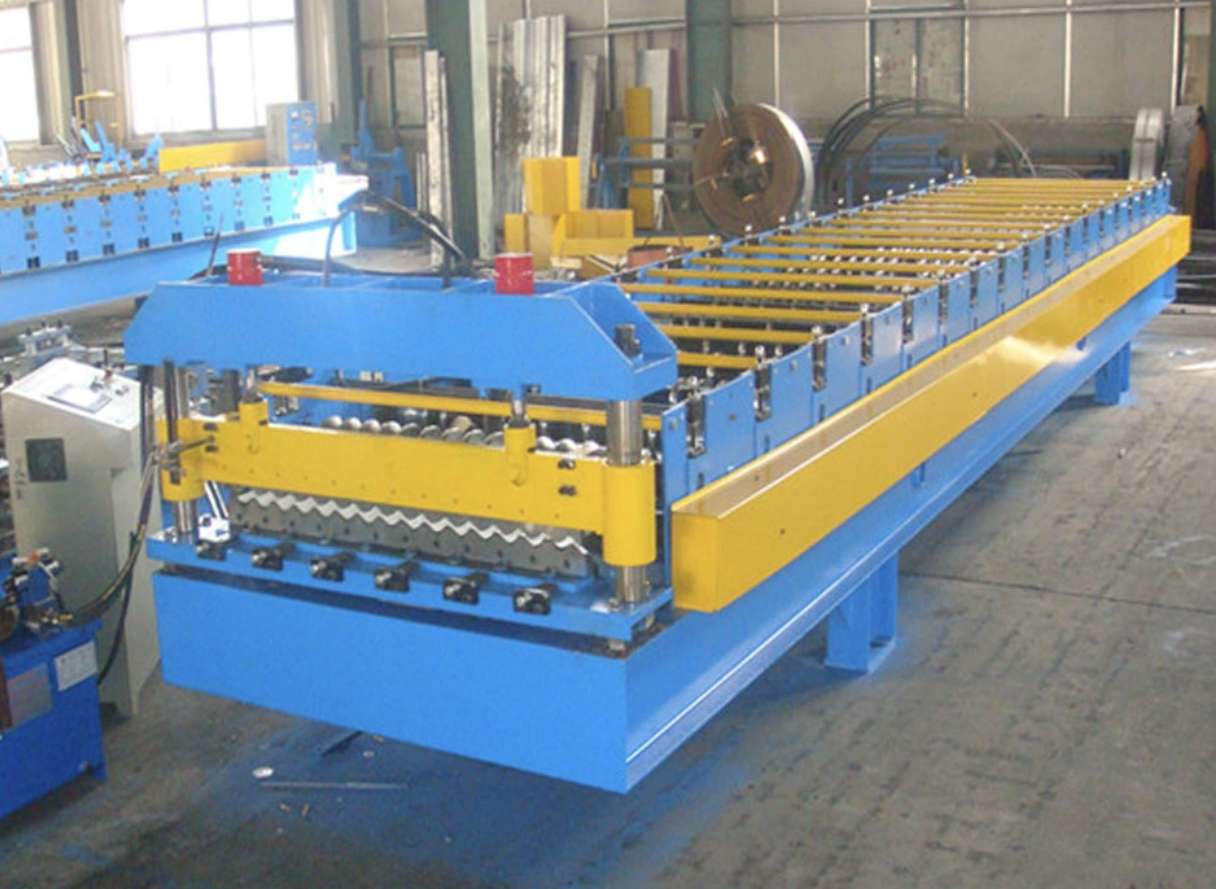

| Main motor power | 5.5kw |
| Drive | 1'' single chain |
| Type: | Wall board |
| Main shaft dia | ¢70mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 18 groups |
| Raw material | 0.3-0.7mm |
| Coil width | 1200mm |
| Working speed | 10m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 7500×1800×1500mm L x W x H |
| Color of machine | Yellow and Blue |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |

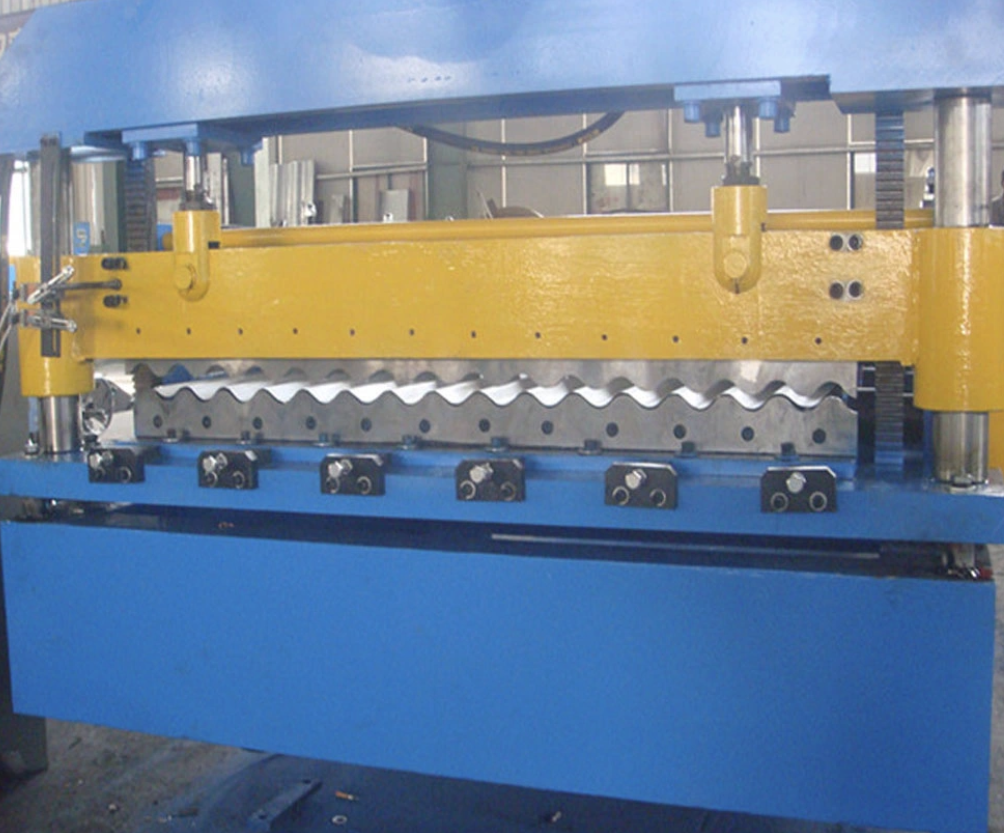

| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
