Corrugated roll forming machine in Canada

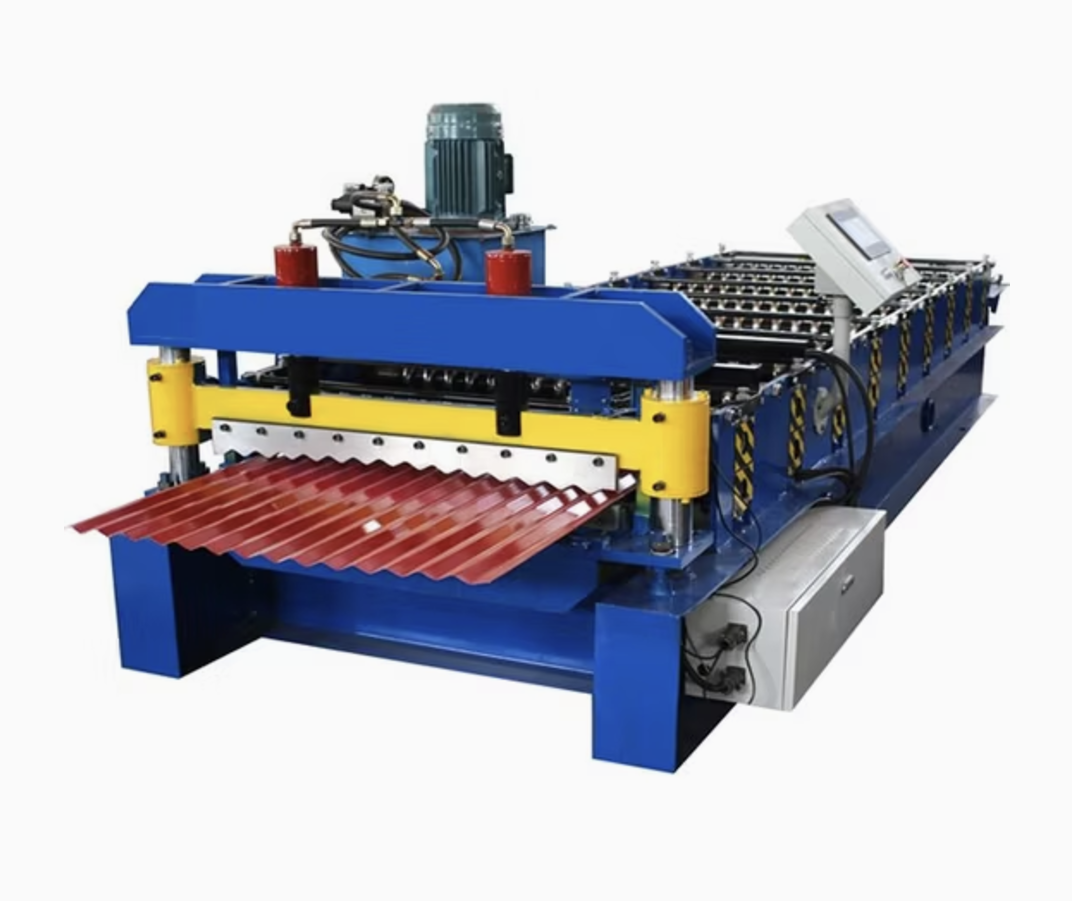

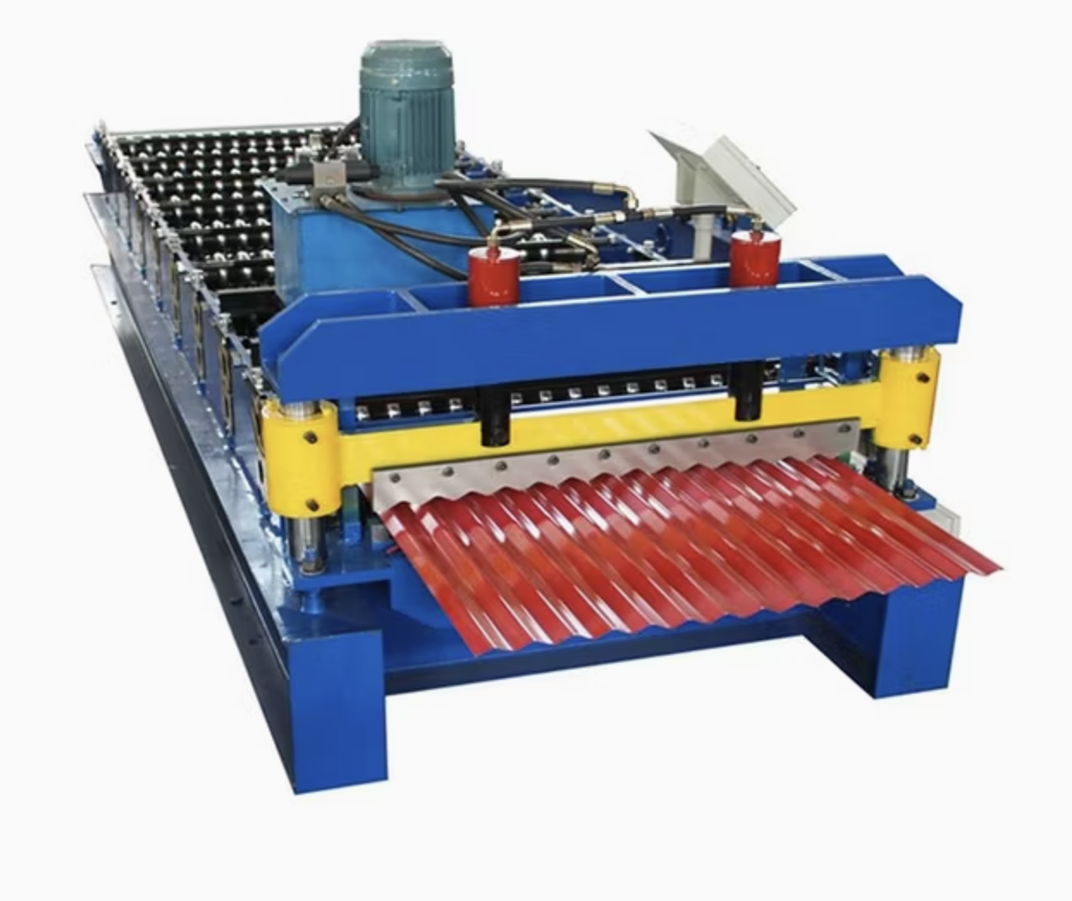

A Corrugated Roll Forming Machine is a specialized piece of equipment used to produce corrugated metal sheets. These sheets are widely used in roofing, cladding, and siding applications due to their durability, lightweight properties, and resistance to harsh weather conditions. The machine transforms flat metal coils into corrugated profiles through a precise roll forming process. This ensures high accuracy, consistency, and efficiency in production.

Corrugated sheets produced by these machines are popular in Canada for residential, commercial, and industrial construction projects, particularly for roofing systems that need to withstand snow loads and cold weather conditions.

Machine Specifications

1. Roller Materials
   • High-grade GCr15 steel with hard chrome plating for durability and precision.
2. Machine Frame
   • Welded steel frame for robust structure and reduced vibration during operation.
3. Control System
   • PLC control system with a user-friendly interface for automation and precision.
4. Profile Options
   • Corrugation depth: 12mm to 25mm (customizable).
   • Pitch width: 76mm or as per requirement.
5. Material Compatibility
   • Steel, aluminum, galvanized steel, and pre-painted steel.
   • Thickness range: 0.3mm to 0.8mm.
6. Production Speed
   • 10–25 meters per minute (depending on material and profile).
7. Cutting System
   • Hydraulic cutting with high-speed steel blades for clean and accurate cuts.
8. Power Supply
   • Customizable to Canadian standards (e.g., 380V, 50Hz, 3-phase or 220V, 60Hz, 3-phase).
9. Coil Feeding System
   • Manual or automatic uncoiler with a capacity of 5 tons or more.
10. Machine Dimensions
    • Length: 7 meters.
    • Width: 1.5 meters.
    • Height: 1.2 meters.
11. Safety Features
    • Emergency stop buttons.
    • Protective covers over moving parts.
12. Optional Add-Ons
    • Automatic stackers.
    • Coil car tippers.
    • Remote PLC monitoring systems.

Applications in Canada

Corrugated sheets produced by these machines are ideal for:

• Roofing for homes and barns in snow-prone areas.
• Wall cladding in industrial buildings.
• Fencing for commercial spaces.
• Greenhouse structures in agricultural sectors.

Question and Answer Section

Q1: What materials can I use with a Corrugated Roll Forming Machine in Canada?
A: The machine supports various materials, including galvanized steel, pre-painted steel, aluminum, and stainless steel, making it versatile for different applications and climates.

Q2: Is the machine compatible with Canadian power supply standards?
A: Yes, the machine can be customized for Canadian standards, including 220V or 380V, 50/60Hz, 3-phase power.

Q3: What maintenance is required for this machine?
A: Regular maintenance includes:

• Lubricating the rollers and gears.
• Checking and tightening bolts.
• Inspecting and cleaning the PLC system.
• Replacing cutting blades as needed.

Q4: How fast can the machine produce corrugated sheets?
A: The production speed is typically 10–25 meters per minute, depending on material type and profile specifications.

Q5: Can the machine handle extreme cold during operation?
A: Yes, the machine is designed with components and materials that withstand Canadian winter conditions, including insulated motors and cold-resistant lubricants.

Q6: What is the average price of a Corrugated Roll Forming Machine in Canada?
A: Prices range from $30,000 to $60,000 CAD, depending on customization, production capacity, and optional add-ons.

Q7: Can I produce custom corrugated profiles with this machine?
A: Yes, the machine can be tailored to create specific profile depths, pitches, and materials as per your requirements.

Q8: How long does installation take?
A: Installation typically takes 1–2 days with professional assistance.

Q9: Are financing options available in Canada?
A: Yes, many suppliers offer financing plans or leasing options for businesses.

Q10: Is it possible to expand the machine’s functionality later?
A: Absolutely. You can add components like stackers, advanced PLC systems, or larger uncoilers to increase efficiency and versatility.

This comprehensive guide on the Corrugated Roll Forming Machine provides insights into its specifications, uses, and features for the Canadian market. If you need further details or a quote, feel free to ask!
