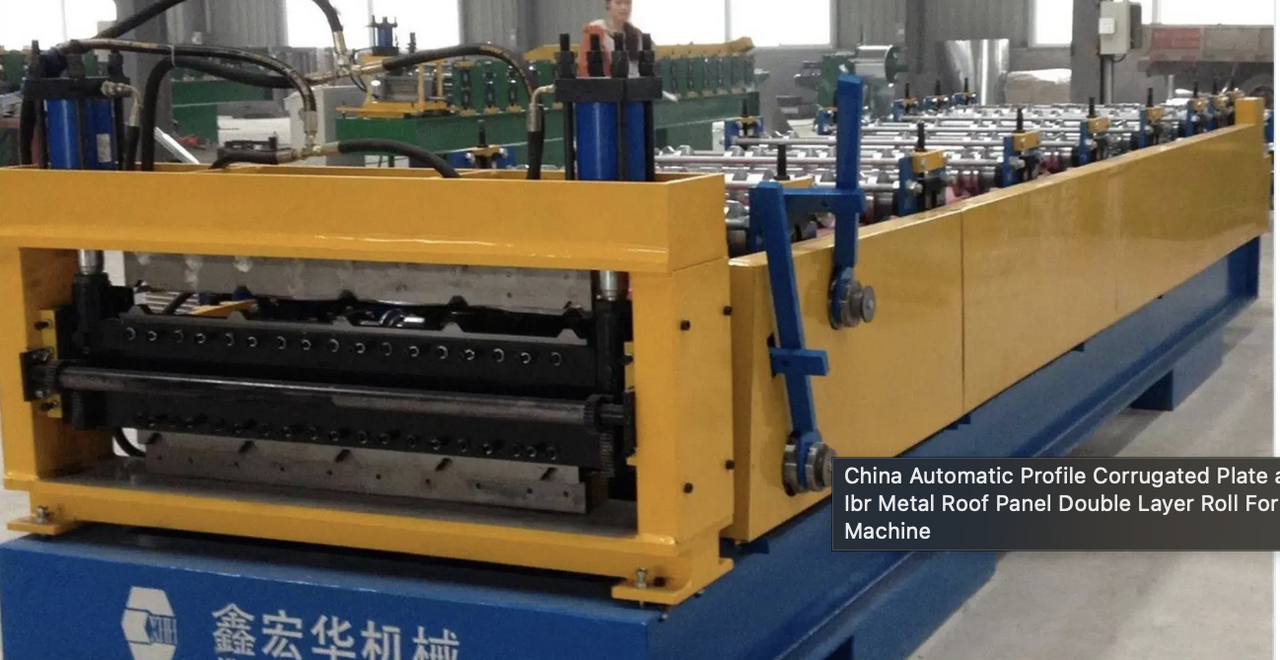

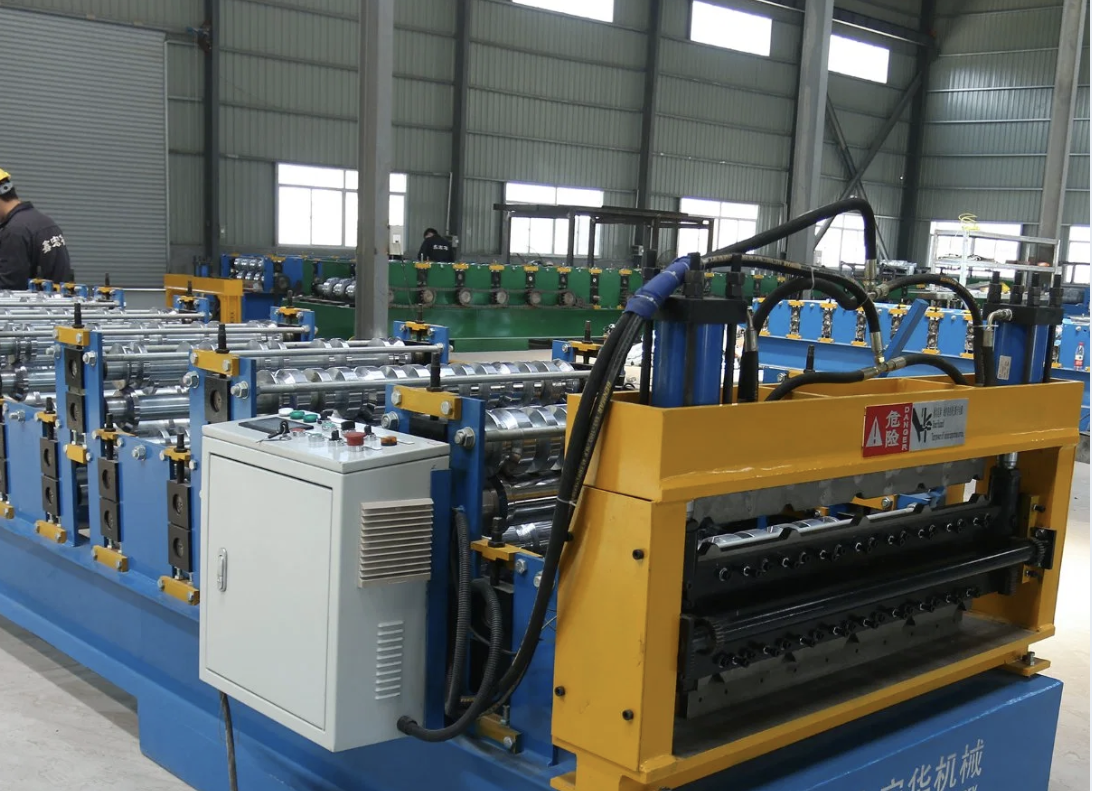

Double Layer Automatic Profile Corrugated Machine
| 1. | Size | YX20-860-1050/YX12-900-1100 |
| 2. | Dimension | 6800mm/2000mm/1300mm |
| 3. | Wieght | 6500KGS |
| 4. | Motor Power | 5.5KW |
| 5. | Hydraulic Power | 1.5KW |
| 6. | Voltage | 380V/50HZ/3PH |
| 7. | Forming Steps | 14 steps for YX20-860-1050/9 steps for YX12-900-1100 |
| 8. | Working Speed | 8-14m/min |
| 9. | Thickness | 0.3-0.6mm |
| 10. | Material Width | 1000mm,1200mm |
| 11. | Effective Width | 860mm,900mm,1050mm,1100mm |
