Corrugated roll forming machine in Madagascar

Corrugated roll forming machines are essential in the metal roofing and cladding industry, widely used for producing corrugated metal sheets for various applications. These machines are specifically designed to manufacture corrugated profiles efficiently, catering to the construction, agricultural, and industrial sectors. The corrugated pattern not only enhances the structural integrity of the sheets but also adds aesthetic value, making it a popular choice for roofing, wall cladding, and fencing.

Machine Description

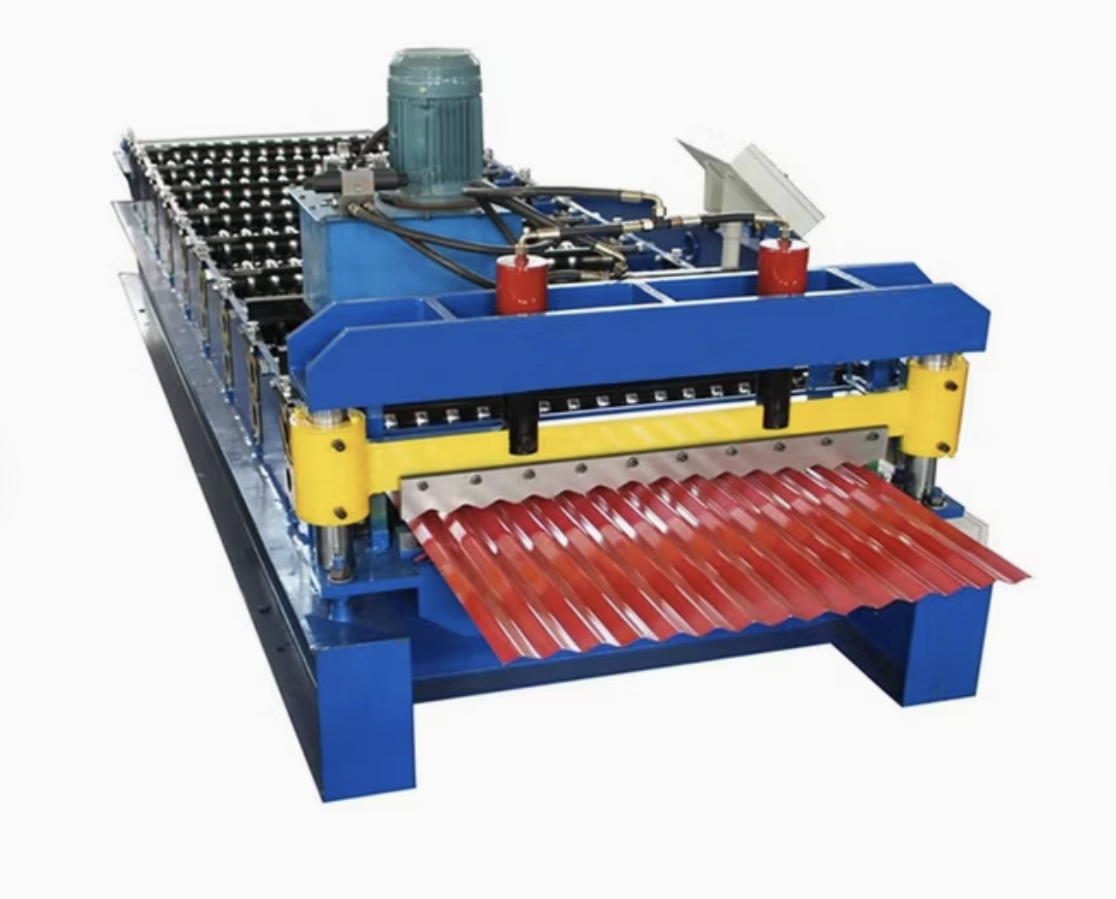

A Corrugated Roll Forming Machine is a high-performance equipment engineered to produce corrugated sheets with uniform dimensions, high strength, and excellent finish. The machine works by feeding a coil of sheet metal through a series of precisely calibrated rollers, which gradually shape the material into the desired corrugated profile. The roller die setup ensures consistent wave patterns across the sheet, with adjustable settings to meet various profile requirements.

Corrugated roll forming machines are available in a range of configurations to suit different material thicknesses and profile designs. They are highly customizable and can include additional features like hydraulic cutting, PLC (Programmable Logic Controller) systems, and automatic stacking options for enhanced productivity.

Specifications of a Corrugated Roll Forming Machine

1. Roller Materials:
   • Made from high-grade steel, hardened and ground to ensure durability.
   • Chrome-plated or treated to withstand the repetitive force of forming processes.
2. Frame and Structure:
   • Heavy-duty steel frame, often Q235 or Q345, to ensure stability and durability during operation.
   • Reinforced structure with anti-rust coating for longevity.
3. Roller Stations:
   • Varies based on profile complexity (usually between 14–22 stations).
   • Designed for uniform and smooth wave formation.
4. Material Specifications:
   • Suitable Material: Galvanized steel, aluminum, or other metals.
   • Thickness Range: 0.3 mm to 0.8 mm (customizable according to project needs).
   • Width Range: 1000 mm to 1250 mm, typically feeding through a 1250 mm coil.
5. Motor and Drive System:
   • Main Power: Typically ranges from 5.5 kW to 7.5 kW.
   • Drive System: Chain or gear drive for robust operation.
   • Servo or hydraulic motors for accurate cutting and notching.
6. PLC Control System:
   • Incorporates a touch-screen PLC for controlling speed, length, and batch size.
   • Equipped with an HMI (Human-Machine Interface) for ease of operation.
   • Programmable for various corrugated profiles and sheet lengths.
7. Machine Speed:
   • Speed Range: 10–15 meters per minute (can vary with sheet thickness and profile design).
8. Hydraulic Cutting System:
   • Includes a hydraulic cutter to ensure clean and precise cuts.
   • Blade material: High-quality steel, often Cr12, for durability.
9. Safety Features:
   • Safety guards and emergency stop buttons.
   • Enclosed gearbox to protect operators and enhance machine life.
10. Optional Features:
    • Automatic stackers for efficient sheet collection.
    • Remote PLC control for ease of maintenance and troubleshooting.
    • Coil car for easy loading and unloading of materials.

Applications of Corrugated Roll Forming Machines

Corrugated sheets produced by roll forming machines are widely used in:

• Roofing and Wall Cladding for residential, commercial, and industrial buildings.
• Fencing and Enclosures due to their strength and durability.
• Agricultural Buildings like barns, sheds, and greenhouses.
• Storage Facilities and Warehouses, where sturdy yet lightweight cladding is needed.

Question and Answer Section

Q: What materials can a corrugated roll forming machine handle?
A: Most machines are designed for galvanized steel, aluminum, and sometimes color-coated steel. The material specifications depend on the thickness range and the profile requirements.

Q: Can I use this machine for other profiles besides corrugated?
A: While these machines are specifically tailored for corrugated profiles, some may offer adjustable rollers or additional sets for different wave patterns. For multiple profiles, however, consider investing in a multi-profile roll forming machine or separate units.

Q: What is the expected output speed of a corrugated roll forming machine?
A: Output speed can vary depending on the specific model and settings but generally ranges from 10 to 15 meters per minute.

Q: How much maintenance does a corrugated roll forming machine require?
A: Routine maintenance includes checking and lubricating moving parts, inspecting the roller stations, and ensuring the PLC system is functioning correctly. Regular maintenance ensures longevity and consistent output quality.

Q: Is there a minimum thickness for materials used in these machines?
A: Most machines handle a thickness range starting from 0.3 mm to 0.8 mm. Going below the recommended minimum can result in inaccurate profiles and may damage the rollers.

Q: How can I adjust the length of the corrugated sheets?
A: The machine’s PLC system allows operators to set the desired length, which the machine will automatically cut once the sheet reaches this dimension.

Q: What is the role of the hydraulic cutting system in this machine?
A: The hydraulic cutting system is essential for ensuring smooth, burr-free cuts at the designated lengths. It operates in sync with the roll forming process to minimize waste and downtime.

Q: Can this machine be used outdoors?
A: While possible, it is not recommended to use roll forming machines outdoors. Environmental factors like humidity and dust can impact the machine’s performance and longevity. Ideally, place the machine in a controlled indoor environment.

Q: How do I know if a corrugated roll forming machine is compatible with my power supply?
A: Most machines can be configured to work with various power supplies. However, it’s crucial to confirm power requirements (usually between 380V/50Hz or 220V/60Hz) with the manufacturer before purchasing.

Q: Is training required to operate a corrugated roll forming machine?
A: Yes, it’s advisable to receive basic training, especially for using the PLC system and understanding safety protocols. Some manufacturers offer training as part of the machine purchase package.

Q: What optional features should I consider for higher productivity?
A: Consider options like automatic stackers, coil car tippers, and remote PLC systems for enhanced productivity and ease of operation.
