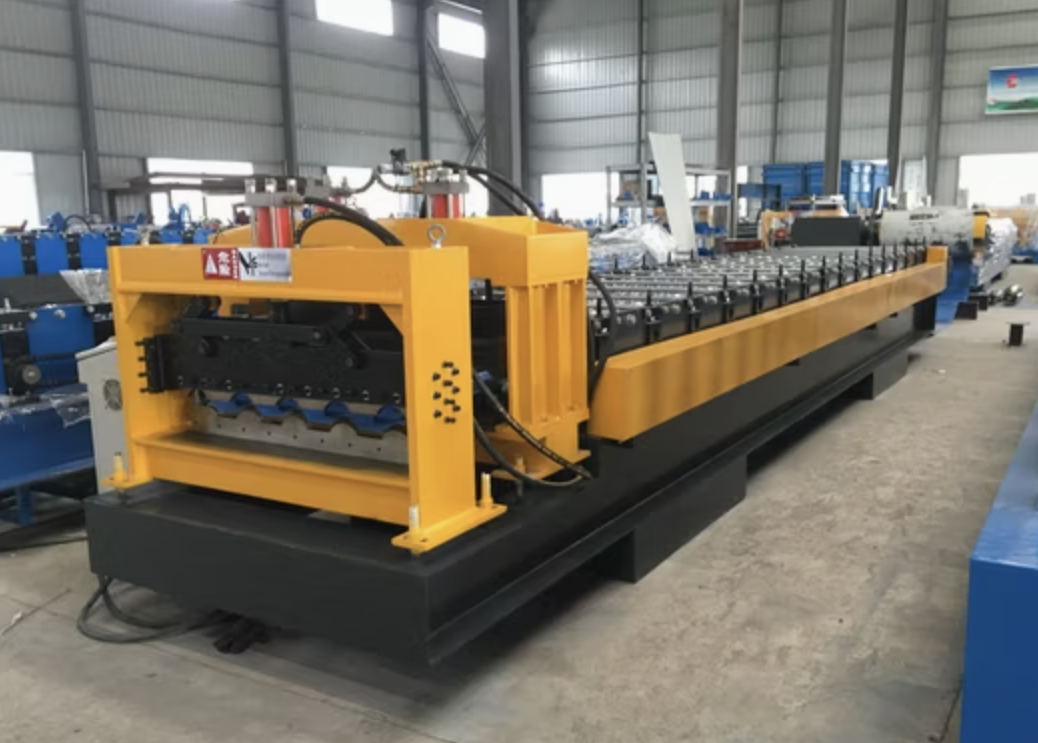

Corrugated roll forming machine in Mozambique

Corrugated roll forming machines play an essential role in the manufacturing sector, primarily used for producing corrugated metal sheets used in roofing, siding, and wall cladding. These machines shape metal coils into a durable, corrugated profile, enhancing the material’s strength and durability. This blog explores the detailed specifications, features, and advantages of corrugated roll forming machines and addresses common questions for potential buyers.

1. Corrugated Roll Forming Machine Specifications

Below are the typical specifications for a standard corrugated roll forming machine. However, specifications may vary depending on the manufacturer and specific requirements of the end-user.

• Roller Material: High-grade steel, often coated with chrome to enhance durability and reduce wear
• Frame Structure: Rigid steel frame, often a welded structure that minimizes vibration and enhances machine stability
• Roller Stations: Typically 18-24 stations, depending on the required profile depth and width
• Material Thickness: 0.2-1.0 mm (standard range; heavier-duty models may handle thicker materials)
• Material Width: 1000 mm - 1250 mm
• Profile Depth: Customizable, usually between 12-32 mm
• Production Speed: Ranges from 10 to 20 meters per minute
• Power Requirement: 380V/50Hz (or as required by country specifications)
• Main Motor Power: 5-7.5 kW (higher power for larger machines)
• PLC Control System: Fully automated with PLC controls for easy and accurate operation
• Cutting Type: Hydraulic cutting system, ensuring precise cutting without deforming the profile
• Hydraulic Power: 3 kW for the cutting unit
• Safety Guards: Comprehensive guards and emergency stop functions
• Dimensions: Typically around 7.5 m (L) x 1.5 m (W) x 1.5 m (H)
• Weight: Approximately 5 tons

2. Features and Benefits of Corrugated Roll Forming Machines

• Durability: Corrugated sheets produced by these machines offer high strength-to-weight ratio, making them suitable for harsh weather conditions.
• Customizable Profiles: Machines can be adjusted to create a variety of corrugation depths and spacings based on client needs.
• User-Friendly Control Panel: PLC systems simplify the operation, making it accessible even for less experienced operators.
• Energy Efficiency: Corrugated roll forming machines are designed to consume minimal energy while maximizing output, ideal for high-production facilities.
• High Production Speed: The machine’s speed helps manufacturers meet demand in industries that require large quantities of corrugated sheets.
• Versatility: The machine can handle various metal materials, such as galvanized steel, aluminum, and copper.
• Maintenance-Friendly: Machines are designed for easy maintenance, reducing downtime and ensuring continued productivity.

3. Setup and Installation Process

Setting up a corrugated roll forming machine requires some planning to ensure a smooth and efficient operation:

1. Location Setup: Position the machine on a level surface in a spacious area with access to the power supply and ventilation.
2. Assembly: Many machines are delivered in parts, requiring assembly by trained personnel or under the supervision of a technician.
3. Testing and Calibration: After assembly, conduct tests and calibrations to verify the accuracy of the profile dimensions.
4. Operator Training: Proper training for operators on PLC controls and safety procedures is essential for efficient operation and longevity.

4. Maintenance Requirements

To maintain the longevity of a corrugated roll forming machine, regular maintenance is recommended:

• Weekly Inspections: Check roller stations for alignment and lubricate as needed.
• Monthly Cleaning: Clear away any buildup of metal debris and dust from the rollers, frame, and cutting area.
• Annual Calibration: Have a technician recalibrate the machine to ensure continued accuracy in profile dimensions.
• Hydraulic Fluid Check: Regularly monitor and refill hydraulic fluid levels for smooth cutting operations.
• Electrical Inspection: Ensure all electrical components and PLC systems are functioning properly.

5. Frequently Asked Questions (FAQs)

Q1: What materials can the corrugated roll forming machine handle?

• A: Most corrugated roll forming machines can handle galvanized steel, aluminum, copper, and other metal alloys, depending on the machine specifications and material thickness.

Q2: Can the machine produce customized corrugated profiles?

• A: Yes, machines are generally adjustable to create various corrugation depths and profile spacings. Custom roller sets can be ordered for specific profiles.

Q3: How do I determine the right power requirement for my machine?

• A: Power requirements vary depending on the machine’s size and production speed. Ensure that your facility’s power supply matches the machine’s specifications (e.g., 380V/50Hz or 440V/60Hz).

Q4: Is operator training necessary for this machine?

• A: Yes, training is crucial, especially for handling PLC controls, calibrating the machine, and following safety protocols to ensure safe and efficient operation.

Q5: What is the production capacity of a corrugated roll forming machine?

• A: Production capacity depends on the machine model but typically ranges from 10-20 meters per minute. Custom high-speed models may achieve faster output rates.

Q6: How often should I perform maintenance on my roll forming machine?

• A: Regular maintenance, such as lubrication, cleaning, and inspection, should be done weekly. More in-depth maintenance, like calibration, is recommended annually or biannually.

Q7: Are there any optional extras available for these machines?

• A: Yes, optional extras like stackers, remote PLC controls, uncoilers, and hydraulic coil tippers can be added to enhance the machine's functionality and ease of use.

Q8: What should I consider when buying a used corrugated roll forming machine?

• A: Check the machine’s overall condition, specifically the rollers, motor, and PLC system. Ensure the frame is free of rust, and request a maintenance history if available.

Q9: What industries commonly use corrugated roll forming machines?

• A: Industries that require strong, durable, and lightweight roofing and siding materials, such as construction, agriculture, and manufacturing, frequently use these machines.

Q10: What should I do if I encounter an error or machine malfunction?

• A: First, consult the user manual or the troubleshooting guide provided by the manufacturer. If the issue persists, contact a technician for further assistance.
