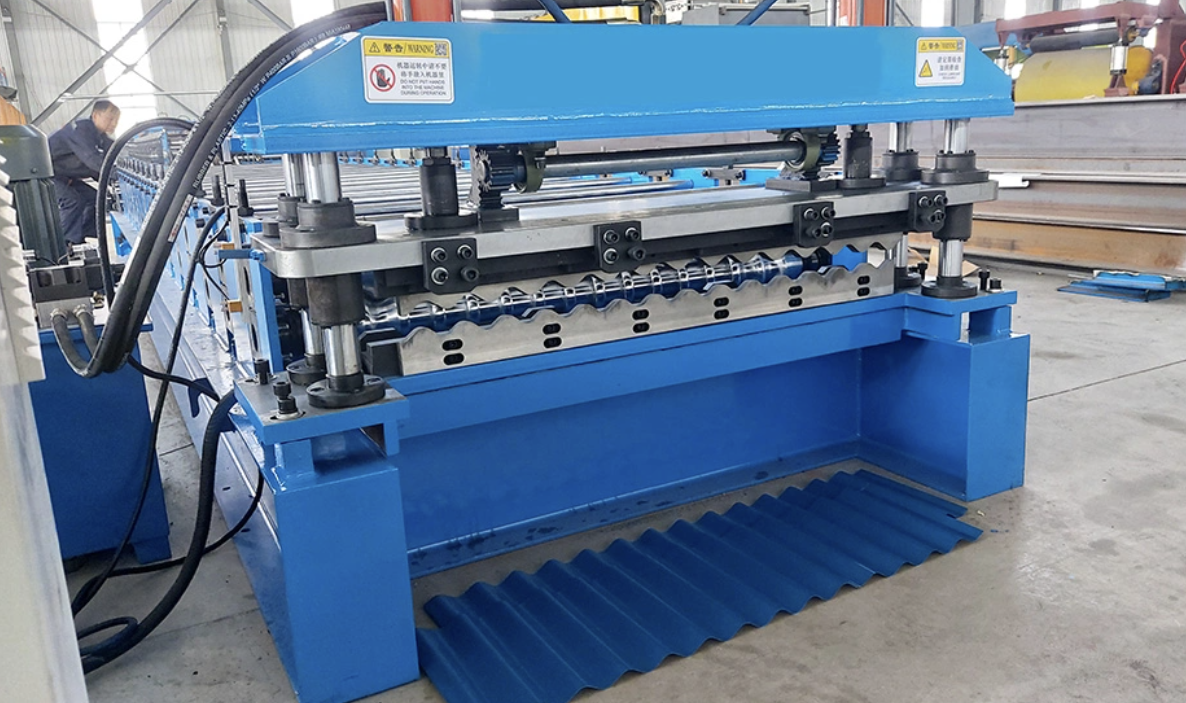

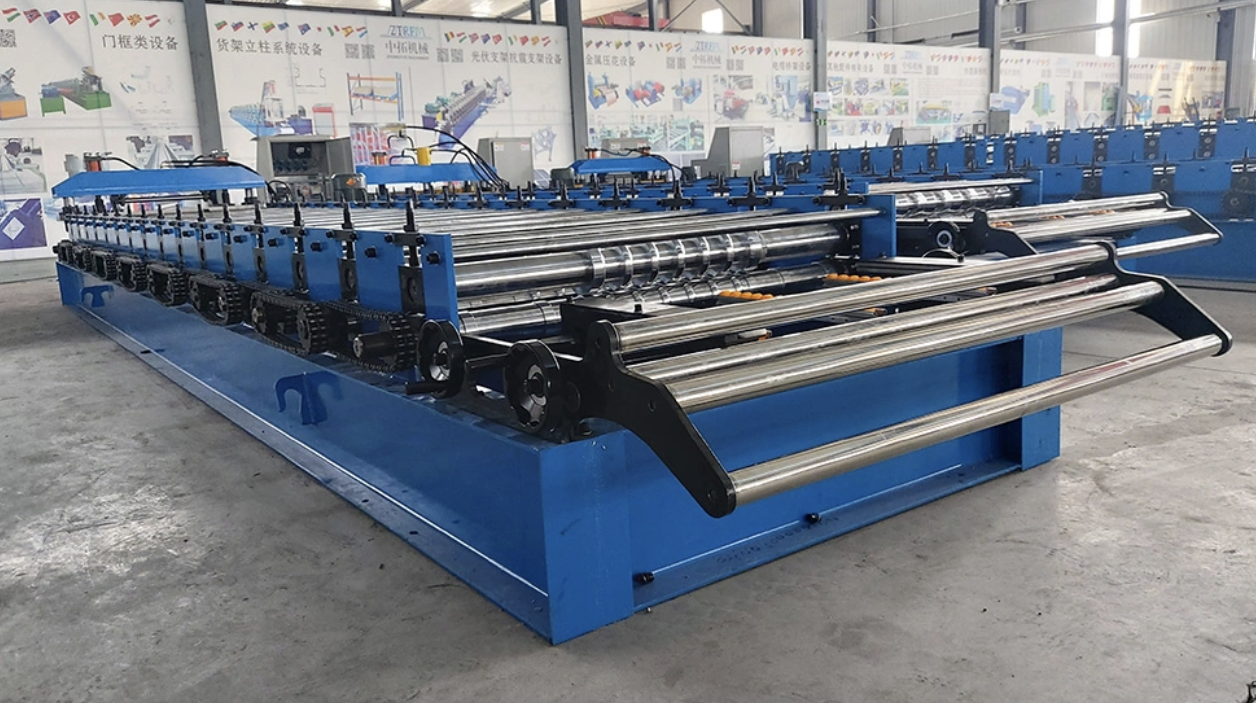

Automatic Corrugated Wave Panel Metal Wall Plate Roof Roofing Sheet Machine
Driving Type: Chain(common) or Gear or Gearbox;
Forming Model: Integral Forming or Split Forming;
Forming Machine structure: Medium-plate Type(common) or Arch Type or Guide-pillar type;
Roller: 45# or Cr12 or GCr15 or GCr12MoV
Shaft: 45# or 40Cr; 70mm/80mm/90mm(common) or as design;
Motor Power: 4.0kW or 5.5kW or according to the design requirements;
Main Frame: 350# or 400# H-beam steel welded.
Cutter:
Working Model: Hydraulic Cutter (common) or Electric Cutter;
Cutter Blade Material: Cr12.
