Corrugated roll forming machine in Panama

Corrugated roll forming machines are essential in producing corrugated sheet metal, widely used in roofing, siding, and paneling applications. These machines offer precision and consistency, ensuring that each sheet has a uniform wave pattern, which is essential for structural integrity, aesthetics, and efficient installation.

Machine Description

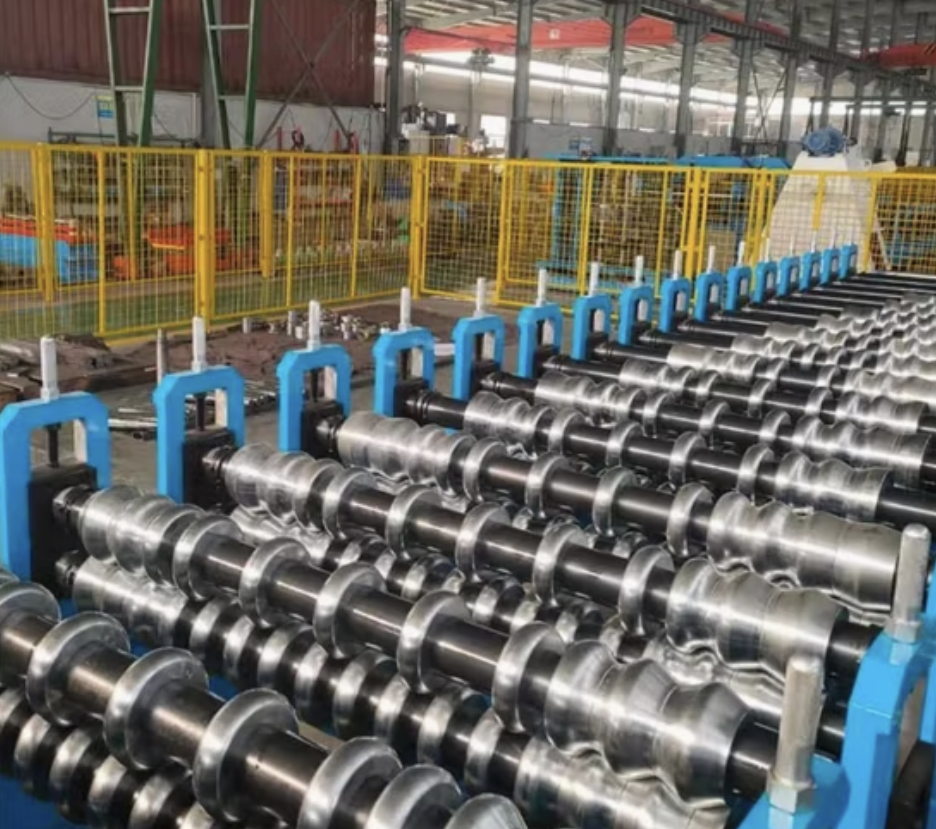

A corrugated roll forming machine transforms flat metal sheets into a corrugated profile through a continuous process of feeding, forming, and cutting. Using a series of precisely spaced rollers, the machine shapes the metal into a wave-like form, producing sheets with high durability and excellent weather resistance. This design is ideal for roofing and siding, as it channels water away effectively and can withstand various environmental conditions.

The machine can work with different metals, such as galvanized steel, aluminum, copper, and other alloys, depending on the application requirements. Corrugated sheets are often used in construction, agriculture, and industrial sectors, prized for their lightweight, strength, and versatility.

Specifications

1. Roller Materials:
   • High-strength, heat-treated steel or alloy, often coated for corrosion resistance to ensure longevity.
   • Optional chrome or zinc plating for additional durability.
2. Frame Size:
   • Typically made from structural steel to support the forming rollers' weight and provide stability.
   • Standard frame sizes range from 400-800 mm in width, depending on the corrugation width.
3. Motor and Drive System:
   • Motors range from 5 to 30 HP, depending on sheet thickness, width, and desired speed.
   • Servo motors for precision speed control and efficient energy use.
   • Direct-drive or chain-drive systems, with direct drive offering smoother operation and reduced maintenance.
4. PLC Control System:
   • Integrated PLC with touchscreen HMI for automated control, easy operation, and quick adjustments.
   • Allows customization of sheet length, corrugation depth, and production speed.
   • Optional remote PLC systems for off-site monitoring and diagnostics.
5. Machine Speed:
   • Production speed of 10-20 meters per minute, with variable speed adjustment.
   • Faster speeds available with advanced machines, depending on sheet thickness and material.
6. Hydraulic Cutting System:

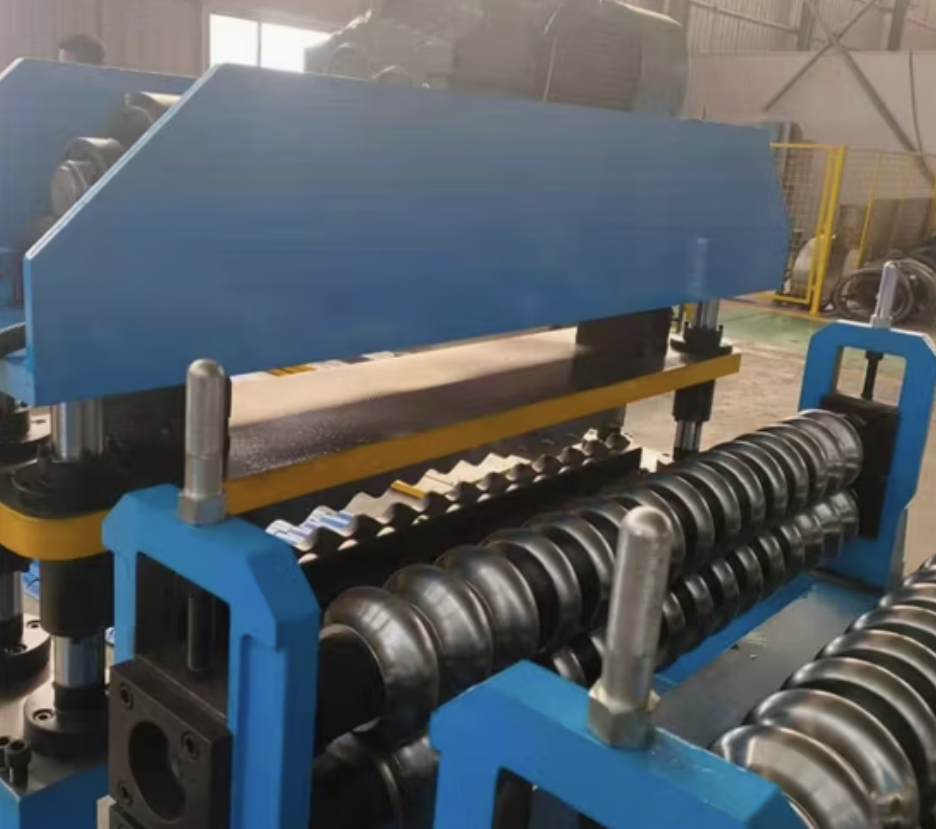

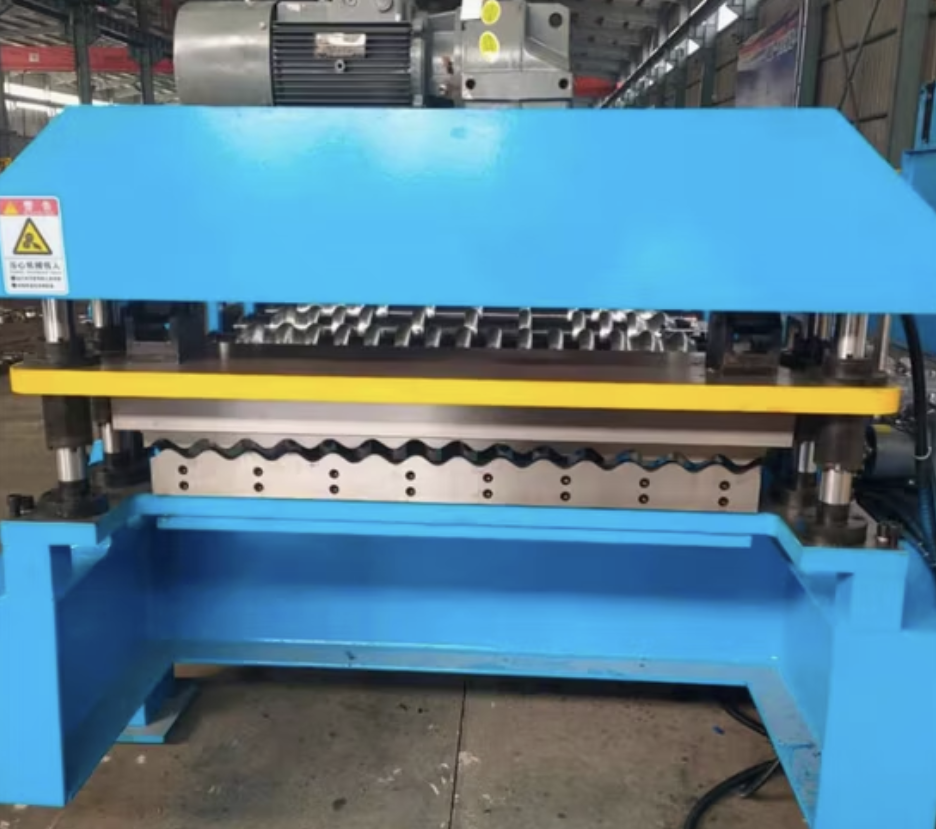

   • Hydraulic cutting mechanism for precise, burr-free cutting.
   • Cutter materials often include high-speed steel (HSS) or tungsten carbide for sharpness and durability.
   • Cutting length and frequency can be controlled via PLC to meet customized requirements.
7. Safety Features:
   • Safety enclosures around rollers to prevent accidental contact.
   • Emergency stop buttons and overload protection.
   • Safety guard sensors to halt operations if opened.

Profile Description

• Materials: Corrugated sheets can be made from galvanized steel, aluminum, or copper, based on application requirements and environmental conditions.
• Sizes: Standard widths are 1000 mm, 1220 mm, and 1250 mm, with corrugation heights ranging from 8-32 mm.
• Material Gauge: Common gauge thicknesses range from 0.3 mm to 1.0 mm, though this may vary based on machine specifications.
• Market Size and Demand: Widely used in construction, agriculture, and industrial sectors worldwide, with high demand in countries prone to heavy rainfall or extreme weather.
• Popular Countries: Corrugated sheets are widely used in North America, Southeast Asia, and African countries due to their durability, lightweight, and versatility.

Optional Extras

• Stackers: Automatic stacking of finished sheets, improving handling efficiency.
• Remote PLC Systems: For remote monitoring and adjustments.
• Coil Handling Systems: Uncoilers and recoilers for efficient material handling.
• Automatic Lubrication System: For increased longevity of rollers and reduction in maintenance.

Question and Answer Section

Q1: What are the benefits of using a corrugated roll forming machine?

• Answer: Corrugated roll forming machines offer efficiency, precision, and consistency, ensuring uniform corrugation that provides strength and aesthetic appeal. They are ideal for high-volume production, which saves time and reduces labor costs. Additionally, these machines support multiple metal types, making them versatile for various applications.

Q2: Can a corrugated roll forming machine produce different sizes of corrugated sheets?

• Answer: Yes, most machines allow for adjustments to corrugation depth, width, and length via the PLC system. This flexibility is essential for manufacturers serving different markets and applications, as they can tailor production to specific requirements.

Q3: How does the machine ensure the quality of corrugated sheets?

• Answer: Quality is maintained through precision rollers and a PLC-controlled hydraulic cutting system, which ensures clean, accurate cuts and uniform corrugation. Additional features like automated lubrication and advanced motor control also enhance the machine’s performance and the final product quality.

Q4: What type of maintenance does a corrugated roll forming machine require?

• Answer: Regular maintenance includes checking the rollers and motors, lubricating moving parts, and ensuring the PLC system is updated. Periodic inspections of hydraulic systems, cutting blades, and safety features are also essential to prevent downtime and extend machine life.

Q5: Are corrugated roll forming machines compatible with eco-friendly materials?

• Answer: Yes, many corrugated roll forming machines can work with recycled metals or metals designed for sustainable construction, making them suitable for eco-friendly production.

Q6: How customizable is the machine for specific industry needs?

• Answer: Corrugated roll forming machines are highly customizable. Users can adjust sheet lengths, corrugation depth, and speed, making them versatile for construction, agricultural, and industrial applications. Additionally, optional extras like stackers and coil handling systems enhance usability and efficiency.

Q7: Can the machine be operated by one person, or does it require a team?

• Answer: While one person can operate a basic corrugated roll forming machine, larger machines or high-volume production may benefit from a small team to manage material handling, stacking, and quality control.

Q8: How does the machine handle different materials like steel and aluminum?

• Answer: The machine’s rollers and drive system are designed to handle various materials, adjusting the roller pressure and speed based on material thickness and properties. Most modern machines have settings to accommodate different metals efficiently.

Q9: What safety measures are recommended for operators?

• Answer: Operators should be trained to use safety enclosures and guard sensors, wear protective gloves, glasses, and hearing protection, and be aware of emergency stop locations. Regular safety checks are also essential.
