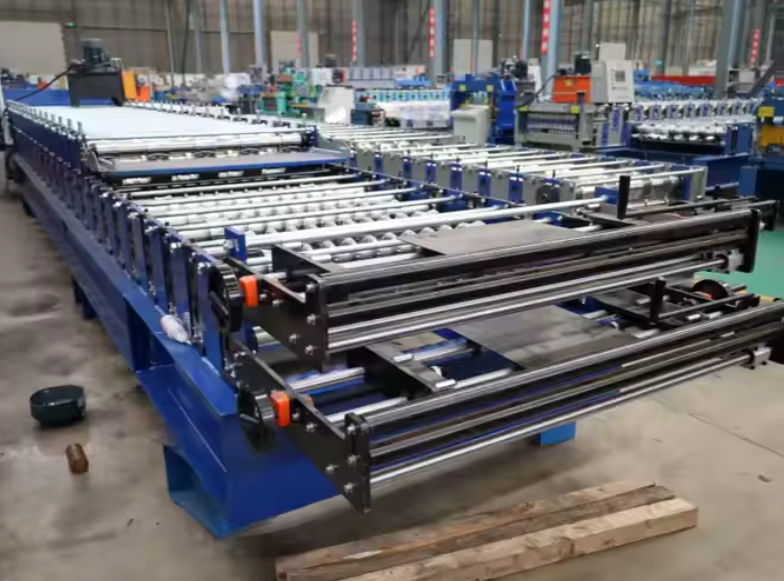

Corrugated Sheet Roll Forming Machine – Supplied by Machine Matcher (UAE)
Machine Matcher proudly offers custom-built Corrugated Sheet Roll Forming Machines tailored for the UAE market, including Abu Dhabi, Dubai, and Sharjah. Designed for high-precision production of corrugated metal sheets, these machines are ideal for roofing, cladding, and structural applications across various industries. Each unit is engineered to meet specific profile requirements, ensuring optimal performance and durability in the demanding UAE environment.
Machine Type: Corrugated Sheet Roll Forming Machine
Production Speed: 10–46 meters per minute (model-dependent)
Material Thickness Range: 0.3–0.9 mm
Material Width Range: 914–1450 mm
Material Types: Galvanized Steel, PPGI, Aluminium
Material Yield Strength: 245–550 MPa
Roller Material: 45# Forge Steel with Chrome Coating
Roller Surface Treatment: Hard Chrome Plated (HRC 58–62)
Number of Forming Stations: 14–36 (based on profile complexity)
Roller Shaft Diameter: 70–80 mm
Shaft Material: High-Quality 45# Steel
Main Drive Type: Chain or Gearbox Drive
Power Requirements: Customized to UAE standards (typically 380V, 50Hz, 3 Phase)
Motor Power: 5.5–22 kW

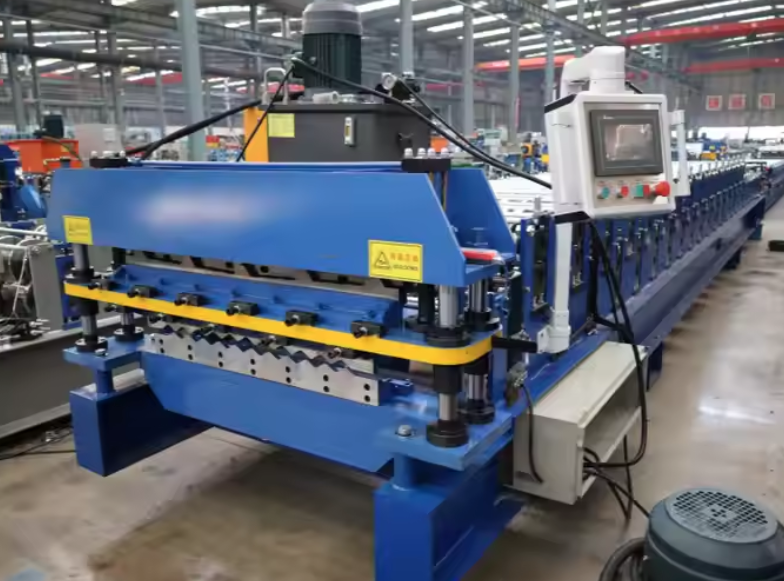

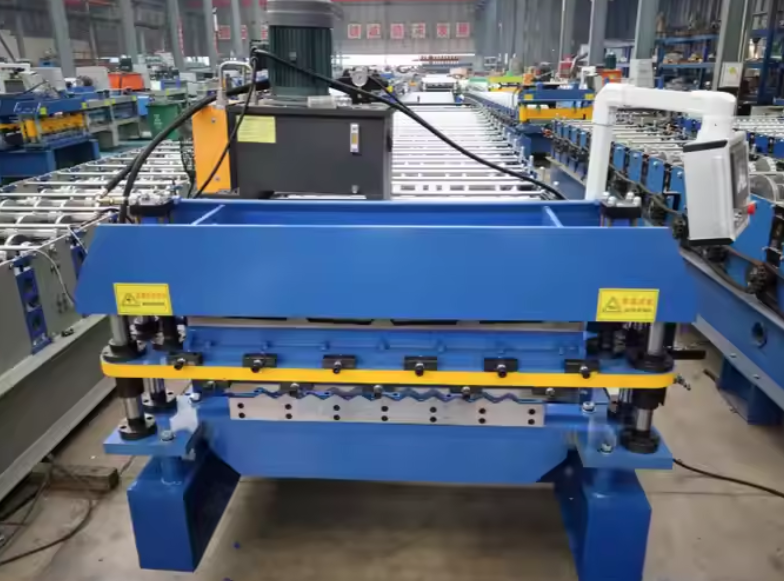

Cutting Method: Hydraulic Post-Cutting
Blade Material: Cr12 Mould Steel (HRC 58–62)

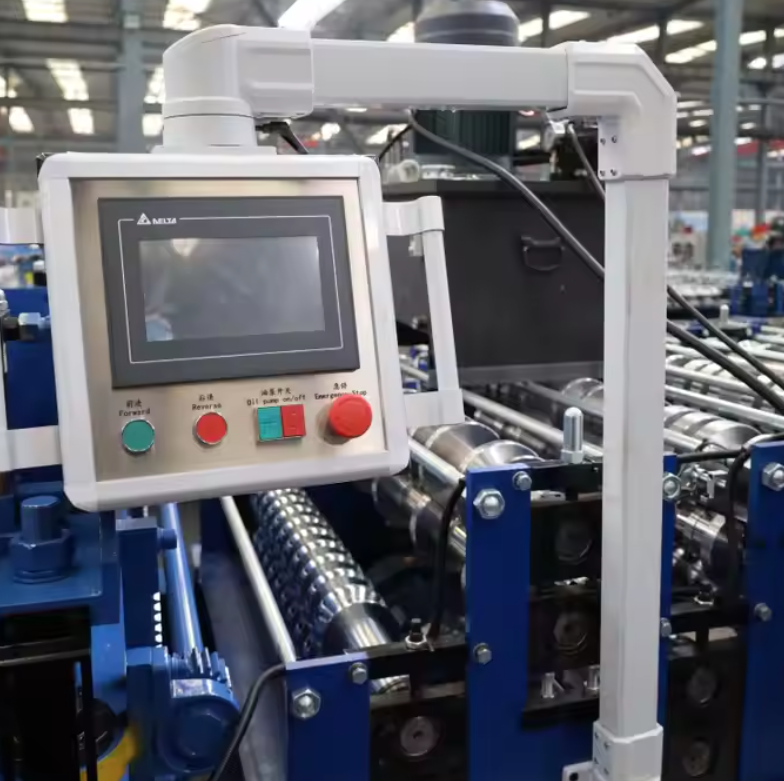

Control Type: PLC with HMI Touchscreen
Operating Mode: Fully Automatic with Length & Batch Control
De-coiling System: Manual or Hydraulic De-coiler (up to 10,000 lbs)
Punching/Notching System: Available upon request
Machine Frame: Welded H-Beam Steel Structure
Thickness of Frame Steel: 14–16 mm
Profile Shape: Customizable
Profile Width and Depth: As per customer specifications
Length Tolerance: ±1.5 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Machine Matcher's Corrugated Sheet Roll Forming Machines cater to a diverse range of industries in the UAE:
Construction & Infrastructure: Production of roofing sheets, wall cladding, and structural panels for residential, commercial, and industrial buildings.
Oil & Gas: Manufacturing protective cladding for pipelines and offshore structures.
Agriculture: Fabrication of corrugated sheets for barns, storage facilities, and fencing.
Automotive: Creation of lightweight, high-strength components such as chassis reinforcements and body panels.
Renewable Energy: Production of mounting structures for solar panels and wind turbines.
Customization: Each machine is built to match the customer's specific profile and production requirements, ensuring optimal performance.
Efficiency: High-speed production capabilities reduce manufacturing time and increase output.
Durability: Robust construction and high-quality materials ensure long-term reliability, even in harsh UAE climates.
Support: Comprehensive after-sales service, including remote installation support and on-site assistance upon request.
Machine Matcher offers extensive customization to meet unique production needs:
Profile Design: Machines can be tailored to produce specific corrugated profiles as per customer drawings.
Material Compatibility: Adjustments can be made to accommodate different material types and thicknesses.
Automation Level: Options for semi-automatic or fully automatic operation, including integration with existing production lines.
Starting Price: Approximately $45,000
Factors Affecting Price:
Level of customization
Optional features and accessories
Automation level
Production capacity requirements
*Note: Prices are indicative and subject to change based on specific requirements.
Q: Can the machine be customized for our profile?
A: Yes, Machine Matcher specializes in custom-built machines tailored to your specific profile requirements.
Q: What types of materials are compatible with this machine?
A: The machine can process galvanized steel, PPGI, and aluminium sheets with thicknesses ranging from 0.3 to 0.9 mm and yield strengths between 245–550 MPa.
Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days, and shipping time depends on the destination port within the UAE.
Q: What safety features are included?
A: The machine includes protective covers/guards, an emergency stop button, and an overload protection system to ensure operator safety.
