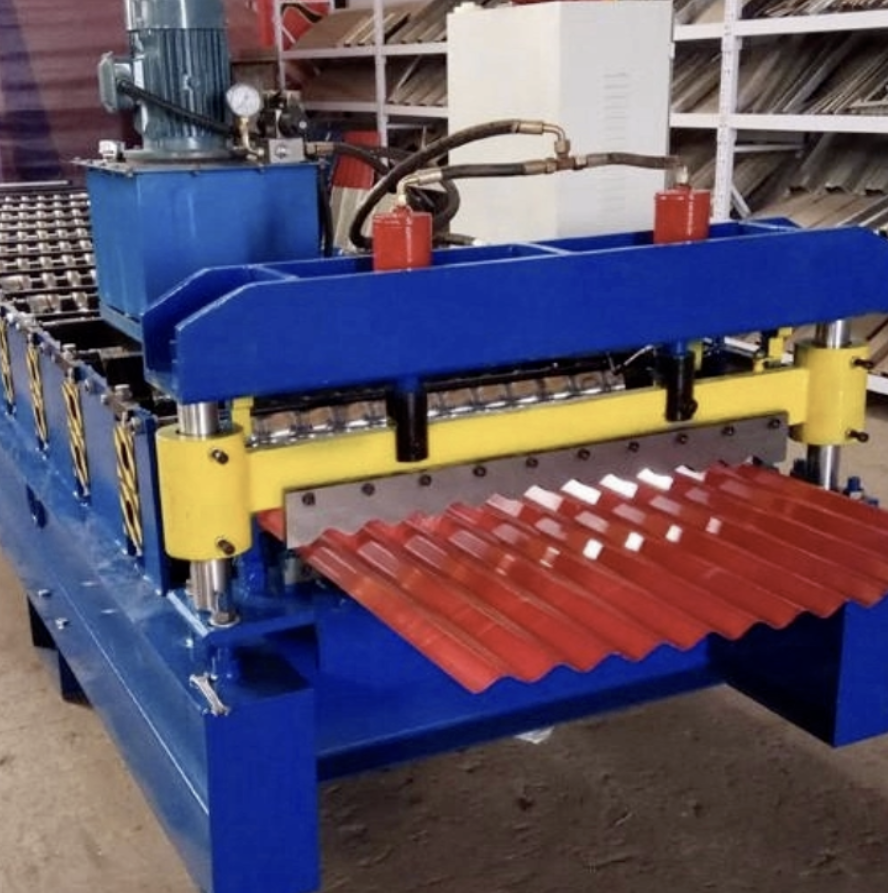

Corrugated steel panel roll forming machine in Ethiopia

Condition: New
Listing ID: 40984
Supplier: Roll Forming Machines Ethiopia
Location: Ethiopia

Request A Quote

To express an interest in this machine please submit the form below.

Not Sure What Machine You Need?

Select Your Profile, We'll Match It

Choose your desired profile drawing, and let Machine Matcher connect you with the best roll forming machine tailored to your needs.

Browse Profiles

Decoiler	Capacity:5 tons
Material	Steel Coil
Thickness	0.3-0.8mm
Transmission	Chain/Gear/Gearbox
Speed	10-15m/min
Roller	Steel with quenched treatment,chromed on the surface
Shaft	steel with tempering treatment
Cutting type	Hydraulic cutting
Cutting material	Cr12 with quenched treatment Hardness58°-62°
Welding	Automatic spot welding
Control system	PLC
Electric brand	Delta,Siemens,Schneide
Voltage	380V,50HZ,3PH(or as customers' request)

A corrugated steel panel roll forming machine is designed to produce corrugated steel sheets used primarily in roofing, siding, and wall applications. This machine processes steel coils, gradually shaping them into the distinctive corrugated pattern through a series of precisely aligned rollers. Here are some key features:

1. Main Components

Decoiler: Unwinds the steel coil and feeds it into the machine.
Roll Forming System: Composed of multiple roller stations to shape the steel into the corrugated profile.

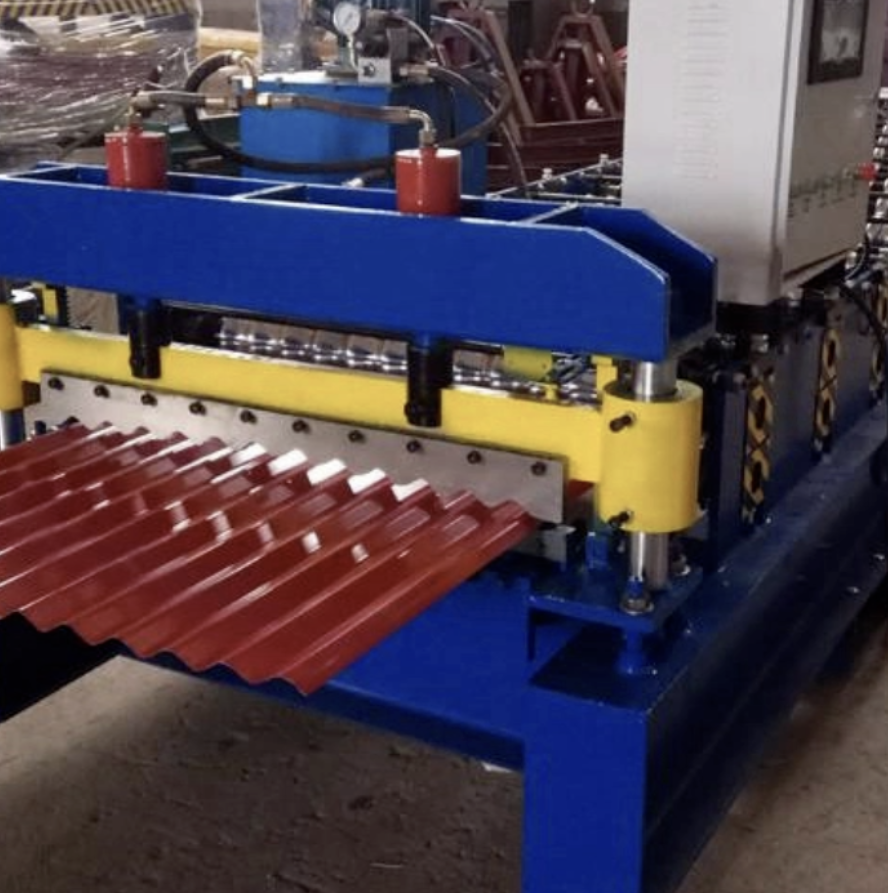

Cutting System: Automatically cuts the formed panels to desired lengths, often with hydraulic power.
Control System: Typically equipped with a PLC for automation and ease of use.

2. Specifications

Material Thickness: Usually works with steel sheets ranging from 0.3 to 0.8 mm.
Corrugation Height and Pitch: Varies by design but should meet the standard needs for the target application.
Production Speed: Most machines operate around 10-15 meters per minute, although this can vary.
Power Requirements: Ensure compatibility with local power standards, particularly if buying for international use.
