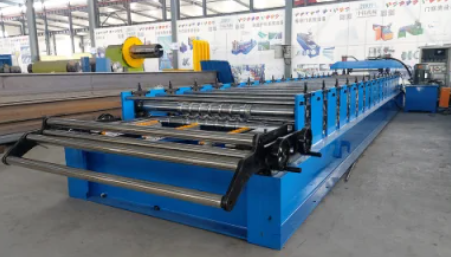

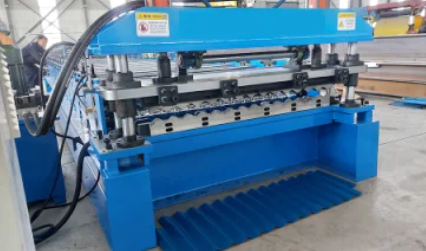

Corrugated roof tile sheet roll forming machine can produce corrugated tile or panel which also called wave panel sheets,it is widely used in constructions and buildings,it can be used to build roof and wall.This kind of material can be used in many places such as gyms, warehouses, factories, etc.
Driving Type: Chain(common) or Gear or Gearbox;
Forming Model: Integral Forming or Split Forming;
Forming Machine structure: Medium-plate Type(common) or Arch Type or Guide-pillar type;
Roller: 45# or Cr12 or GCr15 or GCr12MoV
Shaft: 45# or 40Cr; 70mm/80mm/90mm(common) or as design;
Motor Power: 4.0kW or 5.5kW or according to the design requirements;
Main Frame: 350# or 400# H-beam steel welded.
