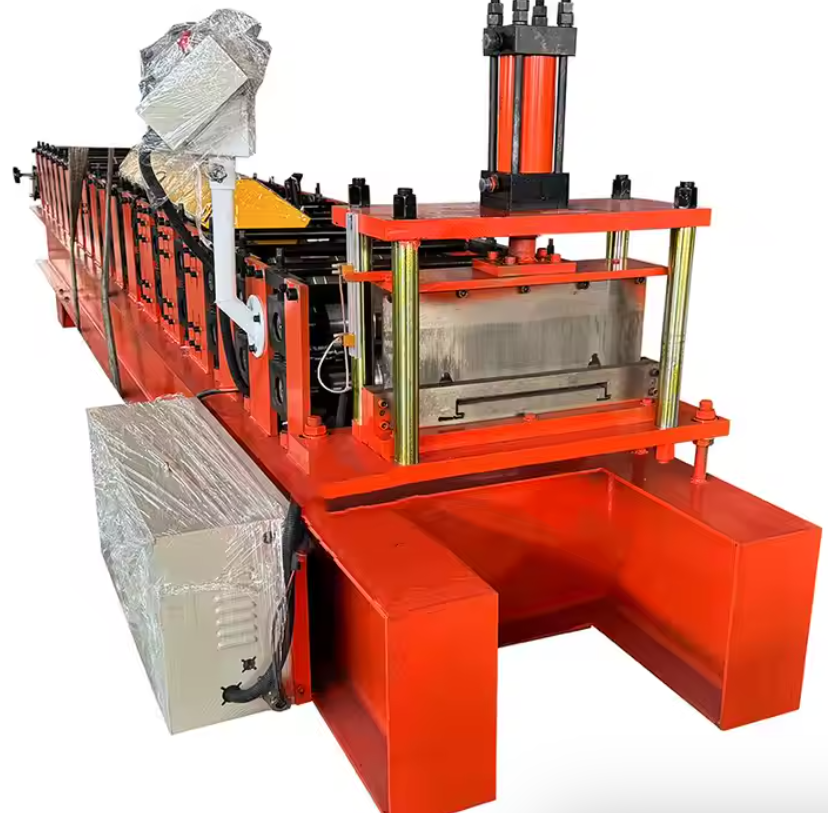

Curtain Wall System Roll Forming Machine – UAE Edition
The Curtain Wall System Roll Forming Machine, available exclusively through Machine Matcher, is a precision-engineered solution designed for manufacturing aluminum and steel profiles used in modern architectural curtain wall systems. This robust and fully automated roll forming machine is custom-built to meet the demands of clients throughout the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and beyond.
Engineered with performance, consistency, and efficiency in mind, this machine supports high-volume production of structurally sound profiles that are critical for modern building facades. Whether you’re in commercial construction, aluminum fabrication, or architectural framing, Machine Matcher provides the exact machine configuration needed to meet your profile specifications.
The Curtain Wall System Roll Forming Machine caters to a range of industries, including:
Construction and Architecture: Used for fabricating aluminum and steel profiles for building facades, structural framing, and glazing systems.
Aluminum Fabrication: Ideal for companies producing lightweight yet strong architectural profiles.
Steel Engineering: Supports steel curtain wall systems where strength and durability are essential.
Façade System Manufacturing: Perfect for companies supplying curtain walls for high-rise buildings, airports, commercial towers, and institutional structures.
Example Use Cases:
High-rise commercial towers in Dubai using aluminum frame curtain walls
Glass façade systems in Abu Dhabi for government buildings
Structural steel curtain walls for industrial projects in Sharjah
This roll forming machine is engineered for precision shaping of curtain wall profiles, handling complex cross-sections with tight tolerances and high repeatability.
Machine Type: Curtain Wall System Roll Forming Machine
Production Speed: Up to 15–30 meters per minute (depending on profile and material)
Material Thickness Range: 1.0 mm – 2.5 mm
Material Width Range: 100 mm – 450 mm
Material Types: Aluminum (3003, 6061), Galvanized Steel, Mild Steel
Material Yield Strength: Up to 350 MPa (50 ksi)
Roller Material: GCr15 (Bearing Steel)
Roller Surface Treatment: Hard chrome plating for durability and corrosion resistance
Number of Forming Stations: 16–24 stations (customizable based on profile)
Roller Shaft Diameter: 60 mm – 75 mm
Shaft Material: High-grade 40Cr steel, quenched and tempered
Main Drive Type: Gearbox-driven transmission system
Power: 380V / 3 Phase / 50Hz (Configured for UAE standards)
Motor Power: 11 kW – 15 kW (Depending on configuration)

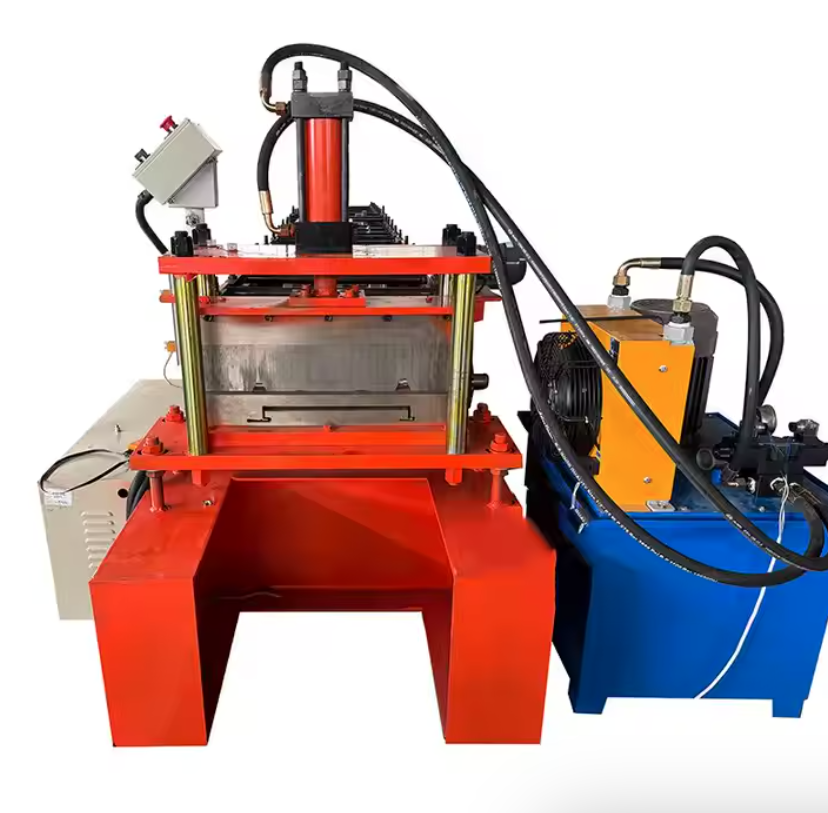

Cutting Method: Hydraulic post-cutting system
Blade Material: Cr12Mov (heat-treated)
Control Type: PLC-based control system with HMI touchscreen interface
Operating Mode: Fully Automatic with Manual override
De-coiling System: Hydraulic or manual de-coiler (optional capacity: 3T – 5T)
Punching/Notching System: Optional hydraulic unit for customized punching needs
Machine Frame: Welded steel frame, stress-relieved and powder-coated
Thickness of Frame Steel: 20 mm base plate (reinforced)
Profile Shape: Custom curtain wall profiles
Profile Width and Depth: Based on client drawing (standard 120 mm x 50 mm or customizable)
Length Tolerance: ±1.0 mm
Safety Features:
Full protective guards and enclosure
Emergency stop buttons at critical locations
Overload protection system
Profile dimensions and shapes
Additional punching or slotting features
Color touchscreen control panels with multiple language support
Rollers adapted for different material surfaces
Servo feeding systems for high-precision applications
Unique Selling Propositions (USPs):
Custom Built: Every machine is made to match the client’s curtain wall profile specifications exactly.
Global Expertise, Local Support: Delivered throughout the UAE, with installation support and training options.
Durability: Industrial-grade frame and premium roller materials for long-term use in high-demand environments.
Efficiency: High-speed production with precise output helps reduce labor costs and improve project timelines.
Safety-First Design: With advanced guards, sensors, and safety systems integrated for operator protection.
Flexible Automation: Upgrade options for PLC programming, servo feeding, or hybrid punching systems.
Cost Benefits:
Reduced waste through accurate cutting and forming
High-speed operation minimizes production time
Long-lasting components reduce maintenance and downtime
Q: Can the machine be customized for our curtain wall profile?
A: Yes. All machines from Machine Matcher are custom-built to your profile drawing and requirements.
Q: What type of material is normally used with this machine?
A: Most clients use aluminum (6061, 3003) or galvanized steel sheets with thicknesses ranging from 1.0 mm to 2.5 mm and yield strength up to 350 MPa (50 ksi).
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days. Shipping time varies based on the delivery port within the UAE.
Q: Is remote installation support available?
A: Yes, we offer video-based remote installation support and can arrange on-site setup within the UAE upon request.
Q: What affects the final price of the machine?
A: Price depends on customization level, profile complexity, material type, automation features, punching systems, and optional upgrades.
Prices Start From: Approx. USD $45,000 – (standard setup)
Final Price Determined By: Profile complexity, material specs, production speed, punching requirements, and level of automation.
All curtain wall system machines from Machine Matcher are new, built-to-order, and delivered anywhere in the UAE, including Abu Dhabi, Dubai, and Sharjah. Each machine is covered by a one-year warranty from dispatch and includes durable post-sale maintenance and repair support.
If you have a specific profile drawing, material type, or performance requirement, please email all details to:
[email protected]
Machine Matcher – Your trusted partner for Curtain Wall Roll Forming Machines in the UAE. All machines are designed and supplied exclusively by Machine Matcher with global engineering expertise and tailored local delivery.
