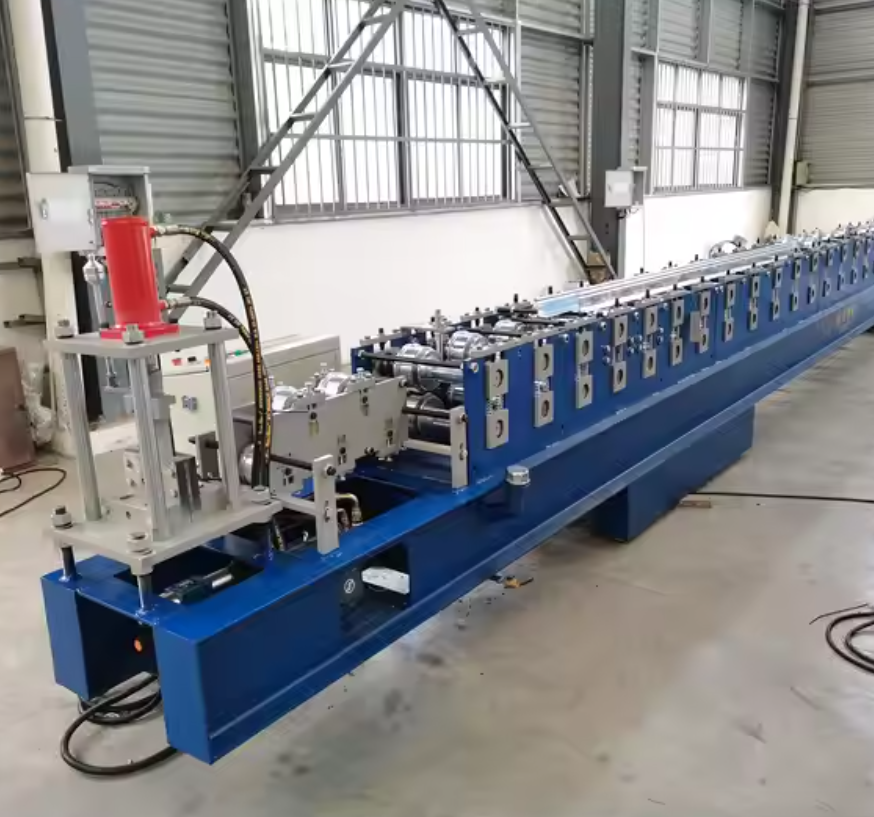

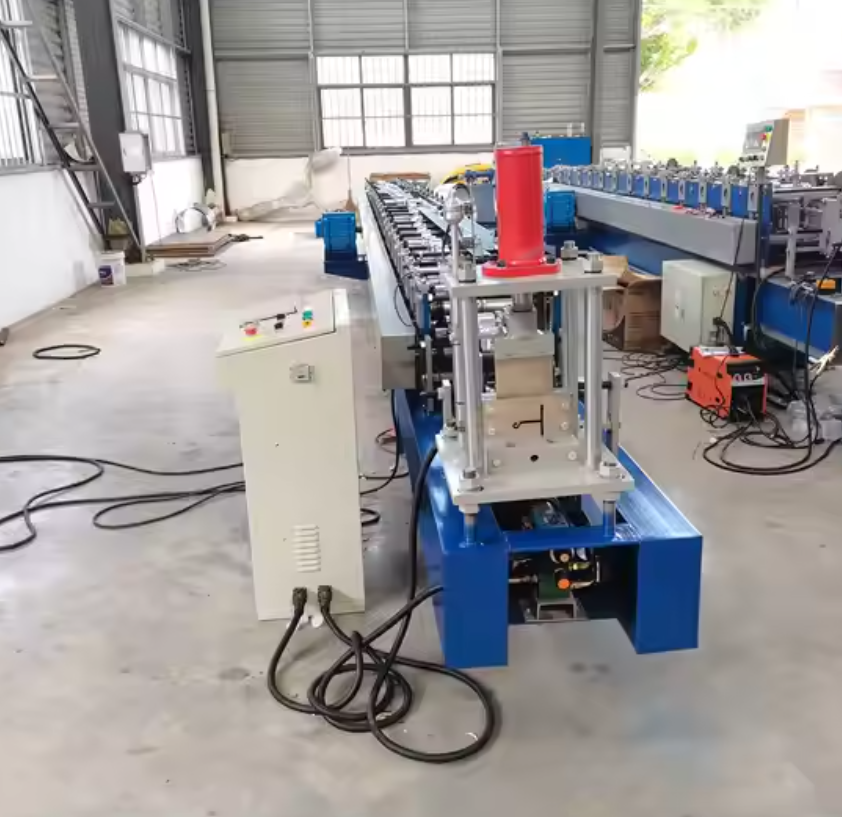

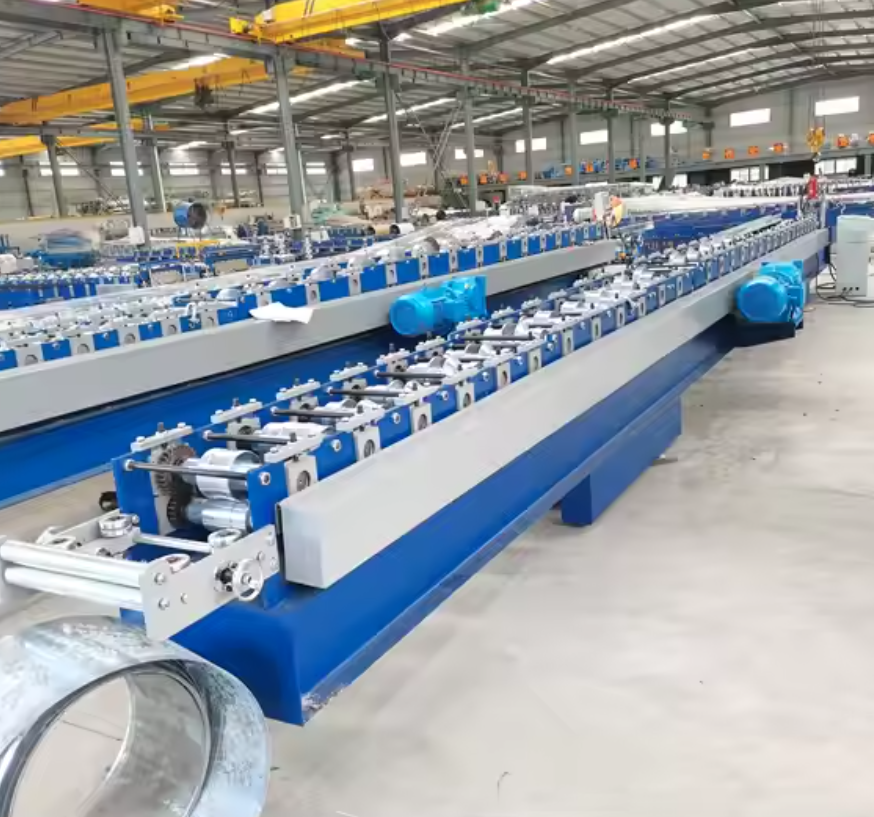

Door Frame Roll Forming Machine – UAE
Machine Matcher is proud to offer a high-performance Door Frame Roll Forming Machine specifically built for clients across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. Engineered for precision and reliability, this machine is designed to manufacture custom metal door frames with consistent quality, accuracy, and high production speed. Ideal for construction and industrial metal fabrication sectors, this machine combines advanced technology with customizable configuration to meet your specific profile and operational requirements.
The Door Frame Roll Forming Machine available from Machine Matcher is a fully automated production system built for continuous forming of steel or galvanized steel door frame sections. With robust construction and superior engineering, it ensures dimensional accuracy and repeatable performance across various production runs. Whether you're producing simple or complex door frame profiles, this machine offers flexibility, strength, and efficiency.
The machine is fully customizable to your desired profile width, depth, and punching/notching requirements. It supports variable gauges and yield strength materials, offering enhanced adaptability for large and small production environments alike.
Machine Type: Door Frame Roll Forming Machine
Production Speed: Up to 15–20 meters per minute (depending on profile and punching requirements)
Material Thickness Range: 0.8 – 2.0 mm
Material Width Range: 100 – 300 mm
Material Types: Galvanized steel, cold-rolled steel, stainless steel
Material Yield Strength: Up to 550 MPa (80 KSI)
Roller Material: GCr15 (hardened high-quality alloy steel)
Roller Surface Treatment: Hard chrome coating for corrosion resistance
Number of Forming Stations: 12–18 stations (customizable)
Roller Shaft Diameter: 60 mm
Shaft Material: High-grade 45# steel, precision machined and heat-treated
Main Drive Type: Gearbox or chain drive (based on application)
Power (UAE Specification): 380V / 50Hz / 3Phase
Motor Power: 7.5 – 15 kW (based on final configuration)
Cutting Method: Hydraulic stop-cut system
Blade Material: Cr12Mov, heat-treated for durability
Control Type: PLC-based with touch screen interface (Siemens or equivalent)
Operating Mode: Fully automatic or manual mode for testing
De-coiling System: Manual or hydraulic de-coiler (3T–5T optional)
Punching/Notching System (if included): Hydraulic punching for locks, hinges, and strike holes
Machine Frame: Heavy-duty welded steel frame
Thickness of Frame Steel: 18–25 mm
Profile Shape: Customizable U, J, or Z-shaped door frame profiles
Profile Width and Depth: Configurable based on customer drawing
Length Tolerance: ±1.0 mm
Safety Features:
Full protective covers and safety guards
Emergency stop buttons at multiple points
Overload protection for motor and hydraulic systems
Installation Support: Yes, remote video support is available; on-site installation upon request
Production Time: 30–60 working days
Delivery: Doorstep delivery across the UAE from Machine Matcher manufacturing partner
All machines are brand new and tailored for your exact specifications
The Door Frame Roll Forming Machine from Machine Matcher is widely used in:
Construction & Building Materials
Application: Manufacturing steel door frames for commercial and residential projects
Prefabricated Housing & Modular Building
Application: High-speed production of frame components for modular room units
Interior Fit-Out & Architecture
Application: Producing custom profiles for specialty installations and security doors
Steel Fabrication Workshops
Application: Efficient batch or continuous production of standard and custom frame profiles
This machine supports custom profile configurations, in-line punching for hinge, strike, and lock cut-outs, and automatic length control – making it ideal for mass production. Its integrated PLC system allows for batch control, count management, and seamless profile adjustments with minimal manual input.
Example Use Case:
A fabricator in Dubai can produce hundreds of door frames per shift with minimal material waste, consistent quality, and zero profile distortion, thanks to the advanced alignment system and chromed rollers.
Q: Can the machine be customized for our profile?
A: Yes, absolutely. We customize every machine according to your exact profile drawing and dimensions.
Q: What is the standard material and gauge used with this machine?
A: Most commonly used materials include galvanized steel (1.0 – 2.0 mm) with yield strength around 300–550 MPa (44–80 KSI).
Q: Is remote installation support available?
A: Yes, remote video guidance is included. On-site support is available on request.
Q: What is the lead time for manufacturing and shipping?
A: Manufacturing takes about 30–60 working days. Shipping depends on the destination port within the UAE.
Q: What affects the final price of the machine?
A: Final pricing depends on optional upgrades like punching, servo feeders, speed enhancements, and custom PLC brands.
Base Price Range: Starting from USD 38,000 – USD
(based on core configuration without punching or automation upgrades)
Factors Affecting Price:
Number of forming stations
Additional punching/notching units
Control system upgrades
Speed and motor capacity
Profile complexity
Delivery and installation requirements
Contact Machine Matcher for a custom quote. Send your profile drawings or specifications to: [email protected]
Custom-Built Machines to fit your exact profile, thickness, and production needs
Delivered Across UAE including Dubai, Abu Dhabi, Sharjah
High-Quality Components such as hardened rollers, hydraulic systems, and precision shafts
Energy Efficient and designed for 24/7 production environments
Advanced Safety Systems and easy-to-use control panels
Reliable Support & Warranty: 1-year full warranty + long-term service availability
Installation & Training Available (Remote and On-Site)
Door Frame Style (U, Z, J, or any customer-defined profile)
Punching Configurations (hinge slots, lock holes, striker slots)
Servo feeder system upgrades
Decoiler capacity (manual/hydraulic, 3T–10T)
Output conveyor and automatic stacker options
Custom branding or panel embossing features
All Door Frame Roll Forming Machines from Machine Matcher are covered by a 1-year warranty from the dispatch date. We offer ongoing technical support, spare parts supply, and maintenance services to ensure your production stays uninterrupted.
For detailed quotations, please send your profile drawings and project requirements to [email protected]
All machines described above are proudly supplied by Machine Matcher.
