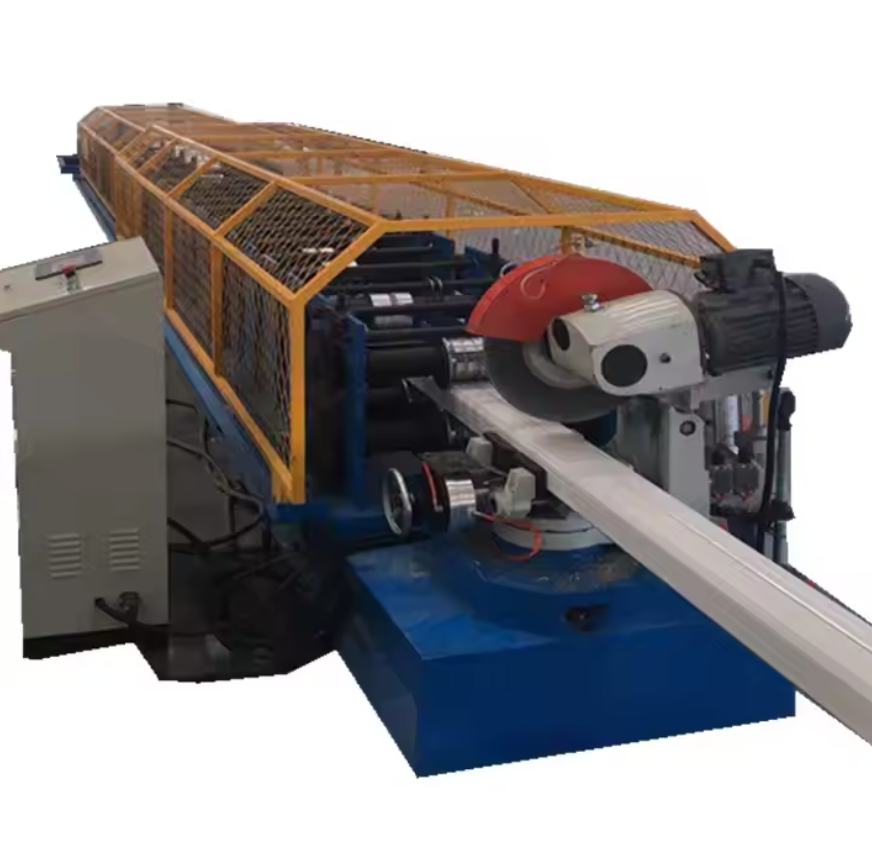

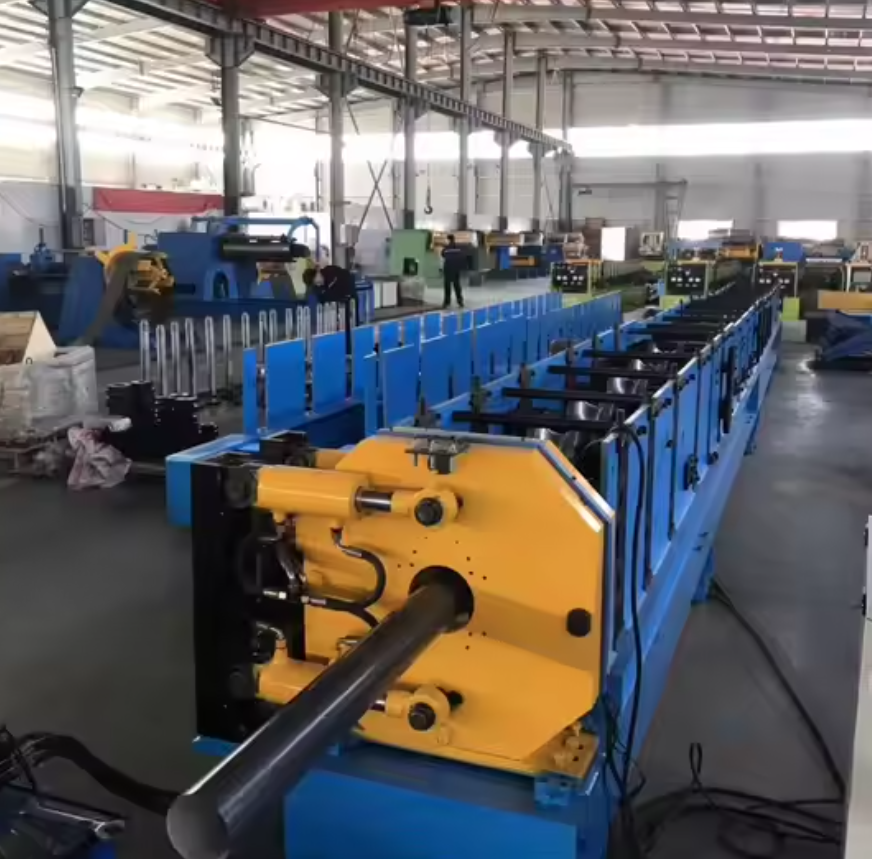

Downpipe Roll Forming Machine – UAE Edition
Precision Engineered for Rainwater Management Systems Across the United Arab Emirates
The Downpipe Roll Forming Machine offered by Machine Matcher is a fully automated, high-precision solution designed for the continuous production of metal downpipes used in modern rainwater drainage systems. Built for durability, speed, and customization, this machine is ideal for industrial users and construction fabricators in the UAE, particularly in areas like Dubai, Abu Dhabi, and Sharjah, where urban and commercial construction is booming.
Downpipes, also referred to as rainwater pipes or drainpipes, are essential components in roofing systems for redirecting water from gutters to the ground. This machine forms round or square profiles depending on the customer’s specific design and dimensions.
The Downpipe Roll Forming Machine is widely used in:
Construction and Infrastructure
For commercial, residential, and industrial buildings requiring efficient rainwater systems.
Metal Fabrication Workshops
Contract manufacturers producing building envelope components.
Rainwater Drainage System Suppliers
Companies supplying guttering and downpipe kits across the UAE and GCC region.
Roofing Contractors & Installation Companies
For onsite or offsite production of custom downpipes to match architectural specifications.
Machine Type: Downpipe Roll Forming Machine (Square, Rectangular, or Round Downpipes)
Capabilities: Continuous forming, automatic cutting, high-volume production
Customization: Tailored tooling for specific profile shapes, pipe diameters, or wall thicknesses
Utilization Example: Used to manufacture square or round downpipes from pre-painted galvanized steel, forming lengths between 1–6 meters with tight tolerance.
| Feature | Specification |
|---|---|
| Machine Type | Downpipe Roll Forming Machine |
| Production Speed | 10–25 meters/min (adjustable with servo system) |
| Material Thickness Range | 0.4 mm – 1.2 mm |
| Material Width Range | 200 mm – 500 mm (depending on profile) |
| Material Types | Galvanized Steel (GI), Pre-painted Steel, Aluminum, Stainless Steel |
| Material Yield Strength | Up to 550 MPa (80 KSI) |
| Roller Material | High-grade GCr15 (heat-treated, polished) |
| Roller Surface Treatment | Hard Chrome Coated |
| Number of Forming Stations | 18–24 stations (depending on profile complexity) |
| Roller Shaft Diameter | 60 mm–75 mm |
| Shaft Material | 45# Steel, precision ground |
| Main Drive Type | Chain or Gear Drive |
| Power (UAE Compatible) | 380V / 50Hz / 3 Phase |
| Motor Power | 7.5 kW – 11 kW (depending on production speed) |
| Cutting Method | Hydraulic cutting (non-stop or stop-to-cut) |
| Blade Material | Cr12MoV (heat-treated) |
| Control Type | PLC with HMI Touch Screen |
| Operating Mode | Fully Automatic or Semi-Automatic |
| De-coiling System | Manual or Hydraulic Decoiler (3T–5T options) |
| Punching/Notching System | Optional (for water outlet slots or connectors) |
| Machine Frame | Welded structural steel with stress relief |
| Frame Steel Thickness | 18 mm–22 mm |
| Profile Shape | Round, Square, or Rectangular Downpipe |
| Profile Width & Depth | Custom – typically 60x60mm, 80x80mm, 100x100mm etc. |
| Length Tolerance | ±1.0 mm |
| Safety Features | Protective Covers, Emergency Stop, Overload Protection |
Typical Material:
Galvanized Steel (GI) or Aluminum for anti-corrosion properties.
Pre-painted steel for aesthetic finishes.
Material Gauge:
0.4 mm – 1.2 mm, depending on strength and wind loading.
Material Strength:
250–550 MPa (36–80 KSI)
USD $45,000 (Standard Configuration)
Prices vary based on profile shape, automation level, decoiler type, punching system, and optional stackers.
What Affects the Final Price:
Custom tooling for square or round profiles
Addition of automatic punching or slotting unit
Coil handling systems (hydraulic decoiler, coil car, etc.)
Remote PLC diagnostics and software upgrades
Safety enclosures and CE-compliance options
All machines are new and custom-built to match your required profile, material, and production needs.
We deliver across the United Arab Emirates including Abu Dhabi, Dubai, Sharjah, Ajman, and Ras Al Khaimah.
Manufacturing partners ensure on-time delivery with pre-shipment testing and commissioning support.
Custom Profile Compatibility: Tailor-made forming dies for round, square, or rectangular downpipes.
Fast Changeovers: Quick die adjustment and profile programming via touchscreen.
High Material Compatibility: Works with GI, PPGL, Aluminum, Stainless Steel.
UAE-Compatible Electrical Configuration: Designed for 380V / 50Hz / 3-phase networks.
Advanced PLC Automation: Reduces operator intervention, improves consistency.
Durable Build for Harsh Climates: Reinforced frames and rust-resistant finishes.
After-Sales Support: One-year warranty, UAE-based commissioning teams, spare parts availability.
→ These benefits translate into lower labor costs, faster project timelines, and consistent quality for your clients.
Automatic or manual decoiler (up to 10 tons)
Pipe outlet punching & notching units
Servo-feeding for high-precision cutting
In-line embossing (optional)
Downpipe connector or collar forming tool
Remote access PLC & diagnostics
CE-compliant electrical enclosures
If you have profile drawings, specific pipe dimensions, or material requirements, please send all details to:
[email protected]
We’ll provide a tailored machine recommendation and pricing quote.
Q1: Can this machine produce both round and square downpipes?
A: Yes, but you will need interchangeable forming rolls or a dual-profile machine setup.
Q2: What power supply is suitable in the UAE?
A: All machines are configured to run on 380V / 50Hz / 3-phase, the standard industrial voltage in the UAE.
Q3: How long does it take to build and deliver the machine?
A: Standard delivery takes 60–90 days, depending on customization.
Q4: Is training and installation included?
A: Yes, remote or on-site training and installation can be arranged.
Q5: What maintenance is required?
A: Basic maintenance includes lubrication of rollers, checking hydraulic fluid, and occasional PLC software updates.
Machine Matcher – Your Partner in Precision Roll Forming
Built for UAE industries. Delivered with confidence.
All machines come with 1-year warranty, full technical support, and after-sales service options.
