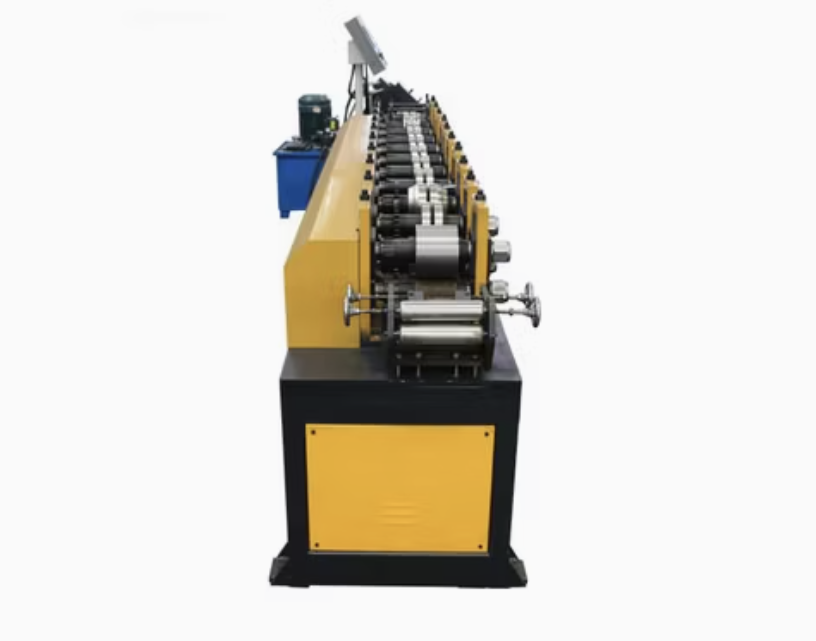

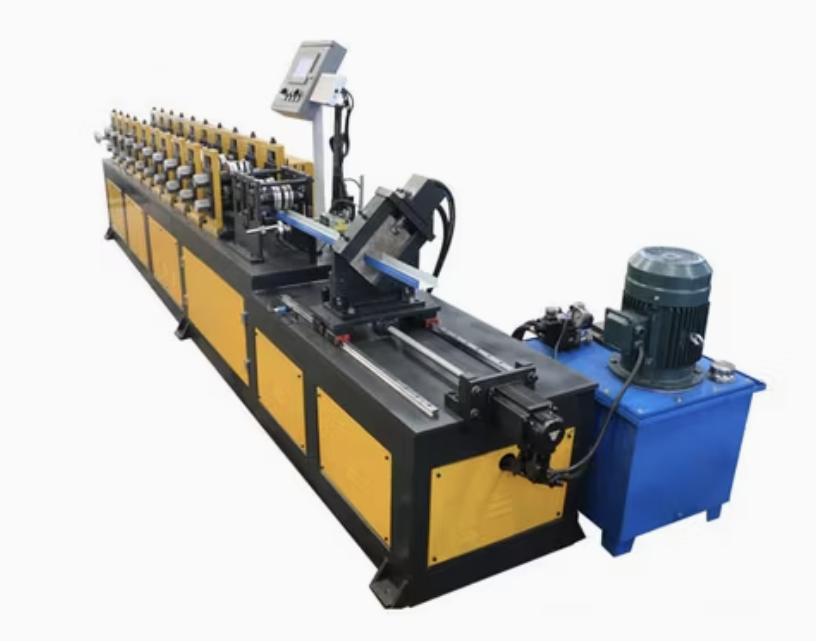

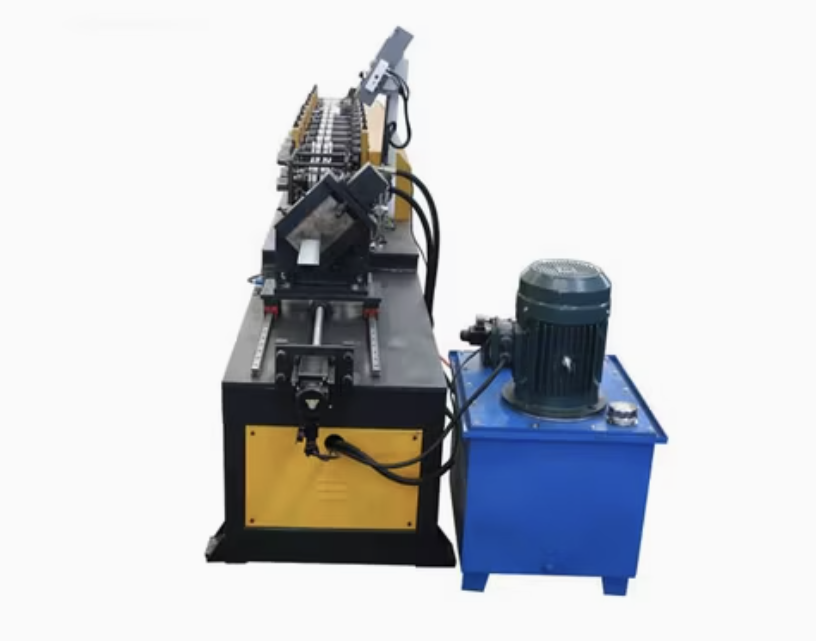

Drywall Stud and Track Roll Forming Machine – UAE Edition
Precision Roll Forming for Interior Partition and Ceiling Framework
The Drywall Stud and Track Roll Forming Machine is purpose-built to deliver high-precision, high-speed production of metal framing components used in drywall construction systems across commercial, industrial, and residential sectors. Ideal for large-scale interior partitioning and suspended ceiling frameworks, this machine is a critical asset for contractors, manufacturers, and steel fabricators throughout the United Arab Emirates.
From Dubai to Abu Dhabi, Sharjah to Ajman, Machine Matcher supplies fully customized and factory-new machines tailored to local project needs, profile specifications, and regional infrastructure.
Built for long-lasting performance, each machine is engineered with robust mechanical construction, efficient motor drives, high-accuracy cutting systems, and advanced PLC control technology, all configured to UAE power standards.
This machine is primarily used in the following sectors:
Construction and Building Materials
Drywall Installation & Contracting
Interior Fit-Out Companies
Metal Framing Manufacturers
Prefabricated Housing and Modular Construction
Commercial Real Estate Developers
| Feature | Specification |
|---|---|
| Machine Type | Drywall Stud and Track Roll Forming Machine |
| Production Speed | Up to 40 meters per minute |
| Material Thickness Range | 0.3 – 1.2 mm |
| Material Width Range | 50 – 300 mm |
| Material Types | Galvanized Steel (GI), Galvalume, Cold Rolled Steel |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | High-Grade Steel with Hard Chrome Coating |
| Roller Surface Treatment | Polished & Chrome-Plated |
| Number of Forming Stations | 10 – 20 (customizable based on profile complexity) |
| Roller Shaft Diameter | 50 mm – 75 mm |
| Shaft Material | High-Tensile Steel (quenched and tempered) |
| Main Drive Type | Chain or Gear Drive |
| Power (UAE) | 380V / 50Hz / 3 Phase |
| Motor Power | 5.5 kW – 11 kW (depending on configuration) |
| Cutting Method | Hydraulic Cutting System |
| Blade Material | Cr12MoV (Heat Treated) |
| Control Type | PLC Control (Mitsubishi/Siemens/Delta options) |
| Operating Mode | Fully Automatic & Manual Modes |
| De-coiling System | Manual or Hydraulic Decoiler (Optional) |
| Punching/Notching System | Optional Hydraulic Punching System |
| Machine Frame | Welded Steel Structure |
| Thickness of Frame Steel | 16 mm – 25 mm |
| Profile Shape | C-Stud and U-Track |
| Profile Width and Depth | 50–150 mm width / 30–50 mm depth |
| Length Tolerance | ±1.0 mm |
| Safety Features | Full compliance with CE Safety Standards |
| Protective Covers/Guards | Included on drive chains and rollers |
| Emergency Stop Button | Yes – Multiple Points |
| Overload Protection System | Included for motors and hydraulic systems |
We proudly serve all emirates including Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. All machines are new, made-to-order, and built specifically to meet your drywall profile specifications.
Whether you are a growing interior fit-out firm in Dubai or an industrial contractor in Abu Dhabi, we’ll deliver the exact machine you need—fast, safe, and reliable.
All machines are priced based on custom requirements and optional add-ons such as:
Remote PLC control system
Automatic stackers
Coil cars or hydraulic decoilers
Warranty: One-year full coverage from dispatch
Support: Lifetime durable maintenance and repair service
Quote Requests: Email your profile drawing or project details to [email protected] for an accurate and fast quote.
Q1: Can this machine be customized to make different stud and track sizes?
A: Yes, we customize forming stations and cutting systems to produce a wide range of C and U profile sizes based on your specifications.
Q2: What kind of maintenance does this machine require?
A: Regular lubrication, occasional blade sharpening, and PLC system checks. We provide a maintenance guide with every machine.
Q3: How long does it take to manufacture and deliver the machine to the UAE?
A: Manufacturing typically takes 45–60 days. Delivery to the UAE (via sea freight) takes 3–4 weeks.
Q4: Do I need to prepare anything before installation?
A: A level concrete floor, proper power supply (380V/50Hz), and overhead lifting tools are required. We can guide your team or send a technician for setup support.
Q5: Can Machine Matcher help with profile design?
A: Yes. If you don’t have a finalized profile drawing, our engineers can help you develop one based on your structural and market requirements.
Q6: What is the expected lifespan of this machine?
A: With proper maintenance, the machine can operate effectively for over 10–15 years in industrial settings.
To order your Drywall Stud and Track Roll Forming Machine in the UAE or request a tailored quote:
Email: [email protected]
Custom Design Support
Fast Delivery Across the Emirates
1-Year Warranty + Ongoing Support
