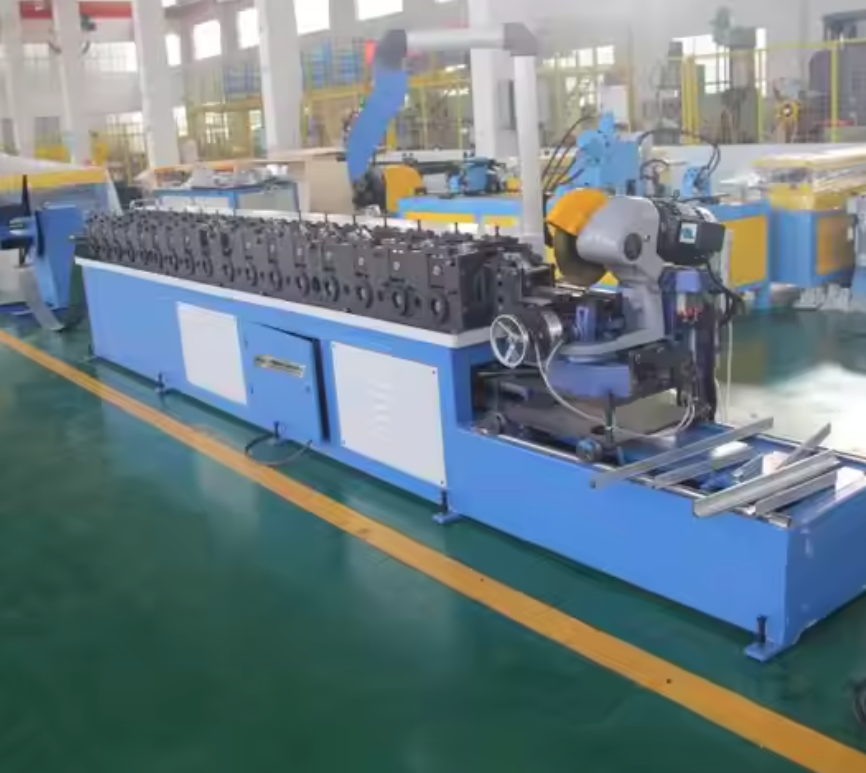

Electric Conduit Roll Forming Machine – UAE Delivery

Machine Matcher proudly offers a high-performance Electric Conduit Roll Forming Machine, engineered for precision and efficiency in producing electrical conduits. Tailored to meet the specific requirements of clients in the United Arab Emirates—including Abu Dhabi, Dubai, and Sharjah—this machine ensures optimal performance for various industrial applications.

Machine Technical Specifications

• Machine Type: Electric Conduit Roll Forming Machine

• Production Speed: 10–15 meters per minute

• Material Thickness Range: 0.8–2.5 mm

• Material Width Range: 100–820 mm

• Material Types: Galvanized Steel (GI), Carbon Steel, Stainless Steel

• Material Yield Strength: 235–550 MPa

• Roller Material: GCr15 (hardened and chrome-plated)

• Roller Surface Treatment: Hard chrome plating ≥ 0.05 mm

• Number of Forming Stations: 18–24 stations

• Roller Shaft Diameter: 76–85 mm

• Shaft Material: 40Cr High-Grade Steel

• Main Drive Type: Chain or Gear Drive

• Power: 380V, 50Hz, 3-phase (customizable for UAE standards)

• Motor Power: 22 kW

• Cutting Method: Hydraulic Pre-Cutting

• Blade Material: Cr12Mov, quenched to HRC58–62

• Control Type: PLC with HMI (brands like Siemens or Panasonic)

• Operating Mode: Automatic with programmable length settings

• De-coiling System: Hydraulic Decoiler (5T capacity)

• Punching/Notching System: Hydraulic Punching with Cr12Mov dies

• Machine Frame: 400H Steel with 20 mm Q195 steel wall panels

• Thickness of Frame Steel: 20 mm

• Profile Shape: Customizable to client specifications

• Profile Width and Depth: As per client requirements

• Length Tolerance: ±1.5 mm

• Safety Features:

  • Protective Covers/Guards

  • Emergency Stop Button

  • Overload Protection System

Industries Served

Machine Matcher's Electric Conduit Roll Forming Machine caters to a diverse range of industries:

• Electrical Infrastructure: Production of conduits, cable trays, and raceways for power distribution and communication systems.

• Construction: Manufacturing of structural components like channels and support systems.

• HVAC: Creation of ducting systems and support structures.

• Telecommunications: Fabrication of cable management systems and enclosures.

• Renewable Energy: Production of mounting structures for solar panels and wind turbines.

Machine Type & Capabilities

This roll forming machine is designed for high-precision manufacturing of electrical conduits and related profiles. Its capabilities include:

• High-Speed Production: Achieving speeds up to 15 m/min, ensuring efficient mass production.

• Material Versatility: Handling various materials, including galvanized and stainless steel, catering to different industry needs.

• Customization: Ability to produce profiles of varying shapes and sizes, tailored to specific project requirements.

Customization Options

Machine Matcher offers extensive customization to meet unique client needs:

• Profile Design: Machines can be tailored to produce specific conduit shapes and sizes.

• Material Compatibility: Adjustments can be made to handle different material types and thicknesses.

• Automation Features: Integration of advanced control systems for enhanced automation and efficiency.

Unique Selling Propositions (USPs)

• Precision Engineering: Ensures consistent product quality, reducing waste and rework.

• Robust Construction: Built with high-grade materials for durability and long service life.

• User-Friendly Interface: Equipped with intuitive control systems for ease of operation.

• Comprehensive Support: Backed by Machine Matcher's expert support team for installation and maintenance.

Delivery & Support in the UAE

Machine Matcher ensures seamless delivery and support across the United Arab Emirates:

• Delivery Locations: Abu Dhabi, Dubai, Sharjah, and other regions.

• Installation Support: Remote video guidance available; on-site installation upon request.

• Lead Time: Production typically takes 30–60 days; shipping time varies based on destination port.

Pricing Information

• Starting Price: Approximately $30,000 for standard configurations.

• Final Price Factors:

  • Customization requirements

  • Optional features and add-ons

  • Shipping and installation services

Note: Pricing is determined based on optional extras and customization requirements. Contact us for a tailored quote based on your specific needs.

Frequently Asked Questions (FAQs)

Q: Can the machine be customized for our specific conduit profile?
A: Yes, Machine Matcher offers customization to match your exact profile specifications.

Q: What materials are compatible with this machine?
A: The machine is designed to work with galvanized steel, carbon steel, and stainless steel, with thicknesses ranging from 0.8 to 2.5 mm.

Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.

Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days, and shipping time depends on the destination port.

Q: What affects the final price of the machine?
A: Pricing is influenced by optional extras, customization requirements, and additional services like shipping and installation.

Warranty & Support

All machines supplied by Machine Matcher come with a one-year warranty from the date of dispatch. We also provide durable maintenance and repair support to ensure your operations run smoothly.

Contact Us for a Tailored Quote

If you have profile drawings or any other information to help us provide the best quote for this machine, please email all details to [email protected].

All machines described are supplied exclusively by Machine Matcher.
