Overview

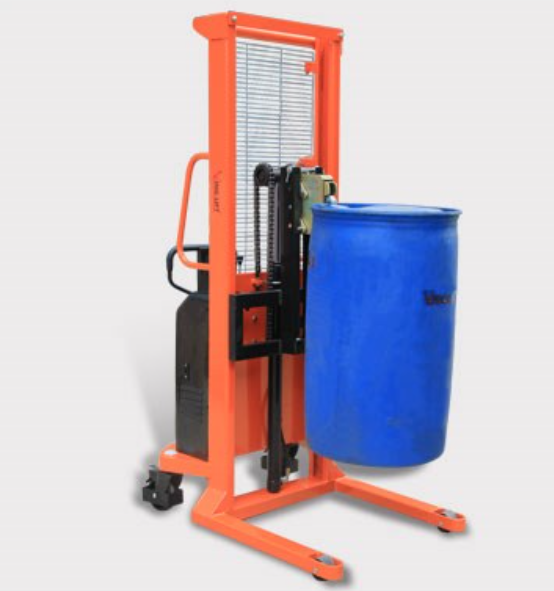

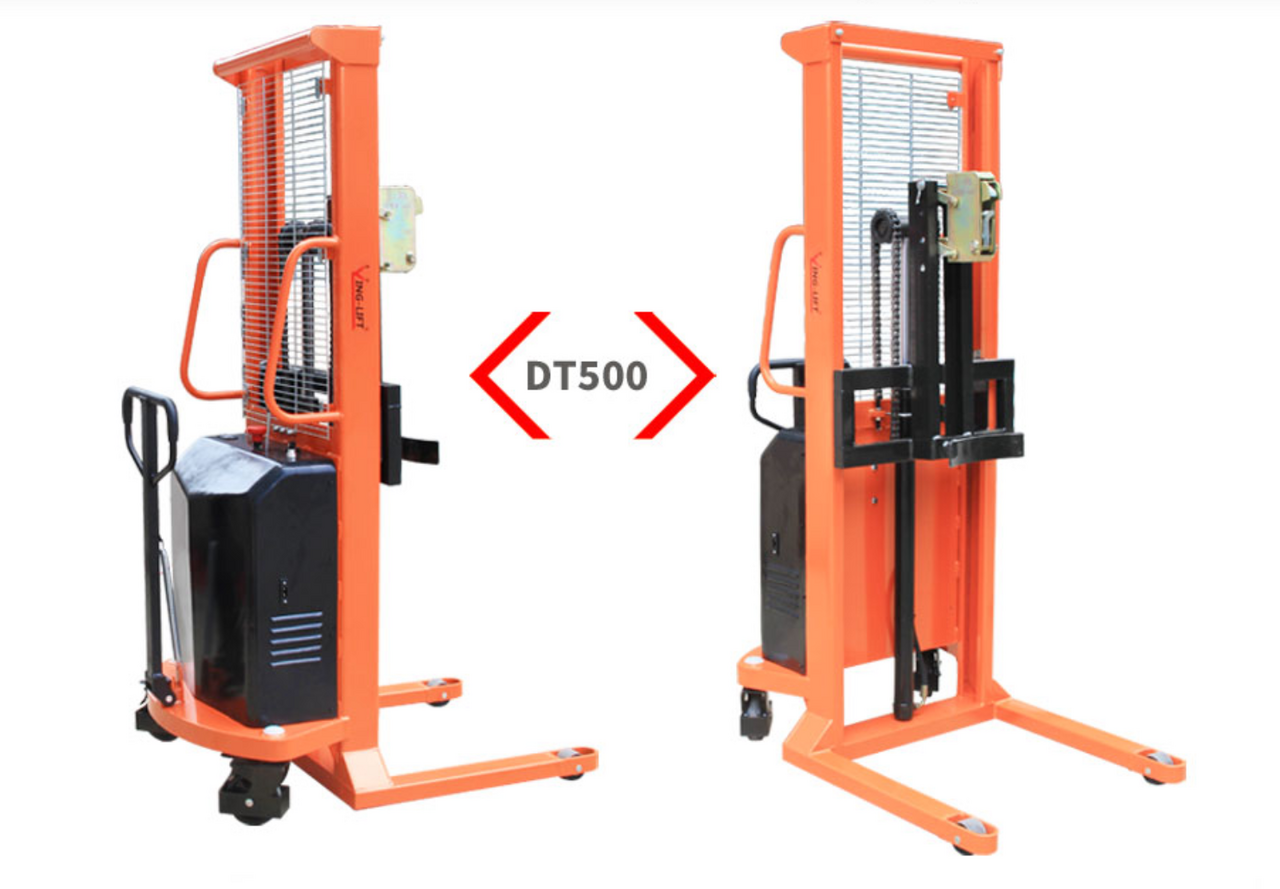

The DT500 Electric Drum Stacker is a high-performance drum handling solution designed to lift, maneuver, and stack heavy drums safely and efficiently. Built with a sturdy C-frame structure, advanced hydraulic and battery systems, and excellent maneuverability, it’s ideal for operations in chemical plants, warehouses, manufacturing, and hazardous material handling environments.
Heavy Load Capacity with Durable Construction
Load capacity of 500 kg ensures the DT500 can handle most standard industrial drums with ease.
Robust frame and structural reinforcements deliver long-term stability and durability for continuous use.
Efficient Lifting & Speed
Lifting speed of 120 mm/s allows quick elevation and placement of drums.
The system’s hydraulic pump (1.6 kW) maintains smooth and consistent performance under load.
Precision Handling & Maneuverability
Compact turning radius of 1,430 mm makes it easy to operate in tighter aisles or constrained warehouse spaces.
Front and rear wheels (Ø80×55 mm / Ø150×50 mm) deliver reliable traction and smooth rolling over standard warehouse surfaces.
Power & Endurance
Powered by a 120 Ah / 12 V battery, this stacker gives sustained usage between charges, maximizing productivity.
Integrated pump ensures efficient energy usage and consistent lifting performance.
Lightweight for Its Class
With a net weight of just 226 kg, the DT500 strikes a balance: heavy enough for stability, yet light enough for easier transport and less floor wear.
| Parameter | Value |
|---|---|
| Model | DT500 Electric Drum Stacker |
| Load Capacity | 500 kg |
| Net Weight | 226 kg |
| Wheel Dimensions | Front: Ø 80×55 mm |
| Rear: Ø 150×50 mm | |
| Turning Radius | 1,430 mm |
| Pump Unit Power | 1.6 kW |
| Battery | 120 Ah / 12 V |
| Lifting Speed | 120 mm/s |
| Lifting Height (from data source) | 1,450 mm (max lift height) yinglift.com |
Chemical & Hazardous Material Handling
The C-frame design allows safe grabbing and positioning of drums even in confined or restricted spaces.
Warehousing & Logistics
Use it for stacking, transferring, or loading/unloading drums in logistics hubs and storage facilities.
Manufacturing & Process Industries
Supports drum feeding and positioning in production lines, blending stations, or batching operations.
Safety First — built for secure grip and stable lifting, even under heavy loads.
Productivity Boost — high lift speed and responsive controls reduce handling time.
Long Duty Cycles — durable battery and efficient hydraulic design ensure extended operation between charges.
Flexible Operation — tight turning radius and compact form factor make it versatile across various facility layouts.
