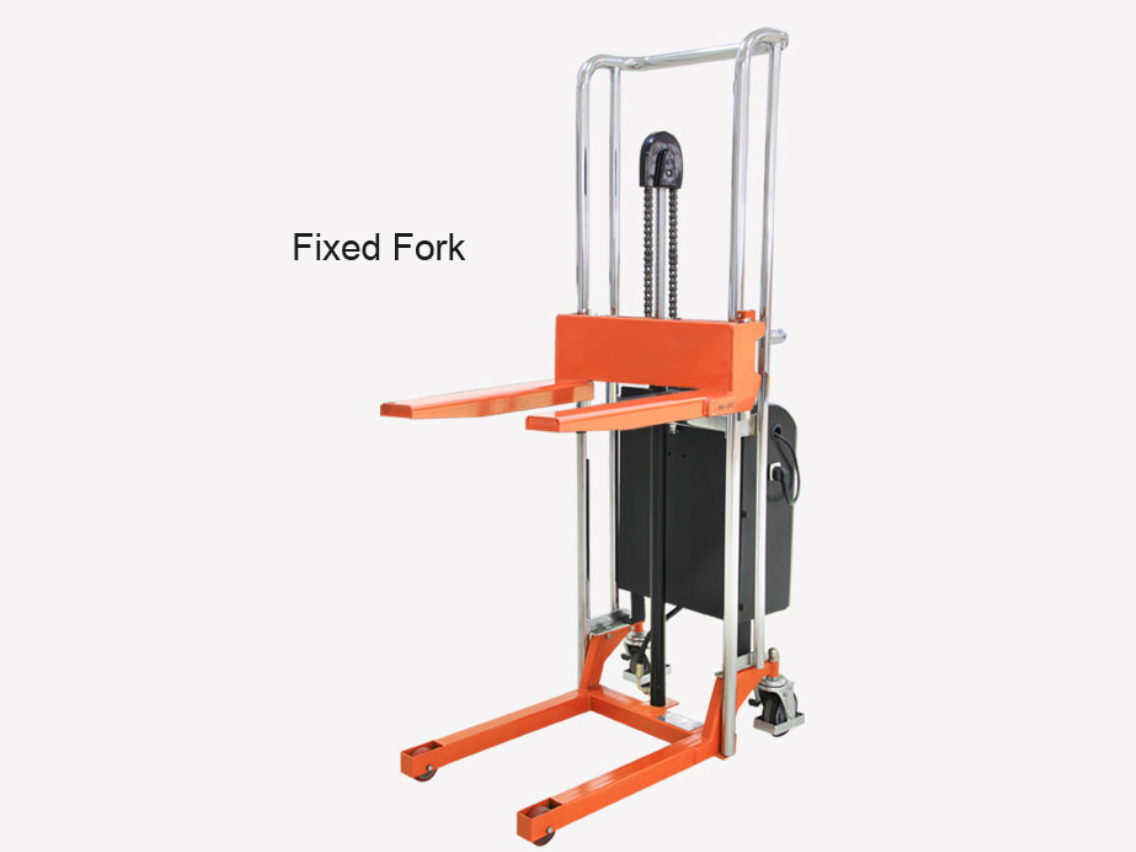

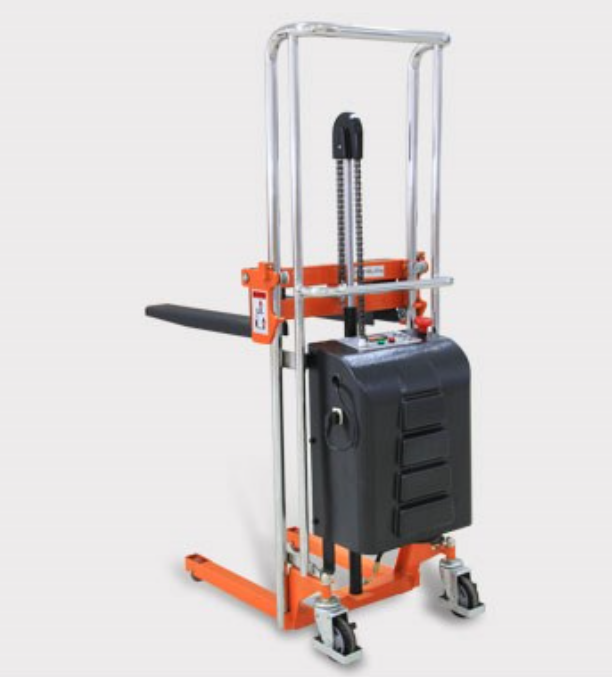

The Electric Pallet Stacker with Fixed Fork is a compact, efficient, and easy-to-operate lifting solution designed for warehouses, workshops, and small storage facilities. Built with a strong frame and reliable electric drive, this stacker offers safe and effortless material handling in tight working spaces.
Key Features:
Load Capacity: 400kg – ideal for light to medium-duty lifting and stacking tasks.
Fork Range: Adjustable lifting height from 85mm (min.) to 1200mm (max.).
Fork Size: 650mm length with fixed 550mm fork width for stable handling of standard pallets.
Compact Design: Overall dimensions (1100mm L × 590mm W × 1410mm H) make it suitable for narrow aisles and confined areas.
Steering & Maneuverability: Rear wheel size ɸ125mm, front wheel ɸ75mm, and a minimum steering radius of 930mm for smooth navigation.
Power & Efficiency: Equipped with a 0.8kW pump station and powered by a 12V/70Ah battery for reliable lifting performance.
Operator Comfort: Low base height of 22.5mm and ergonomic controls ensure easy handling and safe operation.
Durability: Strong construction with a net weight of 116kg, built for long service life and reduced maintenance.
Applications:
Perfect for use in small warehouses, retail stockrooms, light manufacturing, and distribution centers where maneuverability and efficiency are critical.
