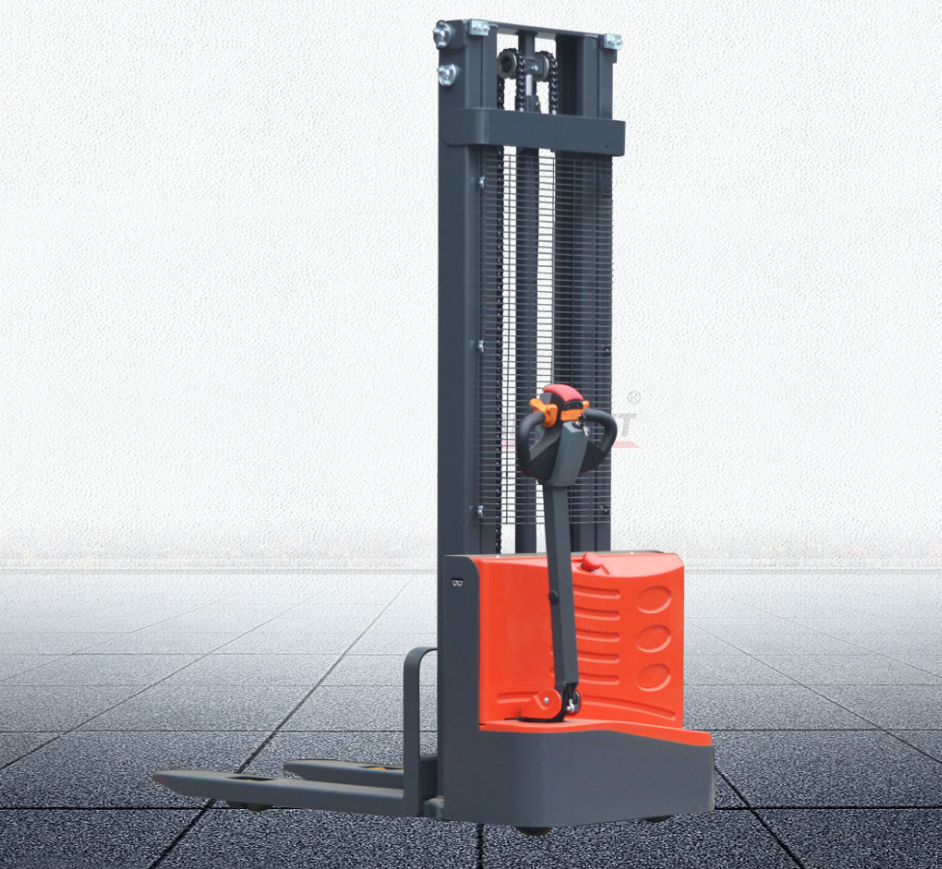

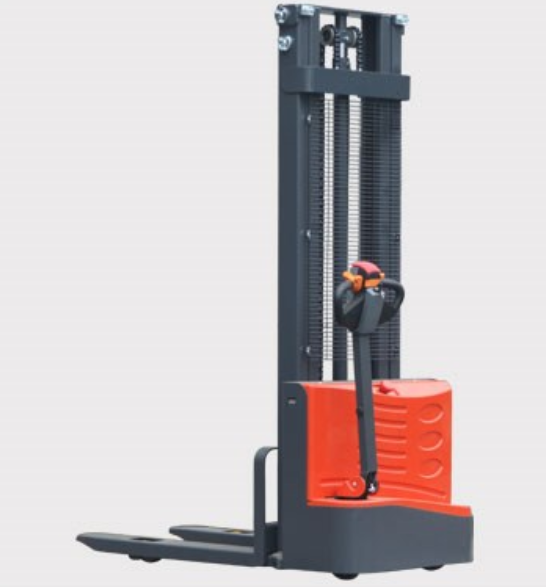

Electric Stacker — 1,500 kg Load Capacity, 2 000 mm Lift
Overview
This electric stacker is engineered to offer reliable, efficient material handling in warehouses, distribution centers, and production facilities. Designed for durability and operator comfort, it’s ideal for lifting, stacking, and transporting pallets in tight spaces.
Key Specifications
| Parameter | Value |
|---|---|
| Load Capacity | 1,500 kg |
| Maximum Lifting Height | 2,000 mm |
| Fork Dimensions (W × T) | 570 mm (width) |
| Drive Power | 0.75 kW |
| Lifting Power | 2.2 kW |
| Battery Type | Lead-acid |
| Battery Capacity | 2 × (100 Ah / 12 V) |
| Net (Tare) Weight | 460 kg |
Features & Benefits
High Load Capacity
With a 1,500 kg rated capacity, this stacker can handle heavy pallet loads with ease and confidence.
Second-Stage Lift to 2 000 mm
The 2 meter lift height gives flexibility to stack goods on higher racking levels, optimizing vertical warehouse space.
Robust Powertrain
The 0.75 kW drive motor ensures reliable travel performance, while the 2.2 kW lifting motor provides strong and smooth lifting even under full loads.
Dual Lead-Acid Battery System
Two 100 Ah / 12 V batteries supply sufficient energy for long shift operations. The lead-acid design is well-understood, cost-effective, and easy to maintain.
Sturdy and Stable Construction
The frame and mast are reinforced to resist bending or tilting under load. Stability is preserved even at full lift height.
Ergonomic Controls
The operation handle integrates key switch, up/down buttons, a turtle (low-speed) switch, and other controls in an intuitive layout. The handle is spring-loaded for safe automatic return when released.
Compact & Maneuverable
A side drive design yields a smaller turning radius and better visibility, making the stacker ideal for narrow aisles and tight warehouse layouts.
Low Maintenance
The battery system is designed to be maintenance-friendly. Regular servicing is simplified, and downtime is minimized through accessible components.
Applications
Warehousing & storage operations
Production lines needing in-plant material transfer
Retail distribution centers
Cold storage (with appropriate environmental adaptations)
Any facility needing vertical pallet stacking in constrained spaces
Usage Tips & Considerations
Always conduct a pre-use safety inspection: check fork integrity, brakes, wiring, and battery condition.
Match the battery charge strategy to shift lengths—fully charge between shifts to ensure maximum runtime.
Train operators on safe lifting, lowering, and travel practices, especially when loads are at full height.
Use proper maintenance intervals for lubrication, battery inspection, and component checks to prolong service life.
