Overview

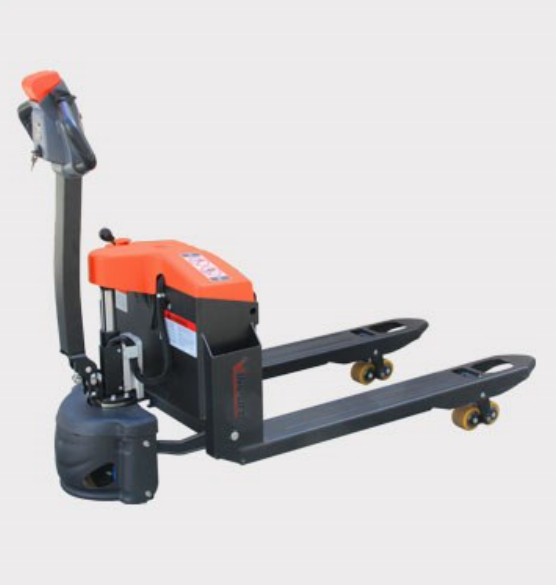

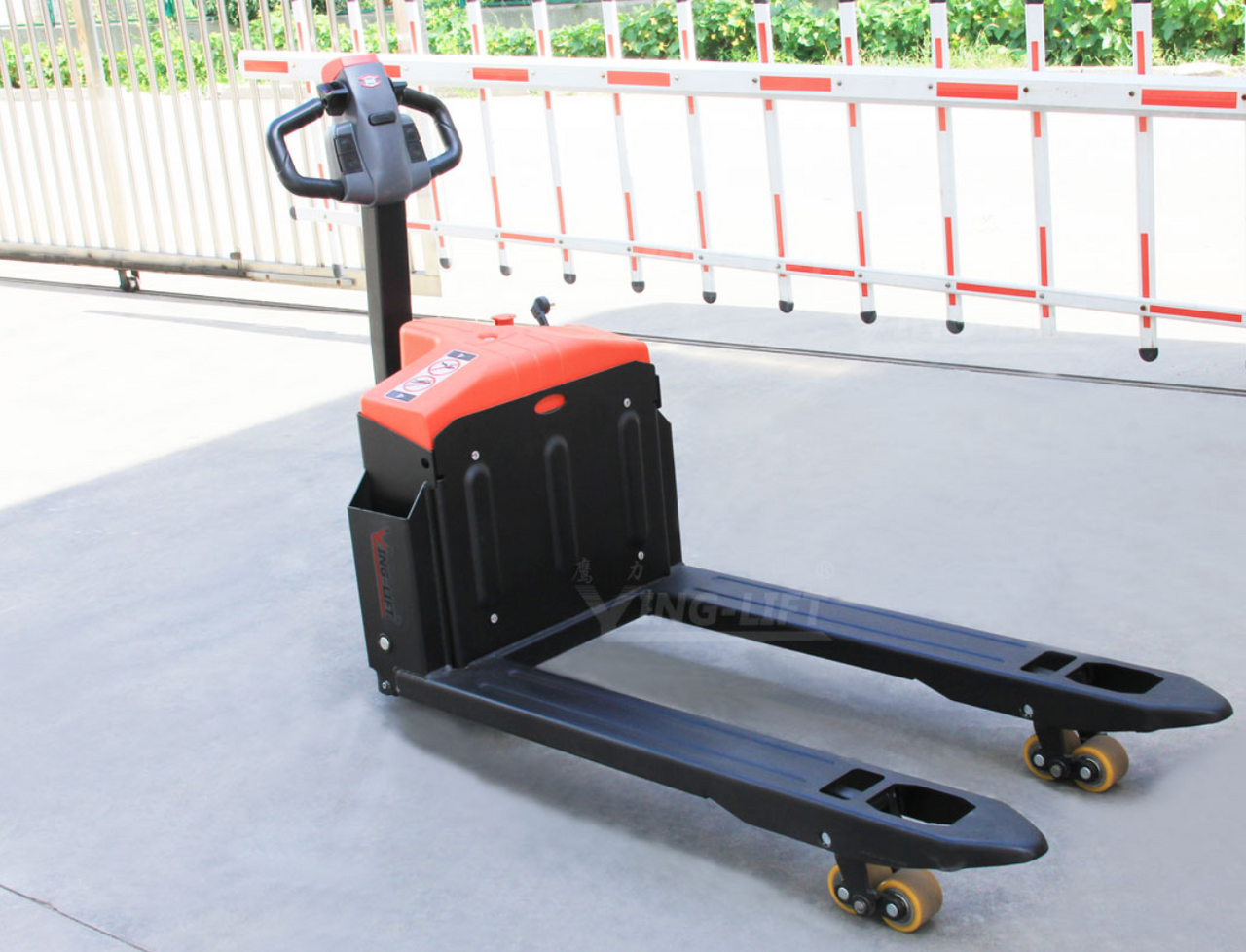

The YLT20-15ET2 is a high-performance, fully electric hand pallet truck designed for material handling tasks in warehouses, factories, retail yards, and logistics hubs. With a 1,500 kg load capacity and a rugged yet compact design, it offers power, safety, and efficiency—ideal for demanding lifting and transport applications.
Generous Load Capacity

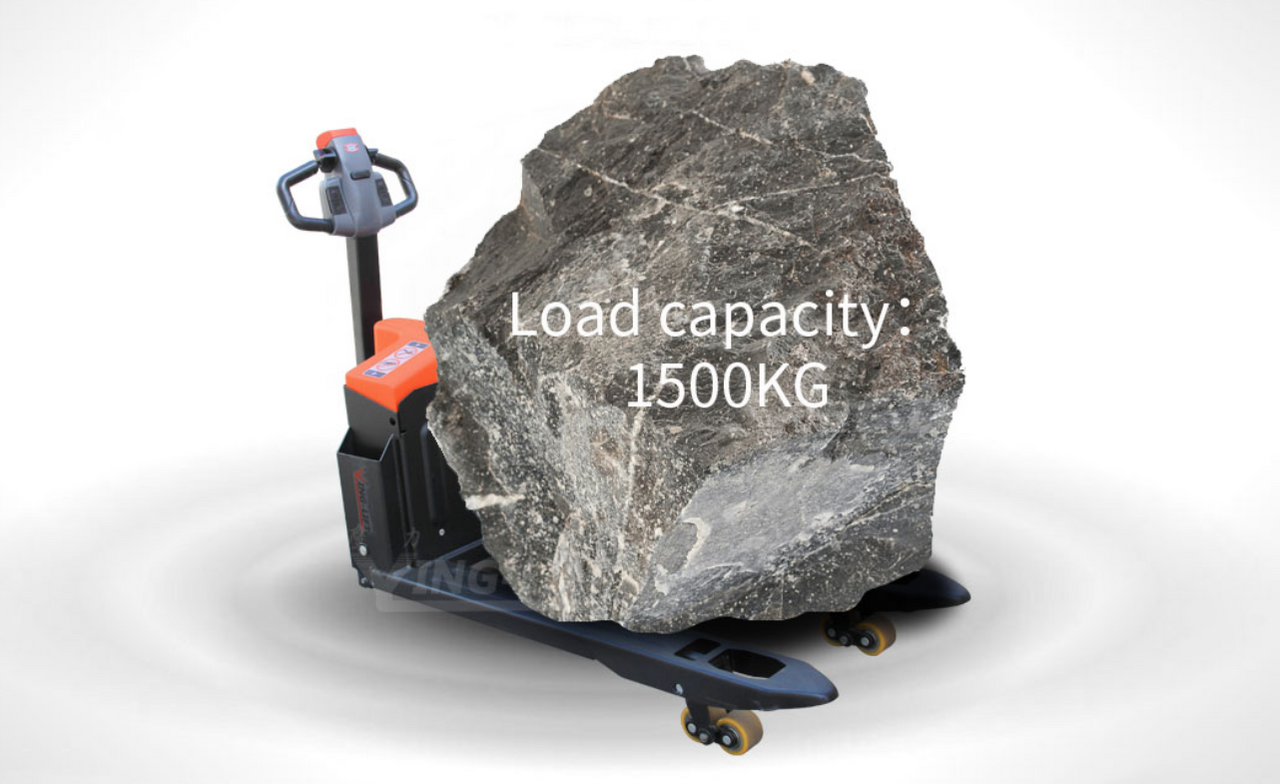

Rated to carry up to 1,500 kg (≈ 3,307 lb), the YLT20-15ET2 can handle standard pallet loads with ease, making it suited for most industrial uses.
Optimized Fork Height Range
Minimum Fork Height: 85 mm
Maximum Fork Height: 200 mm
This range allows the unit to pick up low-profile pallets and accommodate varying floor clearances.
Robust Battery System
Equipped with a 24 V / 65 Ah maintenance-free battery, it offers reliable runtime for typical shifts and reduces upkeep requirements.
Fork Dimensions & Construction
The forks measure 560 × 1,150 mm, giving stable support for wide pallets and allowing smooth insertion under standard pallets.
Durability & Maneuverability
Featuring nylon wheels, the truck offers low rolling resistance, good load distribution, and long service life—especially on smooth concrete flooring.
User-Centric Design
Easy-access battery layout for efficient removal and replacement
Enhanced wire-harness design to reduce wiring failures
Upgraded emergency stop switch for operator safety
Protective cover over drive wheels to prevent debris ingress
Top-mounted charger allows better heat dissipation and more efficient charging
Reliable Drive & Control
Uses DC drive control, combining responsive acceleration with precise speed control—ideal for tight aisles and variable load conditions.
| Parameter | Value |
|---|---|
| Model | YLT20-15ET2 |
| Load Capacity | 1,500 kg |
| Load Center | 600 mm |
| Fork Min Height | 85 mm |
| Fork Max Height | 200 mm |
| Fork Dimensions (W × L) | 560 × 1,150 mm |
| Wheel Type | Nylon |
| Battery | 24 V / 65 Ah, maintenance-free |
| Drive System | DC control |
| Service Weight (incl. battery) | ~205 kg |
| Travel Speed (laden / unladen) | 3.5 / 4.0 km/h |
| Lifting Speed (laden / unladen) | 0.051 / 0.060 m/s |
| Lowering Speed (laden / unladen) | 0.052 / 0.059 m/s |
| Max Gradeability (laden / unladen) | 2 % / 6 % |
| Noise Level (operator ear) | 74 dB(A) |
Warehouse order-picking and pallet transfers
Goods loading/unloading in tight spaces
Retail backrooms or storerooms
Cold storage and food distribution (with suitable ambient temperature)
General goods movement where efficiency and operator safety are priorities
Efficiency & Productivity: Electric operation eliminates manual pumping and reduces operator fatigue.
Low Maintenance: The maintenance-free battery and robust design lower ongoing servicing costs.
Safety-Oriented: Emergency stop, protective drive wheel cover, and stable fork support ensure reliable operations.
Space-Savvy Design: Its compact footprint and maneuverability make it ideal for narrow aisles and congested work zones.
