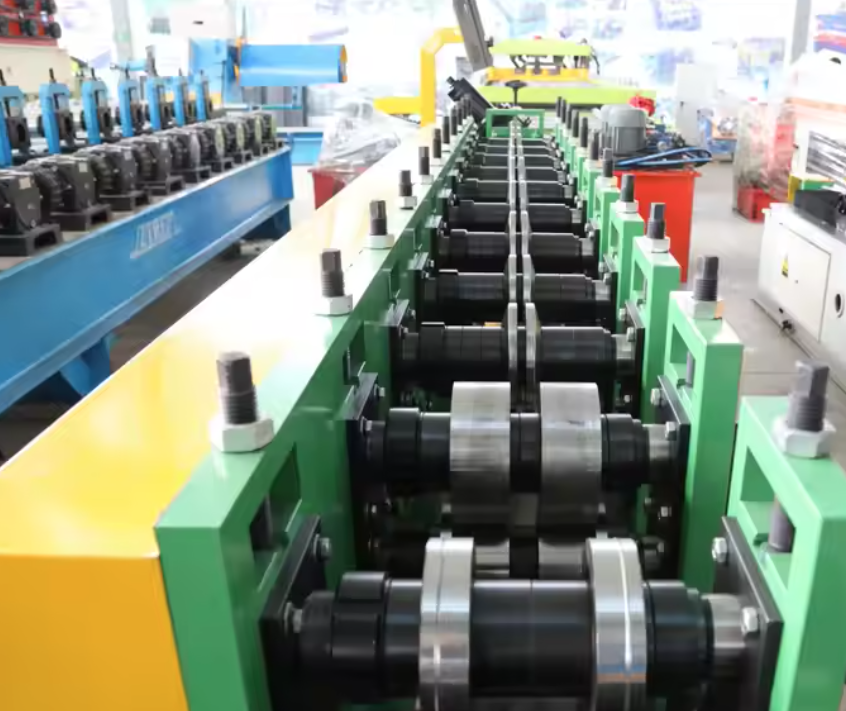

Furring Channel Roll Forming Machine – UAE Edition
Machine Matcher proudly offers a high-performance Furring Channel Roll Forming Machine, meticulously engineered to meet the specific demands of the United Arab Emirates' construction and manufacturing sectors. This machine is ideal for producing precise furring channels, commonly used in drywall framing, ceiling systems, and lightweight steel structures.
Machine Type: Furring Channel Roll Forming Machine
Production Speed: 15–30 meters per minute (depending on profile and material)
Material Thickness Range: 0.4 – 1.2 mm
Material Width Range: Up to 300 mm
Material Types: Galvanized Steel (GI), Mild Steel, Aluminum
Material Yield Strength: Up to 550 MPa
Roller Material: GCr15 (hardened chrome steel)
Roller Surface Treatment: Hard chrome-plated for wear and corrosion resistance

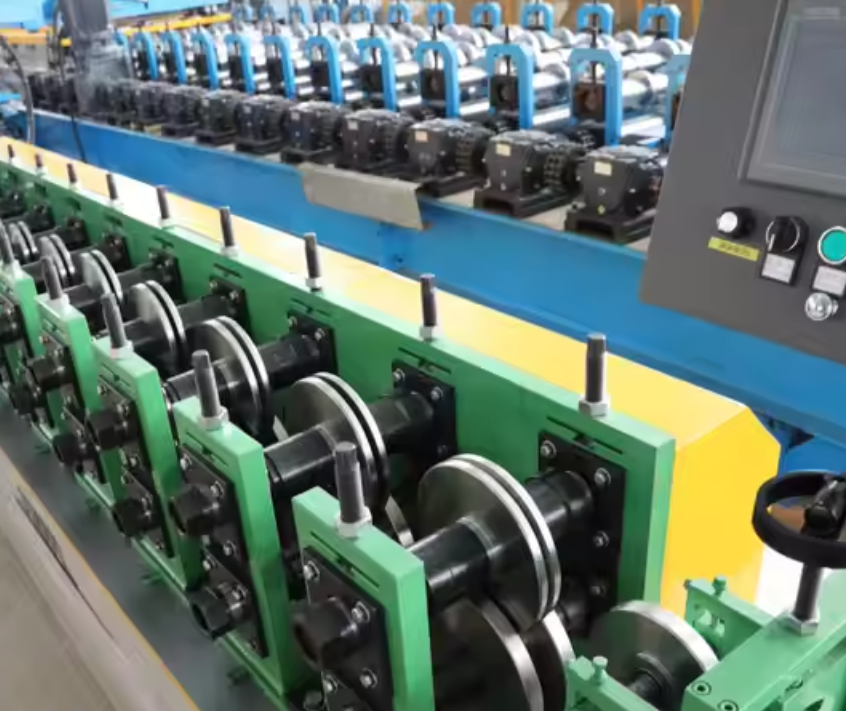

Number of Forming Stations: 10 – 16 stations (customizable)
Roller Shaft Diameter: 60 – 70 mm
Shaft Material: High-grade 45# steel with heat treatment
Main Drive Type: Gearbox-driven or chain drive
Power: 380V / 50Hz / 3 Phase (UAE Standard)
Motor Power: 5.5 – 11 kW (based on design capacity)
Cutting Method: Hydraulic post-cutting system
Blade Material: Cr12Mov with heat treatment

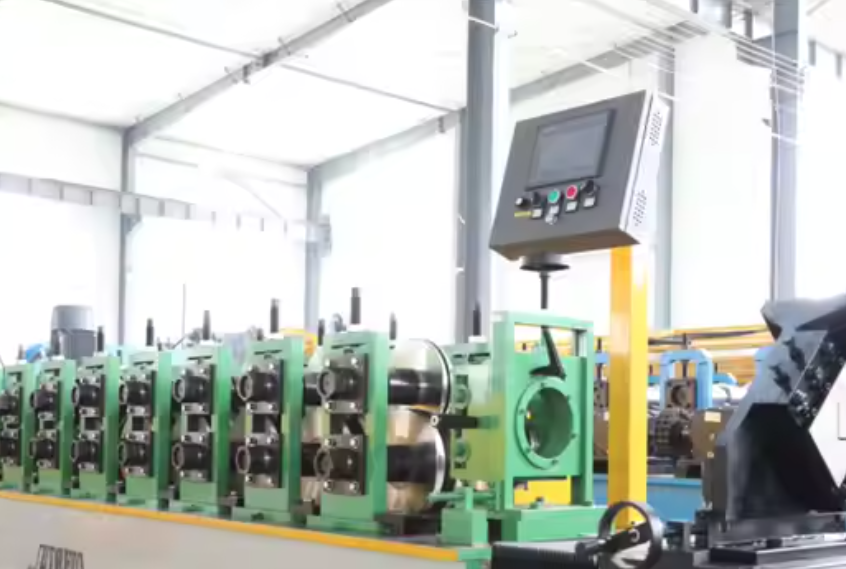

Control Type: PLC with HMI Touch Screen
Operating Mode: Fully automatic with manual override
De-coiling System: Manual or hydraulic uncoiler (3–5 Ton options)
Punching/Notching System: Optional inline hydraulic unit
Machine Frame: Welded steel structure
Thickness of Frame Steel: 20 – 25 mm
Profile Shape: U Channel, C Channel, Z Channel, or custom
Profile Width and Depth: Width: 40–300 mm / Depth: 20–100 mm (adjustable)
Length Tolerance: ±1.0 mm
Safety Features: Protective covers, emergency stop button, overload protection system
This machine caters to a diverse range of industries in the UAE:
Construction & Infrastructure: For framing, partitioning, and support bracing in commercial and residential buildings.
HVAC & Electrical Contracting: Manufacturing of cable trays and support channels.
Solar Energy: Production of mounting rails and brackets for solar panels.
Industrial Equipment Fabrication: Creation of structural components for machinery and equipment.
Steel Trading & Fabrication Workshops: Providing customized channel profiles for various applications.
Machine Matcher offers extensive customization to meet your specific requirements:
Profile Dimensions: Adjustable width and depth to produce various channel sizes.
Material Compatibility: Adaptable to different materials and thicknesses.
Automation Level: Options for manual, semi-automatic, or fully automatic operations.
Additional Features: Inclusion of punching, embossing, and notching systems as needed.
Prices Start From: USD $65,000 (standard configuration with manual decoiler and no punching system)
Factors Affecting Final Price:
Profile complexity (shape, size, material)
Level of automation and additional features
Type of decoiler and stacker systems
Quantity of forming stations
Desired production speed and motor power
Delivery: All machines are new and custom-built to meet specific profile and machine requirements. Delivery is available throughout the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah, directly from our manufacturing partner.
Tailored Solutions: Each machine is custom-built to match your specific profile and production needs.
High Precision: Advanced PLC control ensures consistent quality and minimal material waste.
Robust Construction: Durable materials and components guarantee long-term reliability.
Comprehensive Support: Machine Matcher provides full support from consultation to after-sales service.
Q: Can the machine be customized for our profile?
A: Yes, we offer full customization based on your profile drawings and specifications.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days. Shipping time depends on the destination port.
Q: What type of material is normally used with this machine?
A: Common materials include galvanized steel, mild steel, and aluminum, with thicknesses ranging from 0.4 to 1.2 mm and yield strengths up to 550 MPa.
Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.
Q: What kind of warranty and support do you provide?
A: All machines are covered by a one-year warranty from dispatch, along with durable maintenance and repair support.
For a tailored quote, please email your profile drawings and specific requirements to [email protected]. Our team at Machine Matcher is ready to assist you in finding the perfect roll forming solution for your needs.
