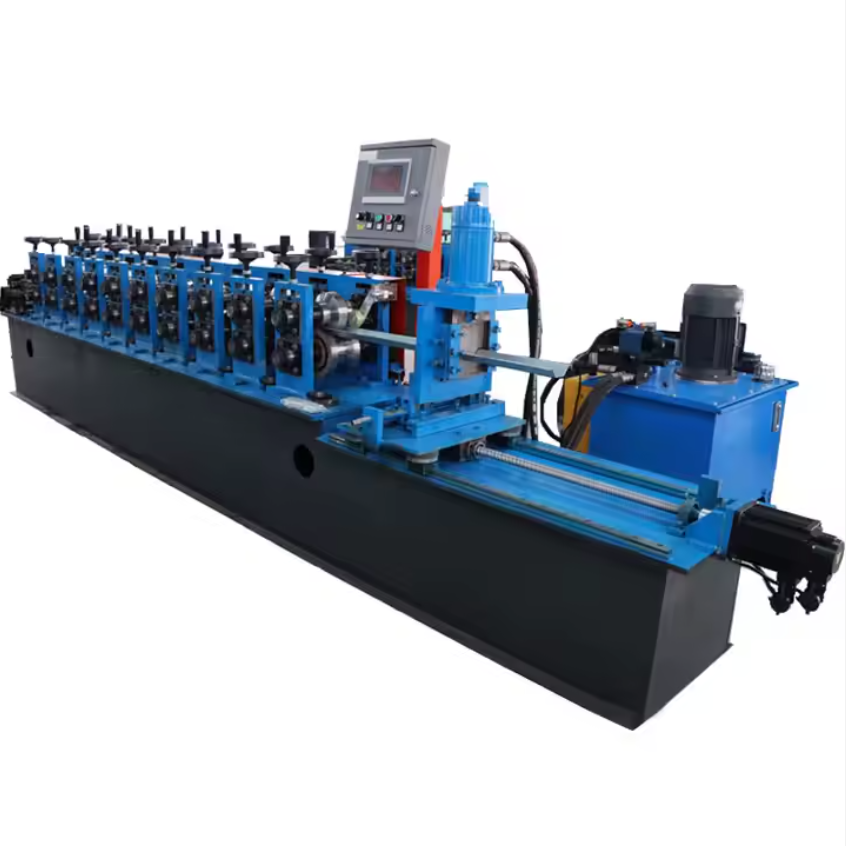

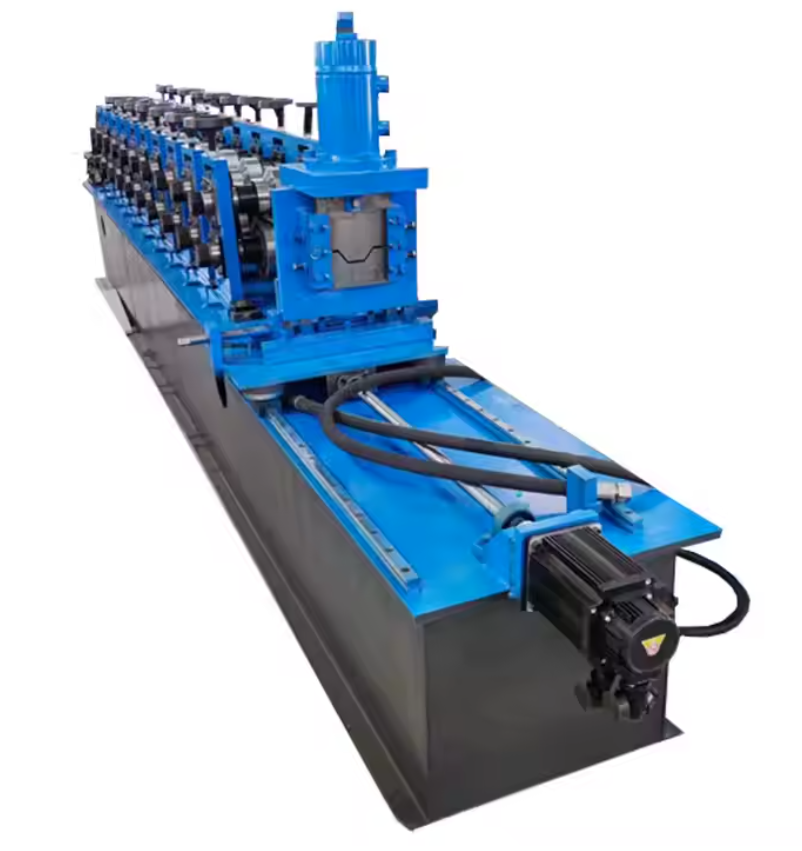

Furring Channel Roll Forming Machine – Available in UAE
Supplied by Machine Matcher
The Furring Channel Roll Forming Machine, available exclusively from Machine Matcher, is a high-performance production line tailored to manufacture precision furring channel profiles widely used in ceiling and wall partition systems. Built with advanced forming technology, durable materials, and superior engineering, this machine offers consistent output, high accuracy, and a long operational lifespan. All units are custom-built to customer specifications and can be delivered anywhere in the United Arab Emirates, including Dubai, Abu Dhabi, and Sharjah.
Whether you operate in construction, interior finishing, commercial building, or industrial fabrication, this machine delivers unmatched efficiency, reliability, and output.
Construction & Building Materials
Ceiling frameworks
Drywall and partition structures
Suspended ceiling systems
Interior Fit-out & Contracting
Light gauge steel framing
Custom wall channel fabrication
Metal Fabrication
Sheet metal profile production
Subcontract roll forming services
Examples of Utilization:
Contractors use furring channels for suspended ceilings and wall lining installations in residential, commercial, and public-sector buildings.
Manufacturers integrate this machine into production lines for prefabricated construction systems.
Fabrication workshops deploy it for just-in-time manufacturing of ceiling channels for project-specific requirements.
Machine Type: Furring Channel Roll Forming Machine
Production Speed: 15–25 m/min
Material Thickness Range: 0.3 – 0.8 mm
Material Width Range: 80 – 300 mm
Material Types: Galvanized Steel, Pre-painted Steel, Aluminum
Material Yield Strength: Up to 350 MPa (50 ksi)
Roller Material: High-Grade GCr15 Steel
Roller Surface Treatment: Hard Chrome Coated
Number of Forming Stations: 10 – 16 stations (customizable)
Roller Shaft Diameter: 50 mm
Shaft Material: Solid 45# Steel, precision ground and heat-treated
Main Drive Type: Chain Drive or Gear Drive (based on request)
Power for UAE: 380V, 50Hz, 3 Phase
Motor Power: 5.5 kW
Cutting Method: Hydraulic Shearing
Blade Material: Cr12Mov (heat-treated)
Control Type: PLC with touch screen interface
Operating Mode: Automatic / Semi-Automatic
De-coiling System: Manual or Hydraulic De-coiler (3–5 Ton capacity)
Punching/Notching System: Optional hydraulic punching head available
Machine Frame: Heavy-duty welded steel base
Thickness of Frame Steel: 16–20 mm
Profile Shape: Standard Furring Channel (can be customized)
Profile Width and Depth: Approx. 50 x 20 mm (customizable)
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Profile shapes and dimensions
Material gauge and coil width compatibility
Automated punching, embossing, or notching units
Integrated stacking and packaging modules
Branding embosses on profiles
Remote monitoring or diagnostic software integration
Tailored Engineering: Every machine is custom-built to your exact profile drawings and production goals.
Remote & On-Site Installation Support: Initial setup and training via video, with in-person support available on request.
Fast Turnaround: Production takes 30–60 days. Delivery to any UAE location is arranged directly.
Expertise & Trust: Machine Matcher is a global leader in roll forming technology. All machines are new and backed by full after-sales support.
Durability & Performance: Precision-built with high-quality components for long-term use with minimal downtime.
Value Advantage: Maximize output, reduce labor costs, and minimize material waste. Our machines translate directly to improved bottom lines.
The Furring Channel machine processes a range of coil metals including:
Galvanized Steel (G90, G60)
Pre-painted Steel Coils
Aluminum Coils
Typical Material Gauge: 0.3 mm – 0.8 mm
Typical Yield Strength: Up to 50 ksi (350 MPa)
Q: Can the machine be customized for our profile?
A: Yes, the machine can be engineered to match your exact profile drawing. Just send us your specifications.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days. Shipping time varies based on your delivery location in the UAE.
Q: Is remote installation support available?
A: Yes, we provide step-by-step video guidance, and on-site setup is available upon request.
Q: What types of material are suitable for this machine?
A: This machine works best with galvanized steel, pre-painted steel, and aluminum in thicknesses from 0.3 mm to 0.8 mm, with yield strengths up to 350 MPa.
Q: What affects the final price?
A: Pricing depends on configuration, optional units (e.g., hydraulic punching, automatic stacking), and profile customization. Contact us for a tailored quote.
Prices start from: $35,000 USD
(Final price varies depending on configuration and extras.)
All machines are custom-built and delivered anywhere in the United Arab Emirates, including:
Abu Dhabi
Dubai
Sharjah
Our team ensures smooth delivery, commissioning, and long-term technical support. Every machine is supplied new and tailored specifically for your project needs.
All machines are covered by a 1-year warranty from dispatch. Machine Matcher provides robust after-sales service, including spare parts, remote troubleshooting, and repair guidance.
To receive an accurate quote, please email your profile drawing, material details, and production requirements to:
[email protected]
Machine Matcher is your dedicated supplier for custom-built furring channel roll forming machines in the UAE and globally. We ensure you get the right machine, at the right price, backed by the right support.
