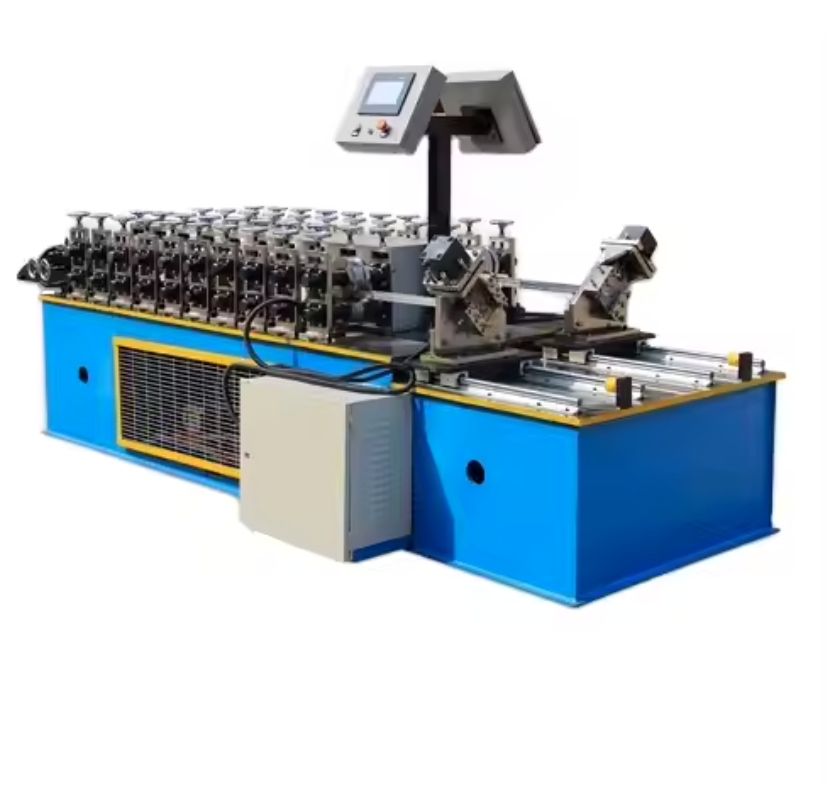

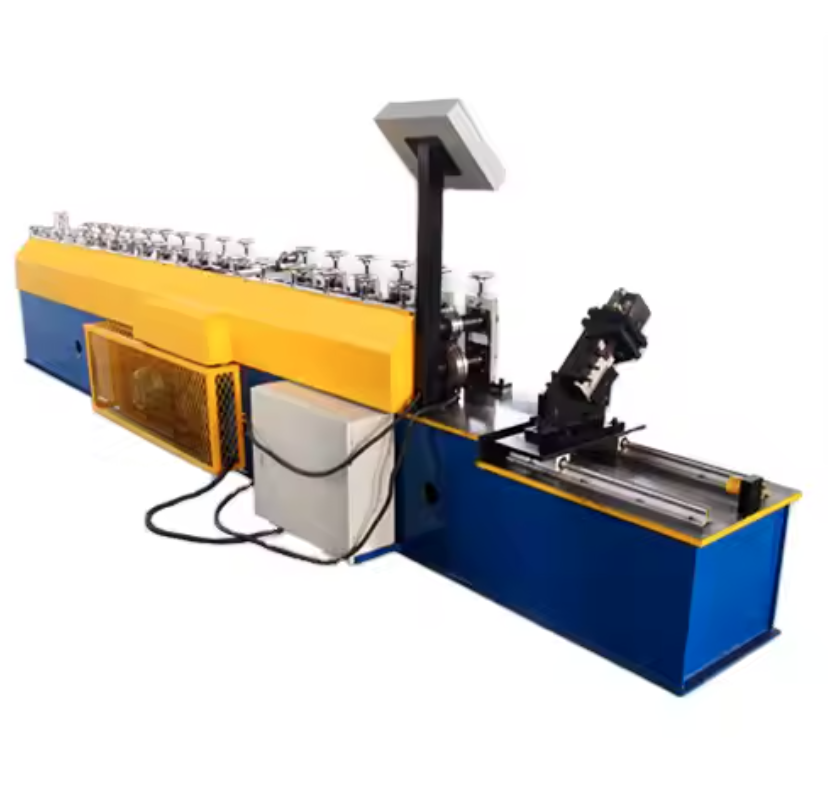

GI Trunking Roll Forming Machine – Supplied by Machine Matcher (Location: United Arab Emirates)
Machine Matcher proudly supplies a state-of-the-art GI Trunking Roll Forming Machine tailored for the United Arab Emirates market, including delivery and installation across Abu Dhabi, Dubai, Sharjah, and all other regions. Built to exact customer specifications, this machine is ideal for manufacturing galvanized iron (GI) cable trunking profiles used widely across the electrical and infrastructure sectors. Whether you are looking for compact production lines or high-capacity systems, Machine Matcher ensures high-performance, fully-customizable solutions that meet your local UAE production demands.
Fully Customizable Profiles – Designed around your trunking dimensions and shape requirements.
Precision and Speed – High-speed output with tight length tolerances ensures consistent quality.
Strong ROI – Reduced manual labor, improved production efficiency, and lower per-unit costs.
Robust Support – One-year warranty, UAE-wide delivery, remote installation assistance, and optional on-site setup.
Built for UAE Standards – Power configuration, materials, and design tailored specifically for UAE operational environments.
Machine Type: GI Trunking Roll Forming Machine
Production Speed: 10–20 meters per minute (adjustable)
Material Thickness Range: 0.5 mm – 1.2 mm
Material Width Range: 100 mm – 600 mm
Material Types: Galvanized Steel (GI), Mild Steel
Material Yield Strength: Up to 350 MPa (50 ksi)
Roller Material: High-Grade Steel (GCr15)
Roller Surface Treatment: Hard Chrome Coated for extended wear life
Number of Forming Stations: 16–24 (based on profile design)
Roller Shaft Diameter: 60 mm
Shaft Material: Solid Steel, heat-treated
Main Drive Type: Gearbox Drive
Power (UAE Configuration): 380V / 50Hz / 3 Phase
Motor Power: 7.5 kW – 15 kW depending on configuration
Cutting Method: Hydraulic Cut-Off
Blade Material: Cr12Mov (hardened for long life)
Control Type: PLC Control with Touchscreen Interface
Operating Mode: Automatic / Manual
De-coiling System: Manual or Hydraulic De-coiler (3–5 tons)
Punching/Notching System: Optional inline hydraulic punching as per cable hole layout
Machine Frame: Welded Steel Base Frame
Thickness of Frame Steel: 20 mm reinforced
Profile Shape: Custom GI Trunking
Profile Width and Depth: Width up to 600 mm; Depth up to 100 mm
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Cable hole punching pattern and size
Profile dimensions (width, depth, bending radius)
Multi-size adjustability with quick-change tooling
Automatic stacking and labeling systems
Touchscreen language selection (English/Arabic)
Machine Matcher’s GI trunking roll forming machine supports production in multiple sectors:
Trunking for power and data cabling in residential, commercial, and industrial spaces
Customized trunking for smart building systems and infrastructure
Pre-fabricated building systems
Infrastructure projects requiring cable protection
Control panel trunking for electrical enclosures and machine cabinets
Cable routing systems for server rooms and data centers
Example Application: A construction firm in Dubai can deploy the machine to manufacture high volumes of customized trunking for a multi-tower development, reducing outsourcing costs and ensuring on-time delivery.
All machines are new, custom-built, and delivered anywhere in the United Arab Emirates, including major cities such as Abu Dhabi, Dubai, Sharjah, Ajman, Fujairah, and Ras Al Khaimah. On-site installation and commissioning services are available upon request.
Prices Start From: USD 45,000 (standard configuration)
Final Price Depends On:
Profile complexity
Material specifications
Number of forming stations
Optional punching systems
Automation level and control systems
Machine Matcher provides tailored quotes based on your exact requirements. If you have profile drawings or production details, please email them to: [email protected]
Q: Can the machine be customized for our trunking profile?
A: Yes. Each machine is fully customized based on your profile drawings, dimensions, and production needs.
Q: What type of material is normally used with this machine?
A: GI (Galvanized Iron) steel sheets with thickness from 0.5 mm to 1.2 mm and a yield strength up to 50 ksi are typically used.
Q: Is remote installation support available?
A: Yes. We offer remote video support, and on-site installation is available upon request.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days, with shipping time depending on your port in the UAE.
Q: How does this machine compare to others on the market?
A: Machines from Machine Matcher offer superior durability, customization, speed, and after-sales support. They are designed to provide higher output and lower maintenance costs compared to many generic machines.
Q: What power setup is this machine built for in the UAE?
A: 380V, 50Hz, 3-phase – tailored for UAE industrial standards.
All machines supplied by Machine Matcher are backed by:
1-Year Warranty from dispatch
Remote and on-site installation support
Durable maintenance and repair support
Readily available spare parts
If you are ready to get started or want a precise quote for your GI trunking profile machine in the UAE, please email your profile drawings, material details, and requirements to [email protected]. Our technical team will provide a full specification and pricing package tailored to your needs.
Machine Matcher is your trusted supplier for custom roll forming machines in the UAE and beyond. We offer precision-built, factory-direct machines backed by engineering expertise, ensuring you receive the best combination of performance, service, and value.
