Key Specifications
Load Capacity: 5,000 kg (5 tonne)
Maximum Fork Height: 200 mm
Minimum Fork Height: 85 mm
Fork Dimensions: 550 mm (width) × 1,150 mm (length)
Wheels: Durable nylon load and steering wheels
Robust Construction for Heavy Loads

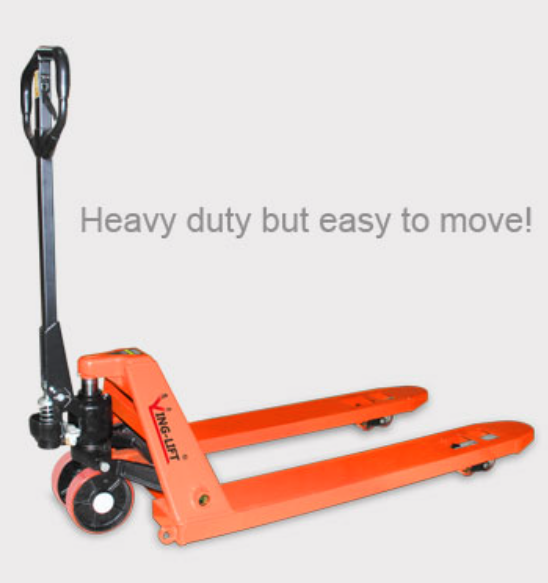

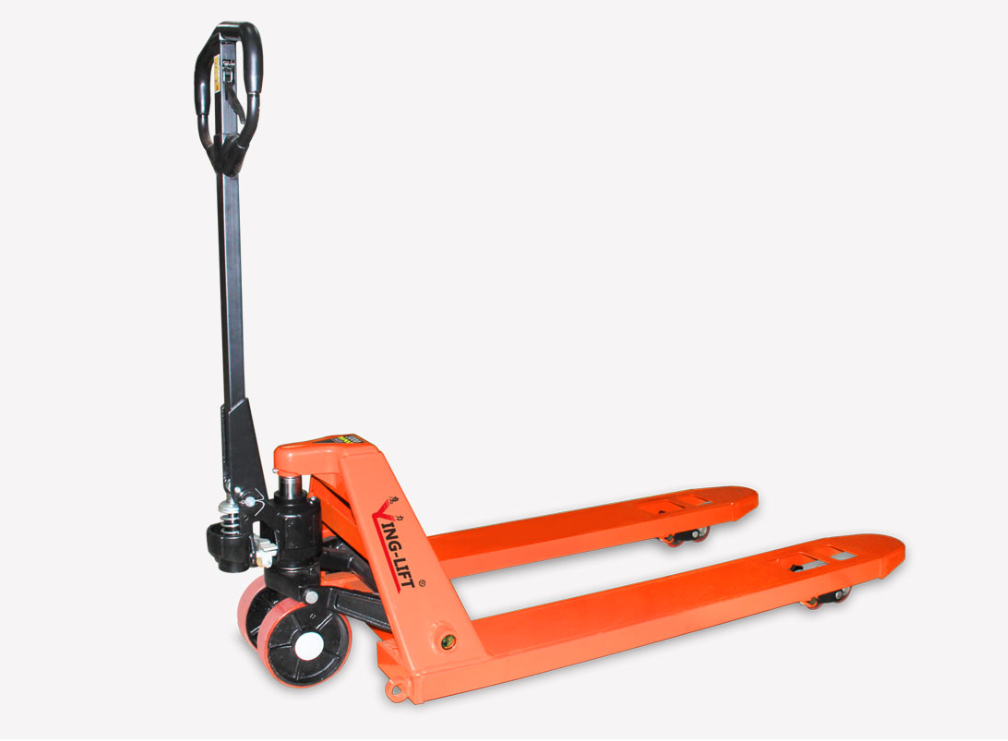

Built to handle demanding industrial environments, the YLF50S is engineered for reliably transporting heavy loads up to 5 tonnes with confidence and stability.
Efficient Lifting with Low Effort
Equipped with a precision hydraulic pump, this pallet truck allows operators to lift heavy pallets smoothly and with minimal force, improving efficiency and reducing fatigue.
Wide Fork Span for Versatility
With a 550 mm fork width, the YLF50S offers excellent compatibility with standard pallets and also provides extra stability when handling bulky or awkward loads.
Low-Profile Design
At just 85 mm in its lowest position, the forks can slide easily under pallets and loads, even when ground clearance is minimal. The 200 mm maximum lift height meets most handling needs in low-lift operations.
Nylon Wheels for Longevity
High-quality nylon wheels (on both load and steering) offer low rolling resistance, quieter operation, and good wear resistance on smooth warehouse floors.
Safety & Compliance
Designed to conform to CE safety standards, the YLF50S ensures dependable performance within recognized safety guidelines.
The YLF50S is ideal for:
Heavy goods warehouses and distribution centers
Steel, machinery, or industrial parts handling
Manufacturing lines with dense storage
Situations requiring movement of fully loaded pallets or heavy equipment
| Parameter | Value |
|---|---|
| Model | YLF50S |
| Rated Capacity | 5,000 kg |
| Max Fork Height | 200 mm |
| Min Fork Height | 85 mm |
| Fork Width × Length | 550 mm × 1,150 mm |
| Wheel Type | Nylon (load and steering) |
| Standards | CE compliance |
High Capacity with Compact Footprint — Move heavy loads without needing a large footprint.
Durable & Low Maintenance — Nylon wheels and robust components reduce wear and upkeep.
Operator-Friendly — Smooth hydraulic action and ergonomic handling reduce fatigue.
Safety Assured — Built in accordance with CE standards to ensure safe operation.
