Interlocking Cladding Panel Roll Forming Machine – United Arab Emirates
The Interlocking Cladding Panel Roll Forming Machine is designed to produce modern, architectural-grade interlocking panels used for wall cladding and facade systems. Engineered with precision and built to handle various metal types, this high-performance machine delivers clean, seamless profiles with tight interlocks, making it ideal for both vertical and horizontal installation applications across the UAE.
Whether installed on commercial buildings in Dubai, industrial facilities in Sharjah, or contemporary residential projects in Abu Dhabi, this roll forming machine ensures consistently high output, minimal waste, and optimal aesthetic quality.
Machine Type: Interlocking Cladding Panel Roll Forming Machine
Production Speed: 12–20 meters/min (adjustable)
Material Thickness Range: 0.5 – 1.0 mm
Material Width Range: 300 – 600 mm (depending on profile)
Material Types: Galvanized Steel, Galvalume, Aluminum, Painted Steel, Stainless Steel
Material Yield Strength: Up to 550 MPa (80 ksi)

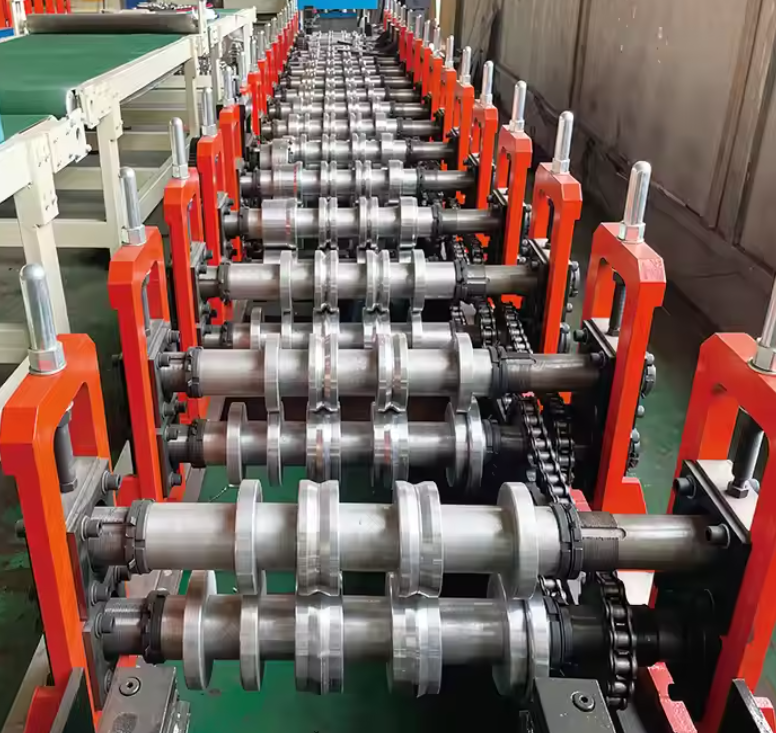

Roller Material: GCr15 (high-grade steel), hardened and chrome coated
Roller Surface Treatment: Hard chrome plating for wear resistance

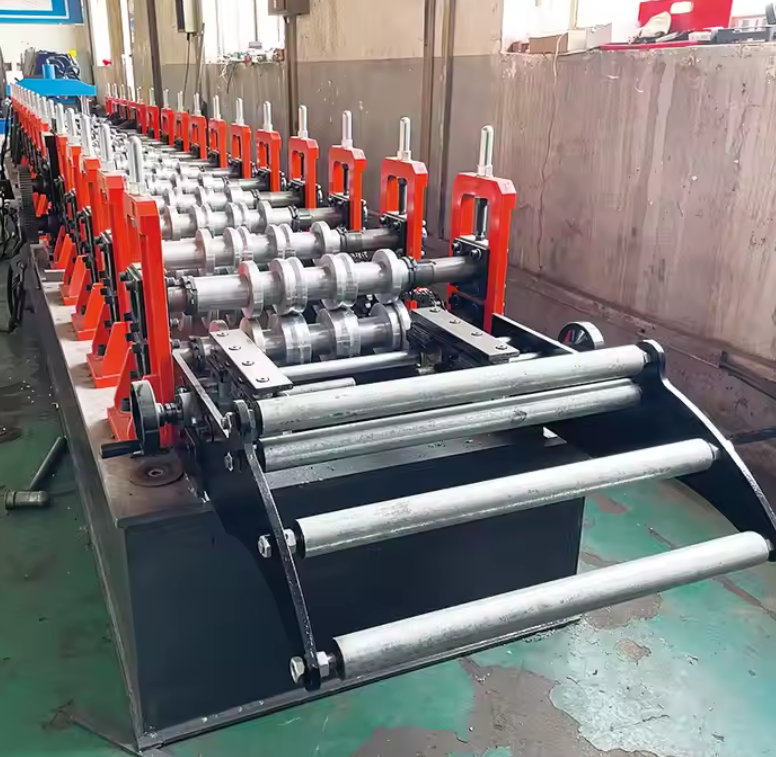

Number of Forming Stations: 12–18 stations (depending on profile complexity)
Roller Shaft Diameter: 70 mm
Shaft Material: 40Cr tempered and precision-ground
Main Drive Type: Chain or Gearbox drive (customizable)
Power (UAE standard): 380V / 50Hz / 3 Phase
Motor Power: 7.5 kW

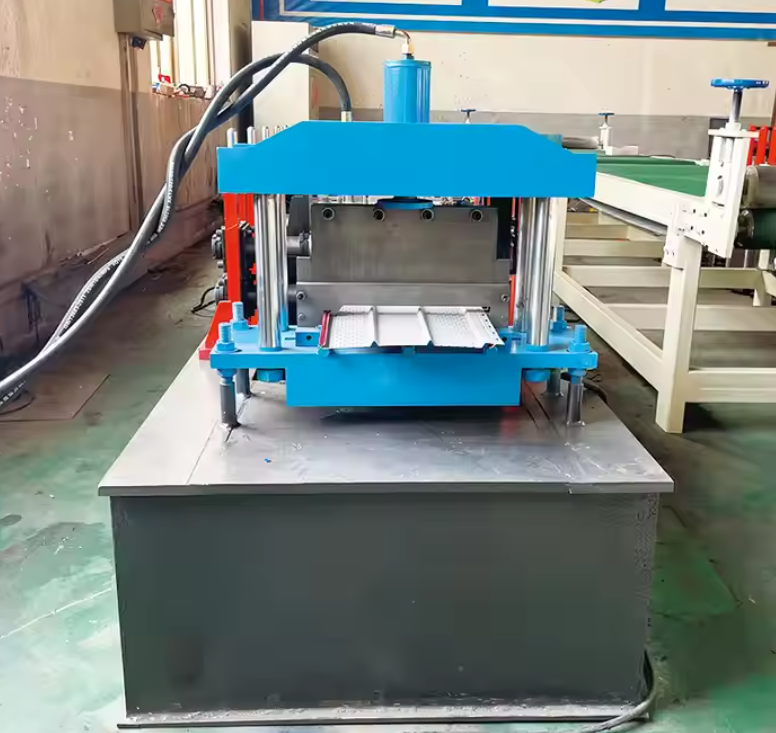

Cutting Method: Hydraulic post-cut system
Blade Material: Cr12Mov steel, heat-treated
Control Type: PLC with touch screen (Siemens, Delta, or Mitsubishi)
Operating Mode: Fully automatic with manual override
De-coiling System: Manual or hydraulic uncoiler (3–5 tons)
Punching/Notching System: Optional pneumatic or hydraulic system available
Machine Frame: Welded steel frame with sandblasting and painting
Thickness of Frame Steel: 16–20 mm
Profile Shape: Interlocking tongue-and-groove wall cladding panel
Profile Width and Depth: Width 250–400 mm, Depth 25–40 mm
Length Tolerance: ±1 mm per 6 meters
Safety Features:
Full protective covers and guards
Emergency stop buttons
Overload protection system
This machine typically processes:
Material Thickness: 0.5 mm – 1.0 mm
Yield Strength Range: 240 – 550 MPa (35 – 80 ksi)
Common Materials:
Pre-painted galvanized steel (PPGI)
Aluminum for coastal applications
Galvalume and stainless steel for corrosive environments
Architecture & Facade Design:
Used in modern building facades, curtain walls, and decorative finishes.
Commercial Construction:
Ideal for malls, office buildings, hospitals, and airports requiring weather-resistant, aesthetic panels.
Industrial Warehousing:
Suitable for warehouse exteriors needing robust and low-maintenance cladding.
High-End Residential Projects:
Increasingly used in contemporary villas and apartment exteriors.
Utilization Examples:
Vertical/horizontal interlocking facade panels for towers in Dubai
Ventilated wall cladding systems in Abu Dhabi
Weather-sealed industrial sheds in Sharjah
Custom Profile Matching: Built precisely to your interlocking panel dimensions and architectural design.
Superior Output Accuracy: ±1 mm length tolerance ensures reduced onsite trimming and better installation speed.
Extended Roller Life: Hardened GCr15 rollers with chrome coating last longer, reducing replacement downtime.
Integrated Hydraulic Cutting: Clean, burr-free cuts with minimal maintenance needs.
UAE Power-Ready: Configured for 380V/50Hz systems and hot weather operation with enhanced cooling.
Smart Control System: Fully automated PLC with touchscreen interface simplifies operation and minimizes human error.
Cost-Saving Impact:
Fewer production stoppages
Reduced manual labor
Fast ROI from high-volume production
Energy-efficient motor and hydraulic systems
Profile size and depth
Color touchscreen brand (Siemens/Delta)
Coil car, stacker, and automated uncoiler integration
Servo feeder for advanced punching or embossing
Remote operation and fault diagnosis module
Additional safety enclosures
Prices Start From: USD $45,000 (based on configuration)
What Affects Final Price:
Coil width range
Number of forming stations
Type of punching or notching system
Choice of automation and accessories
Material type and thickness range requirements
Note: Pricing is determined based on optional extras and customization requirements. Contact us for a tailored quote based on your specific needs.
All machines are custom-built to meet your profile specifications and can be delivered directly anywhere in the United Arab Emirates—including Abu Dhabi, Dubai, and Sharjah. Installation support, training, and after-sales service are also available.
Warranty: 1-year warranty from date of dispatch
Support: Ongoing maintenance and repair services available
Spare Parts: Readily available for fast delivery
Technical Assistance: Remote and on-site troubleshooting offered
Q: Can this machine handle multiple panel widths?
A: Yes, the machine can be built with adjustable tooling or changeable cassettes for different panel widths within the material range.
Q: Is it suitable for curved or bent facade designs?
A: While the machine produces flat interlocking panels, the output can be curved post-rolling using curving machines or manual techniques.
Q: How do I get a quote?
A: Send us your profile drawings, desired panel size, material thickness, and any additional specifications to [email protected] and we’ll provide a tailored quotation.
Q: What is the typical lead time?
A: Production typically takes 45–60 days depending on complexity and additional features.
All machines are new and custom-built for you. We supply reliable, high-output roll forming machines across the UAE. To get the best price and machine tailored to your interlocking cladding needs, contact us today.
