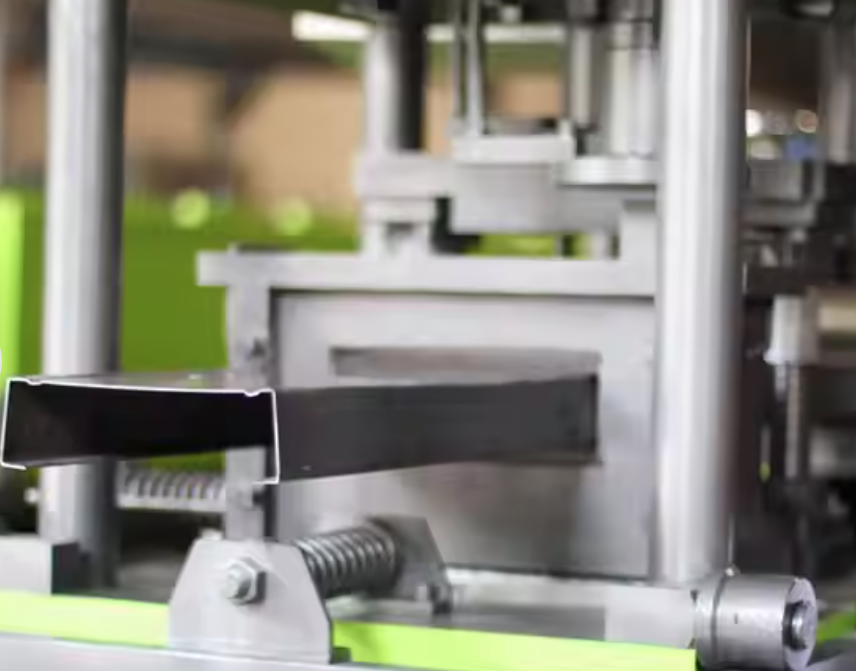

Light Gauge Steel C-Channel Roll Forming Machine – UAE Market
The Light Gauge Steel C-Channel Roll Forming Machine is designed for high-speed, precision production of light steel framing components used across a range of residential, commercial, and industrial construction applications in the United Arab Emirates. Engineered to meet the growing demand for modular and lightweight construction systems, this machine offers unmatched accuracy, speed, and customizability for fabricators, steel structure manufacturers, and framing contractors.
This advanced roll forming system produces high-quality C-shaped channels from light gauge steel coils with consistent dimensions and excellent straightness. It is an ideal solution for producing wall studs, ceiling joists, truss components, and structural frame sections used in lightweight steel framing systems.
Industries: Light steel construction, modular housing, interior partitioning, suspended ceiling frameworks, HVAC framing, and prefabricated structures.
Applications: Residential and commercial building framing, partition wall systems, truss and ceiling systems, prefabricated and modular construction.
Machine Type: Light Gauge Steel C-Channel Roll Forming Machine
Production Speed: 25–45 meters per minute (depending on profile complexity and punching requirement)
Material Thickness Range: 0.5 mm to 1.5 mm
Material Width Range: 100 mm to 300 mm
Material Types: Galvanized Steel (GI), Cold Rolled Steel (CR), Galvalume, and Mild Steel
Material Yield Strength: Up to 550 MPa
Roller Material: GCr15 (high-grade bearing steel), hardened and ground
Roller Surface Treatment: Hard chrome plated for corrosion resistance and longer life
Number of Forming Stations: 12 to 18 stations (customizable)
Roller Shaft Diameter: 60 mm
Shaft Material: Solid 45# steel, precision-machined and heat-treated
Main Drive Type: Chain or gearbox-driven (as per customer preference)
Power (UAE standard): 380V, 3-phase, 50Hz
Motor Power: 7.5 kW (customizable based on configuration)
Cutting Method: Hydraulic flying cut-off system
Blade Material: Cr12Mov (hardened high-carbon tool steel)
Control Type: PLC control with HMI touch screen (Siemens or Delta)
Operating Mode: Fully automatic with manual override mode
De-coiling System: Manual or hydraulic uncoiler (3–5 ton capacity)
Punching/Notching System: Optional inline hydraulic punching unit for holes and slots
Machine Frame: Welded and stress-relieved heavy-duty steel base
Thickness of Frame Steel: 18–20 mm
Profile Shape: C-Channel (with optional lip)
Profile Width and Depth: Width: 40–100 mm, Depth: 20–60 mm (customizable)
Length Tolerance: ±1.0 mm
Protective covers and guards over all moving parts
Emergency stop button with safety circuit
Overload protection system integrated with motor and hydraulic unit
USD $45,000 +
Final pricing depends on machine configuration, automation level, and optional add-ons like punching, stacking, and advanced control systems.
All machines are brand new and custom-built to suit your specific profile dimensions and steel framing needs. Delivery is available to Abu Dhabi, Dubai, Sharjah, and anywhere across the United Arab Emirates, directly from our global manufacturing partners.
Each machine comes with:
One-year warranty from the date of dispatch
Remote support and spare parts availability
Durable maintenance options for long-term operation
If you have profile drawings or technical requirements (coil specs, gauge, production needs), please send details to:
📧 [email protected]
This allows our team to provide the most accurate and cost-effective quote.
Q1: What types of profiles can this machine produce?
A: This machine can produce standard and customized C-channels with or without lips, for steel framing applications. Profiles can be adjusted based on your design.
Q2: Can it handle multiple profile sizes?
A: Yes. We can configure the machine with manual or motorized adjustment mechanisms, or a fully automatic size-change system for multi-profile production.
Q3: What coil specifications are needed?
A: Typically, 0.5 mm to 1.5 mm thickness with widths between 100 mm and 300 mm. The coil’s material strength should be up to 550 MPa for optimal forming.
Q4: Is punching included?
A: Inline hydraulic punching units are available as an optional upgrade for producing holes, slots, or notches required for assembly.
Q5: How long is the setup time after delivery?
A: Installation, calibration, and operator training can be completed in 3–5 working days depending on configuration and site conditions.
Auto stacker
Coil car for easier loading
Punching and notching stations
Remote PLC monitoring
Servo-driven feeders
Pre-cut and post-cut systems
