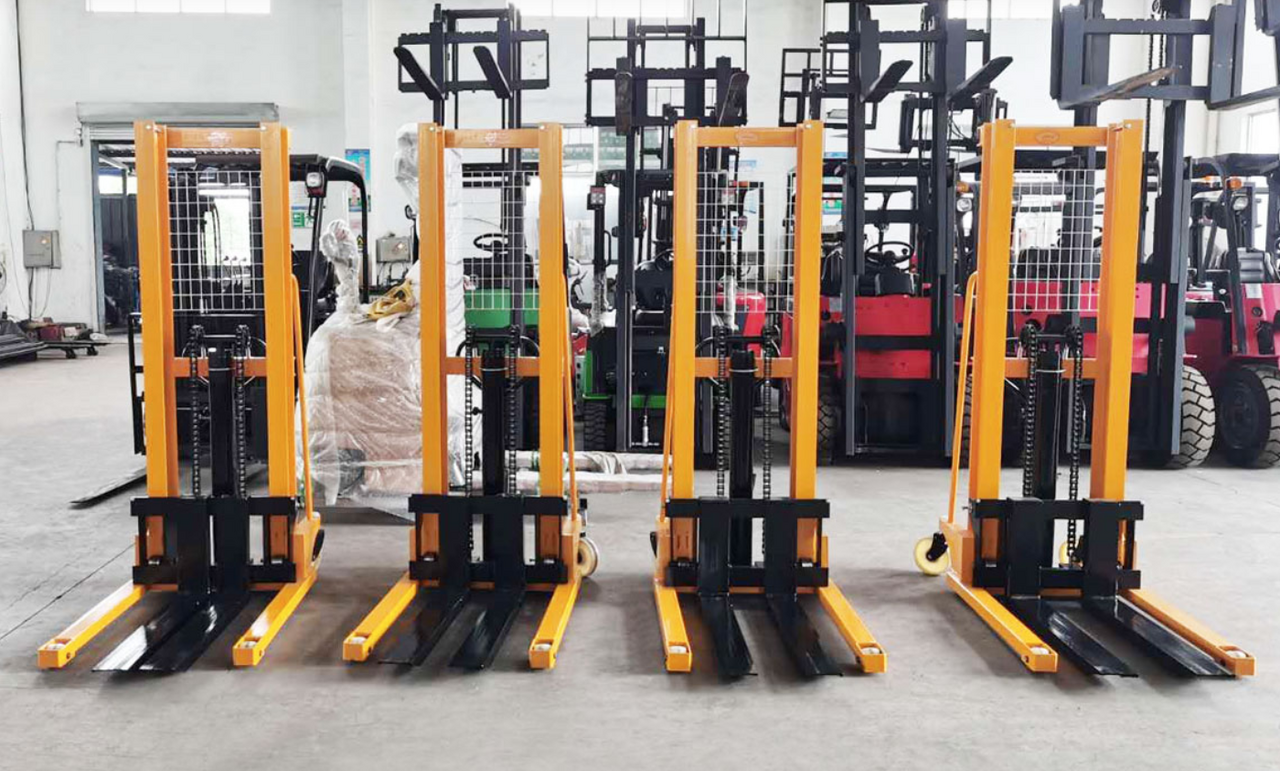

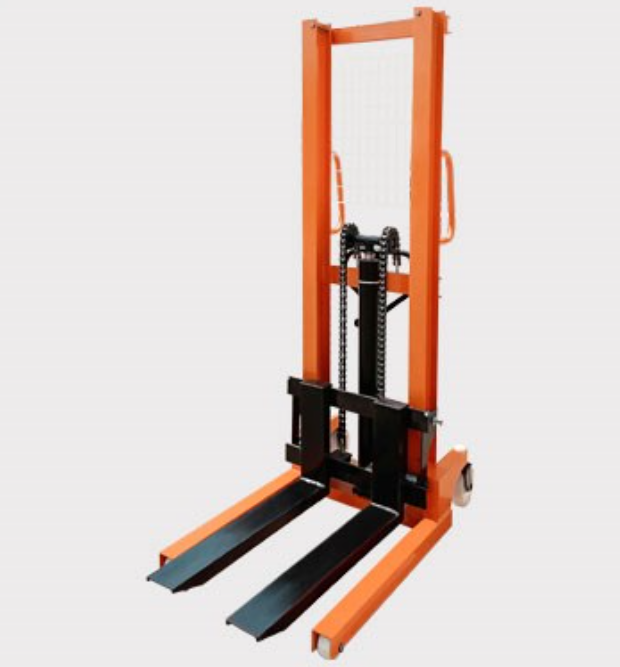

This manual pallet stacker is a rugged, dependable solution for lifting and positioning pallet loads up to 1,000 kg. Its mechanical (non-powered) design offers a cost-effective, low-maintenance choice for warehouses, workshops, production floors, and other material-handling environments.
High Load Capacity
Rated to lift up to 1,000 kg (1 metric ton), making it suitable for most palletized loads in light- to medium-duty operations.
Generous Lifting Height
Raises loads to a maximum height of 1,600 mm, allowing for stacking goods at mid-level heights on racks and shelves.
Optimized Fork Size
Forks measure 1,150 mm in length, giving a good balance between reach and stability when inserting into standard pallets.
Sturdy Construction
Built using structural channel steel (or optional I-beam / C-shaped steel), the mast and frame deliver durability and long service life.
Welded joints and reinforced sections ensure resistance to bending or deformation under load.
Manual Operation with Simplicity
Operated via a hand pump / hydraulic system — no external power source required.
Easy to service and maintain, with fewer mechanical parts than powered alternatives.
Maneuverability & Stability
Compact footprint and thoughtfully designed leg spacing allow smooth maneuvering in tight aisles.
Durable wheels and bearings provide smooth rolling action and low drag.
Adjustable Fork Width (if applicable)
Some models permit fork width adjustment to accommodate varying pallet sizes, improving flexibility.
Indoor warehousing where electricity may not be available or desired
Light manufacturing and assembly lines
Retail backrooms and storage areas
Stockroom operations needing lifting, stacking, and repositioning pallets
| Parameter | Value |
|---|---|
| Load Capacity | 1,000 kg |
| Maximum Lifting Height | 1,600 mm |
| Fork Length | 1,150 mm |
| Frame Type | Single-stage (or optional double-stage) |
| Construction | Channel steel / I-beam / C-section variants |
| Wheel Material | Nylon (or optional alternatives) |
| Fork Width Range | Adjustable (model dependent) |
| Net Weight | (Depends on configuration — for similar model variants, about 147 kg) yinglift.com |
⚠️ Note: The actual net weight and exact fork-width adjustability may vary by selected variant or configuration.
