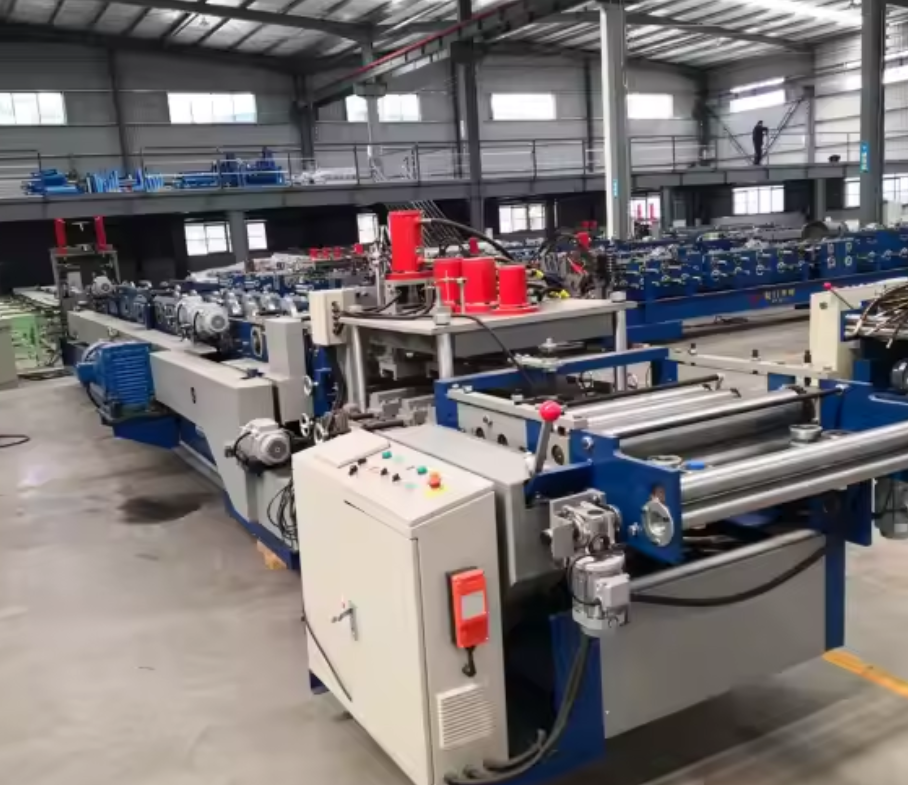

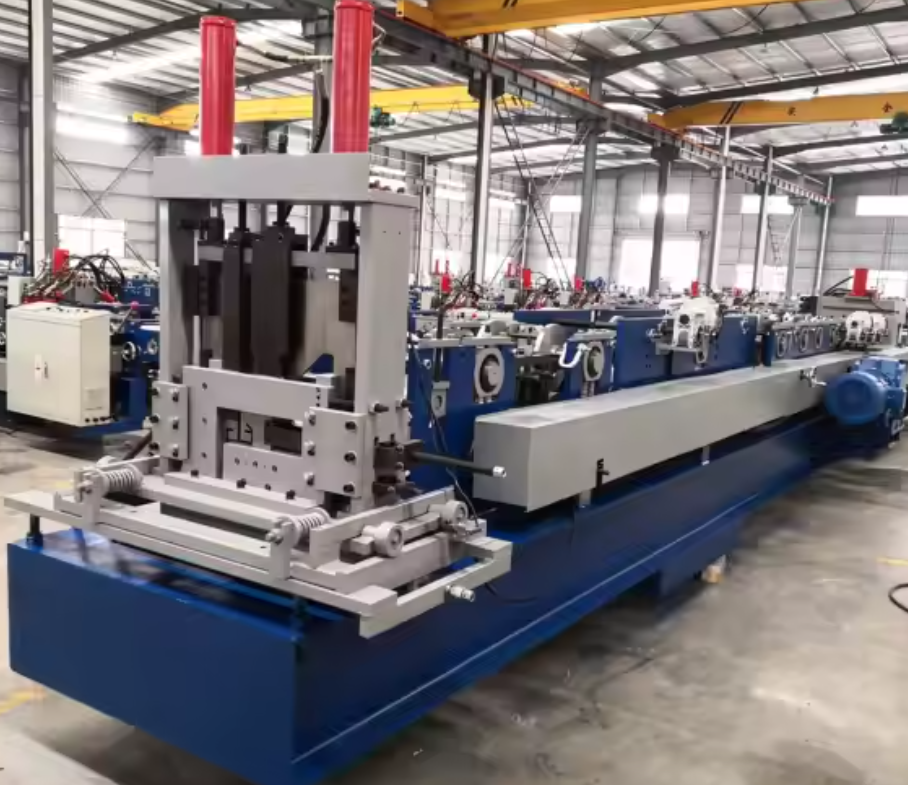

Metal Channel Profile Roll Forming Machine – UAE
The Metal Channel Profile Roll Forming Machine is engineered for precision manufacturing of C-channels, U-channels, and other custom metal channels used across construction, infrastructure, industrial framing, and support systems. Built for the unique demands of the UAE market—including climate durability, industrial project scale, and voltage compatibility—this machine delivers consistent output and versatility across varying profile sizes and gauges.
Ideal for metal fabrication businesses in Abu Dhabi, Dubai, Sharjah, and other emirates, the machine is a long-term asset designed to produce high-quality, straight, and dimensionally consistent metal channel profiles for steel framing systems, ceilings and partitions, solar structure supports, and cable tray manufacturing.
| Specification | Details |
|---|---|
| Machine Type | Metal Channel Profile Roll Forming Machine |
| Production Speed | 15–30 meters/min (depending on profile & gauge) |
| Material Thickness Range | 0.5 – 2.5 mm |
| Material Width Range | 100 mm – 600 mm |
| Material Types | Galvanized Steel, Mild Steel, Aluminum, Stainless Steel |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | GCr15 (hardened chrome steel) |
| Roller Surface Treatment | Hard chrome-plated for anti-wear & corrosion resistance |
| Number of Forming Stations | 12 – 20 stations (customizable) |
| Roller Shaft Diameter | 60 mm – 75 mm |
| Shaft Material | High-grade 45# steel with heat treatment |
| Main Drive Type | Gearbox-driven or chain drive |
| Power | 380V / 50Hz / 3 Phase (UAE Standard) |
| Motor Power | 11 – 22 kW (based on design capacity) |
| Cutting Method | Hydraulic Post-cutting System |
| Blade Material | Cr12Mov with heat treatment |
| Control Type | PLC with HMI Touch Screen |
| Operating Mode | Fully Automatic with Manual Override |
| De-coiling System | Manual or Hydraulic Uncoiler (3–5 Ton options) |
| Punching/Notching System | Optional inline hydraulic unit |
| Machine Frame | Welded steel structure |
| Thickness of Frame Steel | 20 mm – 25 mm |
| Profile Shape | U Channel, C Channel, Z Channel, or Custom |
| Profile Width and Depth | Width: 40–300 mm / Depth: 20–100 mm (adjustable) |
| Length Tolerance | ±1.0 mm |
| Safety Features | Protective Covers, Emergency Stop, Overload Protection |
Construction & Infrastructure: For framing, partitioning, support bracing
HVAC & Electrical Contracting: Cable trays, support channels
Solar Mounting & Energy: Mounting rails and brackets
Industrial Equipment Fabrication
Steel Trading & Fabrication Workshops
Prices start from: USD $65,000
(Standard line with manual decoiler, no punching)
What affects the final price?
Profile complexity (shape, size, material)
Automation level (manual vs. fully automatic)
Punching, embossing, and notching system requirements
Decoiler and stacker type (manual, hydraulic, or motorized)
Quantity of forming stations
Speed and motor power upgrades
For a tailored quotation, send your profile drawing, required gauge range, power supply details, and any additional preferences to [email protected].
All machines are new and custom-built to meet specific profile requirements. We offer delivery and setup across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and surrounding areas, directly from our certified manufacturing partners.
Machines are covered by a 1-year warranty from dispatch and supported with maintenance and repair services.
Q1: What types of metal can be used in this machine?
A1: This machine is designed to work with galvanized steel, mild steel, stainless steel, and aluminum with up to 550 MPa yield strength.
Q2: Can the machine produce multiple sizes of channel?
A2: Yes, the machine can be configured as manual-adjustable, semi-auto, or fully automatic size-changing, allowing for multiple sizes without roll replacement.
Q3: How long does it take to install the machine after delivery?
A3: Installation usually takes 3–5 days, depending on the machine’s complexity and site readiness. Remote or on-site training is included.
Q4: Is inline punching included?
A4: Inline hydraulic punching can be added as an optional system based on your profile needs.
Q5: What maintenance does the machine require?
A5: Routine maintenance includes lubrication of rollers and drive systems, checking control units, and cleaning the rollers. Full service support is available in the UAE.
Q6: What kind of operator training is provided?
A6: We offer operator manuals, video tutorials, and remote or in-person training during setup and commissioning.
For more details or to request a quote, email your requirements to [email protected]. Our team is ready to help you find the right metal channel roll forming machine for your project in the UAE.
