Metal roof drip edge profiles are essential for protecting building structures from water penetration and ensuring roof durability. To produce them with consistency, precision, and speed, Machine Matcher supplies fully automatic Metal Roof Drip Edge Roll Forming Machines, designed and manufactured to your exact profile requirements and local Canadian standards.
Every machine we supply is brand new, tested before shipment, and supported by our 24/7 worldwide mechanical and technical support team. Whether you’re a roofing contractor in Ontario, a sheet metal fabricator in Alberta, or a building products manufacturer in British Columbia, we can deliver a customized drip edge roll forming machine that matches your production goals.
A metal roof drip edge is a thin, angled flashing that directs water away from fascia boards, preventing moisture damage and corrosion. It’s commonly made from galvanized steel, aluminum, or copper, and comes in various shapes such as hemmed drip edges, T-style edges, and L-style trims.
With the growth of residential and commercial roofing projects across Canada, drip edges are increasingly in demand for energy-efficient and weather-resistant roofing systems. The Metal Roof Drip Edge Roll Forming Machine allows high-volume production of precise, consistent profiles with minimal material waste.
| Specification | Details |
|---|---|
| Machine Type: | Metal Roof Drip Edge Roll Forming Machine |
| Production Speed: | 12–25 meters per minute (standard), up to 40 m/min with servo drive |
| Material Thickness Range: | 0.3–0.8 mm (depending on material type) |
| Material Width Range: | 150–400 mm |
| Material Types: | Galvanized steel, pre-painted steel, aluminum, copper |
| Material Yield Strength: | Up to 550 MPa |

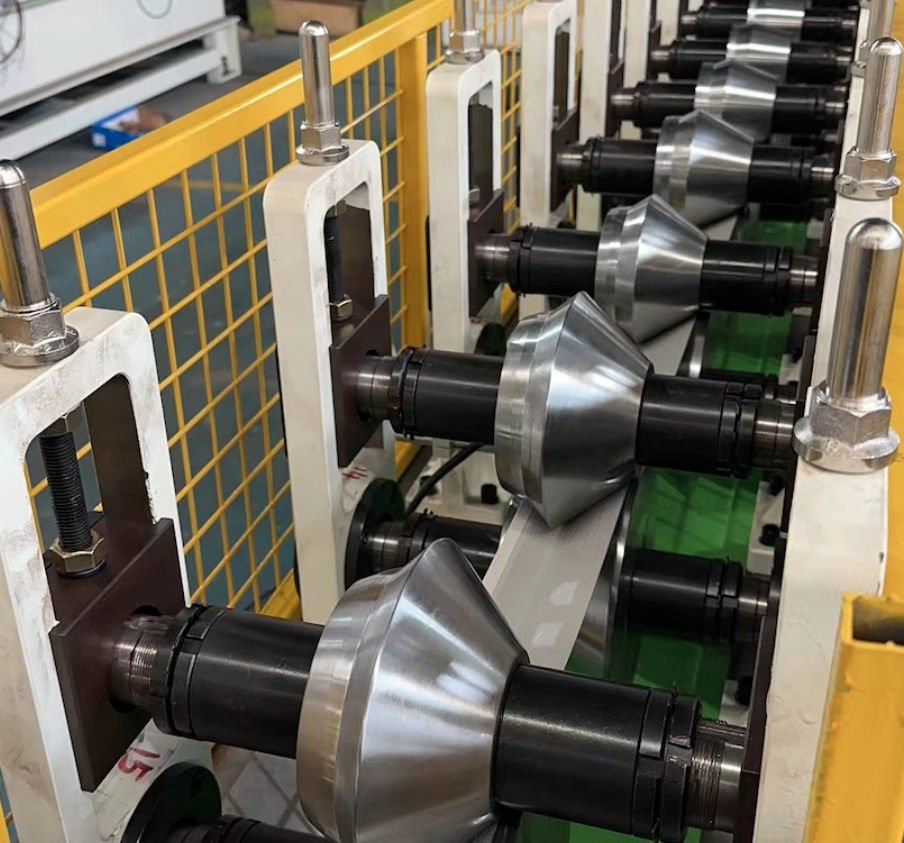

| Roller Material: | GCr15 bearing steel, heat-treated and precision-ground |
| Roller Surface Treatment: | Hard chrome plating for corrosion resistance |
| Number of Forming Stations: | 10–14 stations (customizable per profile) |
| Roller Shaft Diameter: | 60 mm (standard) |
| Shaft Material: | High-grade 45# steel with hardening treatment |
| Main Drive Type: | Chain or gearbox drive system |
| Power (for Canada): | 380V / 60Hz / 3 Phase (customizable to 575V if required) |
| Motor Power: | 7.5–11 kW depending on production speed |

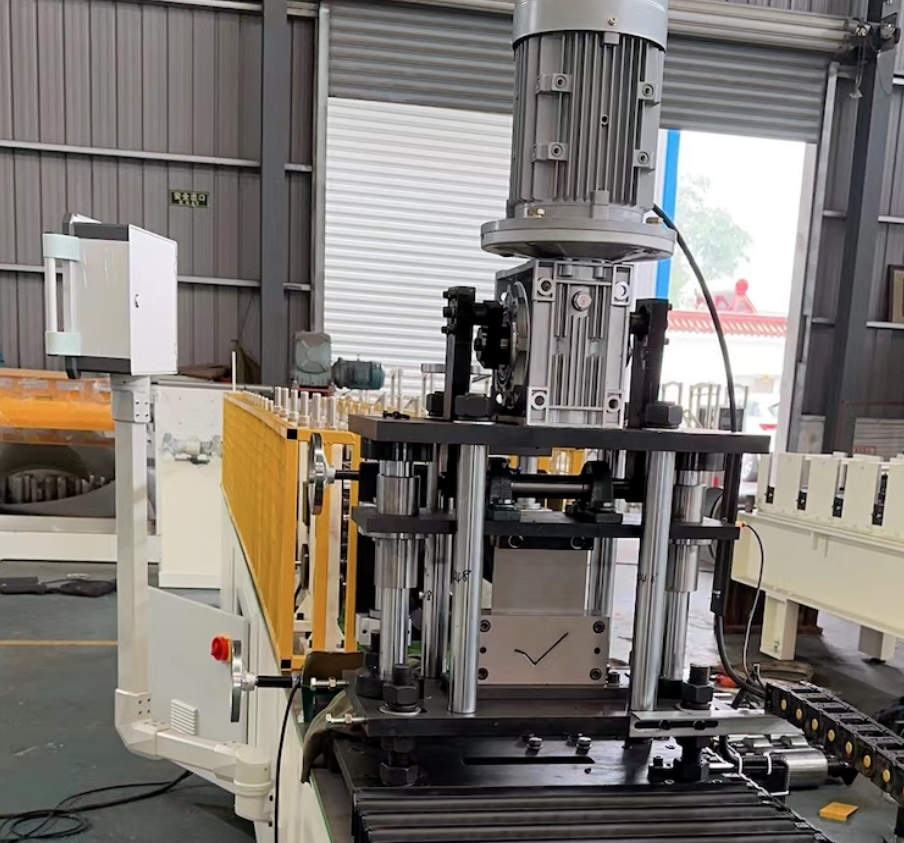

| Cutting Method: | Hydraulic or servo-tracking cutting system |
| Blade Material: | Cr12Mov or SKD11, heat treated |
| Control Type: | PLC automatic control with touch screen (Siemens/Delta/Fatek optional) |
| Operating Mode: | Fully automatic, manual, and jog modes |
| De-coiling System: | Manual or automatic hydraulic decoiler (3–5 tons capacity) |
| Punching/Notching System (if included): | Optional hydraulic pre-punching unit for corner cuts or slots |
| Machine Frame: | Welded H-beam or cast-steel base |
| Thickness of Frame Steel: | 16–20 mm |
| Profile Shape (Customizable): | Yes — designed to match your drip edge drawing or sample |
| Profile Width and Depth: | 20–100 mm height; 40–150 mm face (customized) |
| Length Tolerance: | ±1.0 mm per 6 meters |
| Safety Features: | Protective covers/guards, emergency stop button, overload protection system |
Custom Profile Design: Send us your sample or drawing — we’ll build the machine around your specifications.
Built for Canada’s Standards: Power supply, climate-ready hydraulics, and CSA-compatible electrical components.
High Accuracy and Finish: Precision rollers ensure smooth bending and uniform edges.
Durable Construction: Designed for 24-hour operation in industrial environments.
Technical Support: Worldwide installation and remote PLC monitoring via our 24/7 Technical Support Desk.
1-Year Warranty: Full warranty on parts, motors, and electrical systems.
Automatic hydraulic decoiler and recoiler systems
Stacker systems for automated part collection
Servo-driven feeder for higher speed and accuracy
Pre-notching or punching units
Remote PLC control via Ethernet or Ewon gateway
Leveling system for coil straightening
Automatic coil car or tipper for safer coil handling
Extended runout tables and safety enclosures
The Metal Roof Drip Edge Roll Forming Machine is widely used in:
Residential and commercial roofing
Sheet metal fabrication shops
Construction and cladding manufacturing
Building material distributors
Prefabricated housing and modular construction projects
Drip edge profiles are standard across Toronto, Montreal, Vancouver, Calgary, and Ottawa, supporting both metal roof installers and wholesale suppliers.
Common Materials: Galvanized steel, aluminum, copper, stainless steel
Typical Sizes: Face 50–150 mm, height 25–100 mm
Material Gauge: 26–22 gauge
Market Size: Growing demand in North America driven by energy-efficient roofing systems
Industries: Roofing, siding, and building envelope manufacturing
Popular Countries: Canada, USA, UK, Australia, Saudi Arabia
You can view our full range of drip edge and trim profiles in our online Profile Catalog.
Site Preparation: Ensure concrete foundation and 3-phase power connection (380–575V).
Unpacking and Positioning: Machine is leveled and bolted securely.
Electrical Connection: Connect power supply and PLC wiring with safety grounding.
Hydraulic Setup: Fill oil tank, connect return and pressure lines.
Test Run: Load coil, align rollers, set cutting length, and perform sample run.
Training: Operator training is provided by Machine Matcher technicians.
Daily: Clean rollers and work area; check oil and air pressure.
Weekly: Inspect chains, bearings, and alignment.
Monthly: Lubricate moving parts, test sensors and emergency stop.
Quarterly: Replace hydraulic oil and inspect shear blade edges.
Annually: Full preventive maintenance service and remote PLC checkup.
Machine Matcher offers Preventive Maintenance Programs to ensure continuous operation and minimize downtime.
Send us your profile drawing or sample
Confirm material gauge and coil width
Choose desired speed, automation, and extras
We issue a detailed quotation and layout drawing
Production and testing — all machines are fully tested before shipment
Global delivery and installation support
Contact our team today to discuss your project:
Machine Matcher
United Kingdom (Main Office)
📞 +44 20 335 56554
United States
📞 +1 407 559 7948
Mobile / WhatsApp: +44 7816 972935
✉️ [email protected]
A drip edge roll forming machine is an automated line that shapes flat metal coils into roof edge flashing used to channel water away from fascia and gutters.
Select based on profile design, material gauge, speed requirements, and production volume. Machine Matcher helps customize every system to your exact needs.
Roll forming ensures consistent thickness, smooth curves, and higher output speed, especially for long-run roofing production.
We provide remote PLC support, spare-parts assistance, and local technician coordination through our 24/7 Technical Support Desk.
Machine Matcher offers global delivery, full customization, and lifetime technical support — ensuring your production never stops.
Machine Matcher’s Metal Roof Drip Edge Roll Forming Machine is the ideal solution for Canada’s growing roofing and construction industry. Designed for precision, durability, and flexibility, it can handle multiple profiles and material gauges with ease. With our 1-year warranty, worldwide delivery, and round-the-clock technical support, you get not just a machine — but a long-term production partner.
Every Machine Matcher roll forming machine is built new, to customer specifications, tested before shipment, and backed by full technical support.
We deliver globally, ensuring smooth installation, reliable production, and a long-term partnership with every client.
