Manufactured to Your Exact Profile and Production Requirements
The Metal Roof Panel Roll Forming Machine supplied by Machine Matcher is engineered to meet the needs of Canada’s growing construction, industrial, and agricultural roofing markets. From Ontario and Quebec’s commercial metal roofing contractors to Alberta’s industrial shed builders and British Columbia’s residential construction sector, this machine delivers reliable, high-speed production of steel, aluminum, and galvalume roof panels in a wide range of profiles.
Each machine is built new to your specification, ensuring your exact roof panel profile, gauge, and finish requirements are met. Designed for Canadian standards (575V / 60Hz / 3-phase) and supported by our 24/7 global technical team, this equipment provides a long-term, high-precision solution for roofing manufacturers across Canada and worldwide.
The Metal Roof Panel Roll Forming Machine is a fully automated production line designed for forming a variety of roof profiles, including:
PBR (Purlin Bearing Rib)
AG Panel / Agricultural Panel
Corrugated Metal Roofing
Trapezoidal Panels
R-Panel
Standing Seam Roofing Systems
These profiles are commonly used in:
Residential roofing
Industrial buildings
Warehouses and workshops
Agricultural barns
Commercial and retail structures
Metal wall cladding systems
All machines supplied through Machine Matcher are manufactured to ISO, CE, and CSA standards, ensuring precision, reliability, and compliance with Canadian and international safety requirements.
| Parameter | Specification |
|---|---|
| Machine Type | Metal Roof Panel Roll Forming Machine |
| Production Speed | 30–45 meters per minute (customizable up to 60 m/min) |
| Material Thickness Range | 0.3 – 0.8 mm |
| Material Width Range | 914 – 1250 mm (custom per profile) |
| Material Types | Galvanized Steel, Galvalume, PPGI, Aluminum |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | GCr15 bearing steel, heat-treated |
| Roller Surface Treatment | Hard chrome plating for corrosion resistance |
| Number of Forming Stations | 14–22 stations (varies by profile) |
| Roller Shaft Diameter | 70 mm solid shaft |
| Shaft Material | 45# forged steel, precision ground |
| Main Drive Type | Chain drive or gearbox drive (optional) |
| Power Supply (Canada) | 575V, 60Hz, 3-Phase |
| Motor Power | 11 – 15 kW (depending on machine size) |
| Cutting Method | Hydraulic post-cut or flying shear |
| Blade Material | Cr12MoV high-speed tool steel, heat-treated |

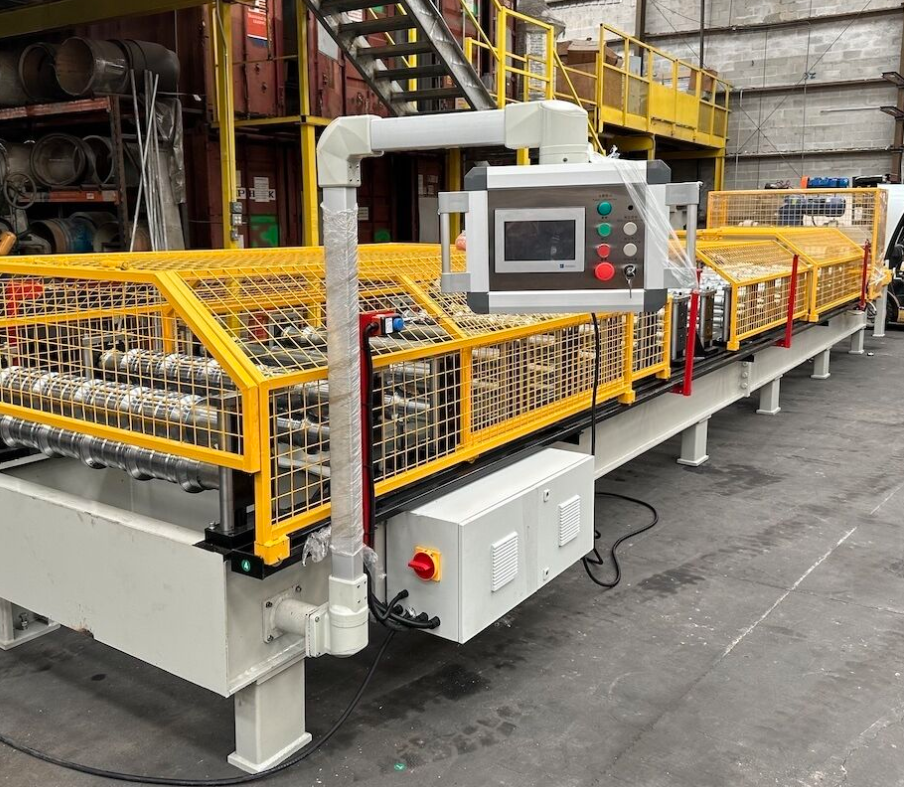

| Control Type | PLC control system with touch-screen HMI (Delta, Siemens, or Mitsubishi) |
| Operating Mode | Automatic / Manual selectable |
| De-coiling System | Manual or hydraulic uncoiler, 5-10 ton capacity |
| Punching/Notching System (optional) | Hydraulic punching unit for fastener holes or slotting |
| Machine Frame | 350H steel welded base, stress-relieved |
| Thickness of Frame Steel | 20 – 25 mm side plates |
| Profile Shape | Customizable to customer-supplied drawings (PBR, AG, Corrugated, R-Panel, etc.) |
| Profile Width and Depth | 250 – 1000 mm width / 25 – 35 mm rib depth (varies per design) |
| Length Tolerance | ±1.5 mm per cut |
| Safety Features | Emergency stop buttons, overload protection, safety covers, and full machine guards |
| Warranty | 1 Year – Full support and parts coverage |
Pricing: Determined based on customization, speed, and optional add-ons. Contact Machine Matcher for a tailored quotation.
Enhance your production efficiency and automation with the following options:
Automatic hydraulic uncoiler (5T–10T)
Coil car with tipper system
Servo feeding and punching unit
Automatic stacking system
Decoiler and recoiler integration
Remote PLC monitoring and diagnostics (Ewon or PLCRemote)
Embossing rollers for decorative finish
Leveling system for high-precision output
Hydraulic oil cooling unit for continuous operation
Automatic lubrication and cleaning systems
Metal roof panels produced by these machines are used across Canada in:
Commercial buildings: retail centers, shopping complexes, warehouses
Industrial facilities: factories, distribution centers, and logistics hubs
Agricultural structures: barns, storage sheds, grain silos, greenhouses
Residential housing: modern homes, cottages, garages, extensions
Institutional construction: schools, hospitals, sports halls
With Canada’s varied climate, metal roofing offers superior durability, energy efficiency, and snow-load performance, making roll forming machines an essential part of the construction supply chain.
Coil Loading:
A coil of steel or aluminum is loaded onto the uncoiler.
Feeding and Leveling:
The sheet passes through leveling rollers to ensure flatness.
Forming Section:
The material passes through multiple roller stations that gradually form the panel’s shape.
Cutting and Punching:
The formed sheet is cut to the programmed length using a hydraulic shear.
Finished Product:
Each panel exits the machine ready for installation, packaging, or stacking.
This seamless automation ensures consistent panel dimensions, reduced waste, and minimal operator intervention.
A metal roof panel roll forming machine is a precision-engineered production line that continuously shapes flat metal coils into roofing panels through a sequence of forming rollers. Unlike press brakes or folding machines, roll formers produce high-volume, consistent profiles suitable for large-scale roofing and cladding projects.
The most common profiles in Canada are PBR, AG Panel, and Corrugated Roofing. PBR panels are preferred for industrial and commercial buildings, while AG and Corrugated panels are popular for agricultural and residential applications due to their classic design and snow-shedding capabilities.
Select a machine based on:
Your panel profile and drawing
Material gauge and width
Production speed requirements
Automation features (punching, stacking, decoiling)
Available space and power supply
Machine Matcher helps assess all these factors and match you with the most suitable model.
Roll forming delivers:
High-volume continuous production
Minimal material waste
Excellent surface finish
Consistent accuracy over long runs
This makes it ideal for large-scale Canadian roofing manufacturers and metal building suppliers.
Routine maintenance includes:
Checking chain tension and lubrication weekly
Cleaning rollers and guides daily
Inspecting hydraulic oil and filters monthly
Verifying alignment and encoder calibration quarterly
Machine Matcher offers maintenance plans and remote diagnostic support to help operators reduce downtime.
Machines are custom-built to your profile
24/7 technical support via PLC remote access and video guidance
Global shipping and installation assistance
Pre-shipment testing videos and reports
1-year warranty on all machines and parts
Send Your Profile Drawing or Sample:
Share your desired roof panel design or choose one from our Profile Catalog.
Confirm Machine Requirements:
We’ll finalize coil specs, gauge, material, and production speed.
Receive Your Custom Quote:
Pricing is tailored to your specifications and optional extras.
Production and Testing:
Every machine is built new, tested under load, and verified for cut-length accuracy, speed, and performance.
Shipping and Installation:
Machines are securely packed for export and delivered to your location in Canada. Installation and training can be provided on-site or remotely.
Ongoing Support:
Our 24/7 worldwide technical desk provides remote PLC support, troubleshooting, and maintenance planning.
All roll forming machines supplied for the Canadian market are configured for 575V, 60Hz, 3-phase power. Machines are compatible with CSA and provincial electrical standards and include overload protection systems for safe operation in industrial environments.
Roofing manufacturers and contractors
Steel structure builders
Prefab housing suppliers
Warehouse and factory constructors
Agricultural equipment fabricators
Home improvement and sheet metal supply companies
Upgrade to servo feeding and flying shear cutting for precision and speed.
Use automatic stacking to reduce manual handling.
Implement remote PLC access for troubleshooting and monitoring.
Schedule preventive maintenance with Machine Matcher’s support team.
Machine Matcher offers:
Remote PLC monitoring and troubleshooting
Camera-assisted diagnostics for real-time support
Custom maintenance plans (daily, weekly, monthly, quarterly)
Spare parts sourcing and replacement guidance
Our technicians are available 24 hours a day, ensuring your operation stays productive with minimal downtime.
