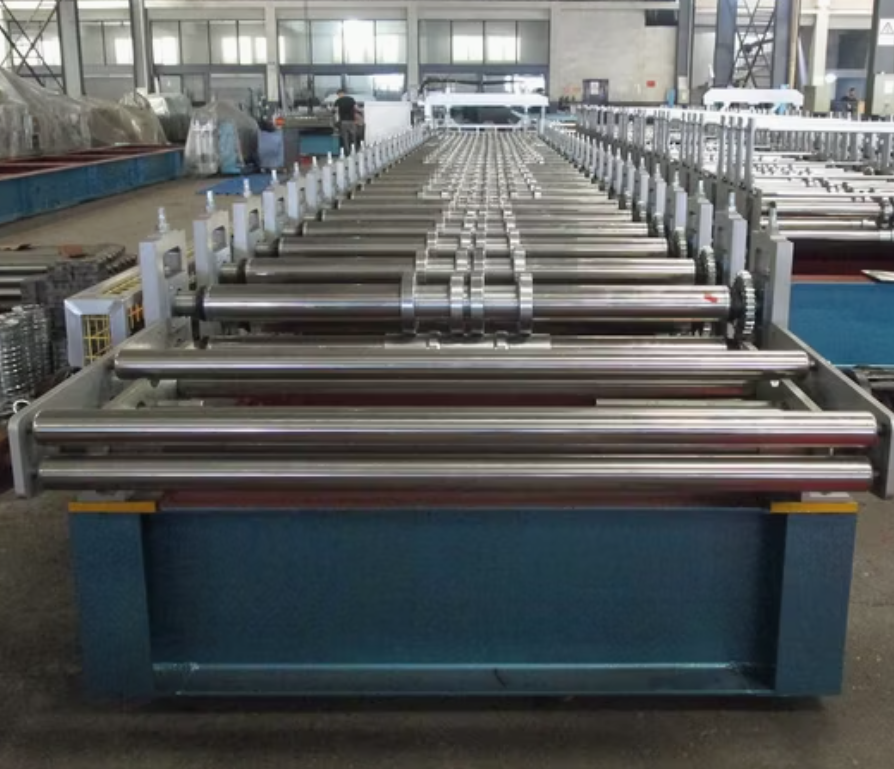

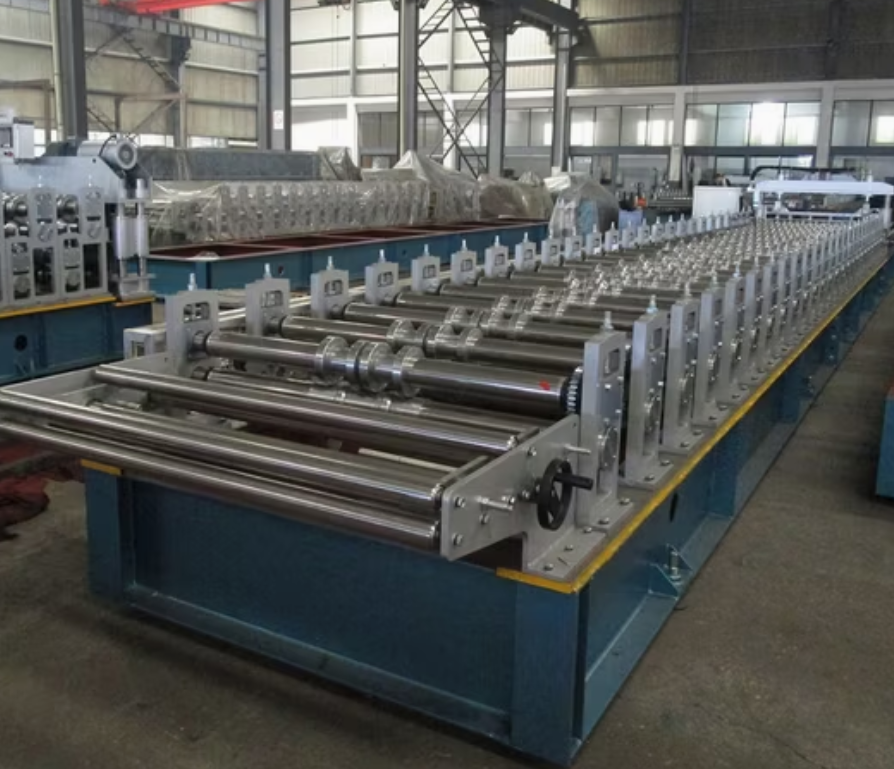

The Metal Roof Profiling Roll Forming Machine in Armenia is a precision-engineered production line designed to manufacture corrugated, trapezoidal, and rib-type roofing panels from galvanized steel, galvalume, pre-painted coils, or aluminum sheets.
Built for long-term industrial use, this machine combines high-speed forming, durable roller systems, and advanced PLC automation to ensure uniform profiles and minimal material waste. Whether your business supplies roofing contractors, steel building manufacturers, or prefab structure companies, this system delivers the speed and accuracy you need.
At Machine Matcher, all machines are new, manufactured to your exact profile drawing, and configured to the Armenian power system (380V/50Hz/3 Phase). We supply complete turnkey lines, including uncoiler, roll forming stations, hydraulic cutting, PLC control, and stacker options.
Machine Matcher provides global delivery, installation, and 24/7 technical support, ensuring smooth setup and reliable operation across Armenia, Georgia, Azerbaijan, Turkey, and the Middle East.
| Specification | Details |
|---|---|
| Machine Type: | Metal Roof Profiling Roll Forming Machine |
| Production Speed: | 15–45 m/min (depending on profile and material) |
| Material Thickness Range: | 0.3–0.8 mm |
| Material Width Range: | 914–1250 mm (customizable) |
| Material Types: | Galvanized Steel (GI), Galvalume (AZ), Pre-painted Steel (PPGI), Aluminum |
| Material Yield Strength: | 235–550 MPa |
| Roller Material: | GCr15 bearing steel, heat-treated to HRC 58–62 |
| Roller Surface Treatment: | Hard chrome plated for corrosion resistance |
| Number of Forming Stations: | 16–24 stations (depending on profile depth and width) |
| Roller Shaft Diameter: | 70–85 mm |
| Shaft Material: | 45# precision-ground steel |
| Main Drive Type: | Chain or gearbox drive |
| Power (Armenia): | 380 V / 50 Hz / 3 Phase |
| Motor Power: | 7.5–15 kW (depending on speed) |
| Cutting Method: | Hydraulic post-cut system or flying shear |
| Blade Material: | Cr12MoV, heat-treated for long life |
| Control Type: | PLC control with HMI touchscreen (Delta, Siemens, or Mitsubishi) |
| Operating Mode: | Fully automatic with manual backup |
| De-coiling System: | 3–10 ton manual or hydraulic uncoiler |
| Machine Frame: | 350–400 H-beam structure, welded and stress-relieved |
| Thickness of Frame Steel: | 16–20 mm |
| Profile Shape: | Corrugated, Trapezoidal, Rib, AG Panel, or Custom |
| Profile Width and Depth: | Width: 800–1100 mm; Depth: 15–35 mm |
| Length Tolerance: | ±1 mm/m |
| Safety Features: | Emergency stop, overload protection, safety guards |
| Protective Covers/Guards: | Transparent polycarbonate guards for operator safety |
| Emergency Stop Button: | Installed on entry, exit, and control panel |
| Overload Protection System: | Integrated into main motor and hydraulic pump |
Hydraulic automatic stacker
Servo feeder and encoder synchronization
Hydraulic punching or notching unit
Remote PLC access and diagnostics (Ewon or PLCRemote)
Coil car and hydraulic coil tilter
Decoiler with pneumatic braking system
Safety enclosures and sound-dampening guards
Quick-change roller system for multiple profiles
Auto-lubrication and roller cleaning system
All machines are custom-built to your profile, fully tested before shipment, and delivered with operator training, maintenance manuals, and technical documentation.
Metal roofing panels are used worldwide for industrial, residential, and commercial roofing due to their strength, weather resistance, and long lifespan. Common profiles include:
Corrugated Panel: Classic wavy design used for roofs and walls.
Trapezoidal Panel: High-rib panel for industrial and commercial roofing.
Rib Panel / AG Panel: Agricultural and general-purpose roofing.
Standing Seam Panel: Architectural roofing systems with concealed fasteners.
Width: 800–1100 mm (after forming)
Depth: 15–35 mm
Material gauge: 0.3–0.8 mm
Coil width: 914–1250 mm
Galvanized steel (GI): Ideal for cost-effective, durable roofing.
Pre-painted steel (PPGI): Provides aesthetic appeal and corrosion resistance.
Galvalume (AZ): Superior resistance in humid and coastal climates.
Aluminum: Lightweight option for specialized buildings.
In Armenia, metal roof roll forming machines are crucial for projects in:
Residential housing (urban and rural roofing)
Industrial and agricultural buildings
Steel frame construction companies
Infrastructure and warehousing
Prefab housing and modular structures
Solar roofing systems
These machines are widely used by construction firms in Yerevan, Gyumri, and Vanadzor, where metal roofing demand continues to rise for both new developments and refurbishments.
Armenian roofing contractors increasingly prefer locally produced metal roof sheets, as roll forming machines enable on-site production, reducing logistics costs and delivery times.
Machine Matcher provides installation manuals, wiring diagrams, and training videos with every delivery. Setup involves:
Positioning the machine on a leveled base.
Connecting the electrical and hydraulic systems.
Running test coils to adjust the rollers and calibrate the PLC.
Conducting sample runs for quality inspection and fine-tuning.
Our engineers offer remote and on-site commissioning throughout Armenia, ensuring fast startup and consistent performance.
To ensure long service life, follow our preventive maintenance plan:
Inspect rollers and guides for dirt or metal shavings.
Verify coil feed alignment.
Check hydraulic oil levels and lubrication points.
Clean encoder sensors and photoelectric switches.
Tighten all frame bolts and inspect drive chains.
Test emergency stops and PLC alarms.
Inspect and re-align roller stations.
Replace worn blades or hydraulic seals if needed.
Machine Matcher provides remote support, spare parts, and annual maintenance contracts through our 24-hour global technical support desk.
Prices vary based on configuration, profile, and automation level.
| Machine Level | Features | Approx. Price (USD) |
|---|---|---|
| Basic Model | Manual uncoiler, post-cut, basic PLC | $40,000 – $65,000 |
| Mid-Range Model | Hydraulic uncoiler, flying shear, upgraded PLC | $65,000 – $95,000 |
| Advanced Model | Full servo line, automatic stacker, remote PLC | $95,000 – $140,000+ |
All machines include:
Custom design to your profile
Test video before shipment
Packaging and export documentation
Optional installation and operator training
Contact Machine Matcher for an accurate quotation based on your project requirements.
Machine Matcher supplies and supports metal roof profiling roll forming machines across:
Armenia
Georgia
Turkey
Azerbaijan
Iran
United Kingdom
United States
Europe, Africa, and Asia
Each system is certified and compliant with international quality and safety standards (CE, ISO) and can be adapted to local voltage and frequency requirements.
Global machine supply and local service partners
24/7 technical support via PLC remote diagnostics
Machines built to your specific profile
CE and ISO certified manufacturing
Pre-shipment inspection and test reports
Comprehensive after-sales parts and maintenance service
Offices and support in UK, USA, and Middle East
Q1: What is a metal roof profiling roll forming machine?
A: It’s a continuous production system that shapes metal coils into roofing panels using multiple roller stations, delivering accurate, repeatable panel designs.
Q2: Can I make different roof panel profiles with one machine?
A: Yes. With interchangeable roller sets or quick-change cassettes, one line can produce multiple panel profiles.
Q3: What materials are suitable for use in Armenia?
A: Galvanized or pre-painted coils are most common due to cost-effectiveness and corrosion resistance in Armenian climates.
Q4: How fast can the machine run?
A: Standard machines operate between 15 and 45 meters per minute, depending on material thickness and profile type.
Q5: How do I install the machine?
A: Machine Matcher provides installation drawings, leveling guides, and remote support. On-site setup assistance is available upon request.
Q6: What after-sales support is available?
A: We offer spare parts supply, remote troubleshooting, maintenance plans, and technician training.
