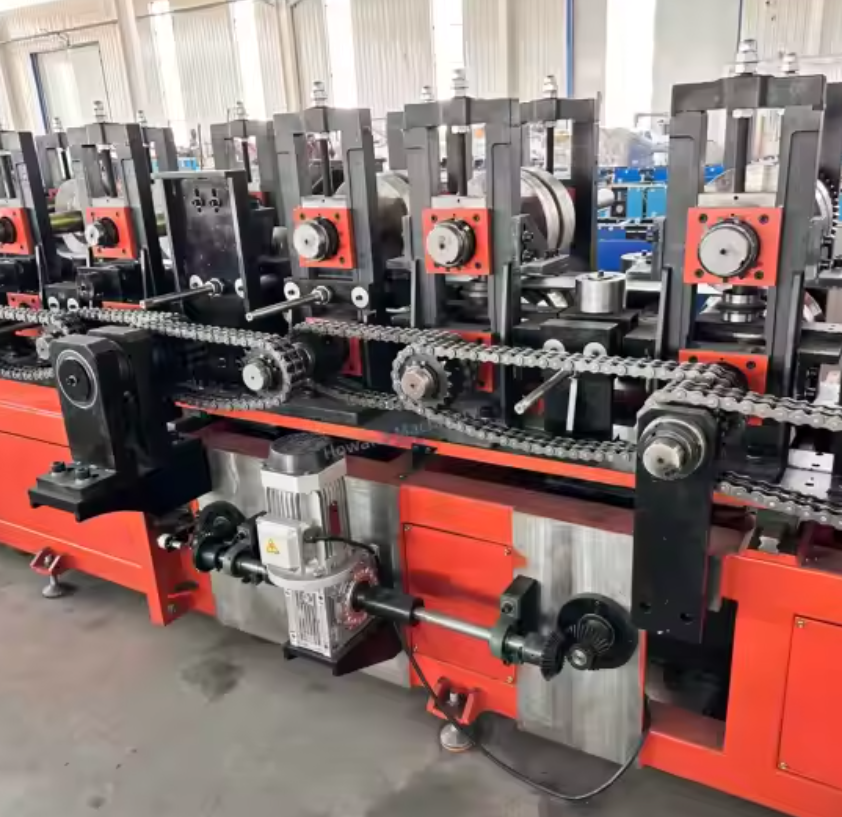

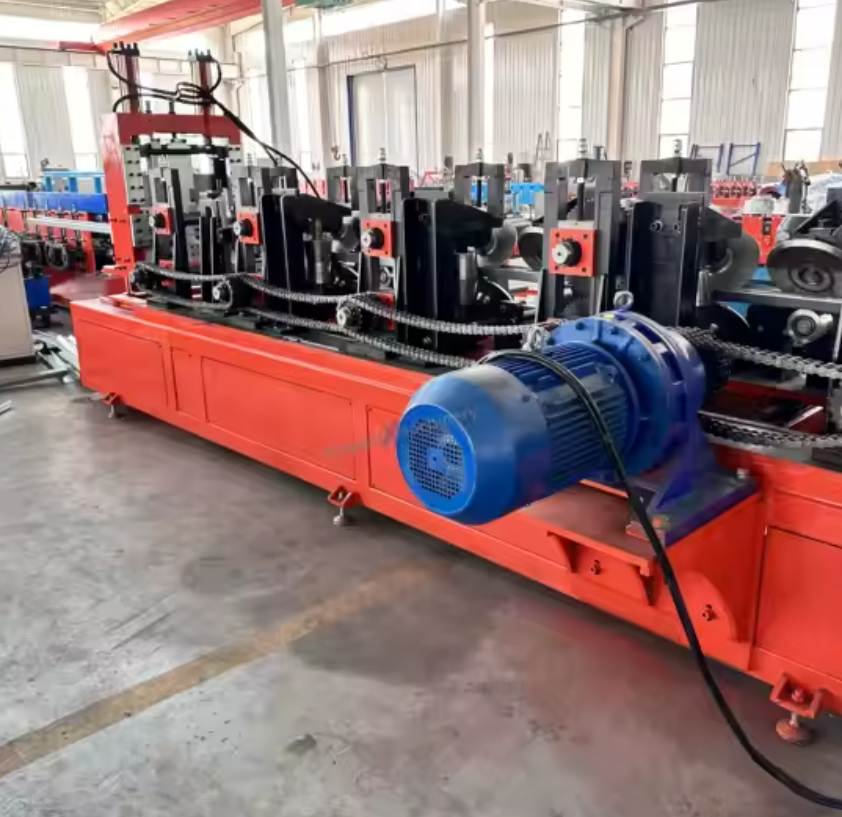

Metal Roof Purlin Roll Forming Machine – UAE
The Metal Roof Purlin Roll Forming Machine, available from Machine Matcher, is a precision-engineered production system designed for high-speed manufacturing of structural metal purlins used in roofing and cladding systems. Tailored for deployment across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah, this machine delivers exceptional performance for industrial and commercial building applications.
Built to accommodate a wide range of materials and profiles, this machine is ideal for companies requiring consistent quality, high-volume output, and robust customizability. Whether for standard C/Z/U profiles or tailored dimensions, our roll forming machine ensures tight tolerances, clean finishes, and reliable, continuous production. Every machine is custom-built to meet your specific profile and operational needs and is backed by Machine Matcher’s technical support, one-year warranty, and remote or on-site installation services.
Machine Type: Metal Roof Purlin Roll Forming Machine
Production Speed: Up to 15–25 meters/minute
Material Thickness Range: 1.2 – 3.0 mm
Material Width Range: 100 – 600 mm (depending on profile type)
Material Types: Galvanized Steel, Cold Rolled Steel, Mild Steel
Material Yield Strength: Up to 550 MPa (80 ksi)
Roller Material: High-grade GCr15 (bearing steel)
Roller Surface Treatment: Hard chrome plating for corrosion resistance and long wear life
Number of Forming Stations: 14–24 stations (varies with profile)
Roller Shaft Diameter: 70 mm
Shaft Material: 45# Steel, precision-ground and tempered
Main Drive Type: Chain or Gear Drive (depending on setup)
Power (for UAE): 380V / 50Hz / 3-phase
Motor Power: 15–22 kW (profile-dependent)
Cutting Method: Hydraulic cutting with stop-and-cut or flying-cut options
Blade Material: Cr12Mov (hardened tool steel)
Control Type: PLC (Programmable Logic Controller) with touchscreen interface
Operating Mode: Automatic with manual override
De-coiling System: Manual or hydraulic de-coiler (3–5 tons capacity)
Punching/Notching System (if included): Optional hydraulic punching with customizable dies
Machine Frame: Heavy-duty welded steel base
Thickness of Frame Steel: 20–25 mm
Profile Shape: Customizable (C, Z, U, Sigma, etc.)
Profile Width and Depth: Custom per user specifications
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Adjustable profile sizes (e.g., interchangeable C/Z profiles)
Pre-punching holes for fastener or installation requirements
Embossing or stiffening ribs
Flying cut-off system for continuous operation
Profile-specific tooling and software presets
This machine caters to a broad range of industries across the UAE, including:
Construction & Building:
Used for manufacturing structural supports, wall girts, and roof purlins in warehouses, commercial buildings, and industrial facilities.
Steel Fabrication & Infrastructure:
Supports production of framing systems for factories, bridges, airport hangars, and high-rise structures.
Energy & Utilities:
Produces support systems for solar panel frames, electrical substation structures, and renewable energy infrastructure.
Examples of Use:
A construction firm in Dubai can produce custom Z and C purlins for warehouse roofing systems.
A steel supplier in Sharjah may use the machine to offer pre-cut and punched structural purlins to clients on tight timelines.
A solar company in Abu Dhabi might utilize this roll former to produce support channels and frames for photovoltaic systems.
Q: Can the machine be customized for our profile?
A: Yes, absolutely. All machines from Machine Matcher are custom-built to your specific profile drawing and production requirements.
Q: What type of material is normally used with this machine?
A: Most clients use galvanized steel or cold-rolled mild steel, typically between 1.2 mm to 3.0 mm thick, and with yield strength up to 550 MPa (80 ksi).
Q: Is remote installation support available?
A: Yes, we offer remote video guidance for installation, and on-site support is available on request.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days, with shipping time depending on the port location in the UAE.
Q: How do I ensure the machine fits our exact need?
A: Simply email us your profile drawings, specifications, and production goals at [email protected] — our engineering team will provide a tailored recommendation and quote.
Prices Start From: Approx. USD $45,000
What affects the final price?
Level of customization
Profile complexity
Automation level (manual vs. auto de-coiler, flying cut vs. stop-cut, etc.)
Additional systems like punching, stacking, or embossing
All machines are new and custom-built by Machine Matcher to match customer specifications and can be delivered anywhere in the United Arab Emirates, including:
Abu Dhabi
Dubai
Sharjah
Other Emirates upon request
Custom Engineered: Every machine is tailored to your unique production goals—no off-the-shelf compromises.
High Output Efficiency: Up to 25m/min production speed to reduce job turnaround time.
Durability: Hardened rollers, steel frames, and industrial-grade components ensure long life and minimal downtime.
Smart Control: PLC with touchscreen operation makes profile changes and settings easy and intuitive.
Flexible Options: Wide range of optional systems, from punching to embossing and automated cutting, means the machine evolves with your business.
These advantages result in lower maintenance costs, faster ROI, and superior output quality, giving you a clear edge over your competitors.
All machines come with:
1-Year Warranty from Dispatch Date
Durable Maintenance & Repair Support
Installation & Commissioning Support (Remote & On-Site Options)
To ensure we recommend the best machine for your profile and goals, please send your drawings, specs, and material preferences to:
📧 [email protected]
All machines are available exclusively through Machine Matcher. We supply only new, fully supported, and performance-tested systems, built to deliver long-term value for your operation.
