Metal Shelve Roll Forming Machine – United Arab Emirates (UAE)
Efficient. Precise. Built to Last.

Product Description

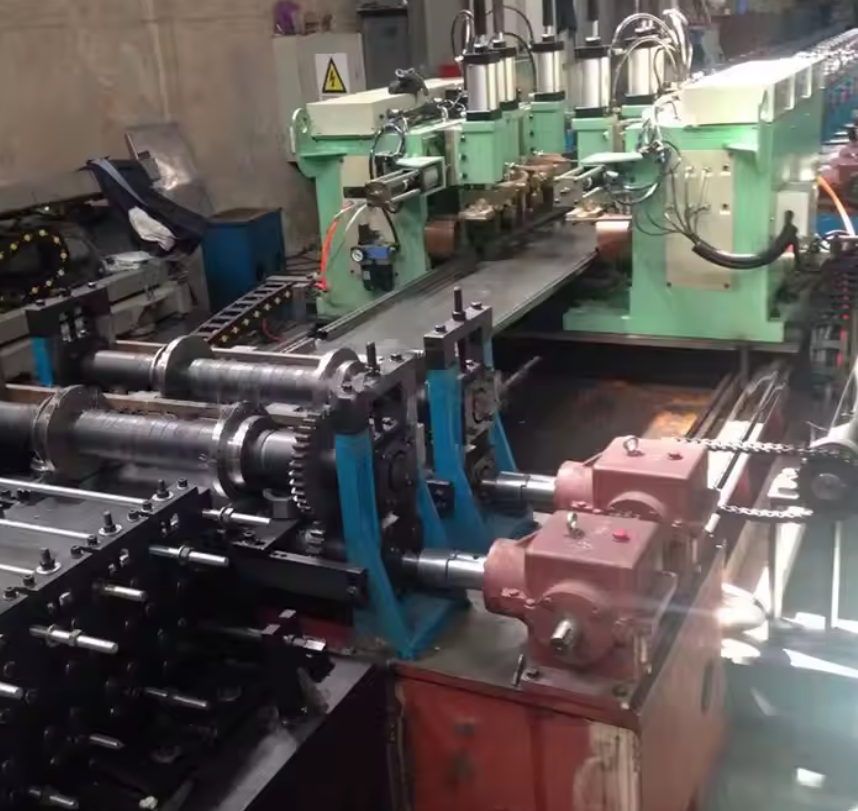

The Metal Shelve Roll Forming Machine is a high-performance, fully automated line engineered to produce a wide range of shelving profiles with speed, accuracy, and repeatability. Designed for manufacturers in the UAE market, this machine is ideal for producing metal shelves used in storage racking systems, industrial shelving units, warehouse storage, and retail fixtures.

Whether you’re serving logistics centers in Dubai, warehouses in Abu Dhabi, or hypermarkets in Sharjah, this machine provides fast, reliable, and repeatable production of strong, consistent shelving profiles.

All machines are new, custom-built, and delivered anywhere across the UAE, fully adapted to your profile specifications, production needs, and electrical standards.

Machine Technical Specifications

• Machine Type: Metal Shelve Roll Forming Machine

• Production Speed: 10–20 meters/min (depending on profile complexity)

• Material Thickness Range: 0.6 mm – 2.0 mm

• Material Width Range: 100 mm – 600 mm

• Material Types: Galvanized Steel (GI), Cold Rolled Steel (CR), Stainless Steel (optional)

• Material Yield Strength: 235 – 350 MPa

• Roller Material: GCr15 high-grade steel (quenched & hardened)

• Roller Surface Treatment: Hard chrome plating for corrosion and wear resistance

• Number of Forming Stations: 12 – 20 stations (depending on profile)

• Roller Shaft Diameter: 70 mm

• Shaft Material: 45# high-strength steel

• Main Drive Type: Gearbox-driven or chain-driven (customizable)

• Power (UAE-compatible): 380V / 50Hz / 3-phase

• Motor Power: 7.5 kW – 15 kW (profile dependent)

• Cutting Method: Hydraulic cutting system

• Blade Material: Cr12MoV (hardened, long-lasting tool steel)

• Control Type: PLC automatic control (Siemens or Mitsubishi)

• Operating Mode: Fully automatic with touch screen HMI

• De-coiling System: Manual or hydraulic uncoiler (3–5 tons)

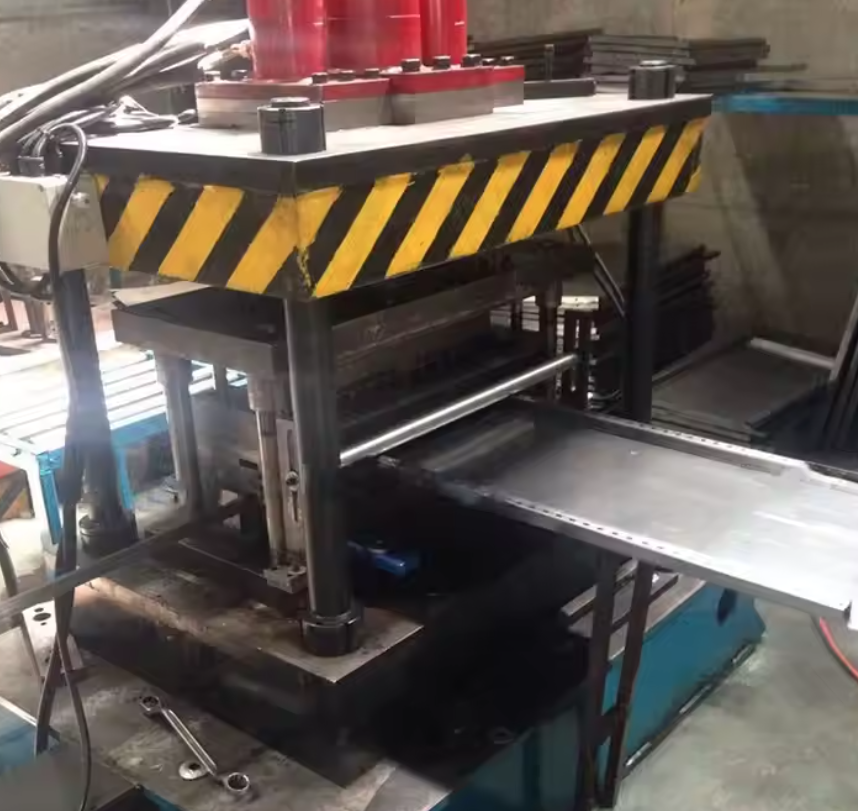

• Punching/Notching System: Optional hydraulic punching (custom dies available)

• Machine Frame: Welded steel frame with integrated leveling feet

• Thickness of Frame Steel: 20–25 mm

• Profile Shape: Lipped C, Box Shelf, Slotted Rack, or Custom

• Profile Width and Depth: Width 100–500 mm / Depth 30–80 mm (customizable)

• Length Tolerance: ±1.0 mm

Safety Features

• Full-length protective covers/guards

• Emergency stop buttons located on multiple machine points

• Overload protection system integrated with motor & hydraulic system

Materials Used

This machine typically works with:

• Galvanized steel (GI): 1.0–2.0 mm, 250–350 MPa

• Cold-rolled steel (CR): 0.8–1.5 mm, 235 MPa

• Stainless steel (optional): 0.8–1.2 mm
  Material selection depends on shelf strength requirements, corrosion resistance, and end-use.

Industries Served

The Metal Shelve Roll Forming Machine is ideal for:

• Storage and Racking Manufacturers

• Retail Fixture Producers

• Logistics & Warehouse Equipment Providers

• Commercial & Industrial Storage Installers

• DIY & Hardware Product Manufacturers

Examples of Use:

• Producing slotted shelving profiles for adjustable racking

• Manufacturing heavy-duty shelves for warehouse systems

• Fabricating light shelving for commercial and retail displays

Highlight: Unique Selling Propositions (USPs)

• Built for UAE Power & Climate: Optimized for 380V/50Hz, ideal for local workshops and factories.

• Fully Customizable: Match your unique shelving dimensions and notching patterns.

• High Output, Minimal Waste: Precision forming ensures clean cuts and uniform output—reducing material waste.

• Advanced Control System: PLC with touch screen for fast, intuitive operation.

• Optional Add-Ons: Stackers, coil cars, auto notching, inline punching—all tailored to your needs.

• Durable Roller Construction: Chrome-coated, hardened rollers provide years of consistent use without profile distortion.

These benefits translate into:

• Lower maintenance costs

• Higher shelf consistency

• Faster production turnaround

• Greater customer satisfaction

Customization Options

• Shelf width and depth sizes

• Slot or hole punching die configurations

• Servo-feeding systems for high-accuracy punching

• Automatic stacking and packing line

• Integration with warehouse automation systems

Pricing Information

• Prices Start From: USD $52,000

• What Affects Final Price:

  • Custom punching or notching tools

  • Automated stacking and packaging

  • Speed enhancements

  • Coil handling systems (hydraulic uncoilers, coil cars)

  • Servo motors and branded PLCs (Siemens, Mitsubishi)

For a tailored quote, email your profile drawing, material gauge, production needs, and location to:
[email protected]

Location & Delivery

All machines are new and custom-built. We deliver across the United Arab Emirates, including:

• Dubai

• Abu Dhabi

• Sharjah

• Ajman

• Ras Al Khaimah

Machines are manufactured with your exact profile dimensions, power requirements, and capacity needs in mind.

Warranty & Support

All machines include:

• 1-year warranty from dispatch date

• Ongoing maintenance and remote support

• Installation assistance and training available

Frequently Asked Questions (FAQ)

Q1: Can this machine handle different shelf designs?
Yes. You can produce slotted, boxed, lipped, or plain shelves by customizing the tooling set.

Q2: Is punching included in the line?
Yes, a hydraulic punching or notching unit can be included based on your hole pattern requirements.

Q3: What is the power requirement for UAE?
Standard UAE industrial power supply: 380V, 50Hz, 3-phase.

Q4: Can you help me design the profile?
Absolutely. Just email your concept or drawing and we’ll provide profile engineering assistance.

Q5: How fast is delivery to Dubai or Abu Dhabi?
Lead time is typically 6–9 weeks from order confirmation. Delivery is by sea or road, depending on location.

For profile submissions or technical support:
[email protected]

Let Machine Matcher help you build the perfect Metal Shelve Roll Forming Machine for your UAE production needs.
