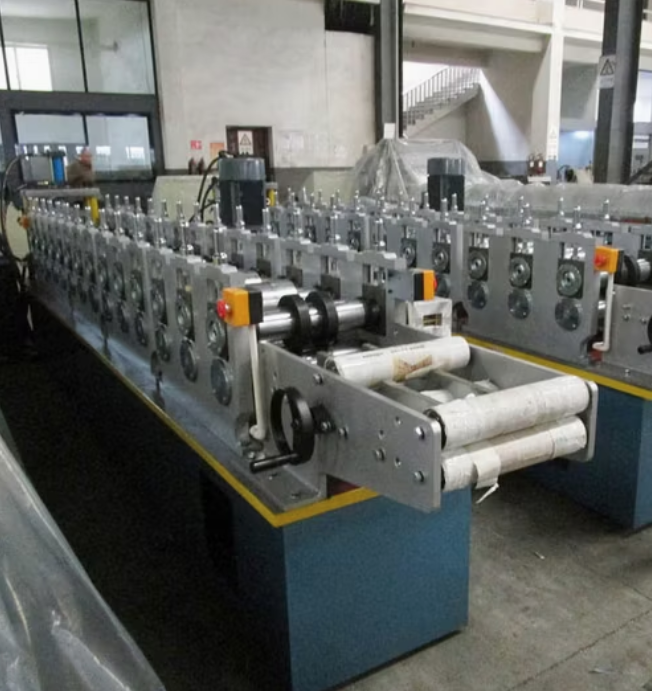

Metal Stud and Track Roll Forming Machine – United Arab Emirates
Product Description:
The metal stud and track roll forming machine is a precision-engineered system designed to manufacture high-quality drywall framing components—metal studs and tracks—widely used in commercial, residential, and industrial construction across the UAE. This machine is ideal for contractors, fabricators, and building material manufacturers who require a consistent, high-speed production solution tailored to local standards and profiles commonly used in the UAE construction sector.
Built for durability and high efficiency, this machine is custom-configured to customer specifications and profile drawings. Whether you are producing U, C, or customized profile shapes for partition walls or ceiling frameworks, this system ensures fast setup, minimal waste, and high output—making it suitable for both large-scale projects in Dubai and Sharjah or compact production operations in Abu Dhabi and other Emirates.
With robust frame construction, high-speed servo feeding, optional punching stations, and programmable PLC controls, it offers automation, repeatability, and ease of use. Each unit is backed by a one-year warranty and includes full technical support from our UAE-based service partners.
Industries Served:
Construction and Building Materials
Interior Fit-Out and Drywall Contractors
Prefabricated Housing Manufacturers
Commercial and Industrial Framing Systems
Steel Frame Fabrication Units
These machines are essential to framing operations for gypsum partition walls, ceiling grids, lightweight steel buildings, and modular constructions—aligning with the UAE's booming infrastructure and residential development sectors.
Machine Technical Specifications:
| Specification | Details |
|---|---|
| Machine Type: | Metal Stud and Track Roll Forming Machine |
| Production Speed: | 25–40 meters per minute (adjustable) |
| Material Thickness Range: | 0.3 mm – 1.2 mm |
| Material Width Range: | 80 mm – 320 mm (customizable based on profile) |
| Material Types: | Galvanized Steel (GI), Aluminum, Cold Rolled Steel |
| Material Yield Strength: | Up to 550 MPa |
| Roller Material: | GCr15 (hardened bearing steel) |
| Roller Surface Treatment: | Hard chrome plating for wear resistance |
| Number of Forming Stations: | 12 – 20 stations (depending on profile complexity) |
| Roller Shaft Diameter: | 50 mm – 75 mm |
| Shaft Material: | High-strength steel with heat treatment |
| Main Drive Type: | Chain or gearbox driven (based on user preference) |
| Power (UAE specification): | 380V, 50Hz, 3 Phase (customizable if needed) |
| Motor Power: | 5.5 kW – 11 kW (based on machine size and configuration) |
| Cutting Method: | Hydraulic or flying shear cutting |
| Blade Material: | Cr12Mov (heat-treated and ground) |
| Control Type: | PLC (Siemens/Delta/Mitsubishi options) |
| Operating Mode: | Fully automatic with touch screen HMI |
| De-coiling System: | Manual or hydraulic decoiler (3T – 5T capacity options) |

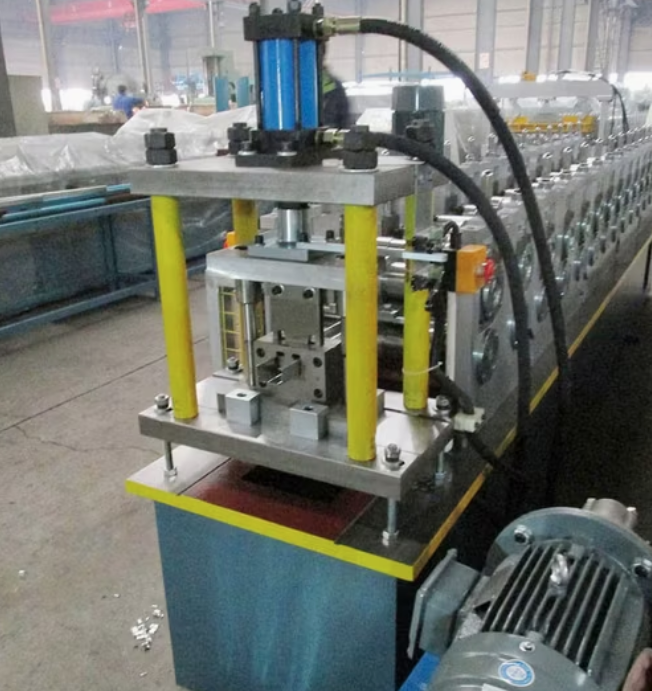

| Punching/Notching System: | Optional inline hydraulic punching unit |
| Machine Frame: | Welded steel base frame with integrated leveling feet |
| Thickness of Frame Steel: | 18–25 mm |
| Profile Shape: | C Stud, U Track, and customized profiles |
| Profile Width and Depth: | Stud: 50–150 mm wide, Track: 40–150 mm wide, depths as per drawing |
| Length Tolerance: | ±1 mm |
| Safety Features: | Emergency stop, overload protection, interlocked safety guards |
| Protective Covers/Guards: | Full enclosure or partial safety guards depending on customer requirements |
| Emergency Stop Button: | Yes, placed at control panel and accessible points |
| Overload Protection System: | Included in electrical and hydraulic systems |
Location & Delivery:
This machine is custom-built and can be delivered anywhere in the UAE, including:
Dubai
Abu Dhabi
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Umm Al Quwain
Machines are manufactured to customer-specific profile sizes, power requirements, and capacity demands. Lead time and delivery details can be finalized during consultation.
Warranty and Support:
1-Year Warranty from date of dispatch
After-sales maintenance and repair support
Remote setup guidance and optional on-site installation
Pricing:
The price varies based on:
Production speed
Roller stations
Automation level
Included extras (e.g., punching unit, hydraulic decoiler, stacking system)
Contact us at [email protected] with your profile drawing, material gauge, and capacity needs to receive a tailored quote.
Frequently Asked Questions (Q&A):
Q1: What profiles can this machine produce?
A: It can manufacture C studs, U tracks, and custom wall/ceiling framing profiles. You can send us a drawing to match your exact needs.
Q2: Can I run both aluminum and steel in the same machine?
A: Yes. As long as the thickness and width fall within the specified range, the machine can be used with galvanized steel, cold-rolled steel, and aluminum.
Q3: Is installation support available in the UAE?
A: Yes. We provide full remote installation guidance and can arrange in-person setup support if required.
Q4: Can I include punching holes or notches for electrical access?
A: Absolutely. An optional hydraulic punching system can be added for notching, holes, or embossing as per your drawing.
Q5: What is the expected delivery time?
A: Lead time typically ranges from 6 to 10 weeks depending on customization and order volume.
Q6: Is it possible to add a stacking system or automatic length measuring?
A: Yes. Optional features include auto-stacker, precision measuring sensors, and servo-driven flying shear for zero-stop cutting.
Get a Tailored Machine Quote Today
Email your profile drawing, material specifications, and location to:
[email protected]
All machines are new, built to your specifications, and backed by trusted global delivery and support.
