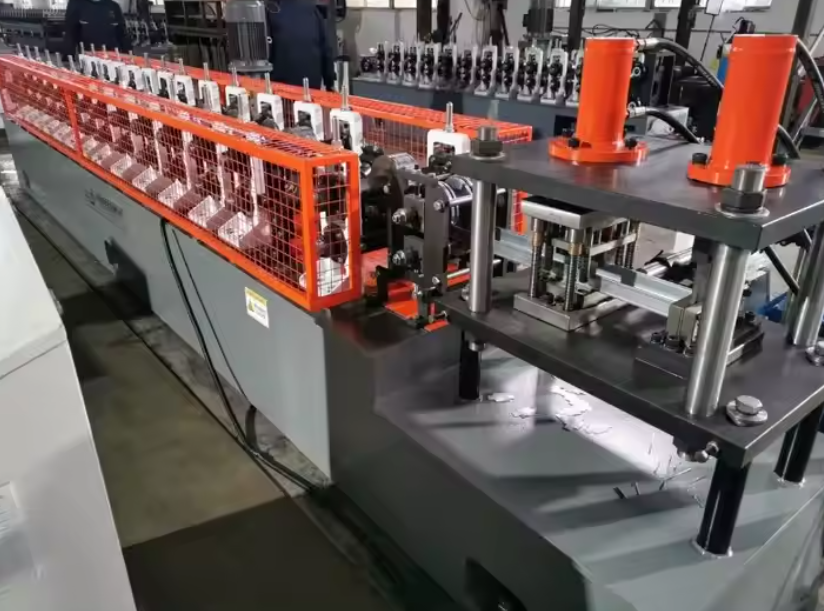

Metal Stud Roll Forming Machine – Available in UAE from Machine Matcher
Precision-built for steel framing, delivered across Abu Dhabi, Dubai, Sharjah, and beyond.
The Metal Stud Roll Forming Machine available from Machine Matcher is engineered for high-speed, accurate, and continuous production of metal studs and tracks used in drywall and structural framing systems. Ideal for operations in the UAE, this machine is designed to support construction, infrastructure, and modular building industries with robust performance and long-term reliability.
Whether you’re based in Abu Dhabi, Dubai, Sharjah, or any other emirate, this roll forming machine can be customized to match your profile specifications and delivered directly to your facility. It comes with high-efficiency output, precision tooling, advanced safety systems, and a tailored control interface – all built to help you scale production while reducing waste and improving final product consistency.
Machine Type: Metal Stud Roll Forming Machine
Production Speed: Up to 30 meters per minute
Material Thickness Range: 0.4 mm – 1.2 mm
Material Width Range: 50 mm – 600 mm
Material Types: Galvanized Steel (GI), Galvalume, Cold Rolled Steel
Material Yield Strength: Up to 550 MPa (80 ksi)
Roller Material: High-grade GCr15 steel
Roller Surface Treatment: Hard chrome-plated for corrosion resistance and longevity

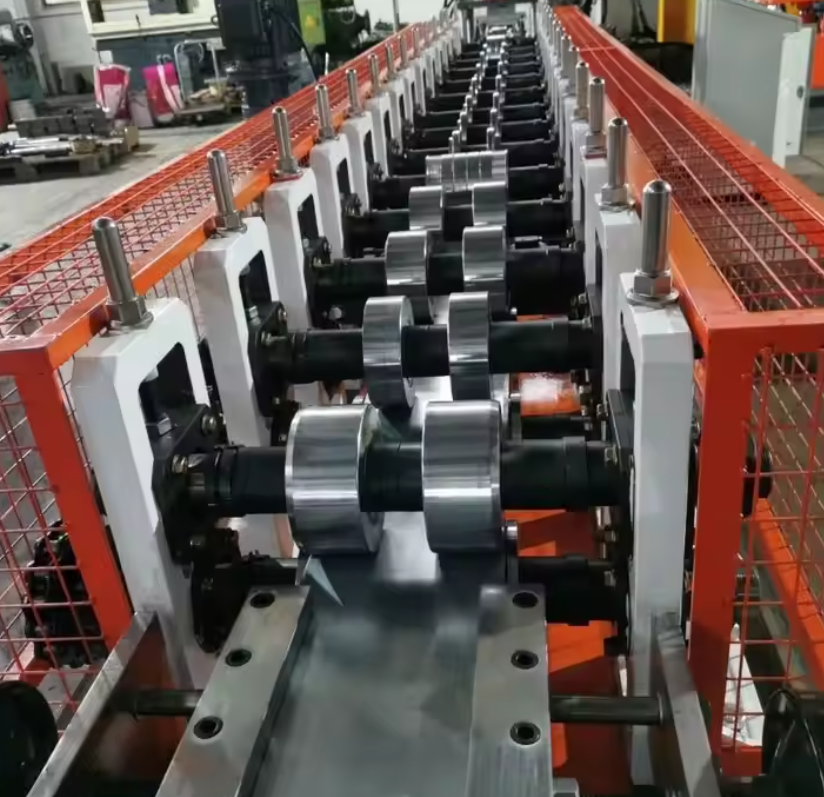

Number of Forming Stations: 12–20 stations depending on profile design
Roller Shaft Diameter: 50 mm
Shaft Material: Solid 45# steel, heat-treated
Main Drive Type: Chain Drive or Gearbox Drive
Power: 380V / 50Hz / 3 Phase (or customized for UAE requirements)
Motor Power: 7.5 kW – 15 kW depending on configuration

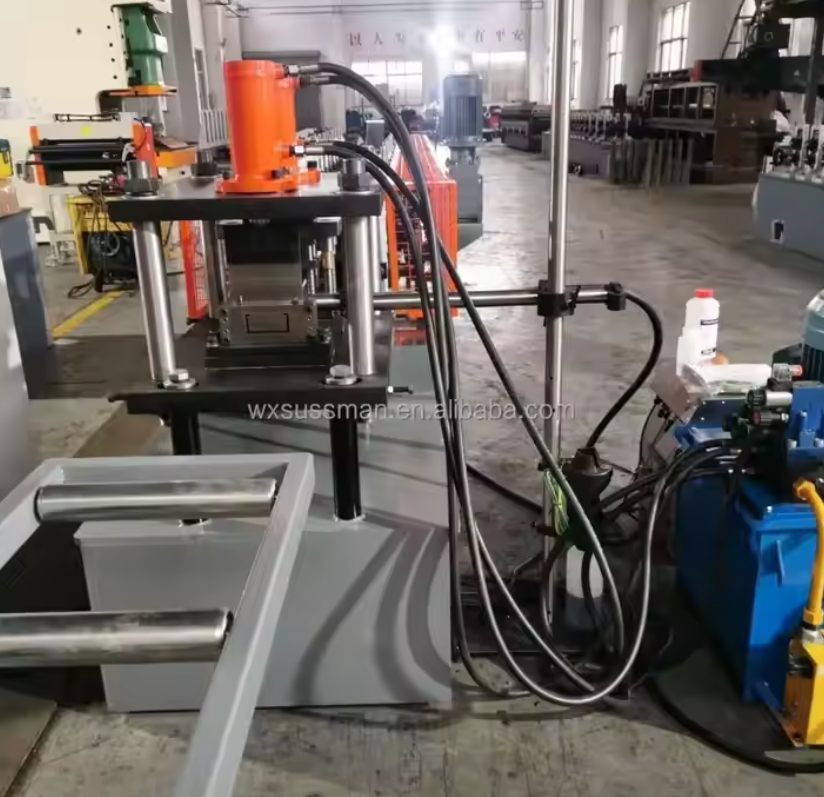

Cutting Method: Hydraulic flying cut-off
Blade Material: Cr12MoV hardened steel
Control Type: PLC Control (Siemens or equivalent)
Operating Mode: Automatic and Manual
De-coiling System: Manual or hydraulic decoiler (3–5 tons)
Punching/Notching System (if included): Hydraulic with programmable positioning
Machine Frame: Heavy-duty steel welded frame
Thickness of Frame Steel: 18–25 mm
Profile Shape: Customizable stud and track shapes
Profile Width and Depth: Based on customer profile drawings
Length Tolerance: ±1 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Custom profile shapes and branding
Optional punching stations for electrical or plumbing access
Motor power adjustments for higher productivity
Upgraded control systems with touchscreen HMI
Logo embossing
Servo cutting for improved length precision
Inline pre-punching or multi-profile support
This metal stud roll forming machine caters to a wide range of industries, including:
Light steel framing for commercial and residential buildings
Interior drywall framing (studs and tracks)
Framing for prefabricated housing and modular structures
Utility framing and cable tray supports
Partition systems in commercial interiors
Custom panel production for flat pack structures and housing units
Temporary site cabins and portable units
Drywall Framing: Mass production of C and U profiles for partition walls and ceilings.
Load-Bearing Frames: Heavy-gauge stud production for structural framing in prefab units.
Cable Channels: Narrower profiles formed for service lines and conduits in industrial installations.
At Machine Matcher, every roll forming machine is custom-built to meet the exact needs of your business. We prioritize:
✅ Profile Customization – Built for your unique drawing
✅ Durability & Efficiency – Chrome-coated rollers, hardened shafts
✅ Smart Automation – Siemens PLC with touch interface
✅ High Output, Low Waste – 30 m/min speed with ±1 mm accuracy
✅ Comprehensive Support – Remote and on-site installation, 1-year warranty
✅ Trusted Delivery in UAE – From Dubai to Abu Dhabi, Sharjah, and beyond
Compared to standard market alternatives, our machines offer greater output per kW consumed, minimal changeover time, and longer operational life with less maintenance—delivering long-term cost savings and production stability.
Q: Can the machine be customized for our profile?
A: Yes. We build each machine to match your supplied profile drawings and production specifications.
Q: What type of material is normally used with this machine?
A: Most users run galvanized steel (GI), cold rolled steel, or galvalume in gauges from 0.4 mm to 1.2 mm with 40–80 ksi tensile strength (approx. 275–550 MPa).
Q: Is remote installation support available?
A: Yes, we offer remote video support, and on-site installation is available upon request.
Q: What is the lead time for manufacturing and shipping?
A: Production usually takes 30–60 days, and shipping time varies depending on your UAE location and customs clearance.
Q: What affects the final price?
A: Final pricing depends on:
Number of forming stations
Profile complexity
Optional features (decoiler, punching units, branding)
Automation level
Shipping and installation requirements
Prices start from: $48,000 USD
(Indicative base pricing; customizations may increase final cost.)
To receive a tailored quotation, customers are encouraged to share their profile drawings, required output, material type, and location. This ensures the best-fit machine is quoted.
Send all details directly to: [email protected]
This machine is available exclusively from Machine Matcher and can be delivered across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and all surrounding emirates. Each unit is brand new, custom-built, and backed by expert installation and post-sale service support.
✅ One-Year Warranty from the date of dispatch
✅ Ongoing support for maintenance and repairs
✅ Remote diagnostics and training available
Choose Machine Matcher for precision-engineered, high-performance metal stud roll forming machines built to elevate your production output.
